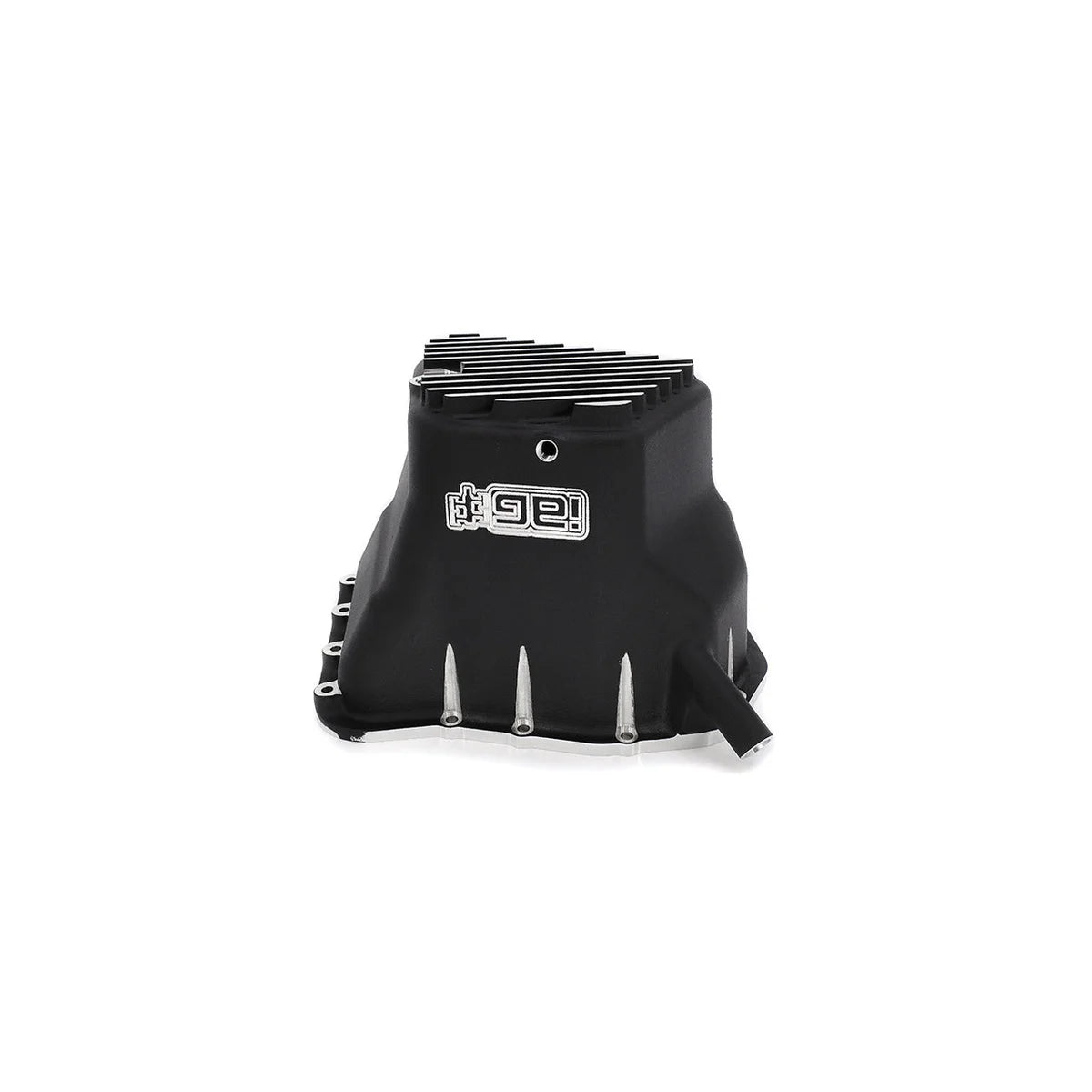

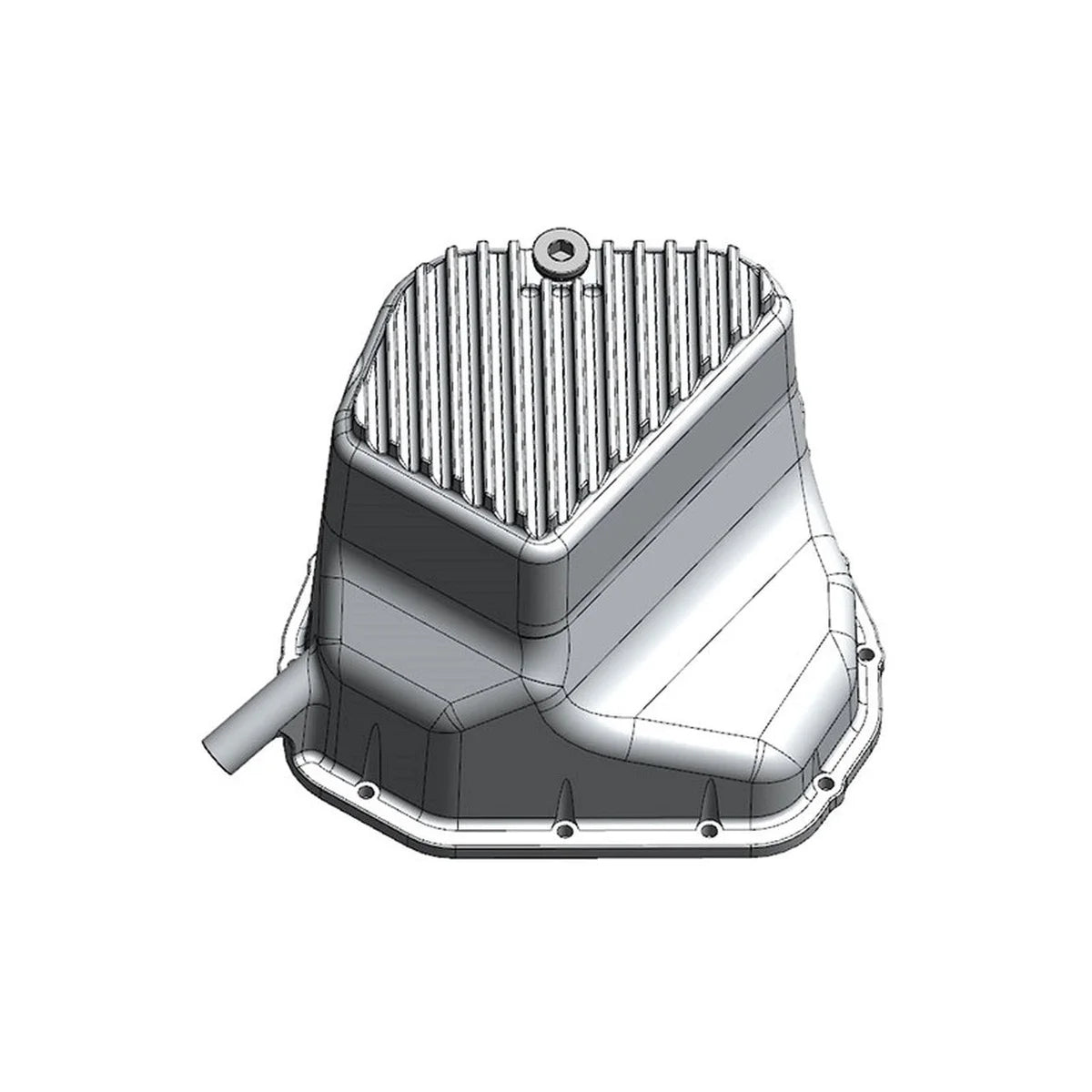

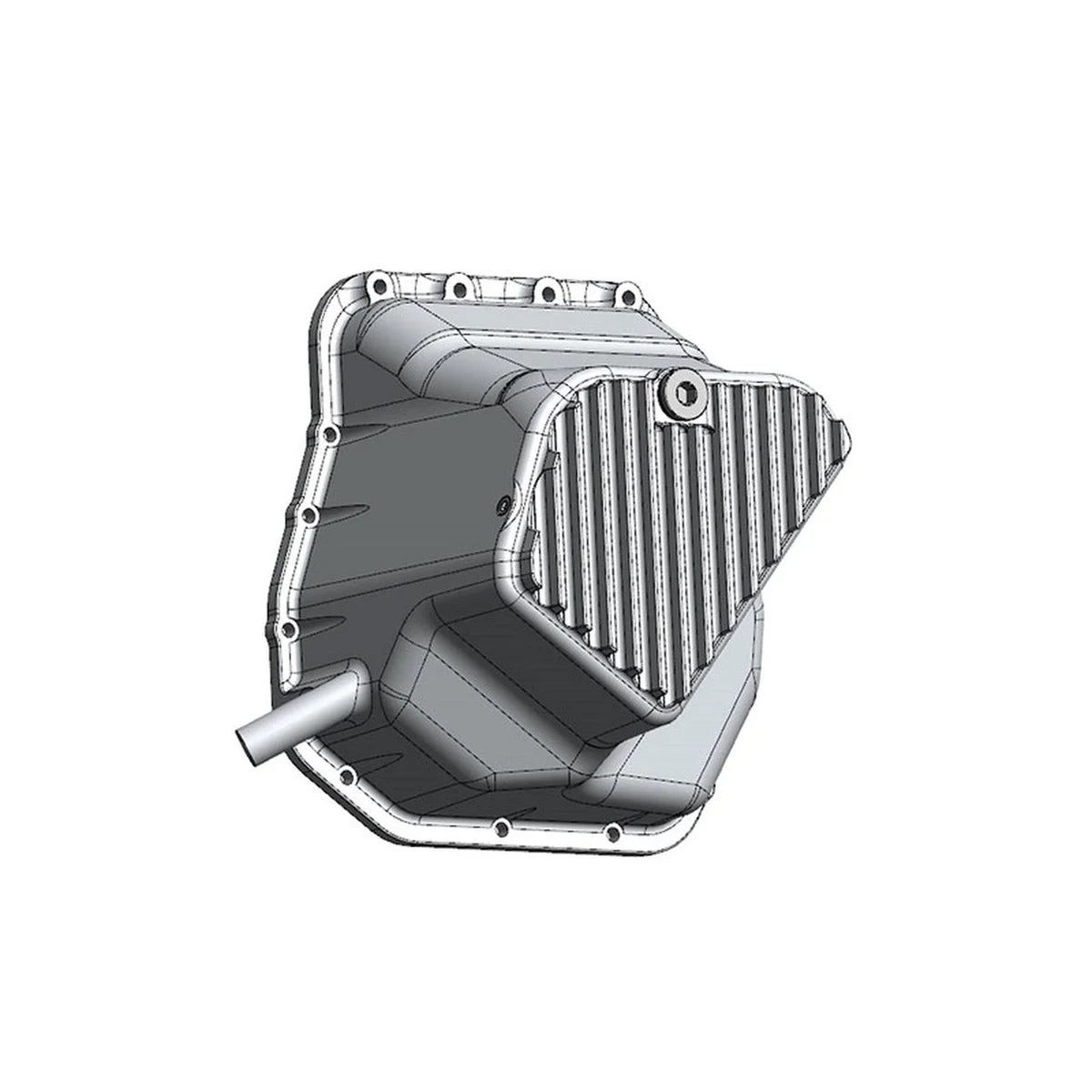

The IAG Performance EJ Street Series Oil Pan for the Subaru WRX, STI, LGT and FXT is uniquely designed and CNC machined to suit a wide range of street and track applications. This Street Series Oil Pan is constructed from extremely durable cast aluminum and was engineered to work with a larger variety of popular headers in mind, while still increasing oil capacity up to 30% over OEM. The design incorporates cooling fins to aid in dissipating heat from the oil as air passes over them. The included oil drain plug is integrated into the lower cooling fins at the absolute bottom of the pan to make sure all the waste oil is removed during maintenance changes. The oil drain plug uses an OEM style crush washer. The oil pan is also threaded with 1/8th inch NPT port to accept many popular oil temperature sensors. 1/8th inch NPT plug is also included in the event that the sensor port is not used.The upper flange mounting surface is CNC machined for better hardware fitment. The flange features a sealing O-ring for easier installation and removal. The pan is designed to use the included OEM style Viton dipstick o-rings with a unique chamfer to aid in the installation of the dipstick. About Street Series Oil Pan BaffleInternally, the pan includes our integrated, stainless steel, Street Series Oil Baffle that is designed to prevent oil inside the pan from sloshing around and creating cavitation, which can lead to oil starvation. The baffle is engineered to be removable for future upgrades and easy cleaning. This pan is compatible with the PN# IAG-ENG-2087 Oil Control Baffle and Windage Tray, or our new PN# IAG-ENG-2210 Windage Tray. The pan is designed to work with the IAG, Killer B and OEM oil pickup.
| Prop 65 - Short Label |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Title |
IAG Performance EJ Street Series Oil Pan for 02-14 WRX, 04-21 STI, 05-09 LGT, 04-13 FXT (Black). |
| 1944 |
Yes |
| 17 |
Black |
| 200 |
Thermal Dispersant Coating |
| 353 |
Yes |
| 10 |
Aluminum |
| 1948 |
Yes |
| 3390 |
Performance |
| 14 |
13 |
| 356 |
20 |
| 1953 |
No |
| 1956 |
No |
| 9003 |
3.175 MM |
| 1315 |
5.5 |
| 1945 |
No |
| 1947 |
Yes |
| 1950 |
No |
| 1952 |
No |
| Description_SHO |
Oil Pan |
| Description_INV |
IAG Performance Oil Pan |
| Description_ASC |

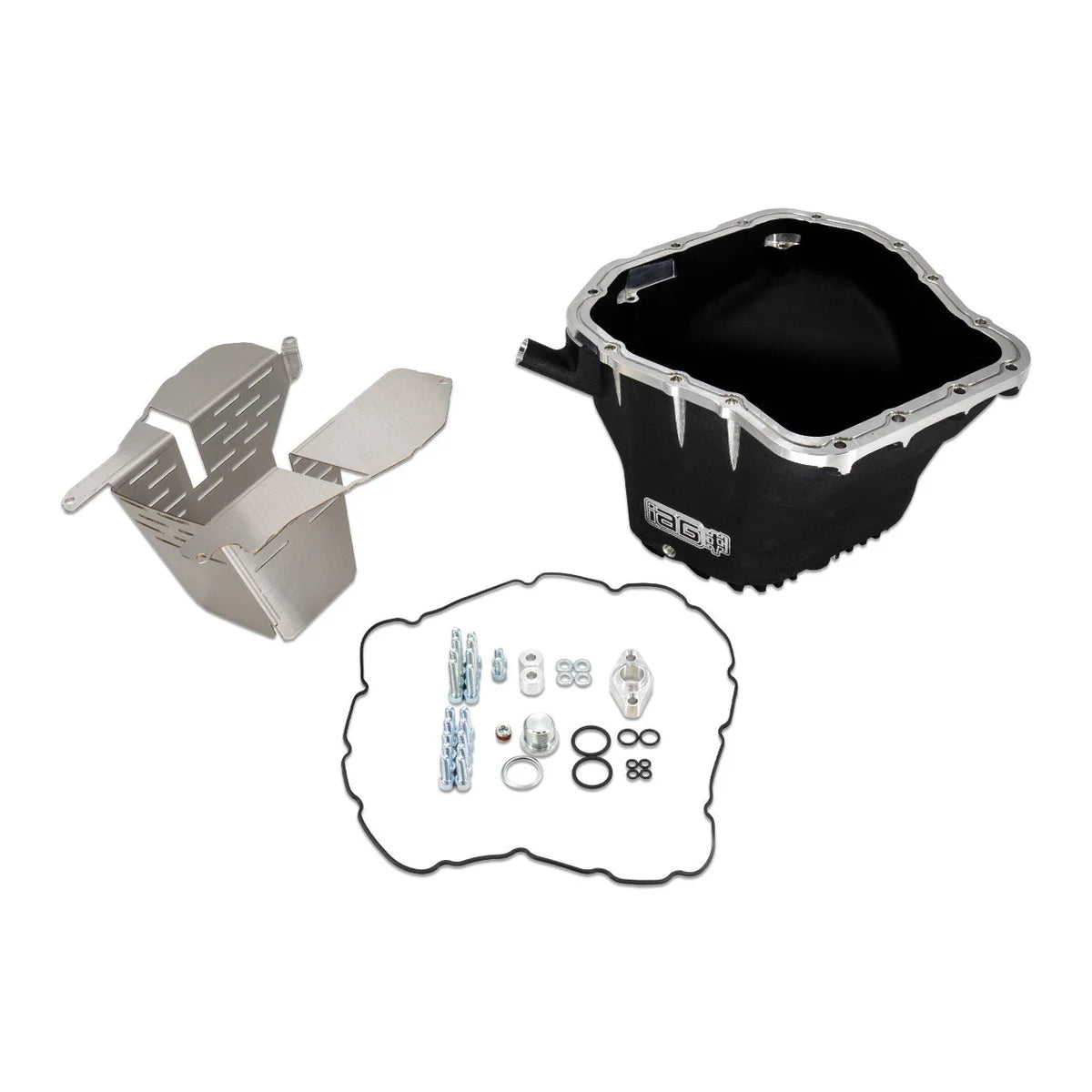

Package Includes: (x1) IAG Cast Aluminum Oil Pan with Machined Flanges, Cooling Fins & Black Finish, (x1) IAG Street Series Oil Pan Baffle, (x1) Oil Pan Mounting Hardware Pack, (x1) Oil Baffle Hardware Pack, (x1) Oil Pickup Spacer Kit - PN#IAG-ENG-2081SP, (x1) M20 Zinc Plated Oil Drain Plug and OEM Style Crush Washer/Gasket, (x1) 1/8" NPT Zinc Plated Plug, (x1) Oil Pan O-ring, (x2) Oil Pan Dipstick Viton OEM-Sized O-rings, All necessary hardware required for install |
| Description_ASC |
Install Notes: IAG oil pickup spacer (Part# IAG-ENG-2081SP) is included and required when using the IAG oil pickup or Killer B oil pickup. The pan is designed to work with the IAG and Killer B oil pickup. Does NOT work with the Moroso Oil Pickup for IAG Oil Pan Install |
| Description_KSW |
IAG Performance |
| Description_LAB |
EJ Street Series Oil Pan(Black) |
| Description_DES |
EJ Street Series Oil Pan(Black) |
| Description_APS |
Subaru: Forester 2004 - 2013, Subaru: Impreza 2002 - 2014, Subaru: Legacy 2005 - 2009, Subaru: WRX STI 2015 - 2021 |
| Description_EXT |
IAG EJ Street Series Oil Pan for 02-14 WRX, 04-21 STI, 05-09 LGT, 04-13 FXT (Black). |
| Description_MKT |
The IAG Performance EJ Street Series Oil Pan for the Subaru WRX, STI, LGT and FXT is uniquely designed and CNC machined to suit a wide range of street and track applications. This Street Series Oil Pan is constructed from extremely durable cast aluminum and was engineered to work with a larger variety of popular headers in mind, while still increasing oil capacity up to 30% over OEM. The design incorporates cooling fins to aid in dissipating heat from the oil as air passes over them. The included oil drain plug is integrated into the lower cooling fins at the absolute bottom of the pan to make sure all the waste oil is removed during maintenance changes. The oil drain plug uses an OEM style crush washer. The oil pan is also threaded with 1/8th inch NPT port to accept many popular oil temperature sensors. 1/8th inch NPT plug is also included in the event that the sensor port is not used.The upper flange mounting surface is CNC machined for better hardware fitment. The flange features a sealing O-ring for easier installation and removal. The pan is designed to use the included OEM style Viton dipstick o-rings with a unique chamfer to aid in the installation of the dipstick. About Street Series Oil Pan BaffleInternally, the pan includes our integrated, stainless steel, Street Series Oil Baffle that is designed to prevent oil inside the pan from sloshing around and creating cavitation, which can lead to oil starvation. The baffle is engineered to be removable for future upgrades and easy cleaning. This pan is compatible with the PN# IAG-ENG-2087 Oil Control Baffle and Windage Tray, or our new PN# IAG-ENG-2210 Windage Tray. The pan is designed to work with the IAG, Killer B and OEM oil pickup. |
| Description_FAB |
Increased capacity and additional cooling fins to reduce oil temps, |
| Description_FAB |
Bottom facing drain plug ensures complete drainage |
| Description_FAB |

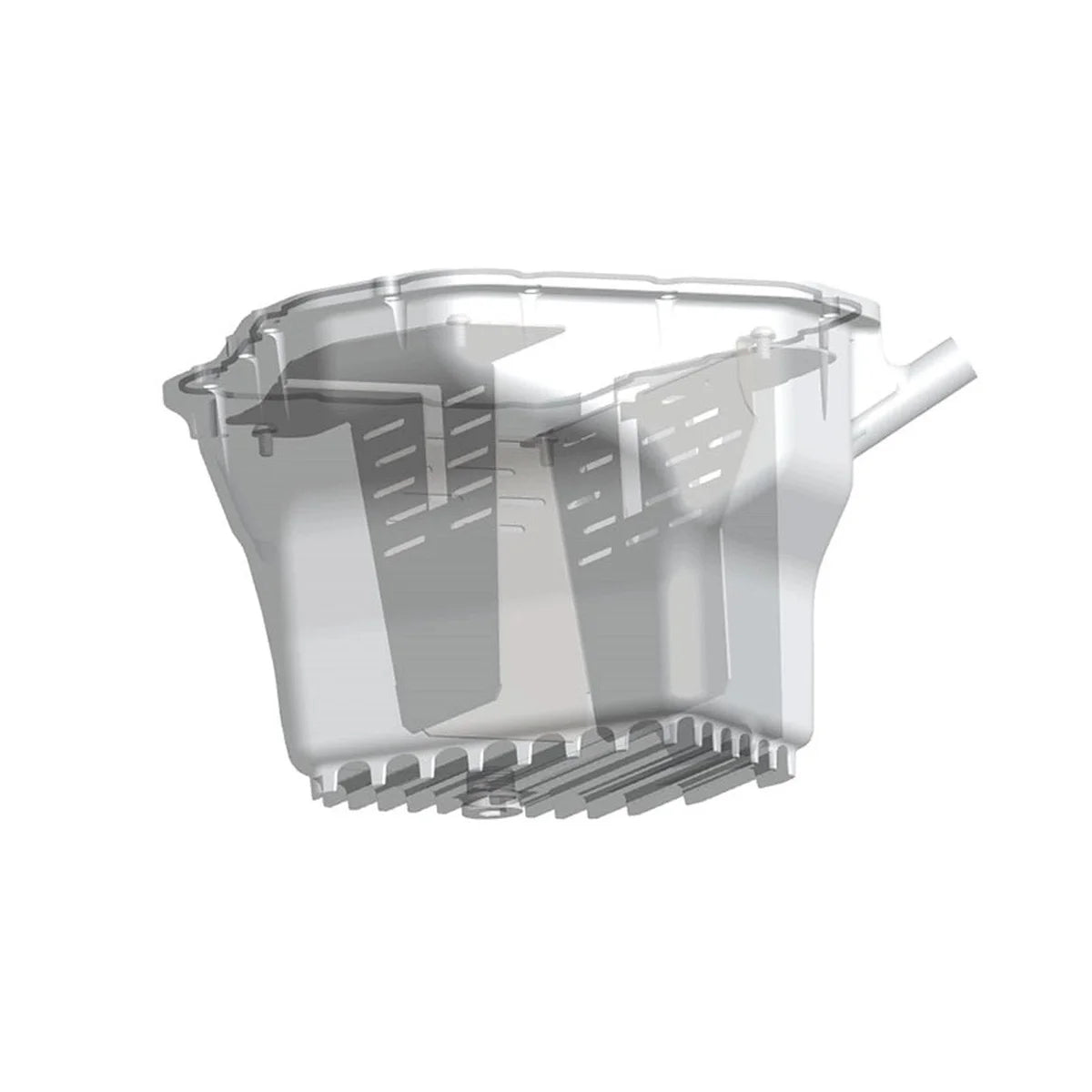

Internally baffled to ensure oil pickup stays submerged. |
| Description_TLE |
IAG Performance EJ Street Series Oil Pan for 02-14 WRX, 04-21 STI, 05-09 LGT, 04-13 FXT (Black). |
| Description_DEF |
Engine Oil Pan |
