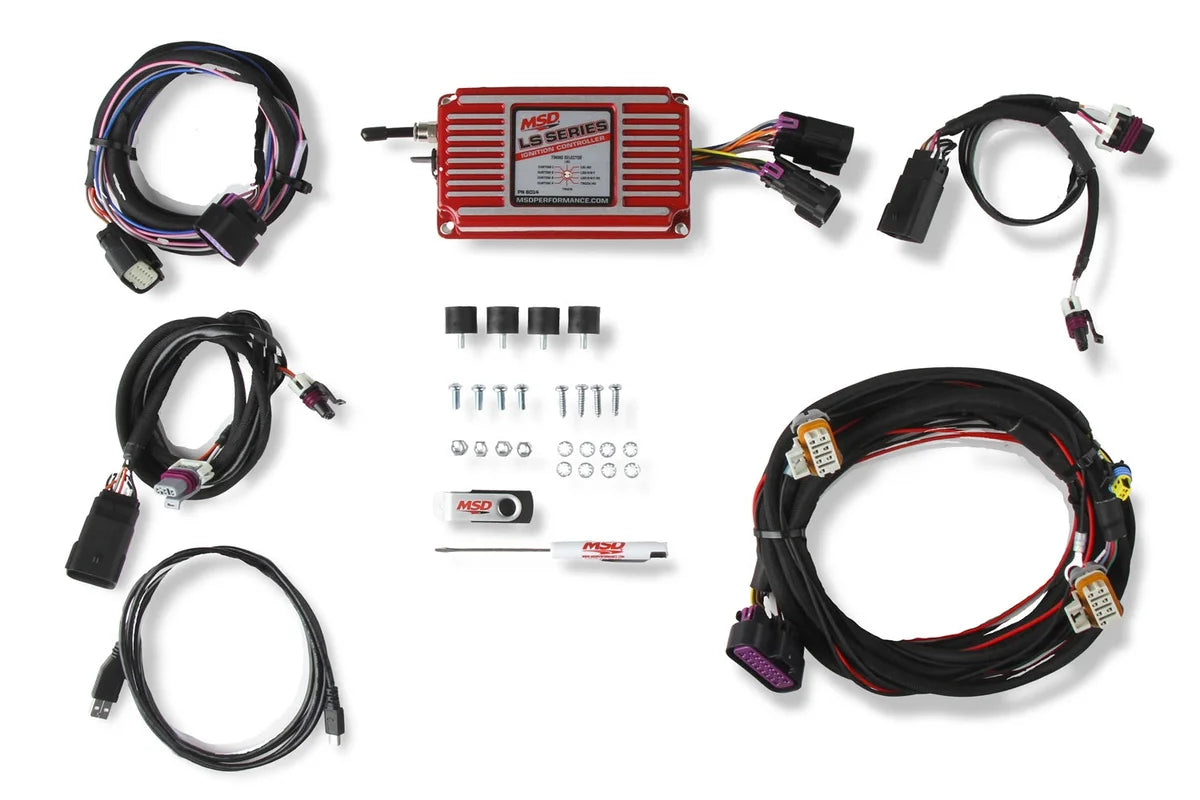

MSD 24x/1x and 58x/4x Crank/Cam LS Configurations 6014

As the popularity of GM LS engines continues to grow, so does the demand for a powerful, reliable, and easily adaptable ignition system. MSD has answered this demand with an updated and improved version of the popular 6LS box. Whether using a stock crate engine or building a custom powerhouse, the MSD LS Ignition provides the control you need to achieve the performance you want. Dial in the perfect tune for your LS using the easily adjustable preset timing curves or hook up to your computer and program a custom setup with our user-friendly MSD View software. New features of the LS Ignition include, high-speed data acquisition, an optional coolant temperature sensor input, idle timing control, as well as individual cylinder timing. These features are in addition to the existing programmable step retard, launch retard, and RPM rev limiters from its predecessor.

Specifications:

43	Male
342	2
3390	Performance
31	4.6
Ignition Type	Performance
14	13.1
349	Surface Mount
30	Yes
44	Male
24	6.6
Brand	MSD
Category	Ignition
Color	Red
Emission Code	8
Engine	GM Gen III/IV (LS)
Product Type	LS Ignition Control Box
Voltage Required	12 Volts
Warning	California Proposition 65
Warranty	Manufacturer's Limited 1 Year Warranty
Description_INV	Ignition control, timing/rev LS series
Description_ASC	1. Can be installed on both 24x and 58x crank trigger engines 2. Use on carbureted or fuel injected engines 3. Does not control fuel 4. PN 6014 will replace PN 6010 and PN 6012 5. Optional coolant temperature sensor GM PN 12608814
Description_DES	MSD LS Ignition Control - Red
Description_EXT	24x/1x and 58x/4x Crank/Cam LS Configurations

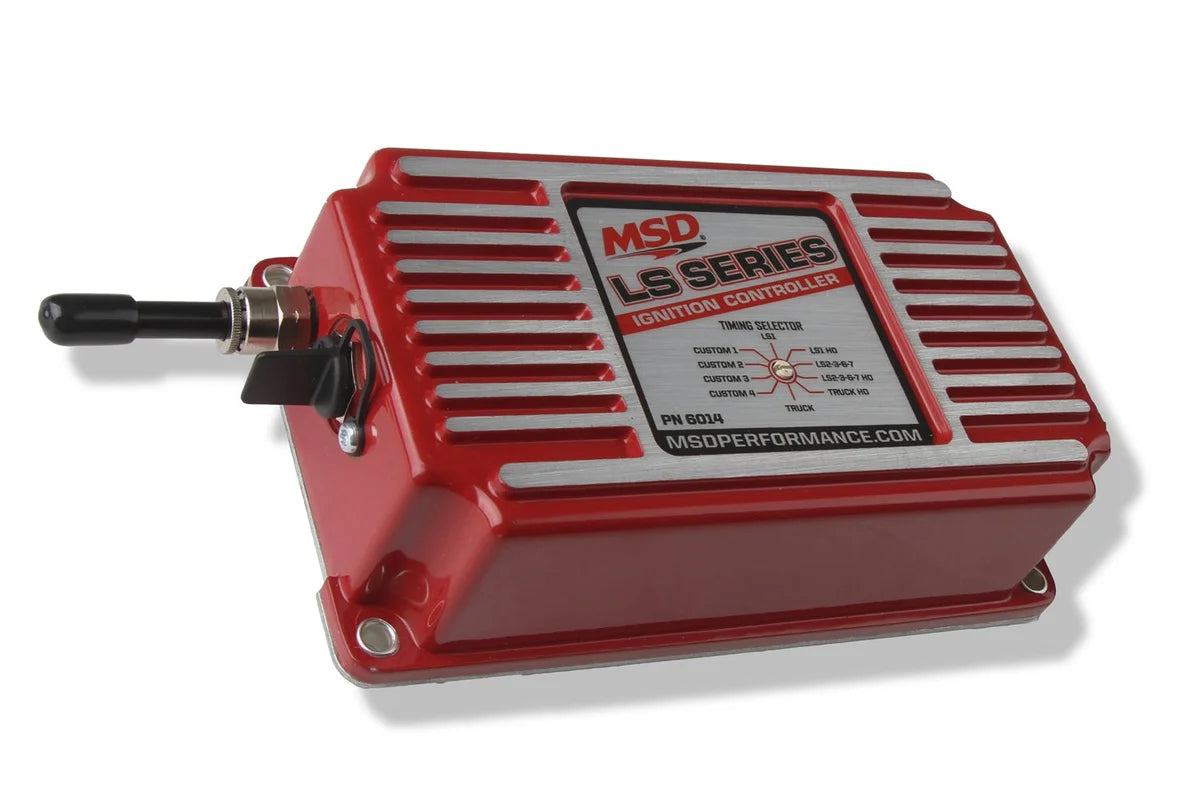

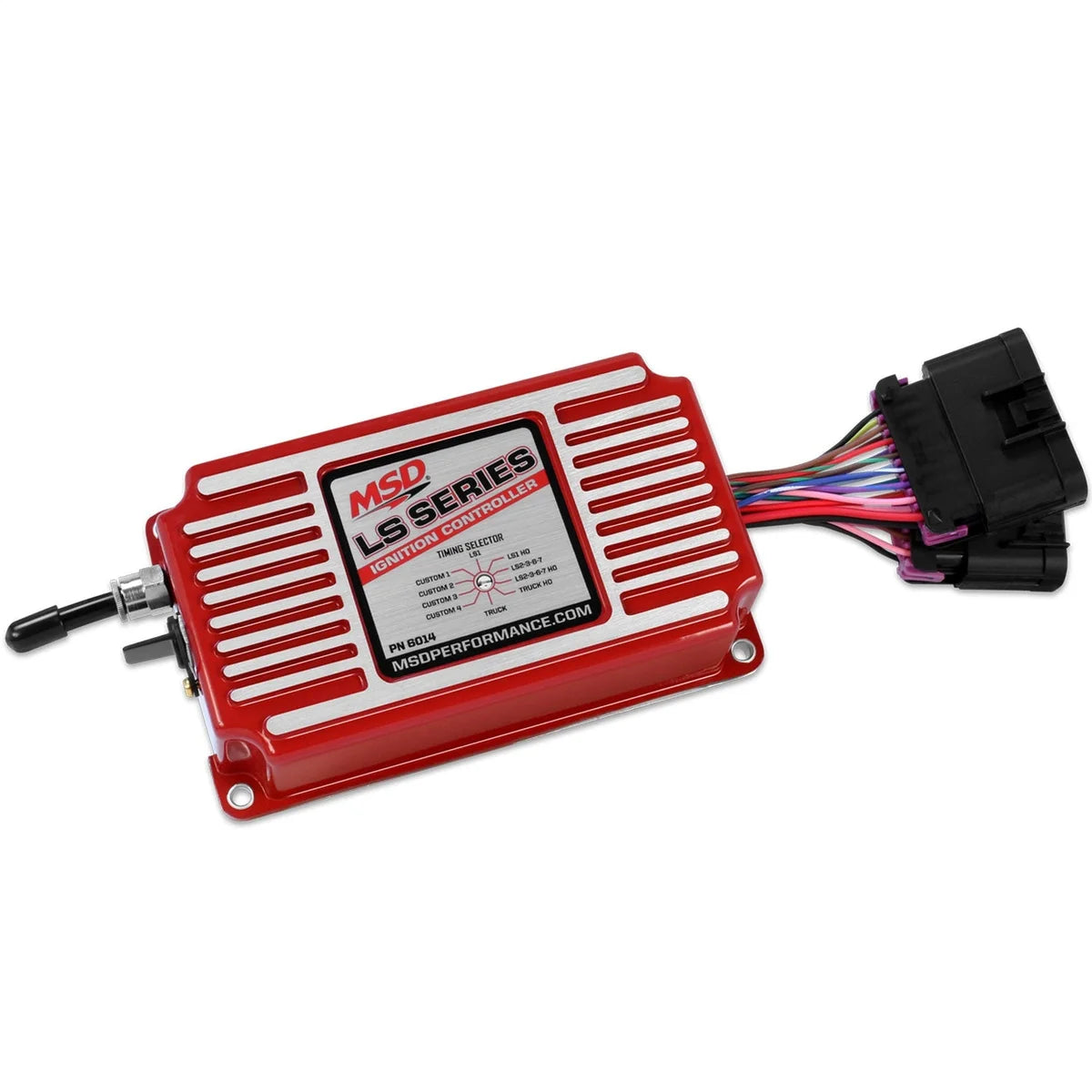

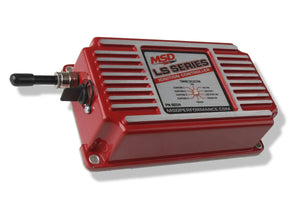

Description_MKT	The MSD 6014 LS Ignition controller works with 24x/1x and 58x/4x crank/cam configurations. It auto-detects the correct configuration based on the reluctor wheel pattern, so there is no need to select one. It provides six pre-programmed (non-editable) timing tables for stock engines, three customizable 3-D tables, and one customizable timing plot. The desired table/plot is selected on the fly using the rotary dial. The customizable tables and plots can be programmed via MSDView.
Description_MKT	The LS Ignition controller includes a built-in 2.5 Bar MAP sensor that can be used with Naturally Aspirated or boosted applications. This allows for timing advance or retard based on the intake manifold pressure.
Description_MKT	8MB of internal data logging is also included so you can set up, record, and review passes at the track.
Description_MKT	As the popularity of GM LS engines continues to grow, so does the demand for a powerful, reliable, and easily adaptable ignition system. MSD has answered this demand with an updated and improved version of the popular 6LS box. Whether using a stock crate engine or building a custom powerhouse, the MSD LS Ignition provides the control you need to achieve the performance you want. Dial in the perfect tune for your LS using the easily adjustable preset timing curves or hook up to your computer and program a custom setup with our user-friendly MSD View software. New features of the LS Ignition include, high-speed data acquisition, an optional coolant temperature sensor input, idle timing control, as well as individual cylinder timing. These features are in addition to the existing programmable step retard, launch retard, and RPM rev limiters from its predecessor.
Description_FAB	Fits most LS Engines
Description_FAB	No PC required for basic functionality
Description_FAB	Six preprogrammed timing tables for easy set-up
Description_FAB	Rotary selector switch allows timing changes on the fly
Description_FAB	Nitrous and boost compatible
Description_FAB	High speed data acquisition
Description_FAB	Fully Sealed direct plugin connectors
Description_FAB	Programmable step retard
Description_FAB	Launch and max rev limiters
Description_FAB	Optional coolant temperature sensor input
Description_FAB	Launch retard
Description_FAB	Idle timing control
Description_FAB	Individual cylinder timing
Description_FAB	Compatible with all MSD, Accel and GM LS coils
