For nitrous-equipped cars, the Digital-6 Plus offers a step retard that will retard the timing when the nitrous is activated. There is also a 2-step rev limiter for holeshot consistency and overrev protection.
Specifications:
| 43 | Male Female |
| 342 | 1 |
| 3390 | Performance |
| 31 | 2.2 |
| Ignition Type | Performance |
| 14 | 8.5 |
| 349 | Surface Mount |
| 30 | Yes |
| 44 | Male Female |
| 42 | 10 |
| 24 | 4.5 |
| Brand | MSD |
| Category | Ignition |
| Color | Red |
| Current Draw | 1000 |
| Emission Code | 1 |
| Primary Voltage | 535 |
| Product Type | Digital 6-Plus Ignition Control Box |
| Secondary Voltage | 45,000 |
| Spark Series Duration | 20° Crankshaft Rotation |
| Sub Category | Control Modules |
| Voltage Required | 12-18 |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| Weight and Size | 3.7 lbs., 8.5L x 4.5W x 2.2H |
| Maximum RPM | 12,500 |
| Spark Energy (mJ per spark) | 135 |
| 43 | Male Female |
| 342 | 1 |
| 3390 | Performance |
| 31 | 2.2 |
| Ignition Type | Performance |
| 14 | 8.5 |
| 349 | Surface Mount |
| 30 | Yes |
| 44 | Male Female |
| 42 | 10 |
| 24 | 4.5 |
| Brand | MSD |
| Category | Ignition |
| Color | Red |
| Current Draw | 1000 |
| Emission Code | 1 |
| Primary Voltage | 535 |
| Product Type | Digital 6-Plus Ignition Control Box |
| Secondary Voltage | 45,000 |
| Spark Series Duration | 20° Crankshaft Rotation |
| Sub Category | Control Modules |
| Voltage Required | 12-18 |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| Weight and Size | 3.7 lbs., 8.5L x 4.5W x 2.2H |
| Maximum RPM | 12,500 |
| Spark Energy (mJ per spark) | 135 |
| Description_INV | Digital 6-Plus Ign.Control,Microprocesso |
| Description_ASC | CARB EO # D-722-2 |

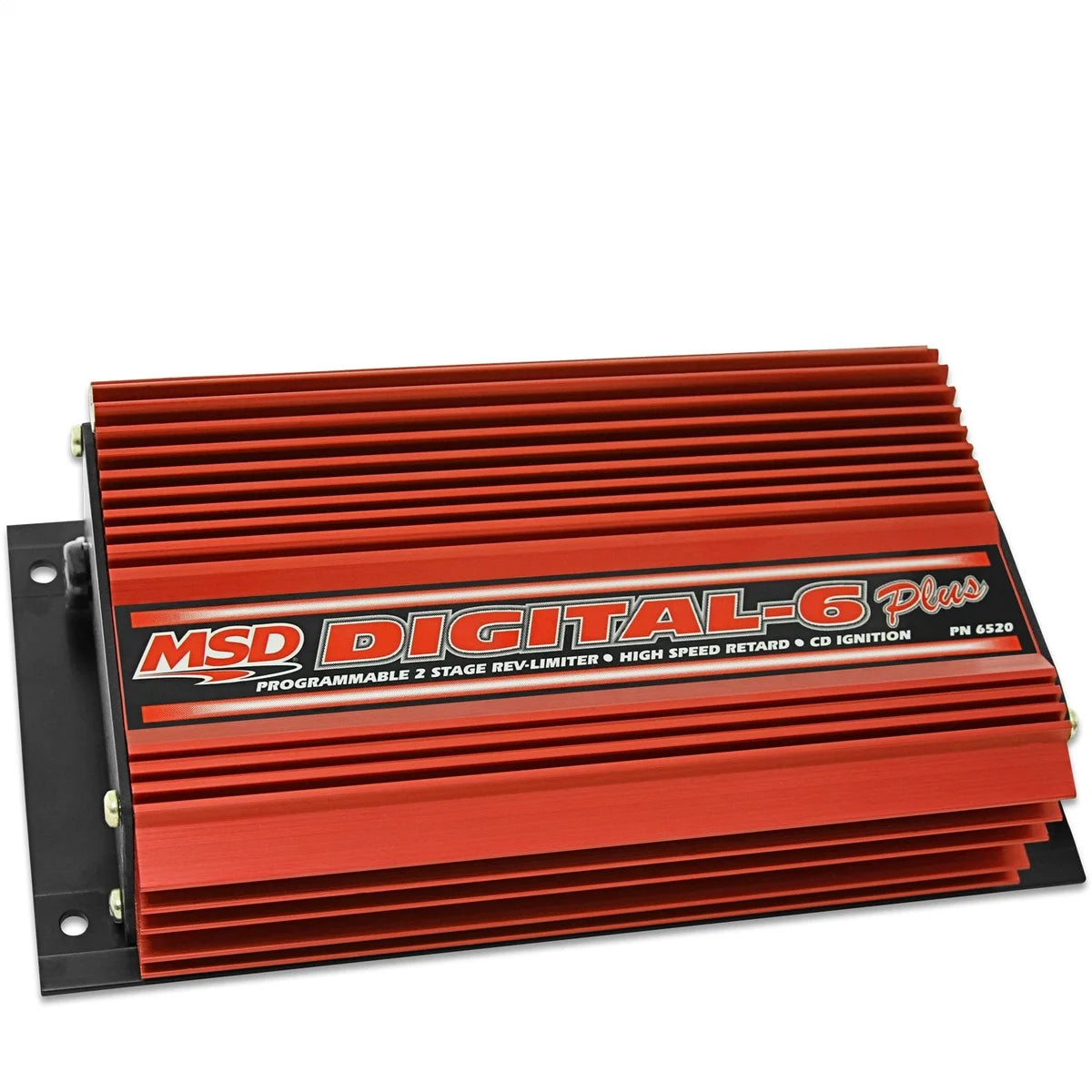

| Description_DES | MSD Digital 6-Plus Ignition Control |
| Description_EXT | Universal - Soft Touch 2 Step Rev Control - 1 Stage Retard Control - Start Retard |
| Description_MKT | Every spark of the Digital-6 Plus Ignition is packed with 135 millijoules of spark energy and 535 primary volts. |
| Description_MKT | The MSD Digital 6 Plus uses a high-speed RISC microcontroller to control the ignition's output while constantly analyzing the various inputs such as supply voltage, trigger signals, and rpm. The high-speed controller can make extremely quick compensations to the output voltage, multiple spark series, timing, and rpm limits while maintaining accurate timing signals to within 1° and 1% of the rpm limits. The circuits and controller of the Digital 6 Plus have been thoroughly debounced and isolated to create protection against Electro-Magnetic Interference (EMI). |
| Description_MKT | The Digital-6 Plus accepts points, amplifier, and mag pickup inputs and will run on 4, 6, or 8 cylinder engines. |
| Description_MKT | The MSD Digital-6 Plus Ignition Control combines terrific power, digital accuracy, and great accessories making it ideal for street/strip applications. |
| Description_MKT | For nitrous-equipped cars, the Digital-6 Plus offers a step retard that will retard the timing when the nitrous is activated. There is also a 2-step rev limiter for holeshot consistency and overrev protection. |
| Description_FAB | 12,500 RPM with 14.4 Volts |
| Description_FAB | Adjustable magnetic pickup compensation produces accurate trigger signals. |
| Description_FAB | Switch between two rev limits that adjust with rotary switches in 100 rpm increments. |
| Description_FAB | 12-18 Volts, Negative Ground |
| Description_FAB | LED display warns of trigger signal problems or faulty charging system. |
| Description_FAB | Start retard eases pressure on the starter, flywheel and engine. |
| Description_FAB | .7 Amp per 1,000 RPM |
| Description_FAB | Single stage retard for nitrous and top end performance. |
| Description_INV | Digital 6-Plus Ign.Control,Microprocesso |
| Description_ASC | CARB EO # D-722-2 |
| Description_DES | MSD Digital 6-Plus Ignition Control |
| Description_EXT | Universal - Soft Touch 2 Step Rev Control - 1 Stage Retard Control - Start Retard |
| Description_MKT | Every spark of the Digital-6 Plus Ignition is packed with 135 millijoules of spark energy and 535 primary volts. |
| Description_MKT | The MSD Digital 6 Plus uses a high-speed RISC microcontroller to control the ignition's output while constantly analyzing the various inputs such as supply voltage, trigger signals, and rpm. The high-speed controller can make extremely quick compensations to the output voltage, multiple spark series, timing, and rpm limits while maintaining accurate timing signals to within 1° and 1% of the rpm limits. The circuits and controller of the Digital 6 Plus have been thoroughly debounced and isolated to create protection against Electro-Magnetic Interference (EMI). |
| Description_MKT | The Digital-6 Plus accepts points, amplifier, and mag pickup inputs and will run on 4, 6, or 8 cylinder engines. |
| Description_MKT | The MSD Digital-6 Plus Ignition Control combines terrific power, digital accuracy, and great accessories making it ideal for street/strip applications. |
| Description_MKT | For nitrous-equipped cars, the Digital-6 Plus offers a step retard that will retard the timing when the nitrous is activated. There is also a 2-step rev limiter for holeshot consistency and overrev protection. |
| Description_FAB | 12,500 RPM with 14.4 Volts |
| Description_FAB | Adjustable magnetic pickup compensation produces accurate trigger signals. |
| Description_FAB | Switch between two rev limits that adjust with rotary switches in 100 rpm increments. |
| Description_FAB | 12-18 Volts, Negative Ground |
| Description_FAB | LED display warns of trigger signal problems or faulty charging system. |
| Description_FAB | Start retard eases pressure on the starter, flywheel and engine. |
| Description_FAB | .7 Amp per 1,000 RPM |
| Description_FAB | Single stage retard for nitrous and top end performance. |
