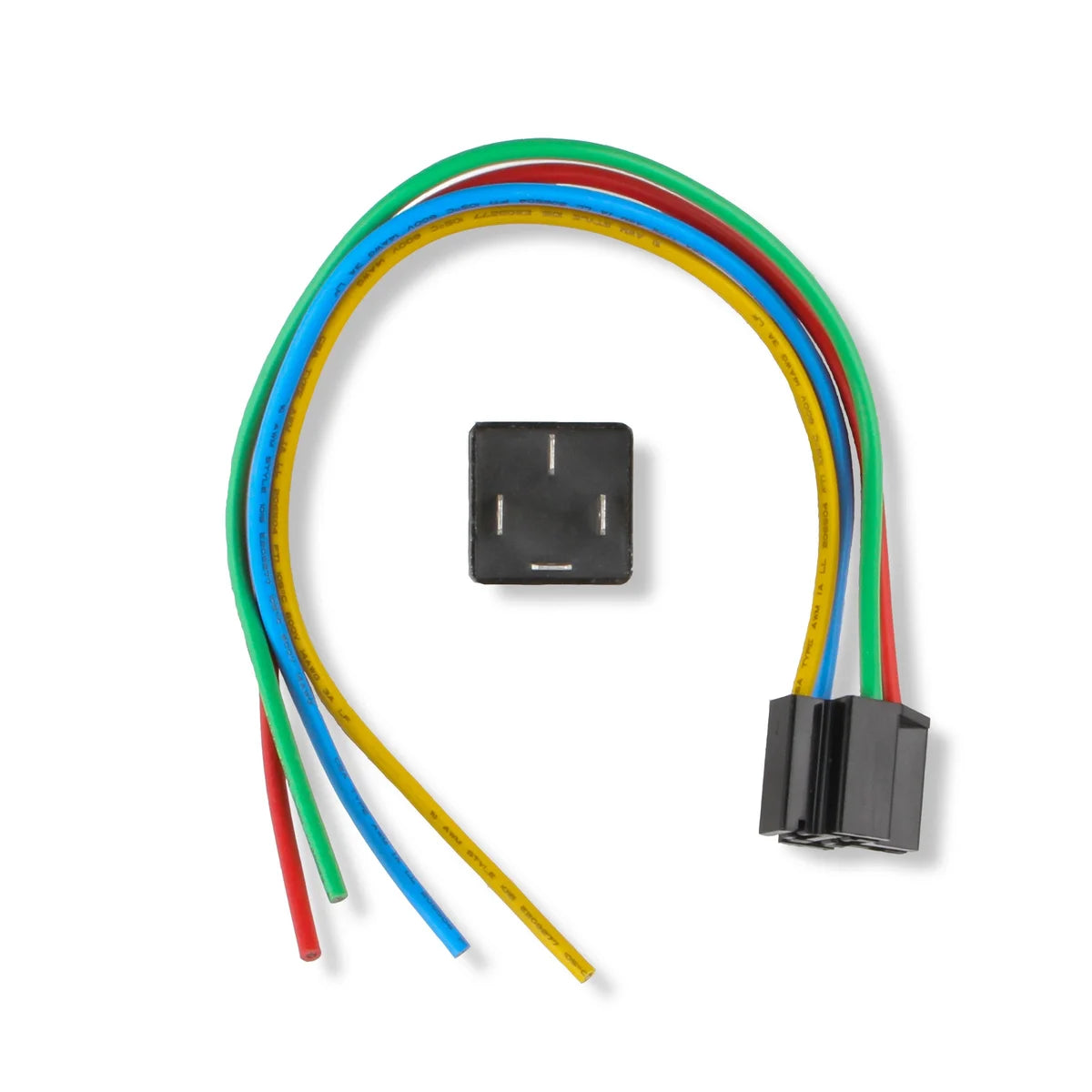

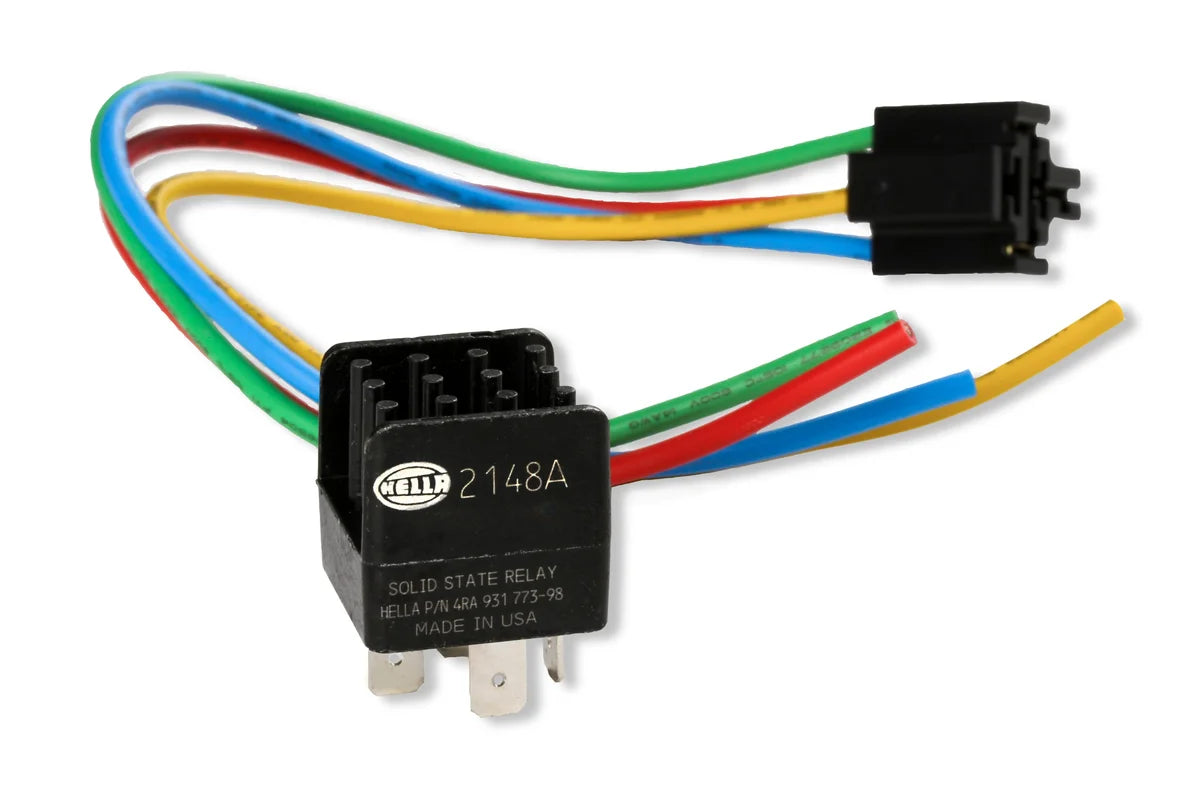

MSD's Solid-State Relay w/harness are ideal for use on electric fuel pumps, water pumps, and cooling fans. The high-power controlled circuit handles 30 amps momentary and 20 amps for continuous use @ 12VDC and is energized by the low-power activation circuit. The pigtail harness has 11" long leads w/ heavy-duty 14-gauge wire.
| Brand |
MSD |
| Category |
Electrical, Lighting and Body |
| Emission Code |
5 |
| part type |
Multi-Purpose Relay |
| Product Type |
Relays |
| Sub Category |
Relays |
| Warning |
California Proposition 65 |
| Warranty |
Manufacturer's Limited 1 Year Warranty |
| Brand |
MSD |
| Category |
Electrical, Lighting and Body |
| Emission Code |
5 |
| part type |
Multi-Purpose Relay |
| Product Type |
Relays |
| Sub Category |
Relays |
| Warning |
California Proposition 65 |
| Warranty |
Manufacturer's Limited 1 Year Warranty |
| Description_INV |
MSD Solid State N/O Relay w/Sckt Harness |
| Description_DES |
MSD Solid State N/O Relay w/Socket Harness |
| Description_EXT |
The SPST Normally Open Relay is rated at 20 amps continuous, supplied with Socket Harness. |
| Description_MKT |
The benefit of a solid-state relay is that it has a faster activation circuit and no moving parts that wear, which increases the life of the relay. The absence of moving parts makes the solid-state relay less sensitive to mechanical shock, vibration and moisture. |
| Description_MKT |
MSD's Solid-State Relay w/harness are ideal for use on electric fuel pumps, water pumps, and cooling fans. The high-power controlled circuit handles 30 amps momentary and 20 amps for continuous use @ 12VDC and is energized by the low-power activation circuit. The pigtail harness has 11" long leads w/ heavy-duty 14-gauge wire. |
| Description_FAB |
Continuous Load - 20Amp |
| Description_FAB |
Max Coil Voltage 16-Volts |
| Description_FAB |

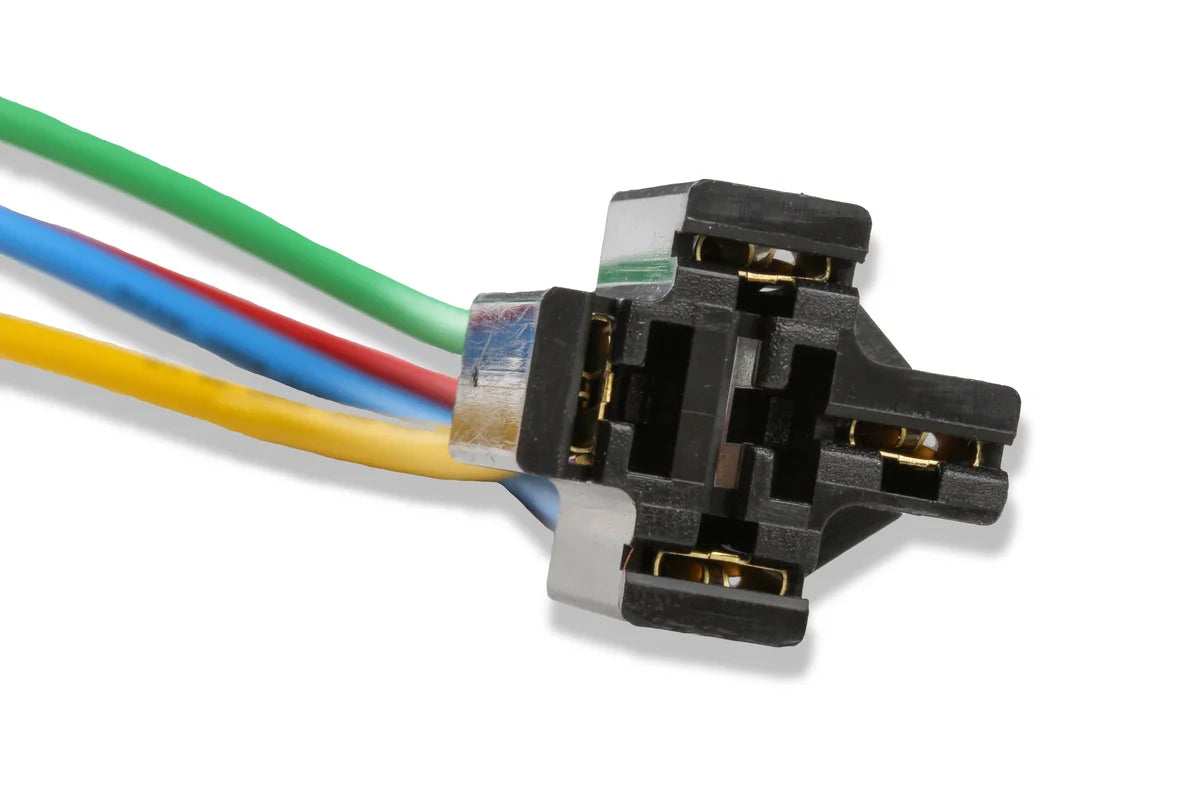

Pigtail harness 14 AWG wires, 11” Long |
| Description_FAB |
Max Inrush Load - Overload Protected at 80A |
| Description_FAB |
Nominal Voltage 12-Volts |
| Description_FAB |
SPST Normally Open |
| Description_FAB |

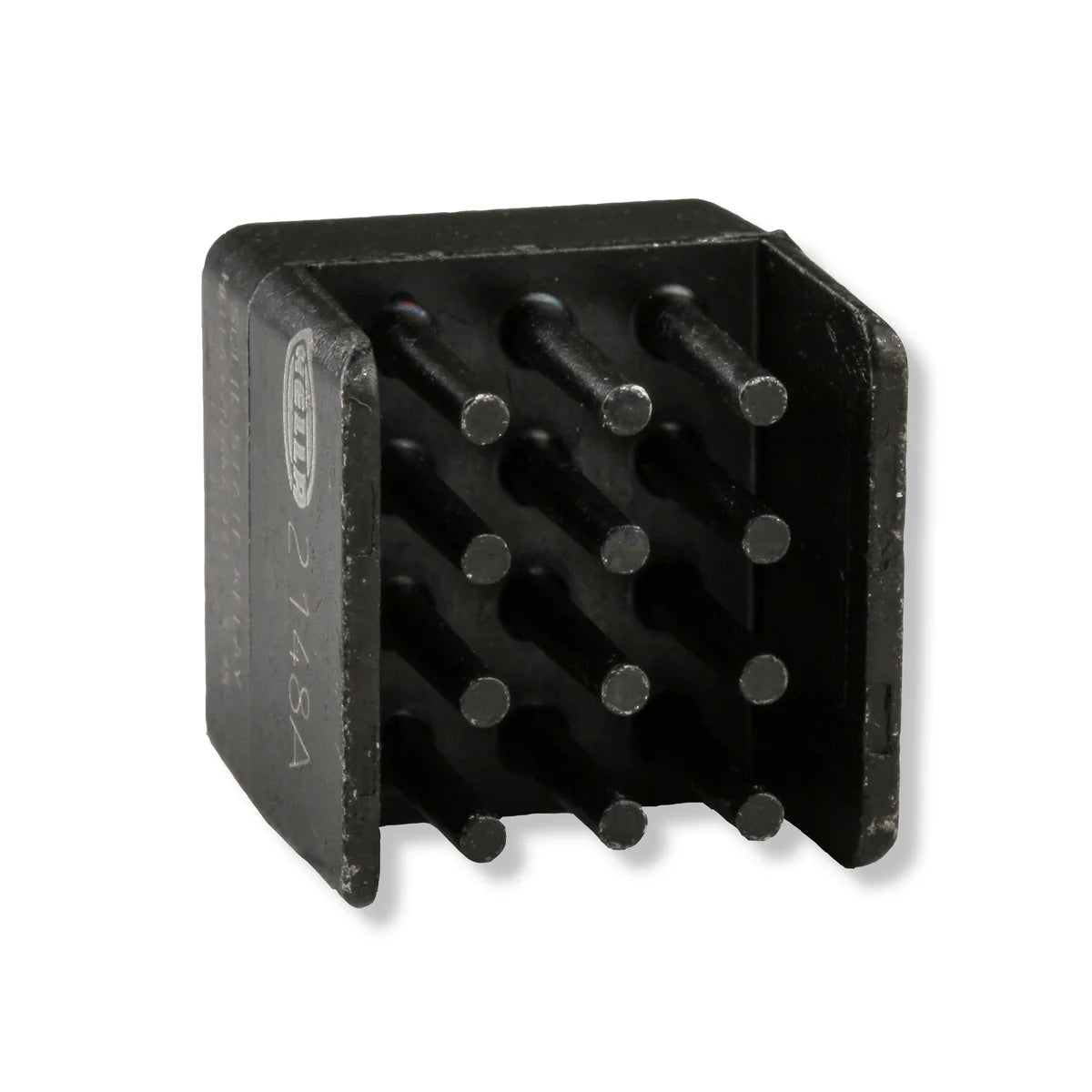

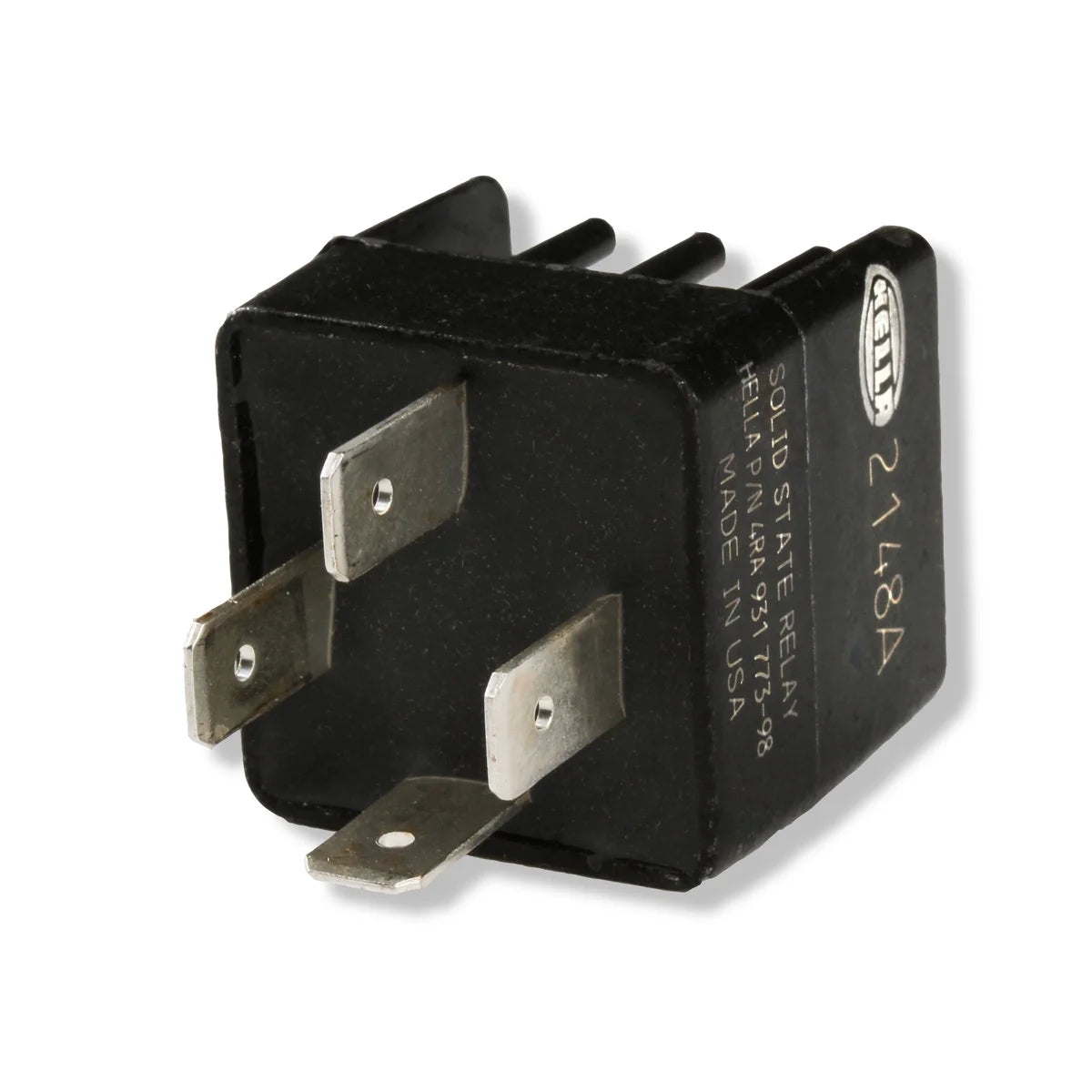

Mini Solid State Relay |
