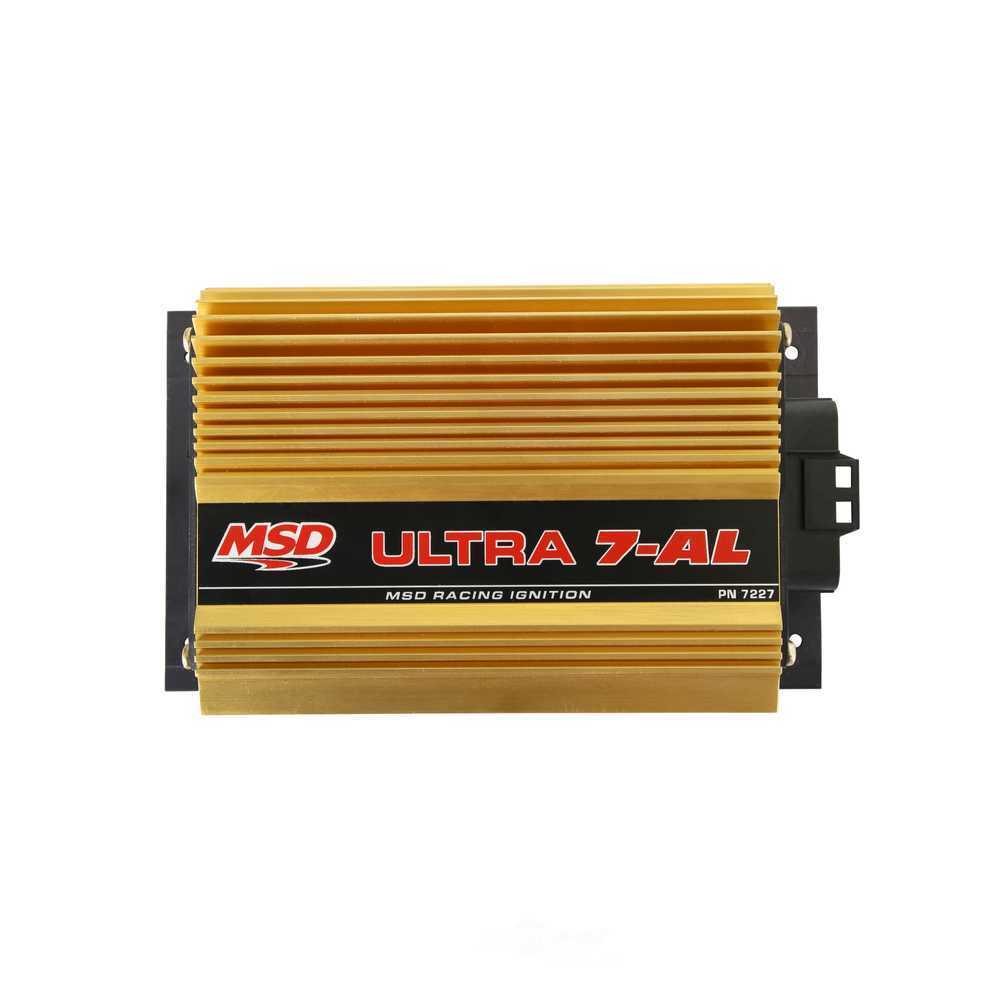

MSD MSD Ultra 7AL Ignition 7227

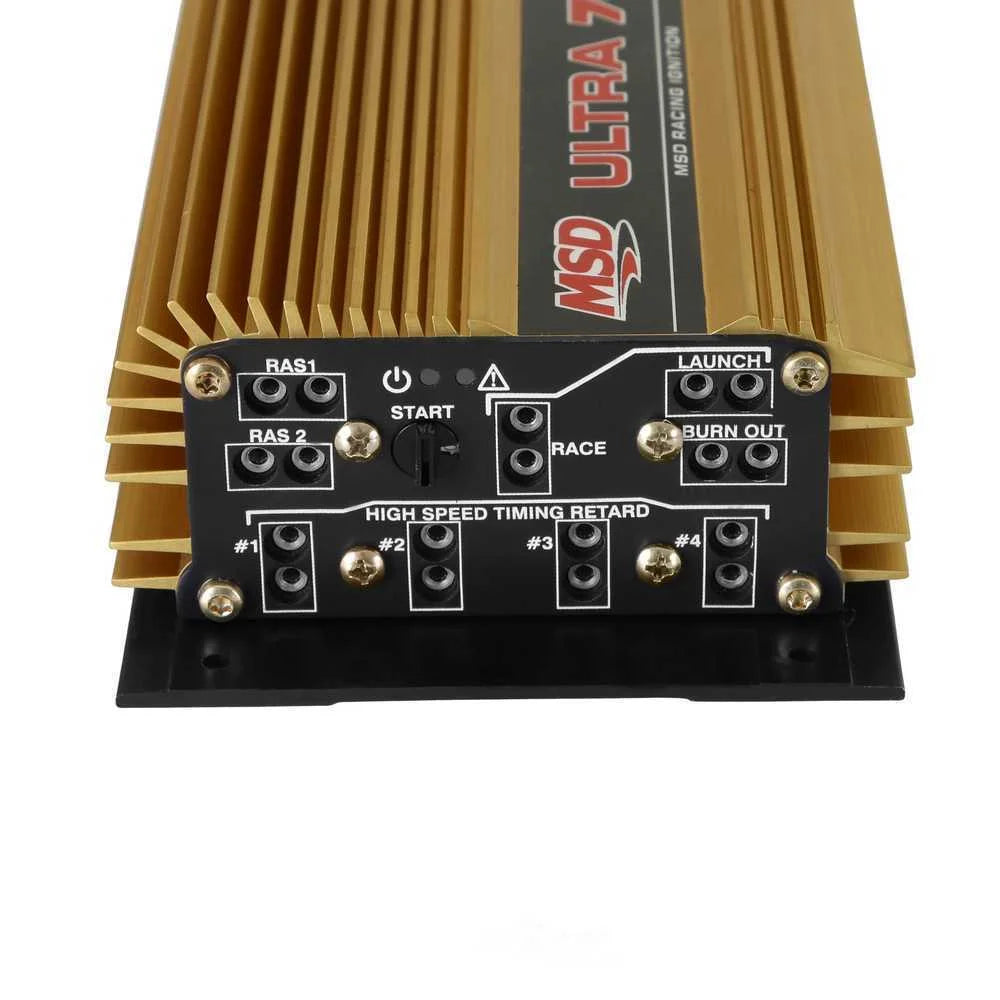

For racers that need serious spark output, the new ULTRA 7AL is the right choice. Offering Industry-Leading Spark Energy Output in a compact, and efficient package. The Ultra 7AL includes four-step retards, three rev limits, and two RPM-activated switch outputs. The ULTRA 7AL also features two different power output settings that can be used for on-the-fly changes which are perfect for drag-and-drive applications! All features are adjusted using plug-in modules including the 3-Step Rev Control and Multi-Step Retard. The Rev Control allows you to set one rev limit for the burnout, another for the staging rpm limit, and a third for top-end engine protection in the event of driveline failure. Four separate stages can be activated independently for nitrous users as well. Plus, two RPM Activated Switch outputs can be used for air shifters, shift lights, or other devices that require a perfectly timed ground trigger! The MSD 7AL also features an adjustable start retard giving you control over the amount of retard pulled out during cranking.

Specifications:

43	Male
342	1
3390	Performance
31	2.25
Ignition Type	Performance
14	7.5
349	Surface Mount
30	No
44	Female
42	1
24	4.5
Application	High Horsepower Drag Racing
Brand	MSD
Category	Ignition
Color	Gold
Condition	New
Current Draw	High Power: 1.8A per 1K RPM (14.7A @ 8K RPM) Low Power: 0.9A per 1K RPM (7.2A @ 8K RPM)
Dimensions	7.5" L x 4.5" W x 2.25" H
Emission Code	4
Features	4-Step Rev Limiter
Features	Start Retard
Ignition Coil Included	No
Primary Voltage	High Power: 548V Low Power: 387V
Product Type	Ignition Box
RPM Range	Firmware Limited to 15K RPM
Secondary Voltage	40KV with Coil PN 82612
Spark Duration	27° Crank Rotation @ 750 RPM
Spark Energy	330 mJ per spark
Sub Category	Control Modules
Type	Drag Race
Voltage Required	7-20 VDC
Warning	California Proposition 65
Warranty	Manufacturer's Limited 1 Year Warranty
Weight	5.3
Weight and Size	5.3lb, 12.75"L x 9.75"W x 4.25"H
Description_INV	7AL IGNITION CONTROLLER-GOLD
Description_DES	MSD Ultra 7AL Ignition
Description_EXT	For racers that need serious spark output, the ULTRA 7AL is the right choice. Offering high voltage with four step retards, three rev limits, and two RPM switch outputs, the new 7AL checks all the boxes!
Description_MKT	For racers that need serious spark output, the new ULTRA 7AL is the right choice. Offering Industry-Leading Spark Energy Output in a compact, and efficient package. The Ultra 7AL includes four-step retards, three rev limits, and two RPM-activated switch outputs. The ULTRA 7AL also features two different power output settings that can be used for on-the-fly changes which are perfect for drag-and-drive applications! All features are adjusted using plug-in modules including the 3-Step Rev Control and Multi-Step Retard. The Rev Control allows you to set one rev limit for the burnout, another for the staging rpm limit, and a third for top-end engine protection in the event of driveline failure. Four separate stages can be activated independently for nitrous users as well. Plus, two RPM Activated Switch outputs can be used for air shifters, shift lights, or other devices that require a perfectly timed ground trigger! The MSD 7AL also features an adjustable start retard giving you control over the amount of retard pulled out during cranking.
Description_FAB	Launch Rev Limit
Description_FAB	Industry Leading Spark Energy & Efficiency
Description_FAB	On the Fly Power Output Selection
Description_FAB	Uses familiar Pills for Rev Limit and Timing Retard Adjustments
Description_FAB	Quickens Throttle Response
Description_FAB	Increases Overall Performance and Power
Description_FAB	Adjustable start retard improves engine start-up, especially in high-compression engines.
Description_FAB	The Ultra 7AL is 56% lighter, and over 50% smaller than the 7AL-3
Description_FAB	The Ultra 7AL has over twice the spark output of the 7AL-3, (330mJ vs 160mJ)
Description_FAB	Two (2) RPM Activated Switch Outputs (compared to the 7AL’s single RAS output)
Description_FAB	Features an adjustable switch for start retard settings, eliminates the need for additional external wiring to the starter solenoid
Description_FAB	Two multi-colored LEDs let you know exactly what is going on (previous boxes feature a single status LED)
Description_TLE	MSD Ultra 7AL Ignition
