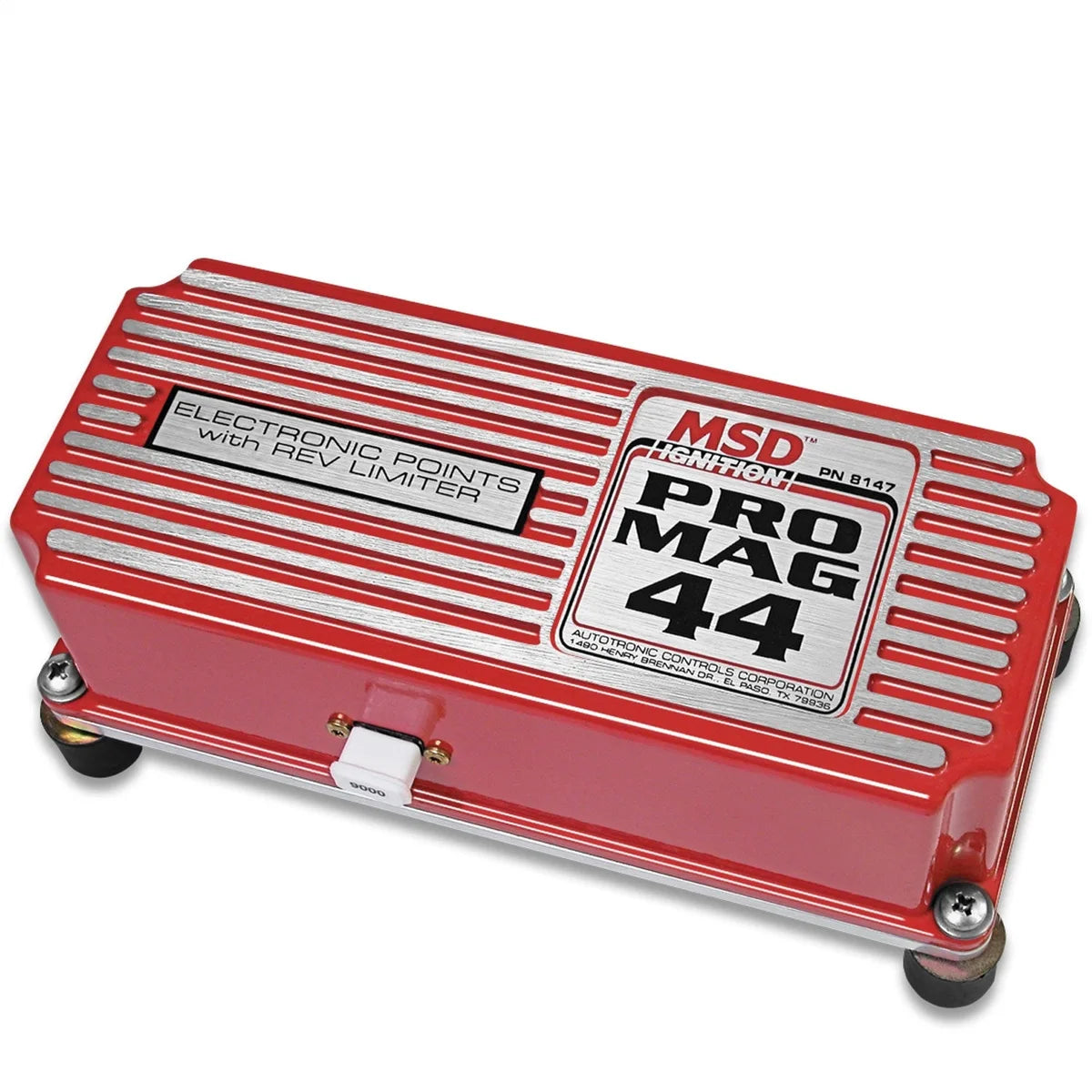

MSD Pro Mag 44 Amp Electronic Points Box - Red 8147

The magnetic pickup in the generator delivers the trigger signal while the Box takes care of the rest: namely the long duration spark and quick rise time. The MSD electronic circuitry releases the power of the generator to the coil instantly and at full power. The coil instantly produces an incredible shot of voltage to ionize the plug gap. The current then takes over, ensuring that the nitro-methane is ignited! The Electronic Points Box keeps the electricity flowing across the plug for a full 26° of crankshaft rotation, ensuring complete combustion. A strong cast aluminum housing provides a solid mounting foundation for the electronics, as well as an excellent heat sink. For protection against 300-mph vibrations, the circuits receive a heavy-duty coating of Humi-Seal compound. RPM Modules must be purchased separately.

Specifications:

43	Female
342	1
3390	Performance
31	2.7
Ignition Type	Performance
14	10.4
349	Surface Mount
30	Yes
44	Male
42	6
24	5.9
Brand	MSD
Category	Ignition
Color	Red
Emission Code	4
Sub Category	Control Modules
Warning	California Proposition 65
Description_INV	Electronic Pts Box,44A ProMag,RevLimiter
Description_ASC	Not for use with the Pro Mag 12/20.
Description_DES	Pro Mag 44 Amp Electronic Points Box - Red
Description_EXT	The Electronic Points Box with Rev Limiter is responsible for controlling the Pro-Mag 44 energy.
Description_MKT	The magnetic pickup in the generator delivers the trigger signal while the Box takes care of the rest: namely the long duration spark and quick rise time. The MSD electronic circuitry releases the power of the generator to the coil instantly and at full power. The coil instantly produces an incredible shot of voltage to ionize the plug gap. The current then takes over, ensuring that the nitro-methane is ignited! The Electronic Points Box keeps the electricity flowing across the plug for a full 26° of crankshaft rotation, ensuring complete combustion. A strong cast aluminum housing provides a solid mounting foundation for the electronics, as well as an excellent heat sink. For protection against 300-mph vibrations, the circuits receive a heavy-duty coating of Humi-Seal compound. RPM Modules must be purchased separately.
