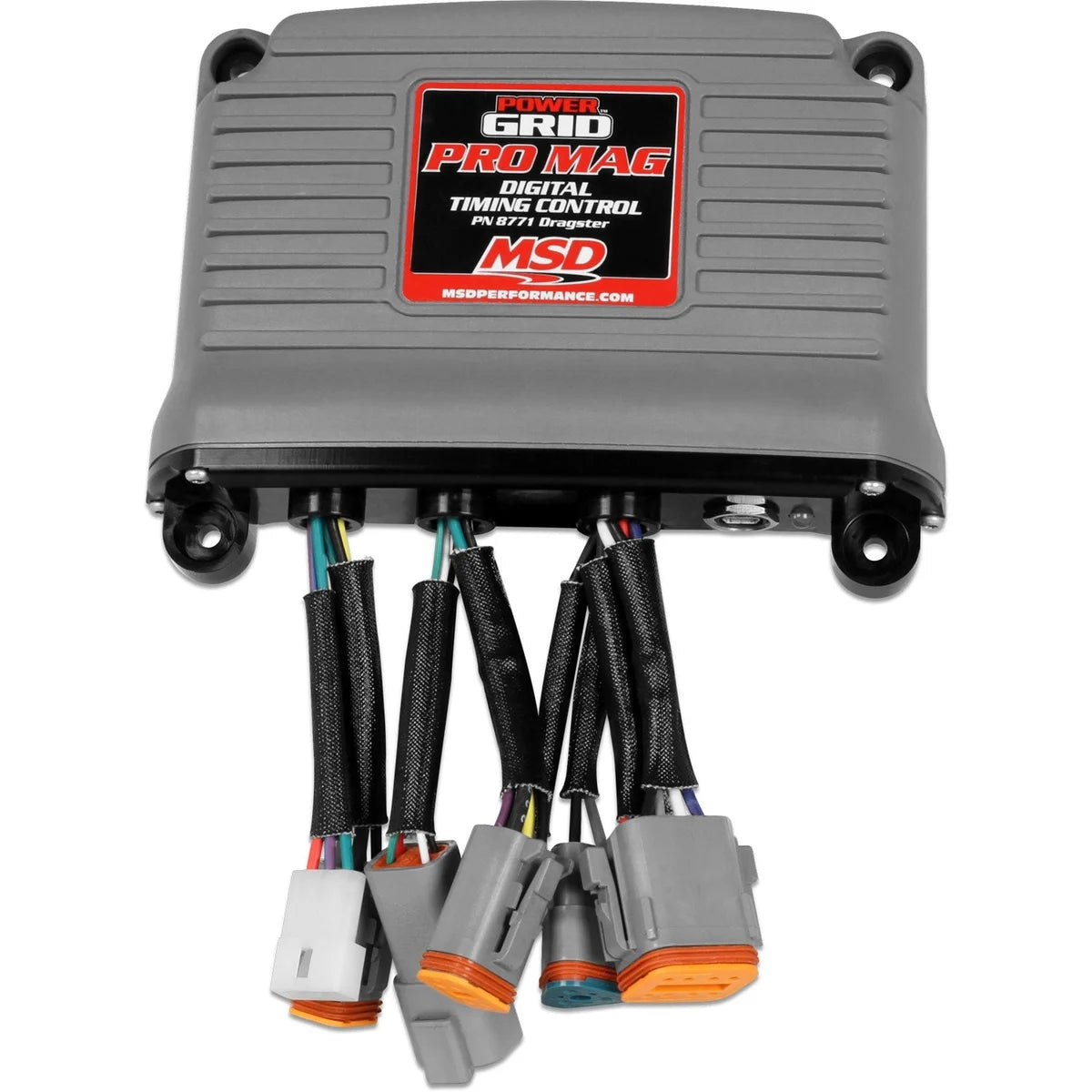

MSD Top Fuel Dragsters and Funny Cars - Use With MSD Pro Mag 44 8771

The Dual Channel Power Grid incorporates a high-speed 32-bit microprocessor and PC software, called MSD View via a USB BluetoothTM wireless. It includes a high-speed data acquisition recording engine RPM, timing, dual Tach signal, launch/WOT with sample rates of 100 samples per second or 10 milliseconds. The MSD View software will program timing curves with up to 30 points at 1.0 increments down to 0.01 second intervals. Multiple timing curves can be overlayed to choose the right one at the last minute. Other unique programs include a throttle lift timing retard, throttle inhibit timing retard, and an auto pickup signal selector. This means that in the case of a crank trigger pickup failure, it will trigger the dead channel running magnetos seamlessly.The MSD View software includes a virtual dashboard that can be configured to display engine RPM, Timing, Timing Retard, WOT, Timing Reset, Crank Trigger inputs, and Output Triggers. Includes a CAN-Bus connection sending the recording to the RacePak data logger.

Specifications:

43	Male Female
342	6
Grade Type	Race
31	6.3
Ignition Type	Performance
14	7.6
349	Surface Mount
30	Yes
44	Male Female
42	27
24	7.5
Brand	MSD
Category	Ignition
Color	Grey
Emission Code	4
Product Type	Power Grid Controller
Sub Category	Control Modules
Warning	California Proposition 65
Warranty	Manufacturer's Limited 1 Year Warranty
Description_INV	PROMAG PWR GRID TIMING CONTROL TOP
Description_ASC	The Digital Retard Controller has a built-in speed limiter that is mandated by NHRA Specs for Top Fuel Classes. Due to the speed limiter spec, this controller is not recommended for Alcohol classes or engines revving over 8000 rpm.
Description_DES	MSD Dual Channel Power Grid Timing Controller
Description_EXT	Top Fuel Dragsters and Funny Cars - Use With MSD Pro Mag 44
Description_MKT	The Dual Channel Power Grid incorporates a high-speed 32-bit microprocessor and PC software, called MSD View via a USB BluetoothTM wireless. It includes a high-speed data acquisition recording engine RPM, timing, dual Tach signal, launch/WOT with sample rates of 100 samples per second or 10 milliseconds. The MSD View software will program timing curves with up to 30 points at 1.0 increments down to 0.01 second intervals. Multiple timing curves can be overlayed to choose the right one at the last minute. Other unique programs include a throttle lift timing retard, throttle inhibit timing retard, and an auto pickup signal selector. This means that in the case of a crank trigger pickup failure, it will trigger the dead channel running magnetos seamlessly.The MSD View software includes a virtual dashboard that can be configured to display engine RPM, Timing, Timing Retard, WOT, Timing Reset, Crank Trigger inputs, and Output Triggers. Includes a CAN-Bus connection sending the recording to the RacePak data logger.
Description_FAB	Mandated in NHRA/IHRA Top Fuel Dragster and Funny Car
Description_FAB	Provides a programmable time-based timing curve with up to 30 points
Description_FAB	Stores different timing maps
Description_FAB	Easily transfer or change timing maps while in the staging lanes
