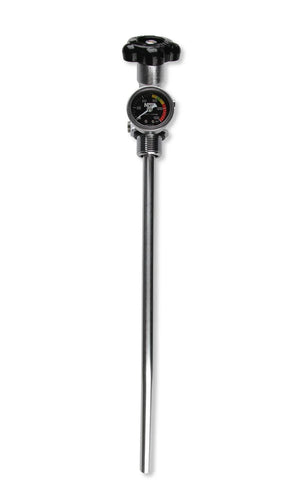

NOS/Nitrous Oxide System NOS 10 lb. Bottle Super Hi-Flow Valve Assembly with Siphon Tube and Black Gauge 16137ABNOS
$175.99

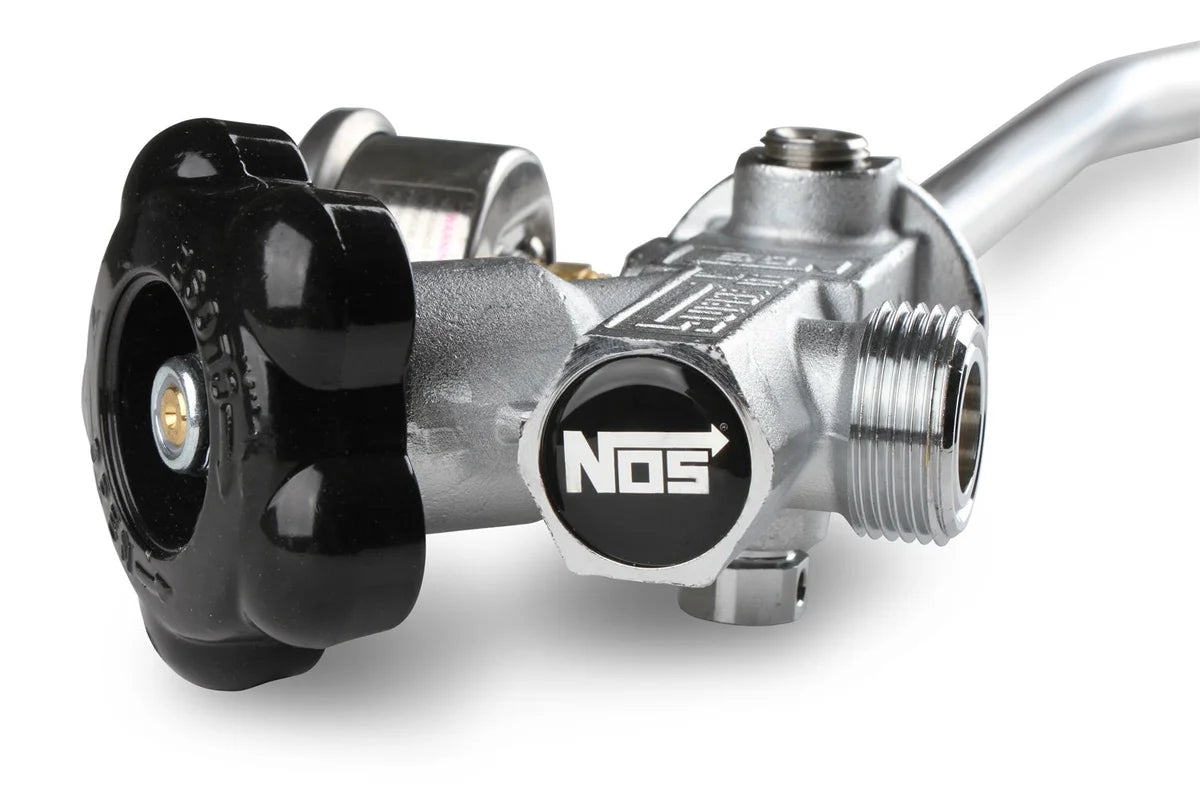

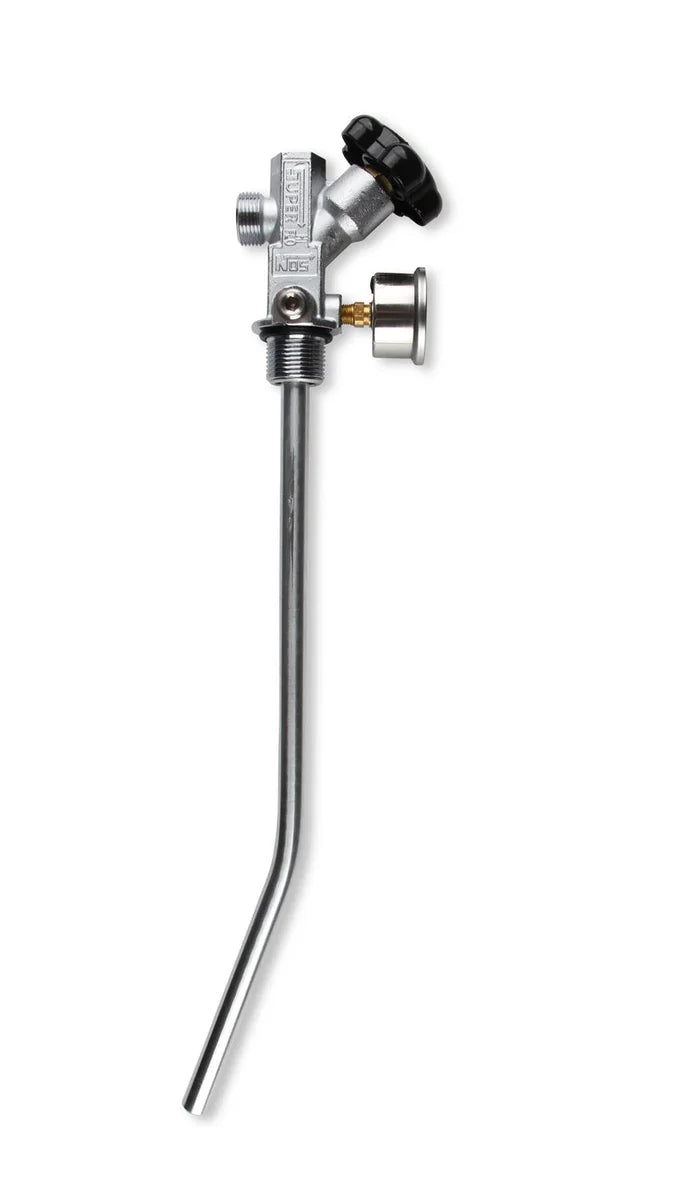

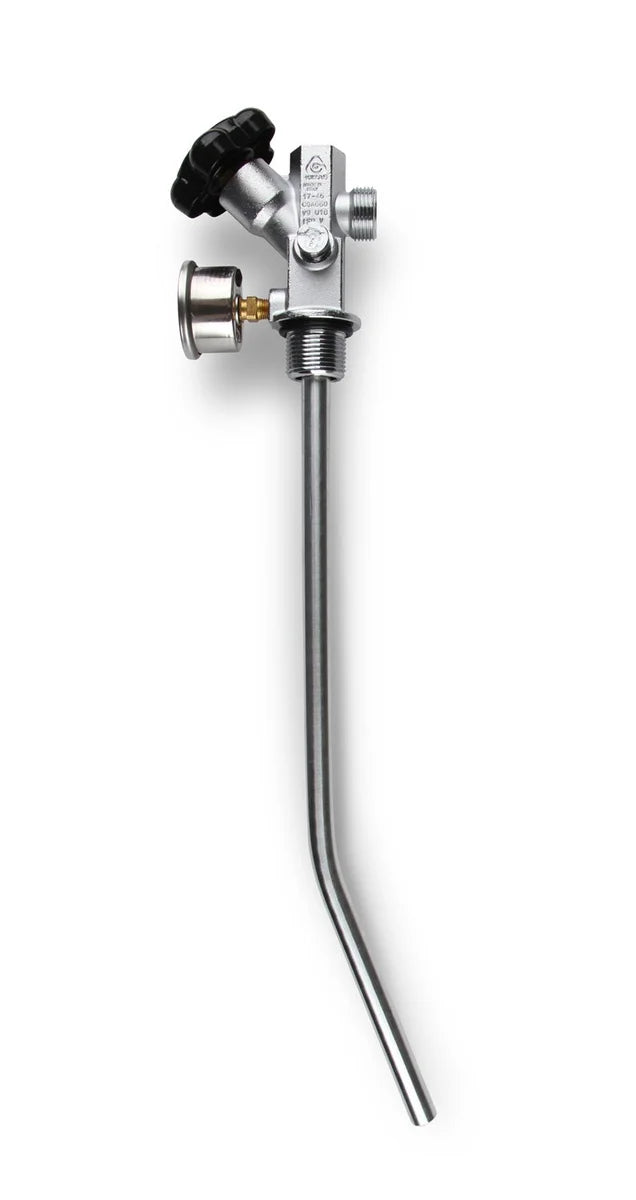

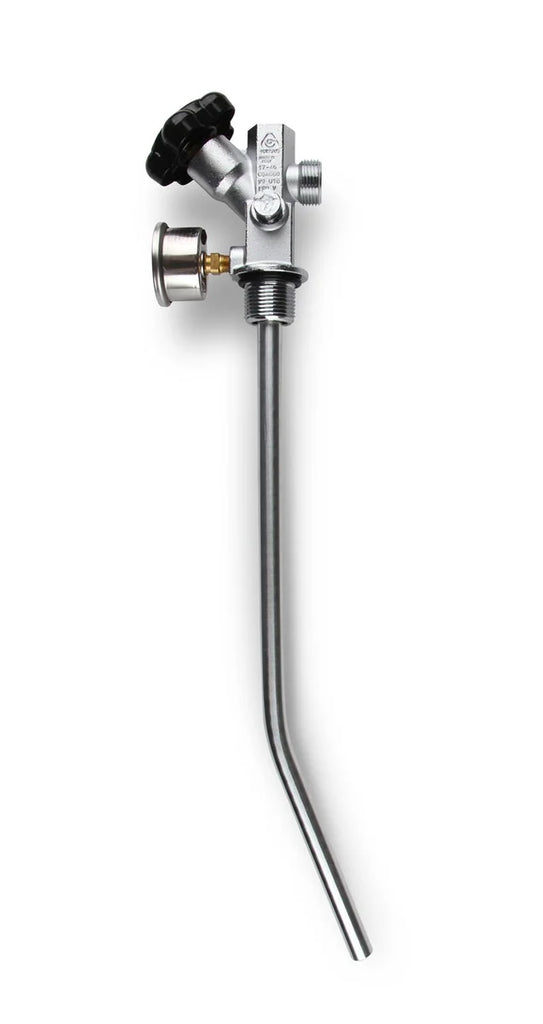

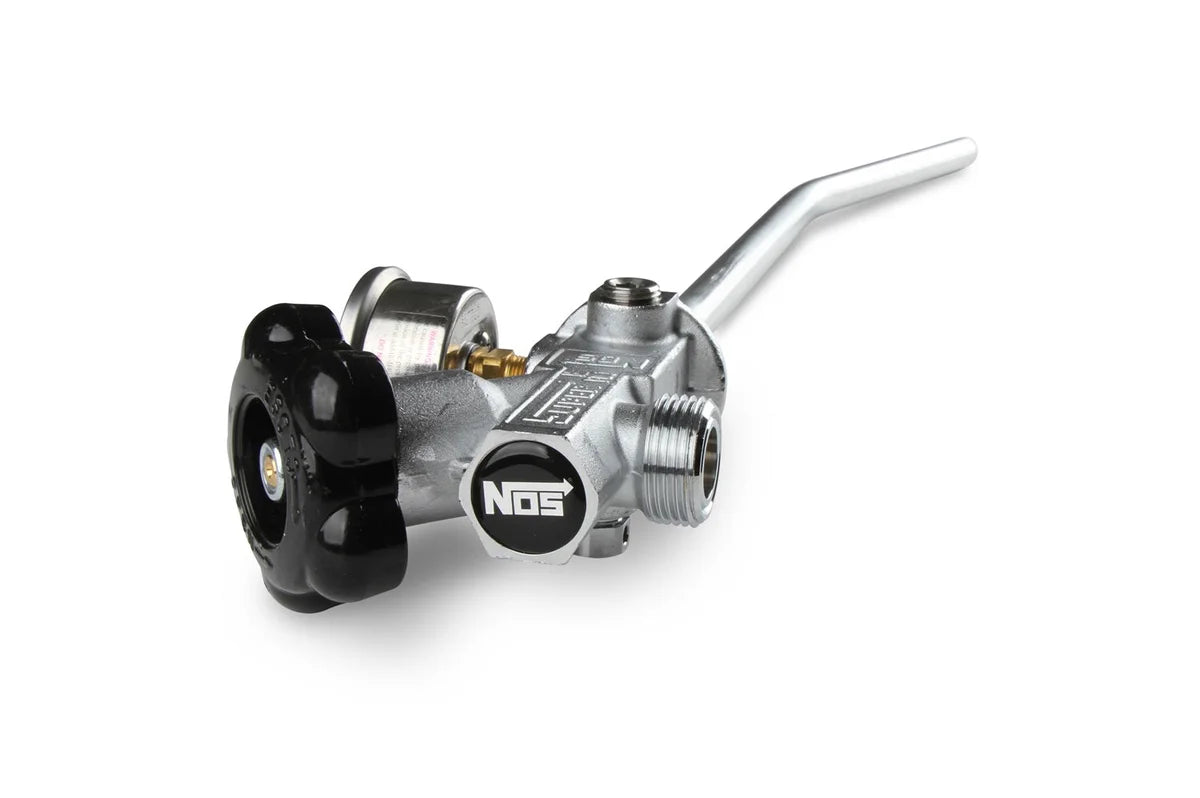

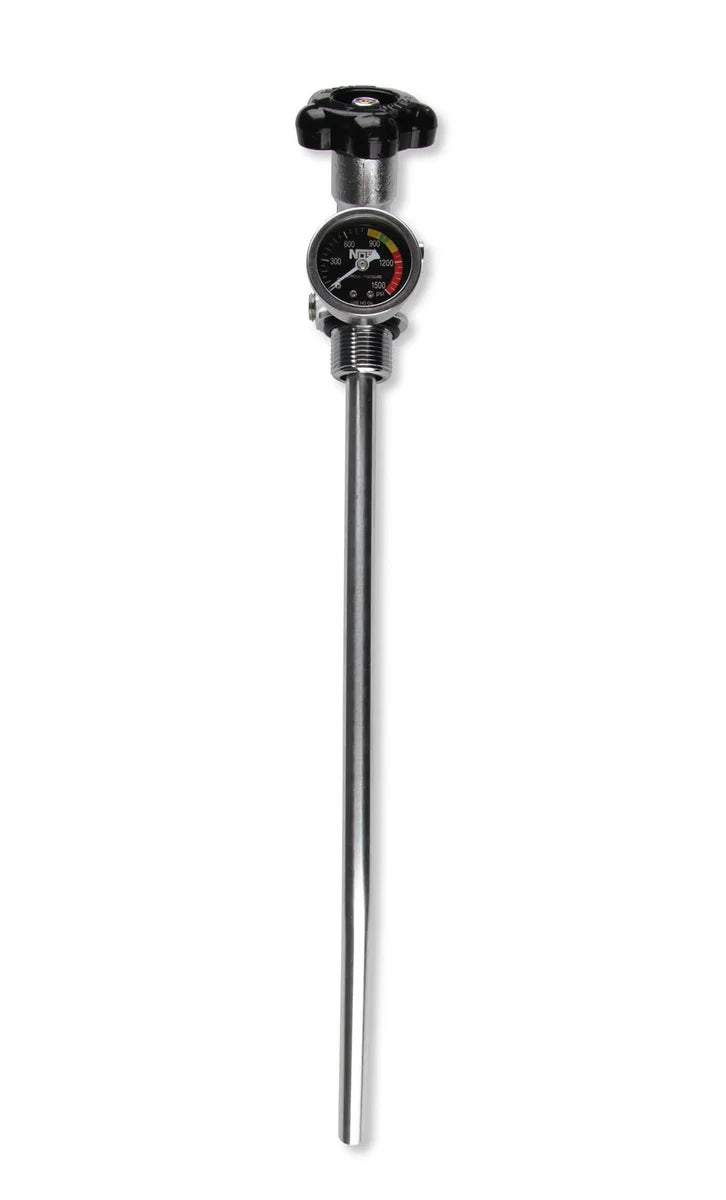

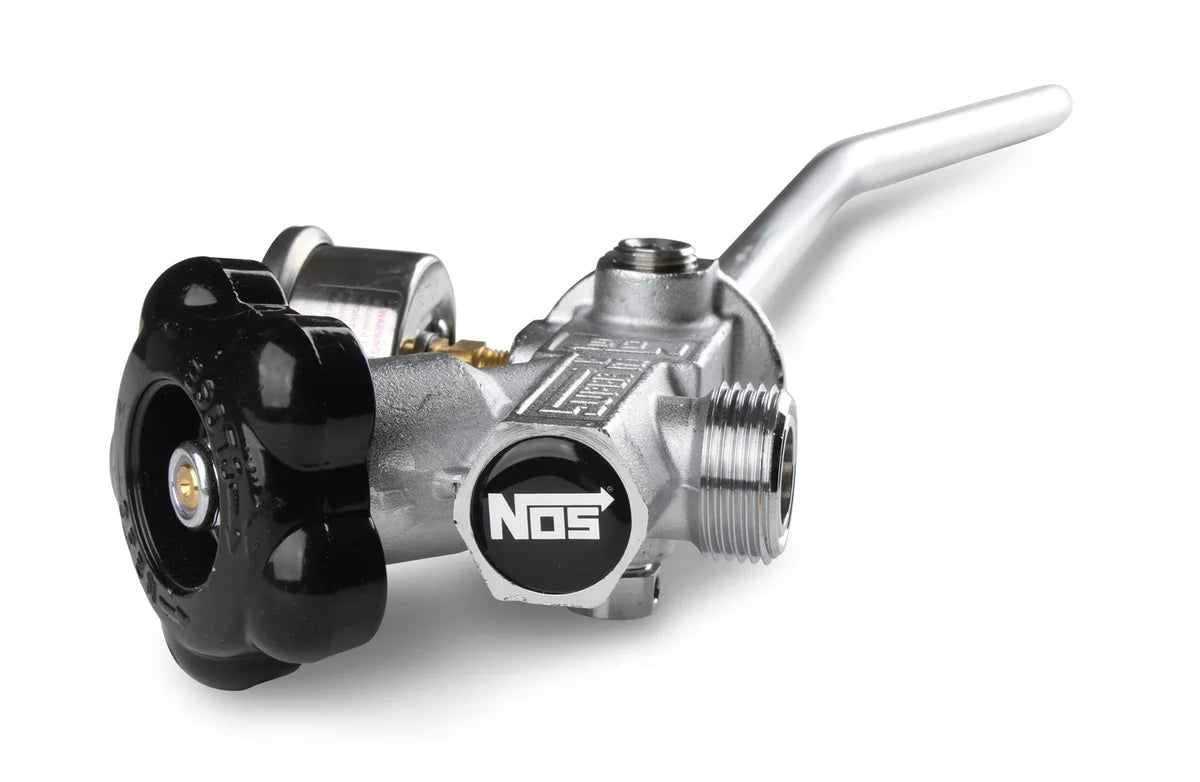

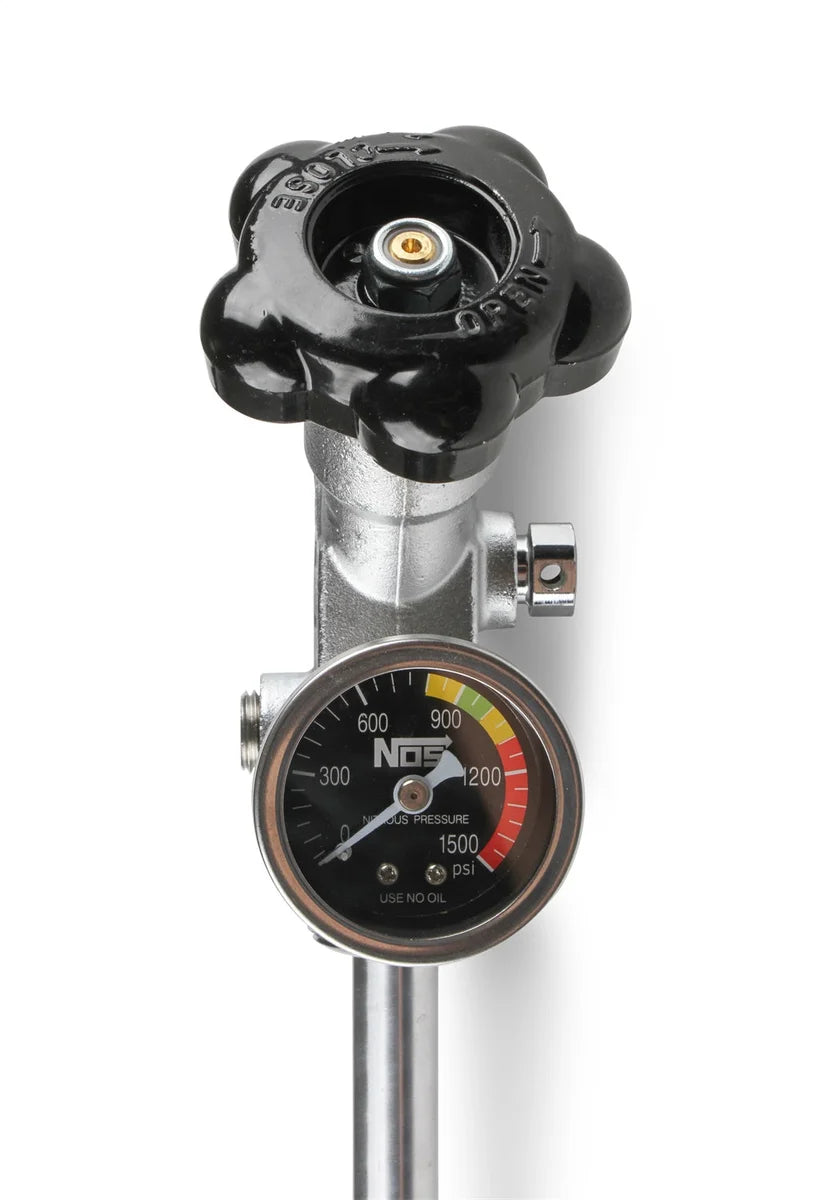

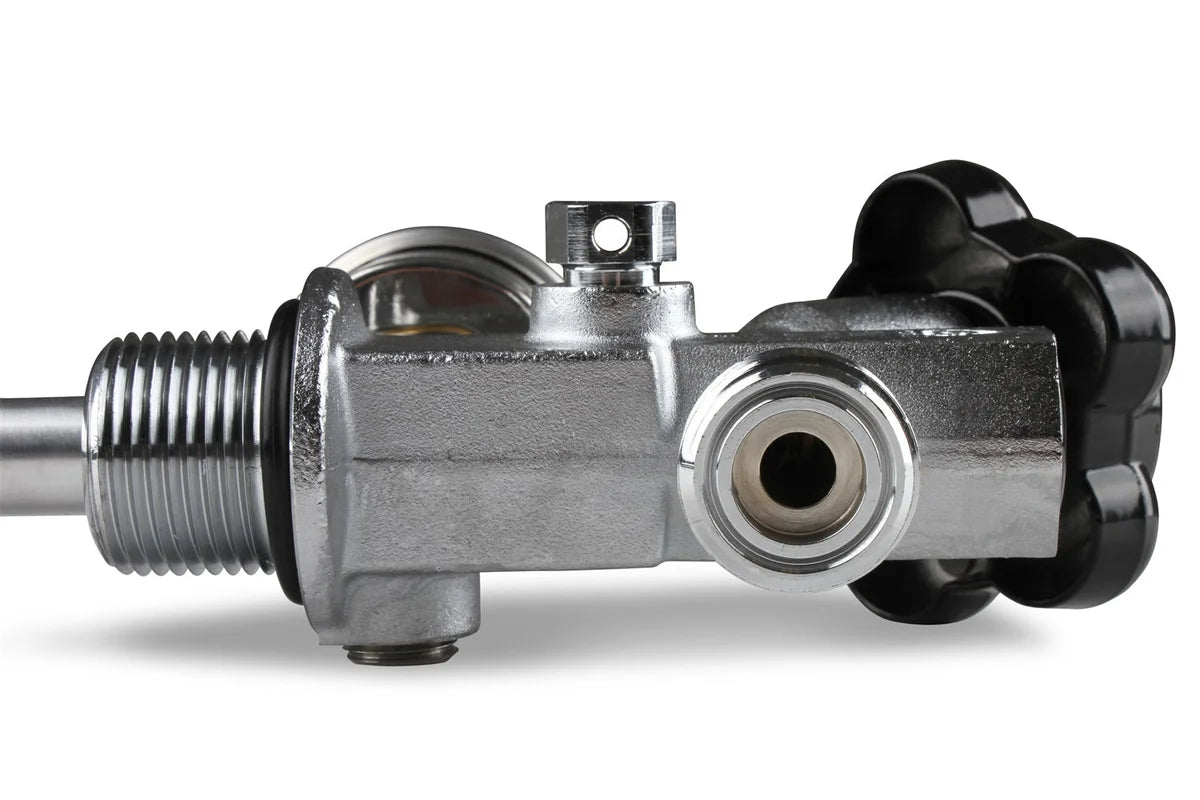

NOS now offers Super Hi-Flo bottle valve assemblies with siphon tube and nitrous pressure gauge already installed. This gives you a great way to upgrade to the highest flowing valve and tube NOS has to offer. Key bottle valve features include a 1/8"NPT gauge port, 1/4"NPT accessory port, large internal and outlet ports, along with an O-ring seal. Our 3/8" id screw-on siphon tube is made from 6061 aluminum can be used as an upgrade for an older style compression fitting tube. Lastly, included with our assemblies is either blue or black face 1-1/2" nitrous gauge with easy-to-see color graduations and a white pointer. These gauges have a stainless steel case with brass internals.
Specifications:
| Bottle Size | 10 lb |
| Bottle Valve | Super Hi-Flo |
| Brand | NOS |
| Category | Air and Fuel Delivery |
| Diameter | 3/8 inch |
| Emission Code | 4 |
| Gauge Included | Yes |
| Gauge Type | Nitrous Pressure |
| Outlet Thread | CGA #660 |
| part type | Nitrous Oxide Bottle Valve Opener |
| Product Type | Bottle Valve Assembly |
| Siphon Tube Included | Yes |
| Sub Category | Nitrous Oxide Injection System |
| Supported Horsepower | 500+ |
| Torque Value | 100 ft-lb |
| Tube Length | 15-1/8 inch |
| Tube Material | Aluminum |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| Description_INV | 10 LB BOTTLE VALVE ASSEMBLY W/ BLK GAGE |
| Description_ASC | Valve to Bottle Torque = 100 ft-lb |
| Description_DES | NOS 10 lb. Bottle Super Hi-Flow Valve Assembly with Siphon Tube and Black Gauge |
| Description_MKT | NOS now offers Super Hi-Flo bottle valve assemblies with siphon tube and nitrous pressure gauge already installed. This gives you a great way to upgrade to the highest flowing valve and tube NOS has to offer. Key bottle valve features include a 1/8"NPT gauge port, 1/4"NPT accessory port, large internal and outlet ports, along with an O-ring seal. Our 3/8" id screw-on siphon tube is made from 6061 aluminum can be used as an upgrade for an older style compression fitting tube. Lastly, included with our assemblies is either blue or black face 1-1/2" nitrous gauge with easy-to-see color graduations and a white pointer. These gauges have a stainless steel case with brass internals. |
| Description_FAB | Super Hi-Flow assembly features siphon tube and nitrous pressure gauge already installed |
| Description_FAB | Great way to update a bottle to the best flowing valve NOS offers |
| Description_FAB | Valve has large internal ports for superior flow and an O-ring bottle seal |
| Description_FAB | Siphon tube is made from 6061 aluminum and 3/8” I.D. for maximum flow |

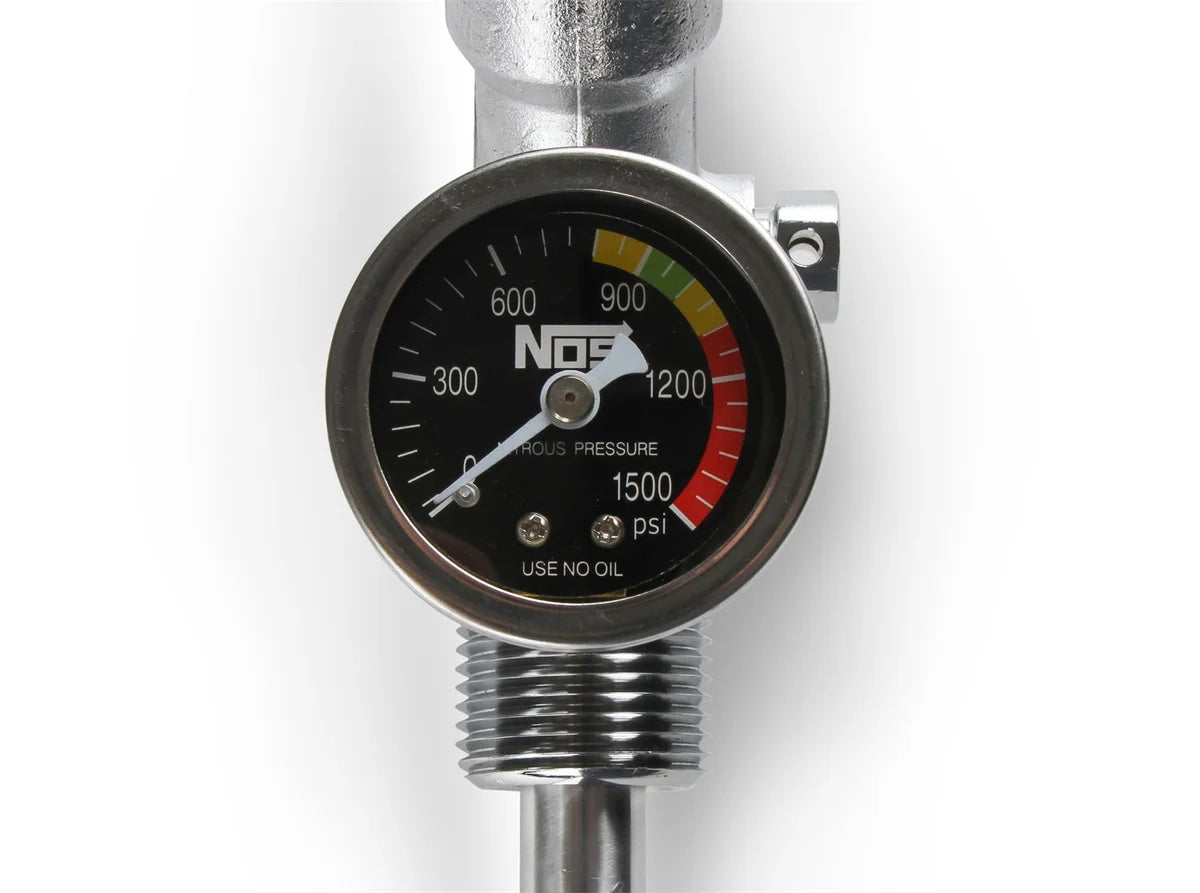

| Description_FAB | 1-1/2” diameter nitrous pressure gauge features stainless steel and brass construction providing accurate pressure measurement |
| Description_FAB | Assembly is designed to Support 500+ Horsepower |
