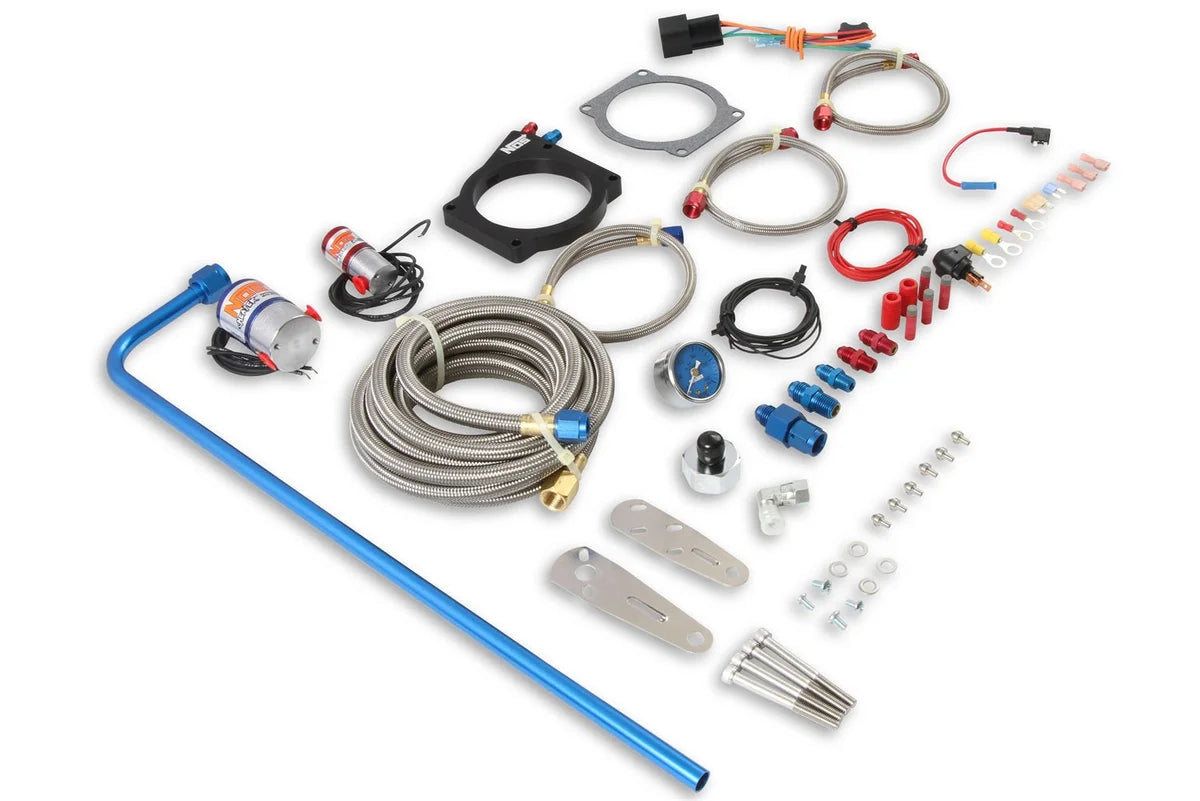

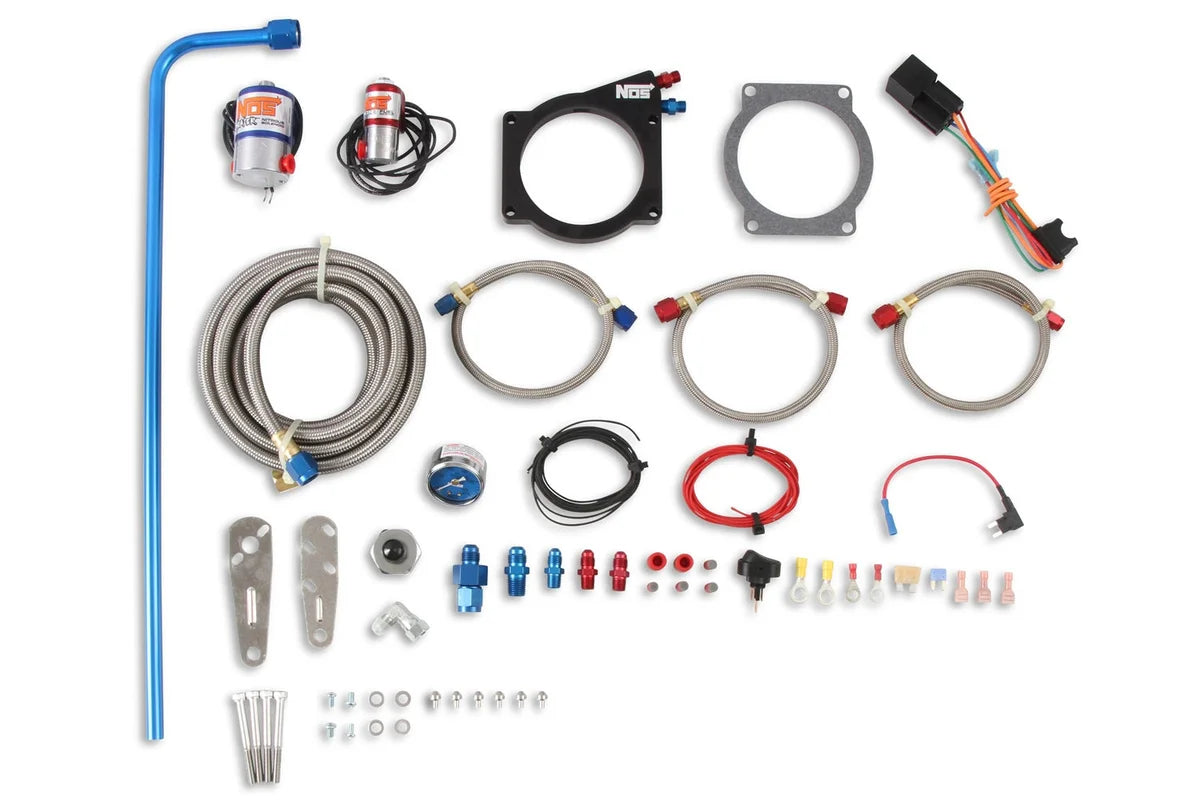

1997-2012 GM LS 90mm or 92mm 4-Bolt Drive-By-Wire Throttle Body. Blue system is adjustable up to 250 HP. Includes 10lb bottle, 92mm plate, and all installation items
| Adjustable |
Yes |
| 1674 |
Blue |
| Bottle Included |
Yes |
| Bottle Material |
6061 T-6 Aluminum |
| Bottle Size |
10 lb |
| Bottle Valve |
Super Hi-Flo |
| Bracket Material |
Steel |

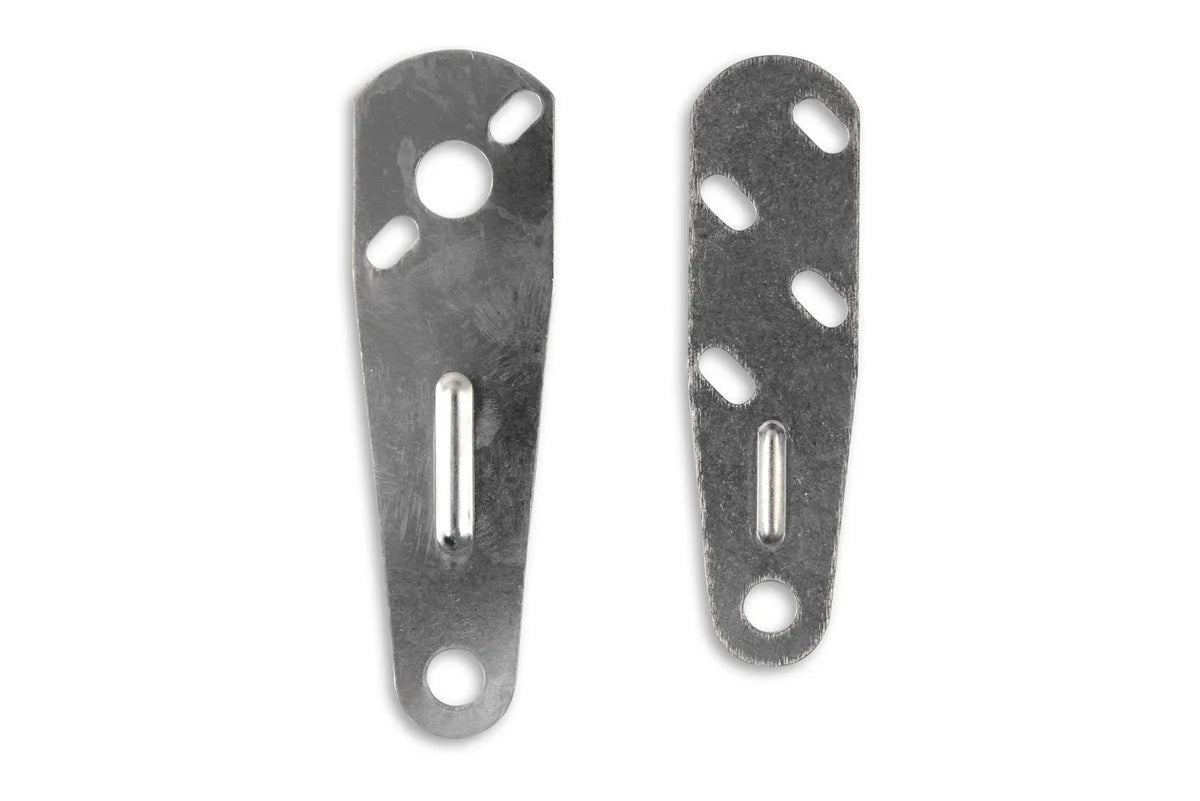

| Brackets Included |
Yes |
| Brand |
NOS |
| Category |
Air and Fuel Delivery |
| Color |
Blue |
| Delivery Style |
EFI Spacer Plate |
| Emission Code |
4 |

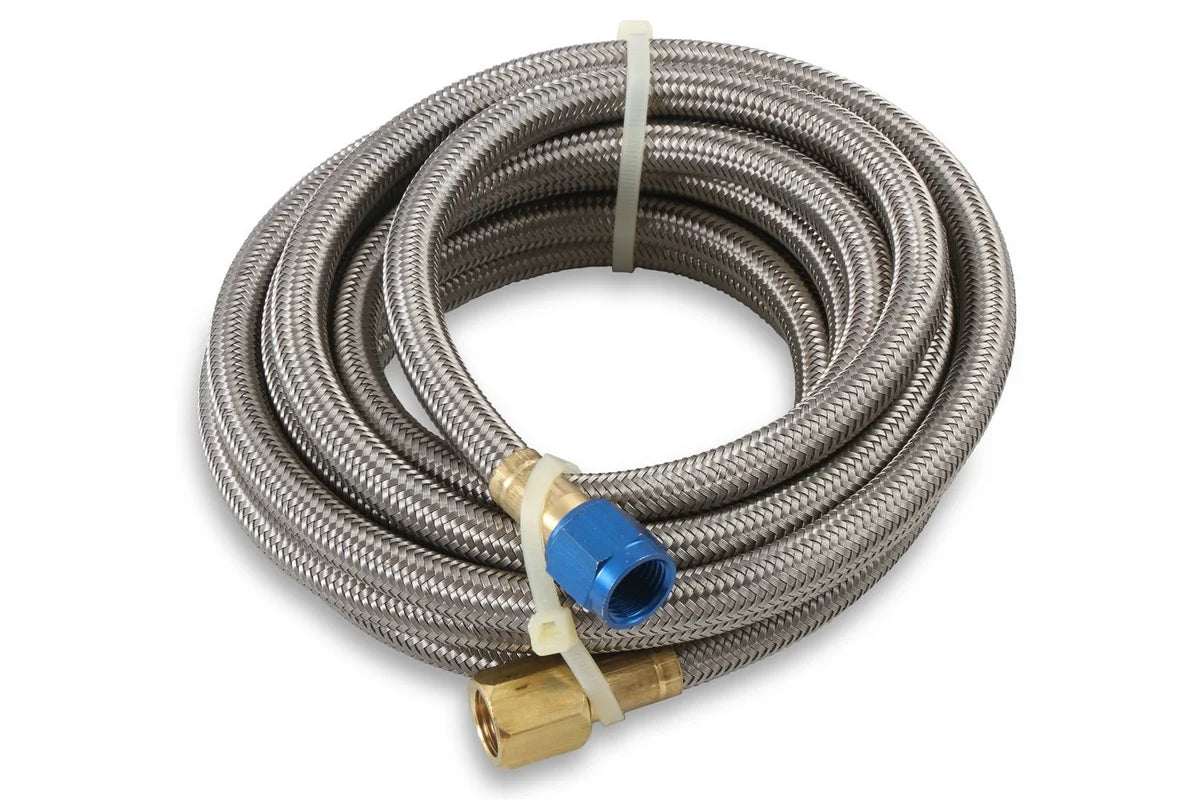

| Feed Line Size |
6AN |
| Fuel Solenoid |
Cheater ll |
| Included Jetting Horsepower |
100, 125, 150 |
| Jet Sizes Included |
100, 125, 150 hp |
| Jet Style |
Flare |
| Material |
6061-T6 Aluminum |
| Max Horsepower |
250 |
| Nitrous Bottle Capacity |
10 lbs |
| Nitrous Solenoid |
Cheater |
| Number of Solenoids |
2 |
| part type |
Nitrous Oxide Injection System Kit |
| Plate Bolt Pattern |
4 bolt |
| Plate Diameter |
90 mm |
| Plate Flange |
GM 90mm LS 4 bolt |
| Plate Height |
1/2 inch |
| Plate Included |
Yes |
| Plate Thickness |
1/2 inch |
| Product Type |
Nitrous System |
| Solenoid Top Cover Color |
Blue/Red |
| Style |
Wet |
| Sub Category |
Service Kits |
| System Style |
Wet |
| Warning |
California Proposition 65 |
| Warranty |
Manufacturer's Limited 90 Day Warranty |
| Adjustable |
Yes |
| 1674 |
Blue |
| Bottle Included |
Yes |
| Bottle Material |
6061 T-6 Aluminum |
| Bottle Size |
10 lb |
| Bottle Valve |
Super Hi-Flo |
| Bracket Material |
Steel |
| Brackets Included |
Yes |
| Brand |
NOS |
| Category |
Air and Fuel Delivery |
| Color |
Blue |
| Delivery Style |
EFI Spacer Plate |
| Emission Code |
4 |
| Feed Line Size |
6AN |
| Fuel Solenoid |
Cheater ll |
| Included Jetting Horsepower |
100, 125, 150 |
| Jet Sizes Included |
100, 125, 150 hp |
| Jet Style |
Flare |
| Material |
6061-T6 Aluminum |
| Max Horsepower |
250 |
| Nitrous Bottle Capacity |
10 lbs |
| Nitrous Solenoid |
Cheater |
| Number of Solenoids |
2 |
| part type |
Nitrous Oxide Injection System Kit |
| Plate Bolt Pattern |
4 bolt |
| Plate Diameter |
90 mm |
| Plate Flange |
GM 90mm LS 4 bolt |
| Plate Height |
1/2 inch |
| Plate Included |
Yes |
| Plate Thickness |
1/2 inch |
| Product Type |
Nitrous System |
| Solenoid Top Cover Color |
Blue/Red |
| Style |
Wet |
| Sub Category |
Service Kits |
| System Style |
Wet |
| Warning |
California Proposition 65 |
| Warranty |
Manufacturer's Limited 90 Day Warranty |
| Description_INV |
LS 90MM NOS PLATE COMPLETE DBW KIT |
| Description_ASC |
Retains stock throttle body location and orientation using a 1/2" billet aluminum plate. Power levels up to 250 RWHP do not require injector upgrade, however, the total fuel supply system must be sized according to expected power levels. Recommend 1 step colder spark plug up to 150 RWHP, 2 steps colder spark plug on 200 and up RW |
| Description_DES |
NOS Plate Wet Nitrous System - GM |
| Description_EXT |
1997-2012 GM LS 90mm or 92mm 4-Bolt Drive-By-Wire Throttle Body. Blue system is adjustable up to 250 HP. Includes 10lb bottle, 92mm plate, and all installation items |
| Description_MKT |
If you are running one of the many LS based engines and would like to add up to 250 additional horsepower, NOS has a complete nitrous kit option for you. |
| Description_MKT |
These kits are ideal for adding a little more power to that stock engine or a lot more power to that custom built Hot Rod. Available for 4-bolt, drive-by-wire or cable operated throttle bodies in 90mm, 92mm, 102mm & 105mm plate sizes. These are "Wet" plates, meaning the additional fuel is added though the nitrous system, so there are no requirements for an injector upgrade*. |
| Description_MKT |
*It is important to ensure the existing fuel delivery system is adequate to support the expected power levels. |
| Description_FAB |
For use with 90mm or 92mm drive-by-wire Throttle Bodies |
| Description_FAB |

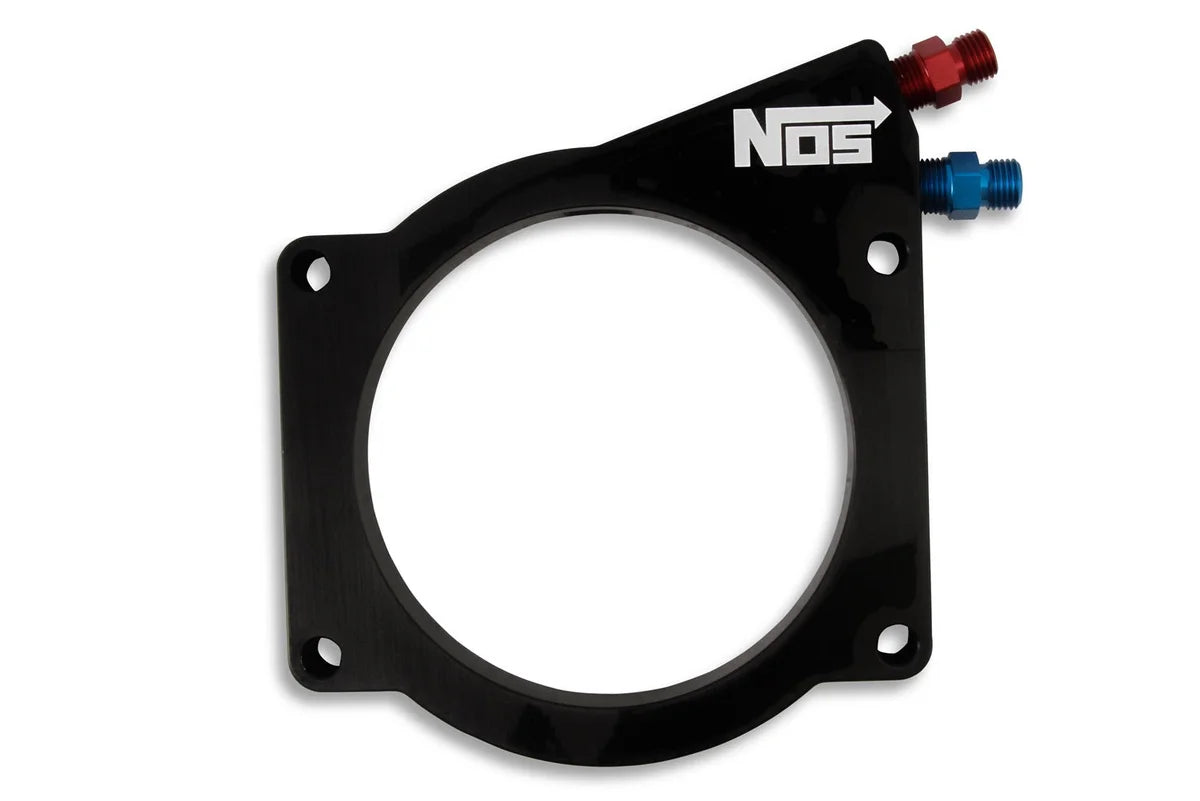

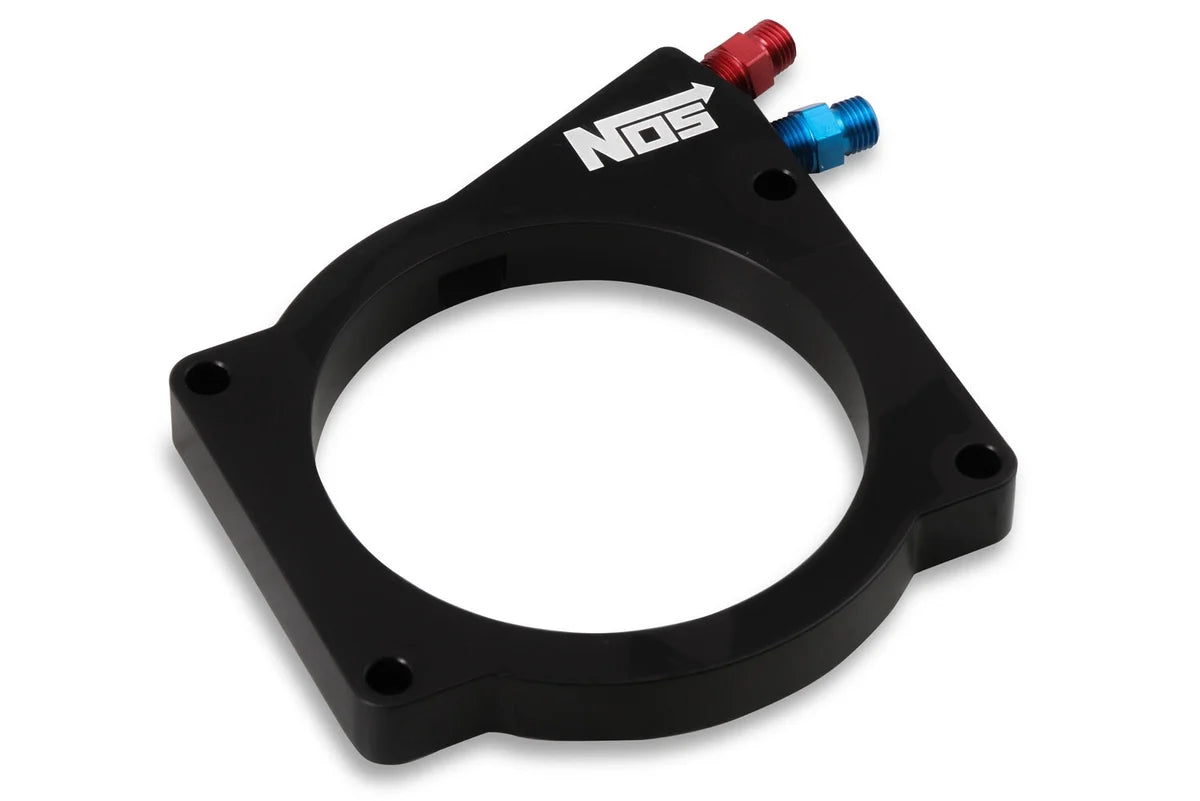

Single ½” plate between the throttle body and manifold |
| Description_FAB |
Ideal for use with the Holley Hi-Ram & MSD Atomic LS Manifold |
| Description_FAB |
Supports up to 250 RWHP (Rear Wheel Horse Power) |
| Description_FAB |
Plate outlet design maximizes distribution |
| Description_FAB |

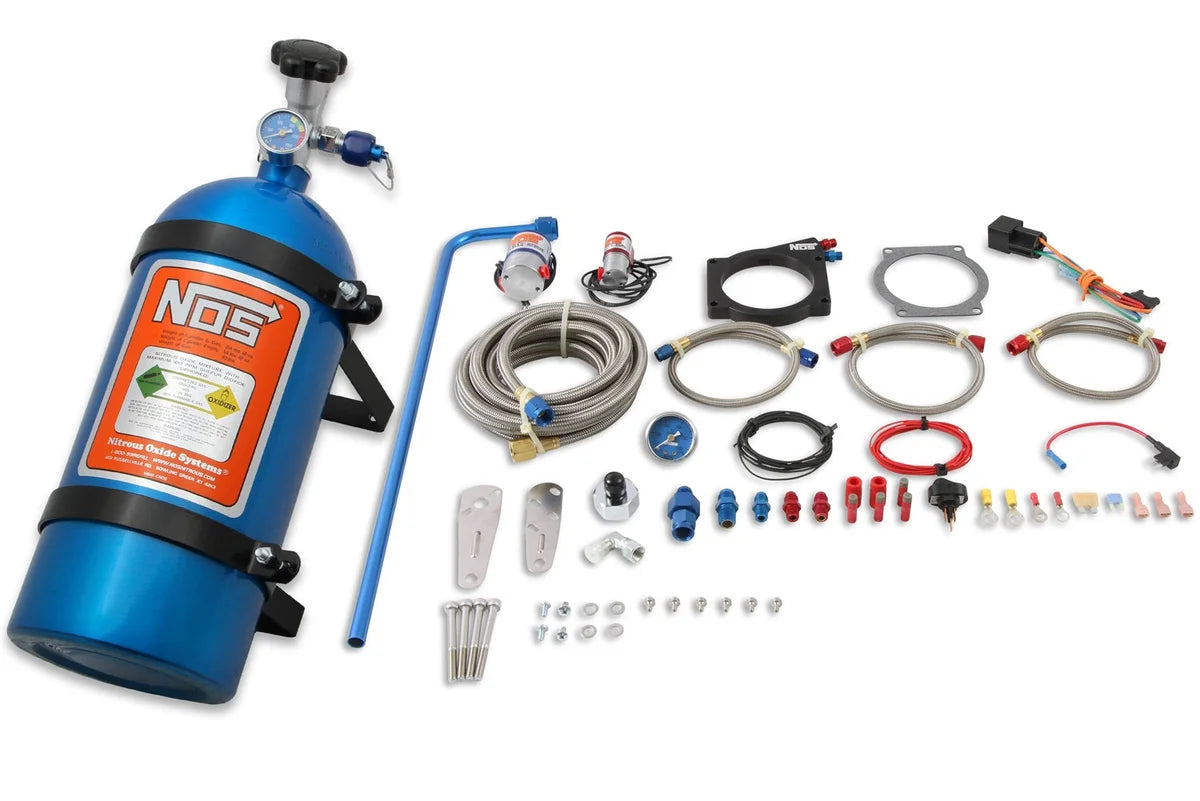

Includes a 10 lb. “NOS Blue” nitrous bottle with brackets |
| Description_FAB |
6061 Billet Aluminum, CNC Machined Plate |
