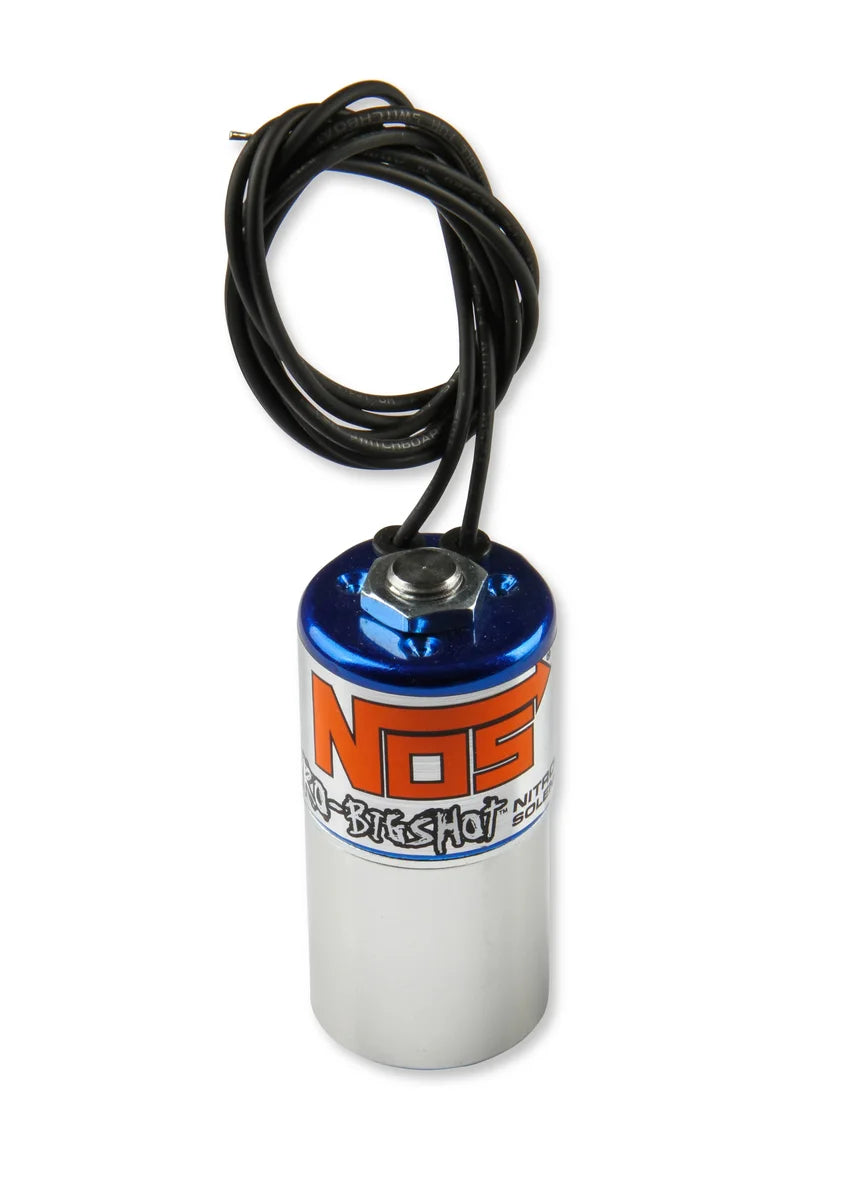

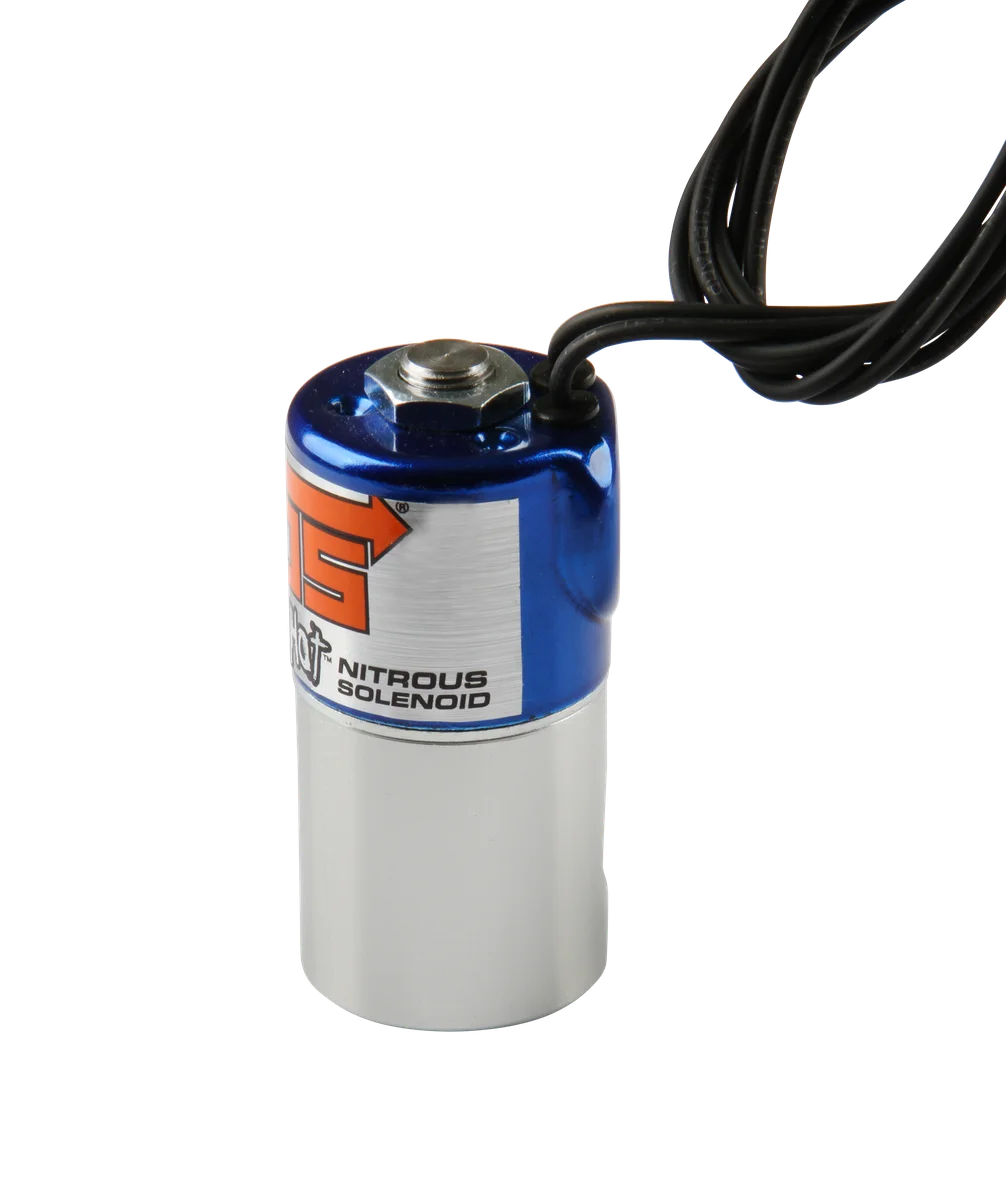

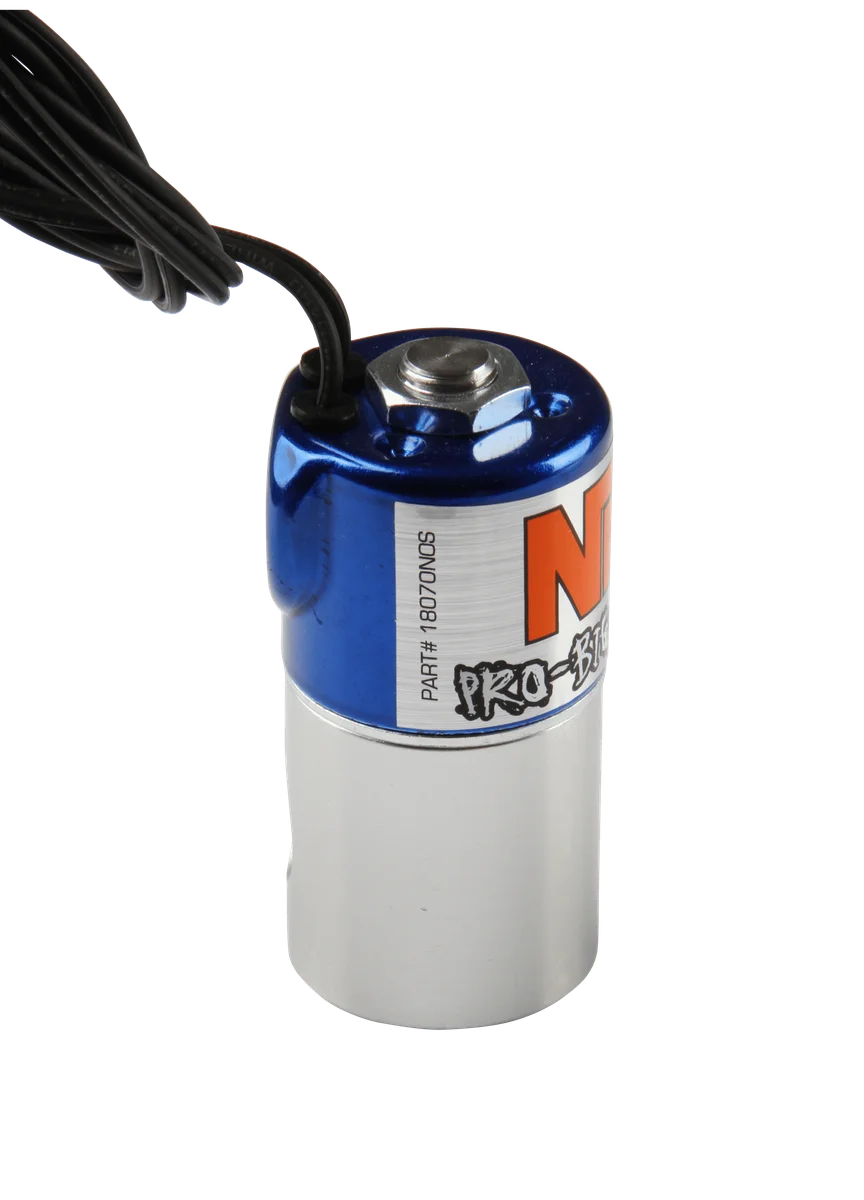

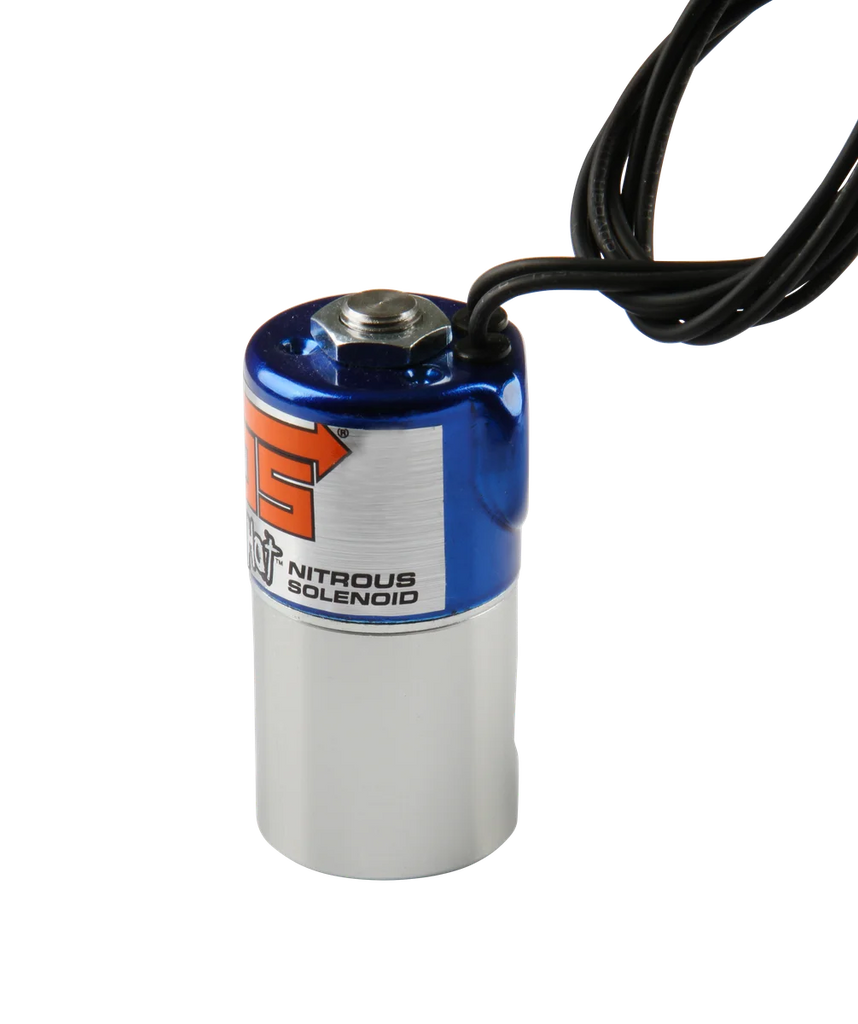

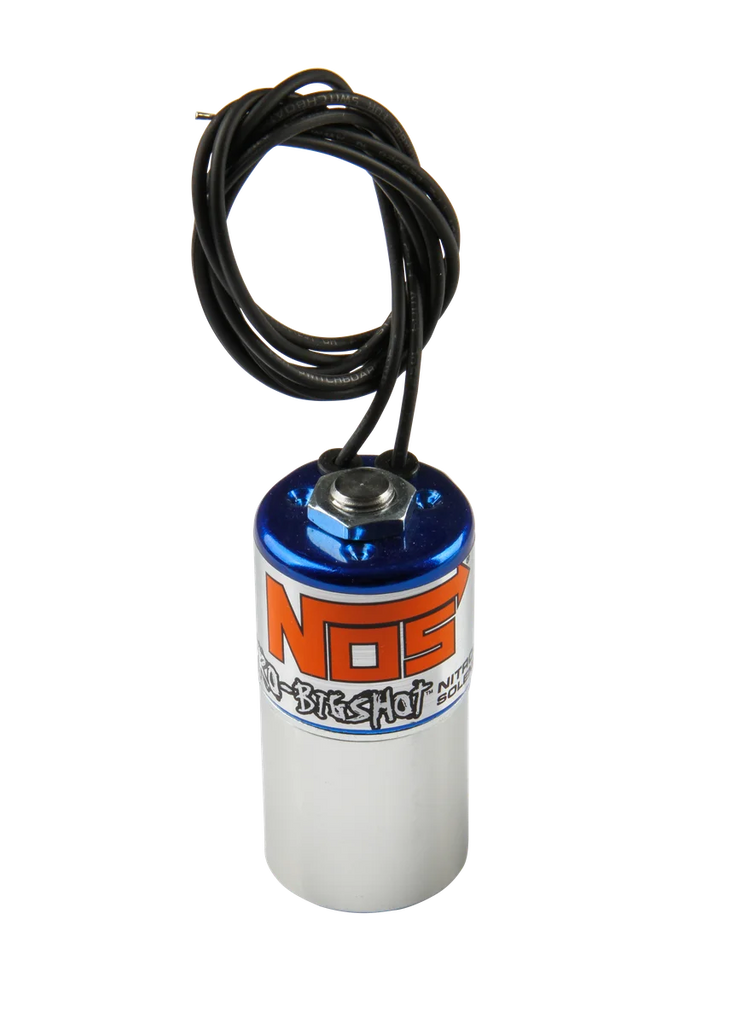

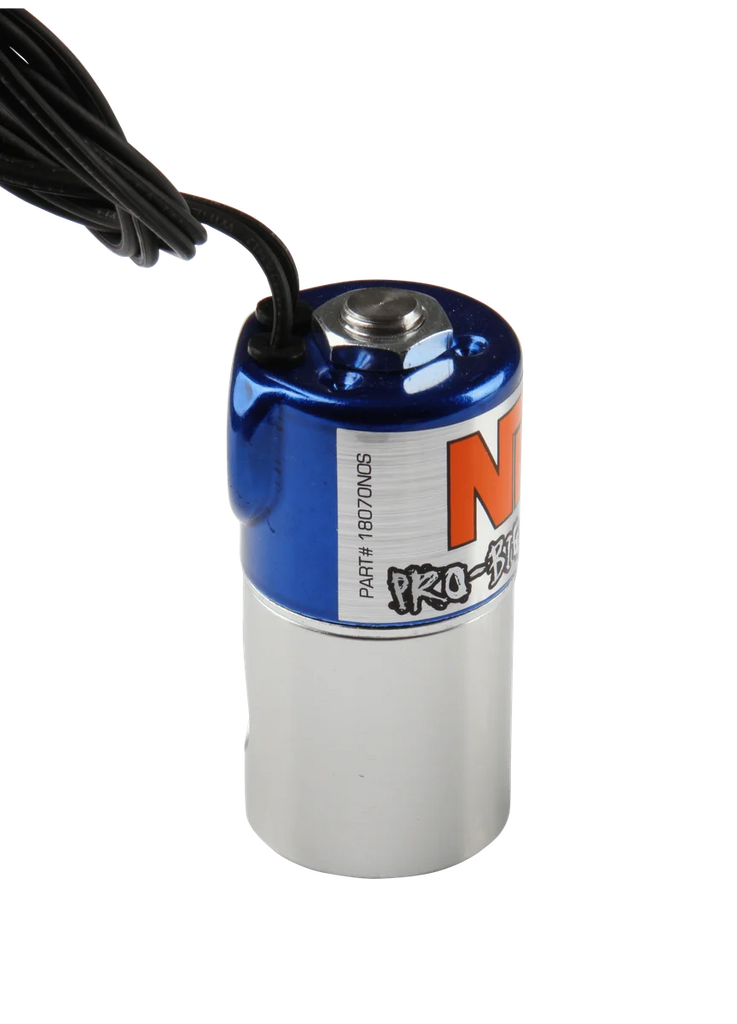

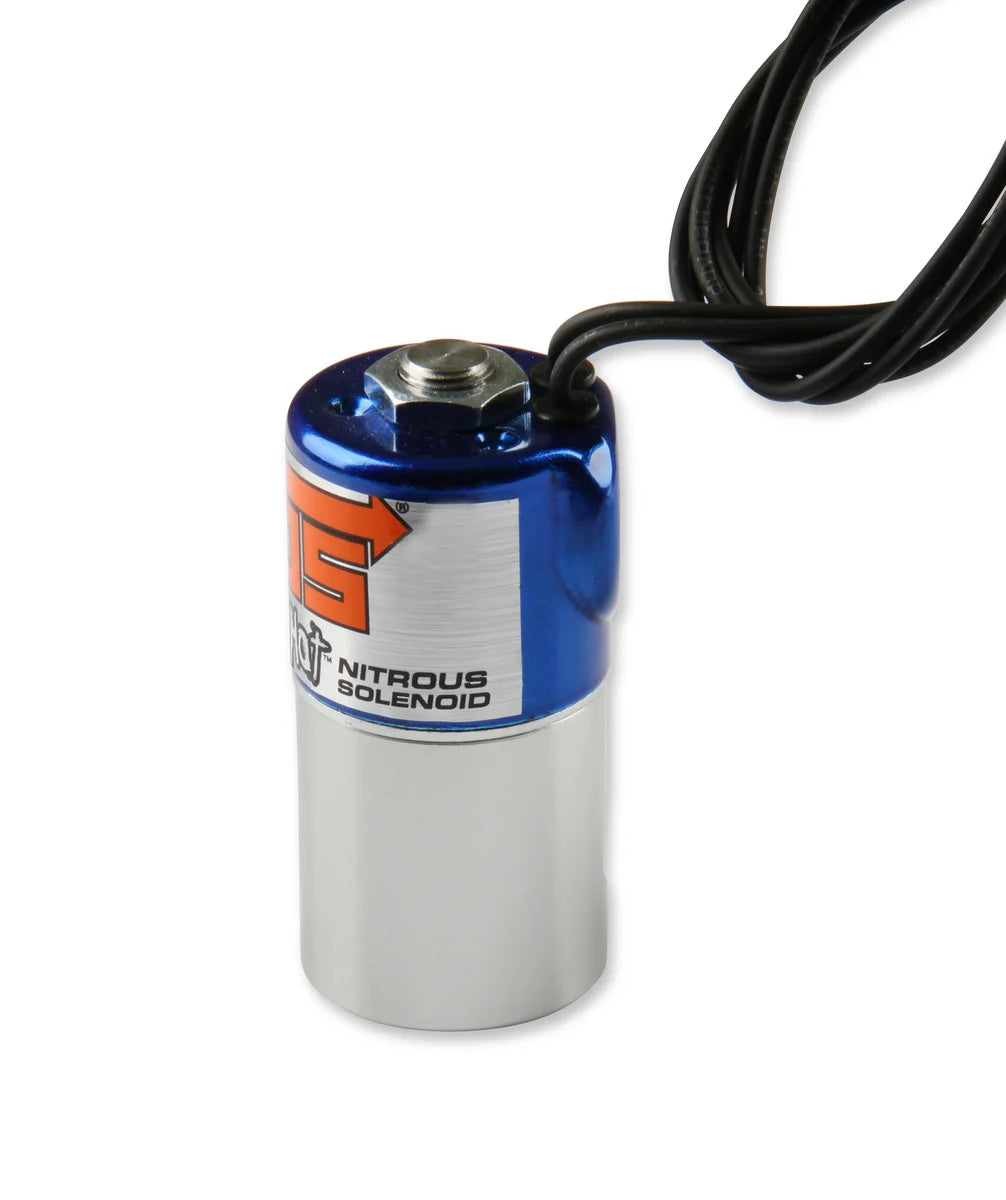

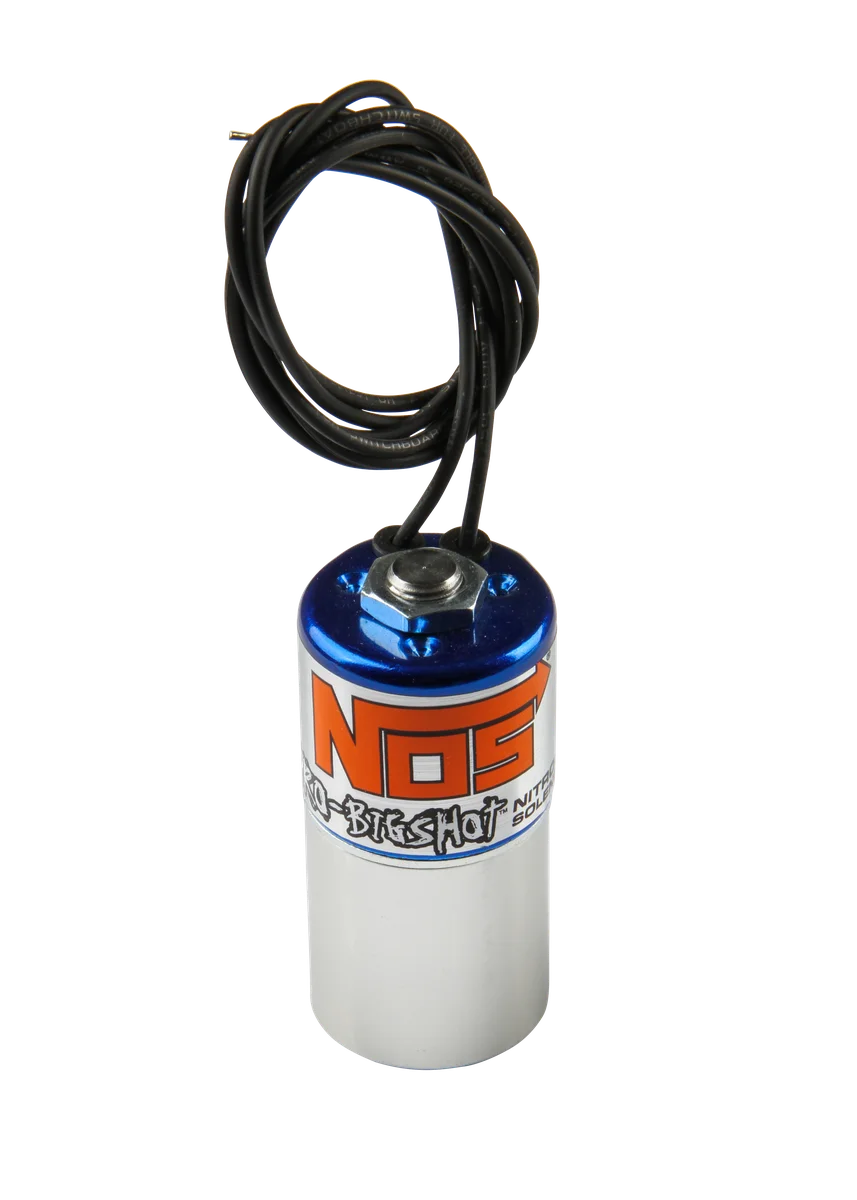

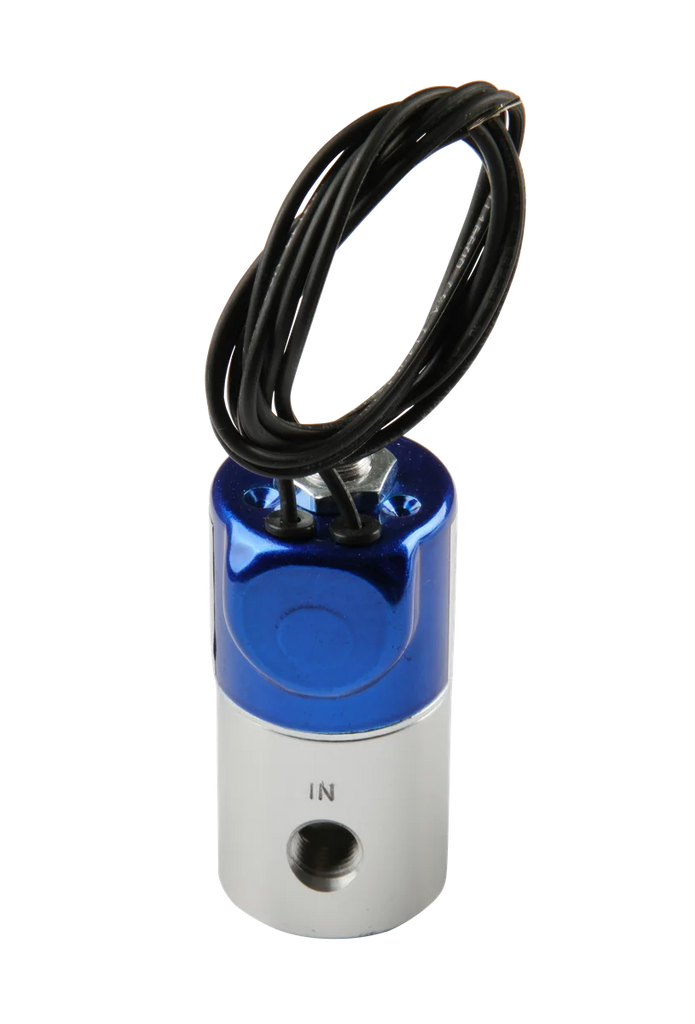

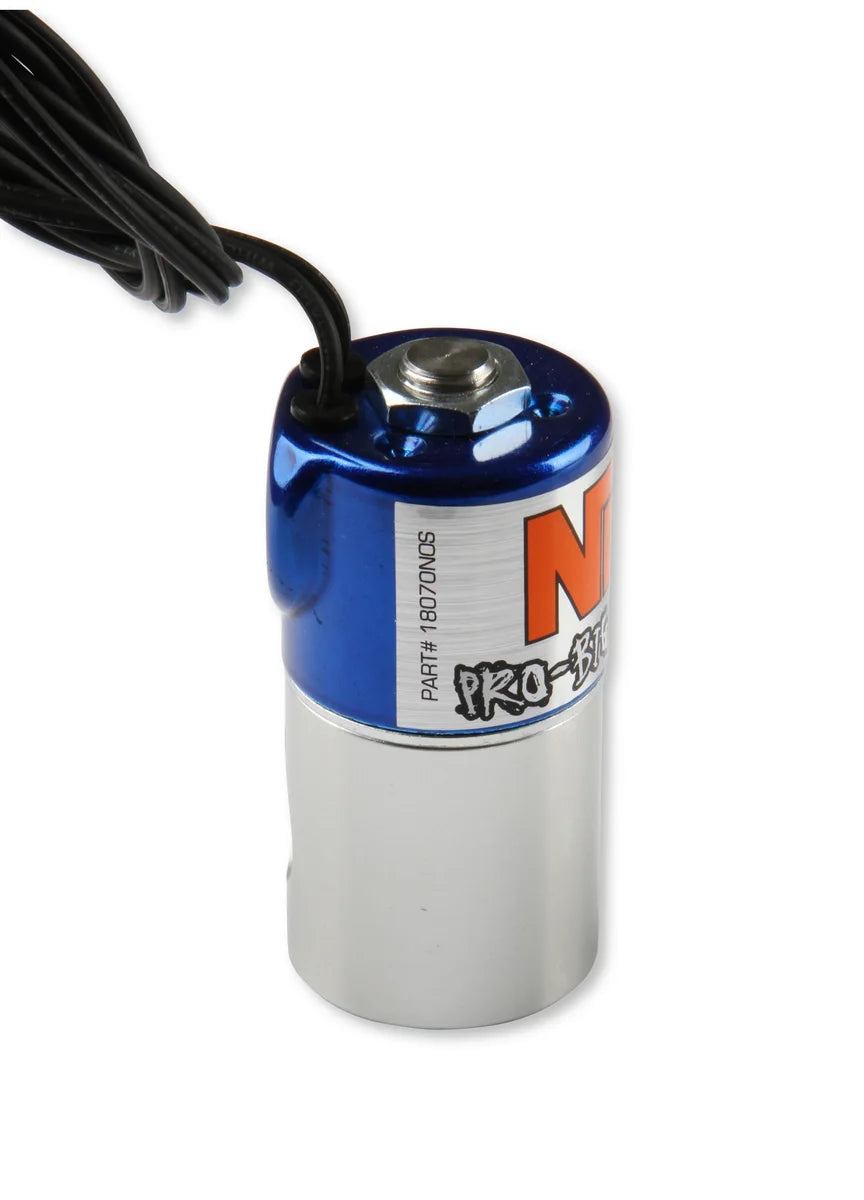

Nitrous oxide is the easiest way to add big power to any engine and NOS is the #1 name in nitrous! NOS is proud to introduce a new nitrous solenoid to the lineup. The NOS Pro-Bigshot™ nitrous solenoid features a huge .250" orifice encased in a lightweight, clear anodized billet aluminum base that provides maximum flow for extreme applications. The Pro-Bigshot™ is a pressure balanced design that greatly reduces power draw, requiring only 4-6 amps during operation. Coming in at only 3.5" tall and 1.63" in diameter, the Pro-Bigshot™ nitrous solenoid makes installation easier on multiple stage systems compared to the trash can style solenoids.
| AMP DRAW |
4 to 6A |
| Bracket(s) Included |
No |
| Brand |
NOS |
| Category |
Air and Fuel Delivery |
| 17 |
Blue |
| Emission Code |
5 |
| Finish |
Natural |
| Fittings Included |
No |
| Inlet |
Side |
| Inlet Attachment |
Female Threads |
| Inlet Thread |
1/4" NPT |
| 10 |
Stainless Steel |
| Max Pressure |
1200 PSI |
| Orifice |
1/4" (0.250") |
| Outlet |
Bottom |
| Outlet Attachment |
Female Threads |
| Outlet Thread |
1/4" NPT |
| part type |
Nitrous Oxide Solenoid |
| Product Line |
Pro Bigshot |
| Product Type |
Nitrous Solenoid |
| Purge Port |
None |
| Solenoid Top Cover Color |
Blue |
| Sub Category |
Switches, Solenoids and Actuators |
| Warranty |
Manufacturer's Limited 90 Day Warranty |
| AMP DRAW |
4 to 6A |
| Bracket(s) Included |
No |
| Brand |
NOS |
| Category |
Air and Fuel Delivery |
| 17 |
Blue |
| Emission Code |
5 |
| Finish |
Natural |
| Fittings Included |
No |
| Inlet |
Side |
| Inlet Attachment |
Female Threads |
| Inlet Thread |
1/4" NPT |
| 10 |
Stainless Steel |
| Max Pressure |
1200 PSI |
| Orifice |
1/4" (0.250") |
| Outlet |
Bottom |
| Outlet Attachment |
Female Threads |
| Outlet Thread |
1/4" NPT |
| part type |
Nitrous Oxide Solenoid |
| Product Line |
Pro Bigshot |
| Product Type |
Nitrous Solenoid |
| Purge Port |
None |
| Solenoid Top Cover Color |
Blue |
| Sub Category |
Switches, Solenoids and Actuators |
| Warranty |
Manufacturer's Limited 90 Day Warranty |
| Description_INV |
PRO-BIGSHOT SOLENOID N2O |
| Description_ASC |
NOTE: This solenoid is recommended for non-progressive nitrous applications that require absolute maximum solenoid flow, as well as installations that are trying to reduce overall electrical current. |
| Description_DES |
NOS Nitrous Solenoid - Blue |
| Description_EXT |
Pro Bigshot® Nitrous Solenoid |
| Description_MKT |
Nitrous oxide is the easiest way to add big power to any engine and NOS is the #1 name in nitrous! NOS is proud to introduce a new nitrous solenoid to the lineup. The NOS Pro-Bigshot™ nitrous solenoid features a huge .250" orifice encased in a lightweight, clear anodized billet aluminum base that provides maximum flow for extreme applications. The Pro-Bigshot™ is a pressure balanced design that greatly reduces power draw, requiring only 4-6 amps during operation. Coming in at only 3.5" tall and 1.63" in diameter, the Pro-Bigshot™ nitrous solenoid makes installation easier on multiple stage systems compared to the trash can style solenoids. |
| Description_FAB |
Easiest way to add power to any engine |
| Description_FAB |
Features .250" orifice providing maximum flow for extreme applications |
| Description_FAB |
Blue powder coated housing with a clear anodized aluminum base |
| Description_FAB |
Makes installation easier on multi-stage systems |
| Description_FAB |
Pressure balanced design reduces power draw |
| Description_FAB |
Requires only 4-6 amps during operaton |
| Description_FAB |

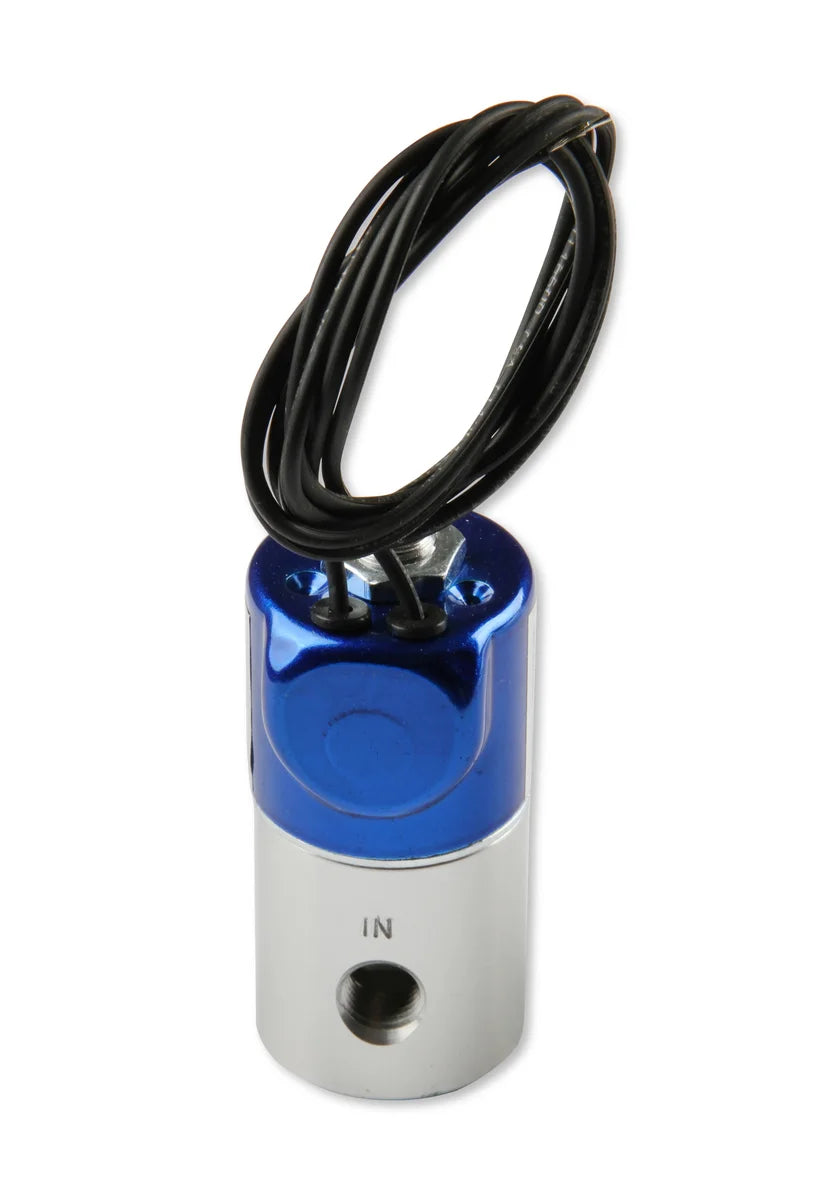

1/4" NPT side inlet |
| Description_FAB |
1/4" NPT bottom outlet |
| Description_FAB |
Cannot be use with a progressive controller |
| Description_INV |
PRO-BIGSHOT SOLENOID N2O |
| Description_ASC |
NOTE: This solenoid is recommended for non-progressive nitrous applications that require absolute maximum solenoid flow, as well as installations that are trying to reduce overall electrical current. |
| Description_DES |
NOS Nitrous Solenoid - Blue |
| Description_EXT |
Pro Bigshot® Nitrous Solenoid |
| Description_MKT |
Nitrous oxide is the easiest way to add big power to any engine and NOS is the #1 name in nitrous! NOS is proud to introduce a new nitrous solenoid to the lineup. The NOS Pro-Bigshot™ nitrous solenoid features a huge .250" orifice encased in a lightweight, clear anodized billet aluminum base that provides maximum flow for extreme applications. The Pro-Bigshot™ is a pressure balanced design that greatly reduces power draw, requiring only 4-6 amps during operation. Coming in at only 3.5" tall and 1.63" in diameter, the Pro-Bigshot™ nitrous solenoid makes installation easier on multiple stage systems compared to the trash can style solenoids. |
| Description_FAB |
Easiest way to add power to any engine |
| Description_FAB |
Features .250" orifice providing maximum flow for extreme applications |
| Description_FAB |
Blue powder coated housing with a clear anodized aluminum base |
| Description_FAB |
Makes installation easier on multi-stage systems |
| Description_FAB |
Pressure balanced design reduces power draw |
| Description_FAB |
Requires only 4-6 amps during operaton |
| Description_FAB |
1/4" NPT side inlet |
| Description_FAB |
1/4" NPT bottom outlet |
| Description_FAB |
Cannot be use with a progressive controller |
