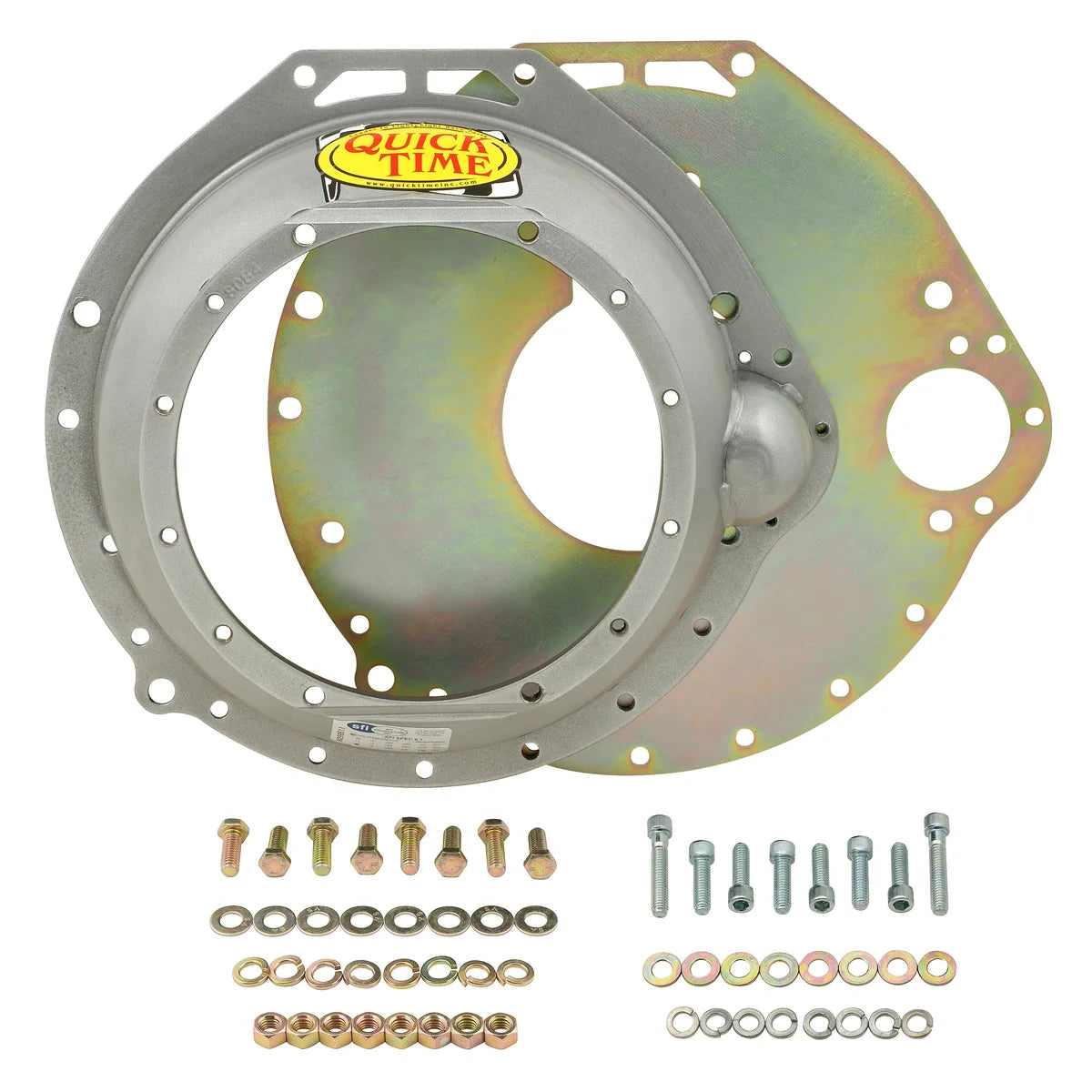

The Quick Time RM-8084 bellhousing connects Coyote 4.6L / 5.0L / 5.4L to ZF Transaxle transmissions. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)
Specifications:
| Brand |
Quick Time |
| Category |
Transmission and Drivetrain |
| Certification |
6.1 SFI |
| Clutch |
11" |
| Clutch Operation |
Automatic |
| Color |
Black |
| Emission Code |
5 |
| Engine |
Ford 5.0L Coyote |
| Engine |
Ford Mod Motor |
| Engine |
Ford 7.3L Godzilla |
| Engine |
Ford 5.4 Modular |
| Engine |
Ford 5.8 Modular |
| Engine Make |
Ford |
| Engine Plate |
RM-8084-C |
| Flywheel |
164 Tooth |
| Height |
4.497 |
| Make |
Ford |
| 10 |
Steel |
| Patented |
yes |
| Product Type |
Bellhousing |
| SFI Approved |
Yes |
| SFI Certification |
6.1 |
| Trans Bore |
10.875 |
| Trans. Bore Diameter |
10.875 inch |
| Transmission |
ZF |
| Transmission Type |
Manual/Automatic |
| Weight |
20# |
| Weight (lb) |
20 |
| Description_INV |
4.6/5.4/5.0COYOTE-ZF TRANSAXLE |
| Description_DES |
QuickTime Bellhousing - Ford Modular |
| Description_EXT |
Perfect fit for 4.6/5.0/5.4/5.8/6.2L Ford Modular engines with ZF transaxle transmissions |
| Description_MKT |
The Quick Time RM-8084 bellhousing connects Coyote 4.6L / 5.0L / 5.4L to ZF Transaxle transmissions. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included) |
| Description_FAB |
Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes |
| Description_FAB |
QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available |
| Description_FAB |
Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings |
| Description_INV |
4.6/5.4/5.0COYOTE-ZF TRANSAXLE |
| Description_DES |
QuickTime Bellhousing - Ford Modular |
| Description_EXT |
Perfect fit for 4.6/5.0/5.4/5.8/6.2L Ford Modular engines with ZF transaxle transmissions |
| Description_MKT |
The Quick Time RM-8084 bellhousing connects Coyote 4.6L / 5.0L / 5.4L to ZF Transaxle transmissions. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included) |
| Description_FAB |
Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes |
| Description_FAB |
QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available |
| Description_FAB |
Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings |
| Brand |
Quick Time |
| Category |
Transmission and Drivetrain |
| Certification |
6.1 SFI |
| Clutch |
11" |
| Clutch Operation |
Automatic |
| Color |
Black |
| Emission Code |
5 |
| Engine |
Ford 5.0L Coyote |
| Engine |
Ford Mod Motor |
| Engine |
Ford 7.3L Godzilla |
| Engine |
Ford 5.4 Modular |
| Engine |
Ford 5.8 Modular |
| Engine Make |
Ford |
| Engine Plate |
RM-8084-C |
| Flywheel |
164 Tooth |
| Height |
4.497 |
| Make |
Ford |
| 10 |
Steel |
| Patented |
yes |
| Product Type |
Bellhousing |
| SFI Approved |
Yes |
| SFI Certification |
6.1 |
| Trans Bore |
10.875 |
| Trans. Bore Diameter |
10.875 inch |
| Transmission |
ZF |
| Transmission Type |
Manual/Automatic |
| Weight |
20# |
| Weight (lb) |
20 |
