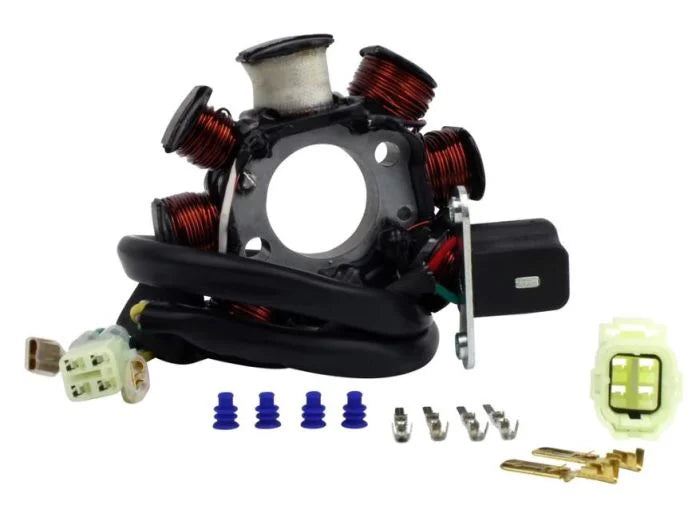

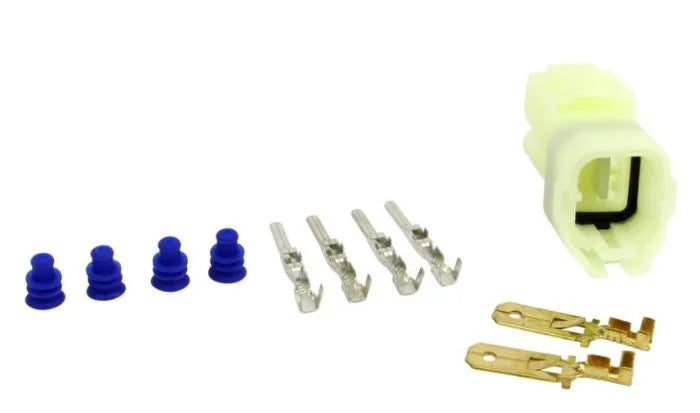

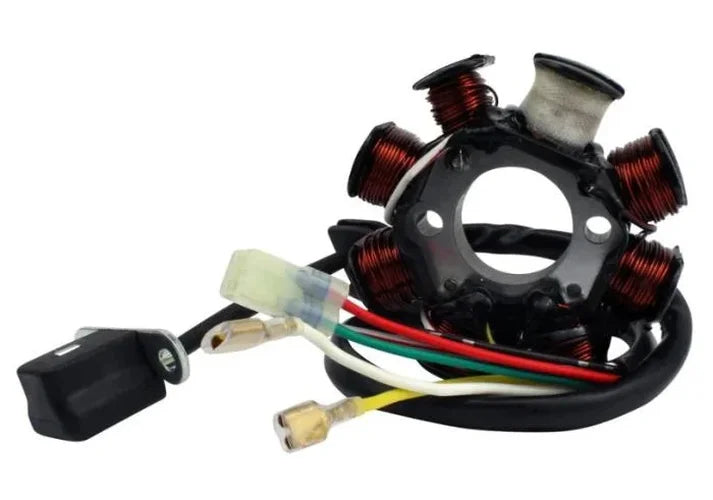

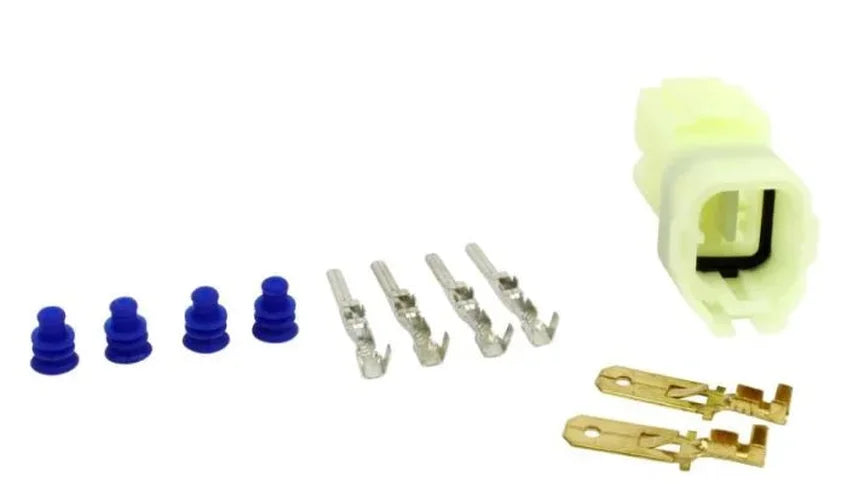

Brand new aftermarket statorDirect replacement to your original unitHighest grade of lamination materialsHighest grade of copper winding, resistant to 200 degrees CelsiusPick up pulsar coil includedConnectors includedRubber grommet includedAll products shipped are testedAll item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.Dimensions:Interior diameter: 29 mmExterior diameter: 84 mmThickness: 13 mmLength of wires stator to grommet: 70 mmLength of wires grommet to plug: 420 mmLength of pickup coil's wire to grommet: 45 mmOther specifications:Number of wires: 6Number of plugs: 2Number of pins: 6Number of poles: 8Wire to wire resistance:Alternator: White to Yellow = 0.4 ohms +-20%Pickup: Red to Green = 101.7 ohms +-20%Source: Black/Red to Red/White = 15.1 ohms +-20%Before installing your new statorCheck the AC output of the statorReplace any burned or corroded connectors on stator and regulator rectifierCheck and repair any melted wiringUse hi-temp dielectric grease on all connectorsOur stator might have a different wire color code than your original part.All the wires are installed in the correct order; please do not change any of the wiring configurations.When bolting stator in, always use locking compound.If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010".Warning:Risk of electric shock. Disconnect the battery before servicing.Ensure proper installation by a qualified technician to avoid malfunction.Vehicle Fitments2016 KTM 125 EXC Euro2016 Husqvarna TE 1252016 Husqvarna TE 125 Euro2015 KTM 125 EXC Euro2015 Husqvarna TE 1252015 Husqvarna TE 125 Euro2014 KTM 125 EXC Euro2014 Husqvarna TE 125 Euro2013 KTM 125 EXC Euro2013 Husqvarna TE 125 Euro2012 KTM 200 XC-W2012 KTM 200 EXC2012 KTM 125 EXC Euro2012 KTM 200 EXC Euro2012 Husqvarna TE 125 Euro2011 KTM 200 XC-W2011 KTM 200 EXC2011 KTM 125 EXC Euro2011 KTM 200 EXC Euro2010 KTM 200 XC-W2010 KTM 200 EXC2010 KTM 125 EXC Euro2010 KTM 200 EXC Euro2009 KTM 200 XC-W2009 KTM 200 EXC2009 KTM 200 XC2009 KTM 125 EXC Euro2009 KTM 200 EXC Euro2008 KTM 200 XC-W2008 KTM 200 EXC2008 KTM 200 XC2008 KTM 125 EXC Euro2008 KTM 200 EXC Euro2007 KTM 300 XC-W2007 KTM 300 EXC2007 KTM 200 EXC2007 KTM 250 EXC Euro2007 KTM 300 XC2007 KTM 125 EXC Euro2007 KTM 300 EXC Euro2007 KTM 200 EXC Euro2007 KTM 250 EXC2006 KTM 300 XC-W2006 KTM 300 EXC2006 KTM 200 EXC2006 KTM 250 EXC Euro2006 KTM 300 XC2006 KTM 125 EXC Euro2006 KTM 300 EXC Euro2006 KTM 200 EXC Euro2006 KTM 250 EXC2005 KTM 300 MXC2005 KTM 300 EXC2005 KTM 200 EXC2005 KTM 250 EXC Euro2005 KTM 200 SM2005 KTM 125 EXC Euro2005 KTM 300 EXC Euro2005 KTM 200 EXC Euro2005 KTM 250 EXC2005 KTM 125 EXC
