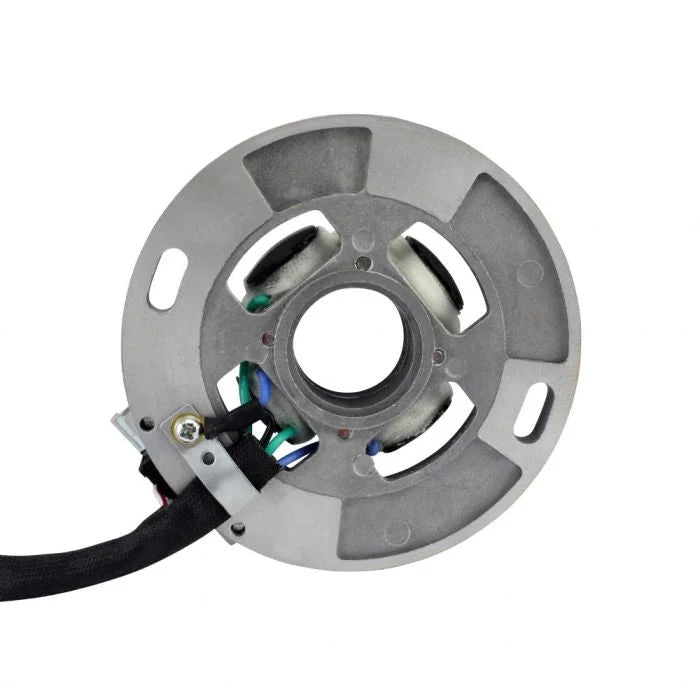

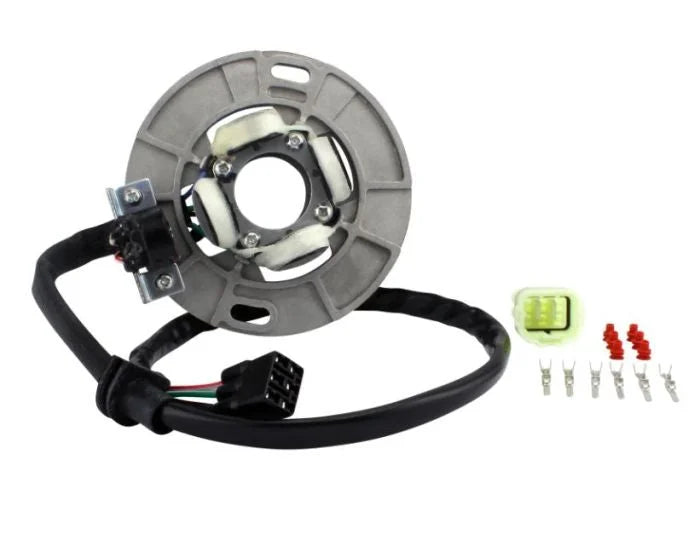

RMSTATOR RMSTATOR GENERATOR STATOR RMS010-108281

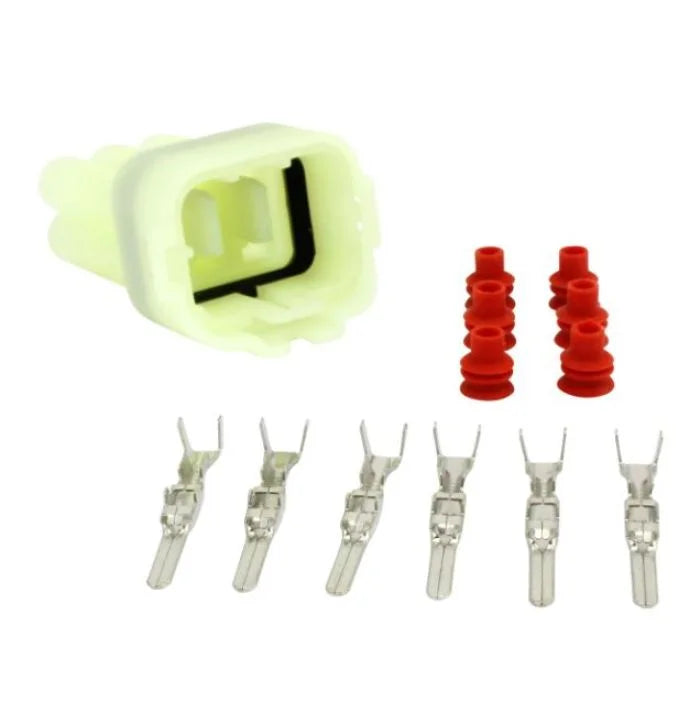

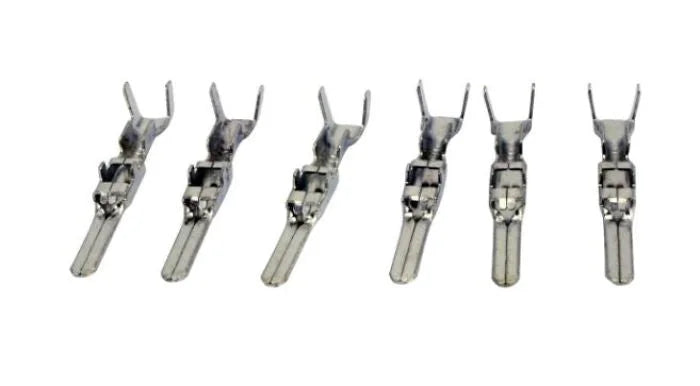

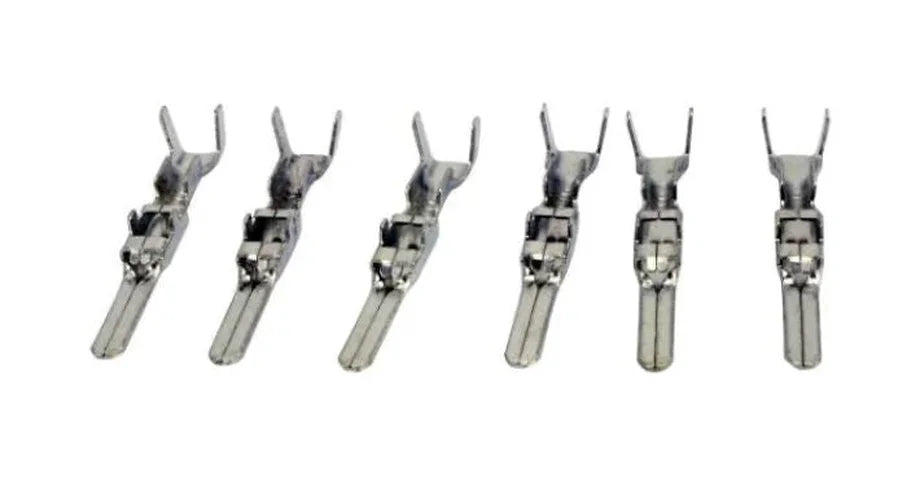

Brand new aftermarket statorDirect replacement to your original unitPlug-and-play, direct fit, easy installationHighest grade of lamination materialsHighest grade of copper winding, resistant to 200 degrees CelsiusPick up pulsar coil includedConnectors includedRubber grommet includedBack Plate includedAll products shipped are testedWe have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.Dimensions:Interior diameter: 27 mmExterior diameter: 109 mmThickness: 32.6 mmLength of wires stator to grommet: 135 mmLength of wires grommet to plug: 410 mmLength of pickup coil's wire to grommet: 135 mmOther specifications:Number of wires: 6Number of plugs: 1Number of pins: 6Number of poles: 4Wire to wire resistance:Pickup: White/Blue to White/Red = 293 ohms +-20%Source: Green/White to Black/Red = 858 ohms +-20%Source: Black to Green/Blue = 53 ohms +-20%
