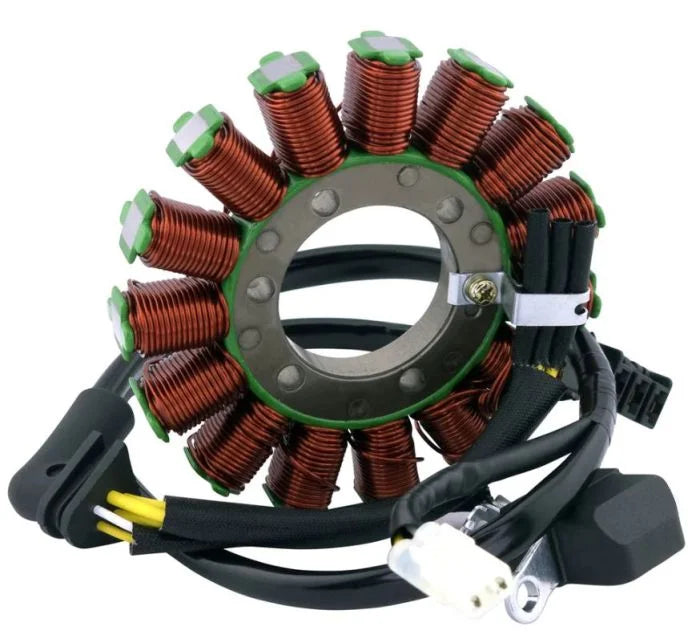

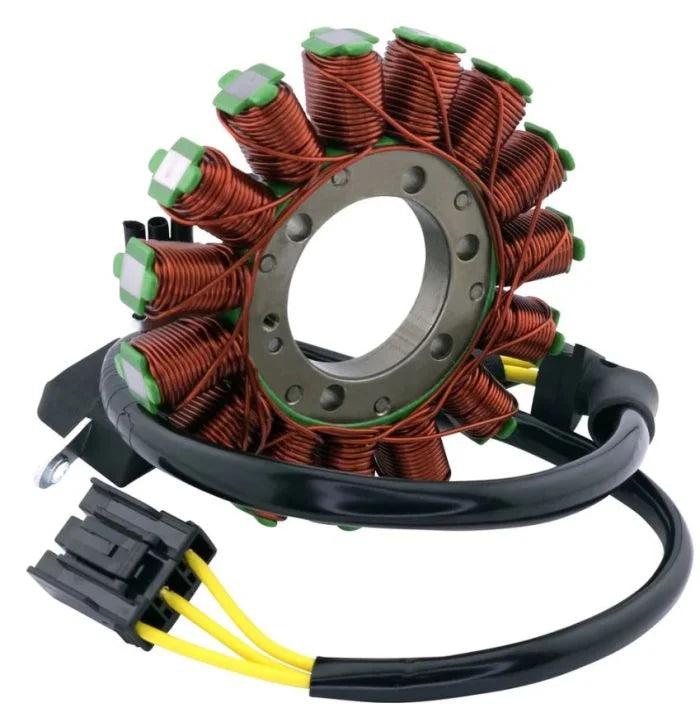

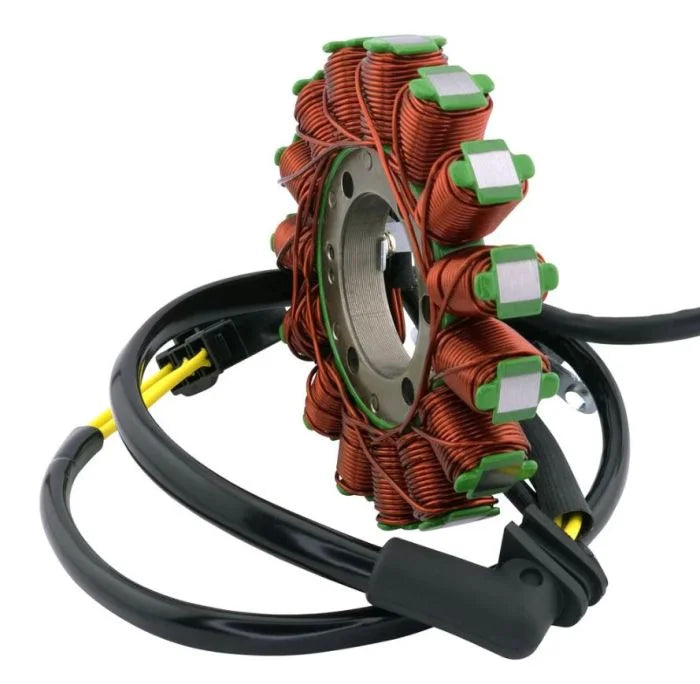

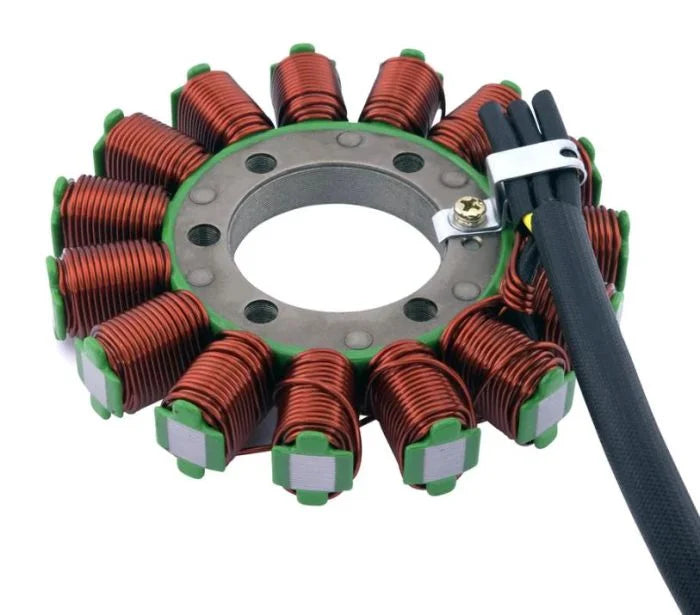

Brand new aftermarket generator statorDirect replacement to your original unitPlug-and-play, direct fit, easy installationHighest grade of lamination materialsHighest grade of copper winding, resistant to 200 degrees CelsiusPick up pulsar coil includedConnectors includedRubber grommet includedAll products shipped are testedAll item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.Dimensions:Interior diameter: 42 mmExterior diameter: 115 mmThickness: 12 mmLength of wires stator to grommet: 110 mmLength of wires grommet to plug: 70 mmLength of pickup coil's wire to grommet: 330, 560 mmOther specifications:Number of wires: 5Number of plugs: 2Number of pins: 5Number of poles: 15Wire to wire resistance:Alternator: Yellow to Yellow = 0.3 ohms +/-20%Pickup: Yellow to White/Yellow = 475 ohms +/-20%Before installing your new statorCheck the AC output of the statorReplace any burned or corroded connectors on stator and regulator rectifierCheck and repair any melted wiringUse hi-temp dielectric grease on all connectorsOur stator may use a different wire color code than your original.All of the wires are installed in the correct order; please do not change any of the wiring configurations.This stator is designed as a direct plug-in replacement and should be used as such.When bolting stator in, always use locking compound.If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".Warning:Risk of electric shock. Disconnect the battery before servicing.Ensure proper installation by a qualified technician to avoid malfunction.Vehicle Fitments2016 Honda CBR 1000 RR2016 Honda CBR 1000 S2015 Honda CBR 1000 RR2015 Honda CBR 1000 S2014 Honda CBR 1000 RR2014 Honda CBR 1000 RR SP2013 Honda CBR 1000 RR2012 Honda CBR 1000 RR2011 Honda CBR 1000 RR2010 Honda CBR 1000 RR
