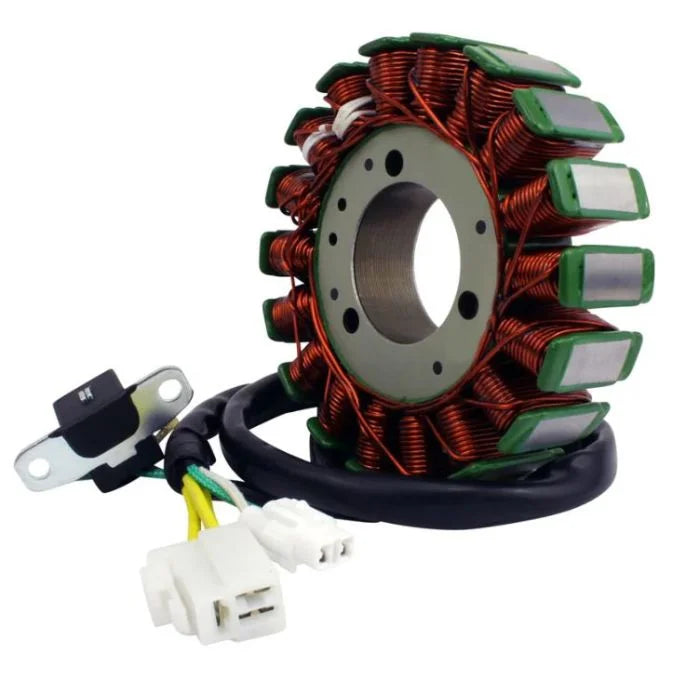

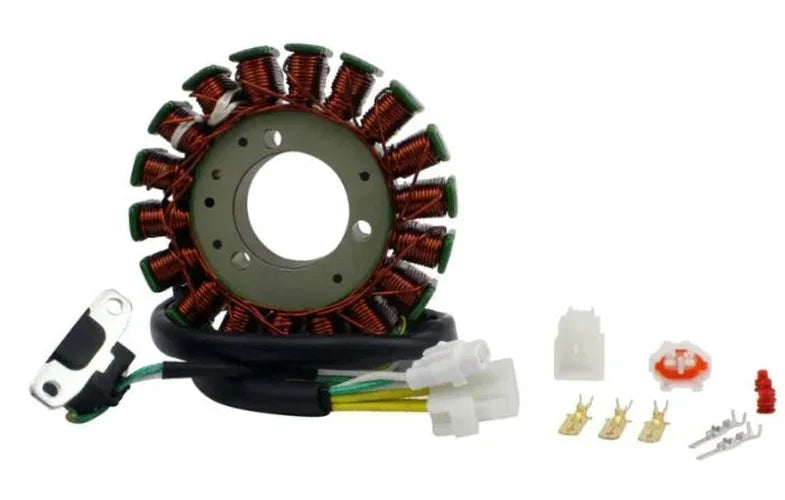

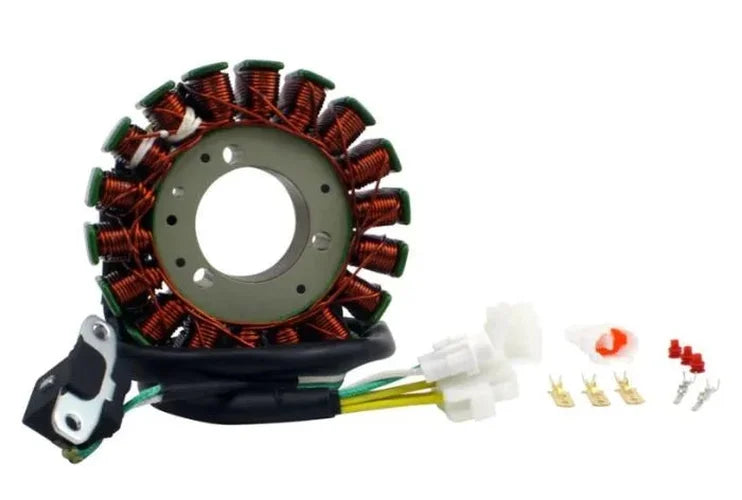

Brand new aftermarket generator statorDirect replacement to your original unitPlug-and-play, direct fit, easy installationHighest grade of lamination materialsHighest grade of copper winding, resistant to 200 degrees CelsiusPick up pulsar coil includedConnectors includedRubber grommet includedAll products shipped are testedWe have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.Dimensions:Interior diameter: 38 mmExterior diameter: 108 mmThickness: 19 mmLength of wires stator to grommet: 140 mmLength of wires grommet to plug: 60 mmLength of pickup coil's wire to grommet: 450 mmOther specifications:Number of wires: 5Number of plugs: 2Number of pins: 5Number of poles: 18Wire to wire resistance:Alternator: Black to Black = 0.6 ohms +/-20%Alternator: Black to ground = O.LPickup: Green to White = 197 ohms +/-20%Before installing your new generator statorCheck the AC output of the statorReplace any burned or corroded connectors on stator and regulator rectifierCheck and repair any melted wiringUse hi-temp dielectric grease on all connectorsOur stator might have a different wire color code than your original part.All the wires are installed in the correct order; please do not change any of the wiring configurations.This stator is designed as a direct plug-in replacement and should be used as such.When bolting stator in, always use locking compound.If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010".Warning:Risk of electric shock. Disconnect the battery before servicing.Ensure proper installation by a qualified technician to avoid malfunction.Vehicle Fitments2024 Suzuki SV 6502023 Suzuki SV 6502022 Suzuki SV 6502021 Suzuki SV 6502020 Suzuki SV 6502019 Suzuki SV 6502018 Suzuki SV 6502017 Suzuki SV 6502015 Suzuki SFV 650 Gladius2014 Suzuki SFV 650 Gladius2013 Suzuki SFV 650 Gladius2012 Suzuki SFV 650 Gladius2011 Suzuki SFV 650 Gladius2010 Suzuki SFV 650 Gladius2009 Suzuki SFV 650 Gladius
