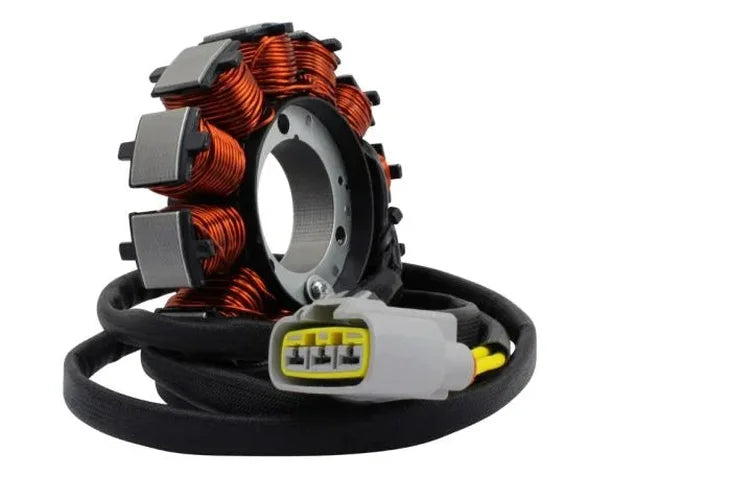

Brand new aftermarket 650W statorDirect replacement to your original unitPlug-and-play, direct fit, easy installationHighest grade of lamination materialsHighest grade of copper winding, resistant to 200 degrees CelsiusConnectors includedRubber grommet includedAll products shipped are testedWe have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.Dimensions:Interior diameter: 42 mmExterior diameter: 115 mmThickness: 16 mmLength of wires stator to grommet: 170 mmLength of wires grommet to plug: 1500 mmOther specifications:Number of wires: 3Number of plugs: 1Number of pins: 3Number of poles: 12Wire to wire resistance:Alternator: Yellow to Yellow = 0.3 ohms +/-20%Alternator: Yellow to ground = O.LBefore installing your new statorCheck the AC output of the statorReplace any burned or corroded connectors on stator and regulator rectifierCheck and repair any melted wiringUse hi-temp dielectric grease on all connectorsOur stator may use a different wire color code than your original.All of the wires are installed in the correct order; please do not change any of the wiring configurations.This stator is designed as a direct plug-in replacement and should be used as such.When bolting stator in, always use locking compound.If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".Warning:Risk of electric shock. Disconnect the battery before servicing.Ensure proper installation by a qualified technician to avoid malfunction.Vehicle Fitments2025 Can-Am Outlander 650 EFI2025 Can-Am Outlander Max 6502025 Can-Am Outlander 1000R2025 Can-Am Renegade 1000R2025 Can-Am Renegade 6502025 Can-Am Outlander Max 10002025 Can-Am Outlander Max 10002025 Can-Am Outlander Max 650 DPS2025 Can-Am Renegade XXC 10002024 Can-Am Outlander 8502024 Can-Am Outlander 1000R2024 Can-Am Renegade 1000R2024 Can-Am Renegade 6502024 Can-Am Outlander Max 8502024 Can-Am Outlander Max 1000R2024 Can-Am Outlander Max 10002024 Can-Am Outlander Max 650 DPS2024 Can-Am Outlander 850 XMR2024 Can-Am Outlander 850 XT2024 Can-Am Renegade XXC 10002023 Can-Am Outlander 8502023 Can-Am Outlander T 10002023 Can-Am Outlander T 6502023 Can-Am Outlander 1000R2023 Can-Am Renegade T 6502023 Can-Am Outlander 5702023 Can-Am Renegade T 6502023 Can-Am Maverick Trail 10002023 Can-Am Renegade 1000R2023 Can-Am Renegade 6502023 Can-Am Outlander Max 8502023 Can-Am Outlander Max 5702023 Can-Am Outlander 570 DPS2023 Can-Am Outlander Max 1000R2023 Can-Am Outlander Max 10002023 Can-Am Outlander Max 650 DPS2023 Can-Am Outlander 650 XMR2023 Can-Am Outlander Max 650 XT2023 Can-Am Outlander 650 XT2023 Can-Am Outlander 850 XMR2023 Can-Am Outlander 850 XT2023 Can-Am Outlander 650 DPS2023 Can-Am Renegade XXC 10002022 Can-Am Outlander 650 EFI2022 Can-Am Outlander 8502022 Can-Am Outlander T 10002022 Can-Am Outlander T 6502022 Can-Am Outlander 1000R2022 Can-Am Renegade T 6502022 Can-Am Outlander 5702022 Can-Am Outlander 10002022 Can-Am Renegade 1000R2022 Can-Am Renegade 6502022 Can-Am Outlander Max 8502022 Can-Am Outlander Max 5702022 Can-Am Outlander 570 DPS2022 Can-Am Outlander Max 1000R2022 Can-Am Outlander Max 10002022 Can-Am Outlander Max 650 DPS2022 Can-Am Outlander 570 XMR2022 Can-Am Outlander 650 XMR2022 Can-Am Outlander Max 650 XT2022 Can-Am Outlander 650 XT2022 Can-Am Outlander 850 XMR2022 Can-Am Outlander 850 XT2022 Can-Am Outlander 650 DPS2022 Can-Am Renegade 8502022 Can-Am Outlander 570 XT2022 Can-Am Renegade XXC 10002021 Can-Am Outlander 650 EFI2021 Can-Am Outlander 8502021 Can-Am Outlander T 10002021 Can-Am Outlander T 6502021 Can-Am Outlander 1000R2021 Can-Am Renegade T 6502021 Can-Am Outlander T 5702021 Can-Am Renegade T 10002021 Can-Am Renegade 1000R2021 Can-Am Outlander Max 8502021 Can-Am Outlander Max 10002021 Can-Am Outlander Max 5702021 Can-Am Outlander Max 1000R2021 Can-Am Outlander 10002021 Can-Am Renegade 10002021 Can-Am Outlander Max 650 DPS2021 Can-Am Outlander 650 XMR2021 Can-Am Outlander Max 650 XT2021 Can-Am Renegade 570 XMR2021 Can-Am Outlander 650 XT2021 Can-Am Outlander 850 XMR2021 Can-Am Outlander 850 XT2021 Can-Am Outlander 650 DPS2021 Can-Am Renegade XXC 10002020 Can-Am Outlander 650 EFI2020 Can-Am Outlander Max 6502020 Can-Am Outlander 8502020 Can-Am Outlander T 10002020 Can-Am Outlander T 6502020 Can-Am Outlander 1000R2020 Can-Am Renegade T 6502020 Can-Am Outlander 10002020 Can-Am Outlander T 5702020 Can-Am Renegade T 10002020 Can-Am Renegade 1000R2020 Can-Am Renegade 6502020 Can-Am Outlander Max 8502020 Can-Am Outlander Max 10002020 Can-Am Outlander Max 1000R2020 Can-Am Outlander T Max 5702020 Can-Am Outlander T Max 10002020 Can-Am Renegade 10002020 Can-Am Outlander Max 650 DPS2020 Can-Am Outlander 650 XMR2020 Can-Am Outlander Max 650 XT2020 Can-Am Renegade 570 XMR2020 Can-Am Outlander 650 XT2020 Can-Am Outlander 850 XMR2020 Can-Am Outlander 650 DPS2020 Can-Am Commander Max 800 R2020 Can-Am Outlander T Max 6502020 Can-Am Commander 800 R2020 Can-Am Renegade XXC 10002020 Can-Am Commander Max 800R DPS
