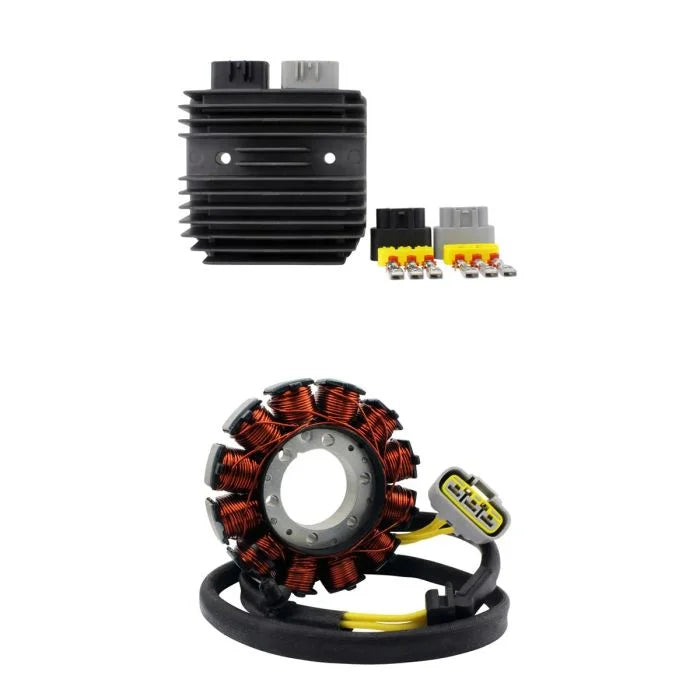

Stator + Mosfet Voltage Regulator Rectifier KitDirect replacement to your original unitPlug-and-play, direct fit, easy installationThe quality exceeds the OEM equipmentAll RMStator products are testedStator:Highest grade of lamination materialsHighest grade of copper winding, resistant to 200 degrees CelsiusConnectors includedRubber grommet includedMOSFET Regulator Rectifier:Improved heat sink and charging capabilitiesHigher grade of electric componentsSTOP BURNING YOUR REGULATOR RECTIFIERIt is time to update or replace your voltage regulator with the advanced MOSFET typeIt runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.Can-AM OE: 108494-R00Stator:Dimensions:Interior diameter: 42 mmExterior diameter: 115 mmThickness: 16 mmLength of wires stator to grommet: 170 mmLength of wires grommet to plug: 720 mmOther specifications:Number of wires: 3Number of plugs: 1Number of pins: 3Number of poles: 12Wire to wire resistance:Alternator: Yellow to Yellow = 0.3 ohms +/-20%Mosfet Regulator:Dimensions:Width: 120 mmLength: 110 mmHeight: 37 mmDistance between fixation holes center to center: 69 mmOther specifications:Number of plugs: 2Number of pins: 5Minimum Charging Voltage: 14.5 V +- 0.5 VMaximum Charging Current: 50 A / 500 WOpen Circuit Voltage: < 15 VOperation Temperature: -20°C to 85°CBefore installing your new stator and voltage regulator rectifierCheck the AC output of the statorReplace any burned or corroded connectors on stator and regulator rectifierCheck and repair any melted wiringUse hi-temp dielectric grease on all connectorsOur stator may use a different wire color code than your original.All of the wires are installed in the correct order; please do not change any of the wiring configurations.This stator is designed as a direct plug-in replacement and should be used as such.When bolting stator in, always use locking compound.If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".Warning:Risk of electric shock. Disconnect the battery before servicing.Ensure proper installation by a qualified technician to avoid malfunction.Vehicle Fitments2024 Can-Am Commander 10002023 Can-Am Maverick Sport 1000 R2023 Can-Am Defender HD9 9002023 Can-Am Defender HD10 DPS2023 Can-Am Defender HD10 DPS 6x62023 Can-Am Defender HD10 X MR2023 Can-Am Defender HD10 XT2023 Can-Am Defender HD10 XT 6x62023 Can-Am Defender Max HD10 DPS2023 Can-Am Defender Max HD10 X MR2023 Can-Am Defender Max HD10 XT2023 Can-Am Defender Pro HD10 DPS2023 Can-Am Defender Pro HD10 XT2022 Can-Am Maverick Sport 10002022 Can-Am Maverick Sport 1000 R2022 Can-Am Maverick Trail 10002022 Can-Am Traxter HD102022 Can-Am Maverick Max 1000R Sport2022 Can-Am Traxter PRO HD102022 Can-Am Traxter T HD102022 Can-Am Commander 10002022 Can-Am Commander Max 10002022 Can-Am Defender HD9 9002022 Can-Am Defender Max HD9 9002022 Can-Am Traxter HD92022 Can-Am Traxter Max HD92022 Can-Am Traxter T HD92022 Can-Am Traxter T Max HD102022 Can-Am Defender HD10 DPS2022 Can-Am Defender HD10 DPS 6x62022 Can-Am Defender HD10 X MR2022 Can-Am Defender HD10 XT2022 Can-Am Defender HD10 XT 6x62022 Can-Am Defender Max HD10 DPS2022 Can-Am Defender Max HD10 X MR2022 Can-Am Defender Max HD10 XT2022 Can-Am Defender Pro HD10 DPS2022 Can-Am Defender Pro HD10 Lone Star2022 Can-Am Defender Pro HD10 XT2021 Can-Am Defender HD8 8002021 Can-Am Defender Max HD8 8002021 Can-Am Maverick Sport 10002021 Can-Am Maverick Sport 1000 R2021 Can-Am Maverick Trail 10002021 Can-Am Maverick Trail 8002021 Can-Am Traxter HD102021 Can-Am Traxter Max HD82021 Can-Am Traxter HD82021 Can-Am Maverick Max 1000R Sport2021 Can-Am Traxter PRO HD102021 Can-Am Traxter T HD102021 Can-Am Commander 10002021 Can-Am Traxter T HD82021 Can-Am Defender HD10 DPS2021 Can-Am Defender HD10 DPS 6x62021 Can-Am Defender HD10 X MR2021 Can-Am Defender HD10 XT2021 Can-Am Defender HD10 XT 6x62021 Can-Am Defender Max HD10 DPS2021 Can-Am Defender Max HD10 X MR2021 Can-Am Defender Max HD10 XT2021 Can-Am Defender Pro HD10 Lone Star2021 Can-Am Defender Pro HD10 XT2020 Can-Am Defender HD8 8002020 Can-Am Defender Max HD8 8002020 Can-Am Maverick Sport 10002020 Can-Am Maverick Sport 1000 R2020 Can-Am Maverick Trail 10002020 Can-Am Maverick Trail 8002020 Can-Am Traxter HD102020 Can-Am Traxter HD82020 Can-Am Defender HD10 DPS2020 Can-Am Defender HD10 STD 6x62020 Can-Am Defender HD10 X MR2020 Can-Am Defender HD10 XT2020 Can-Am Defender Pro HD10 STD2020 Can-Am Defender HD10 XT Cab2020 Can-Am Defender HD10 XT-P2020 Can-Am Defender Max HD10 DPS2020 Can-Am Defender Max HD10 X MR2020 Can-Am Defender Max HD10 XT
