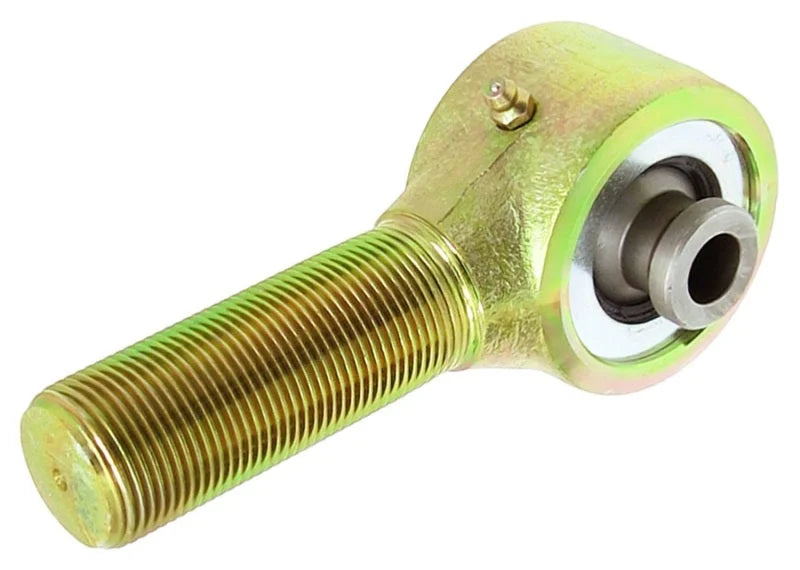

RockJock Johnny Joint 2 1/2in Narrow Forged 1 1/4in-12 RH Thread 74mm x 16mm Ball fits 2021-2025 Ford Bronco

Name: RockJock Johnny Joint 2 1/2in Narrow Forged 1 1/4in-12 RH Thread 74mm x 16mm Ball fits 2021-2025 Ford Bronco
Brand: RockJock
SKU: ROKRJ-331401-102
Price: 72.99 USD
Availability: InStock

Brand: RockJock

SKU: RJ-331401-102

availability: Special Order: Contact us to check stock and shipping lead times! Use LIVE HELP or call (724) 479-5480

$72.99 USD

Quantity

Subtotal: $72.99 USD

Quantity must be 1 or more

Description

Description

RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer up to 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is designed to fit the frame side of the 2021 and up Broncos rear control arms and feature a narrow 2 1/2 in. diameter joint body, fitted with a zerk fitting for greasing, 2.3 in. of 1 1/4 in.-12 right hand threads on the shank, and a 74mm mounting width ball with a 16mm thru bolt hole. Finished in gold zinc plating.
