RockJock Johnny Joint 2-inch Forged Rod End 3/4-inch RH Thread 2-inch x .4375-inch Ball

Name: RockJock Johnny Joint 2-inch Forged Rod End 3/4-inch RH Thread 2-inch x .4375-inch Ball
Brand: RockJock
SKU: ROKCE-9112S
Price: 85.99 USD
Availability: InStock

Brand: RockJock

SKU: CE-9112S

availability: Many in stock

$85.99 USD

Quantity

Subtotal: $85.99 USD

Quantity must be 1 or more

Description

Description

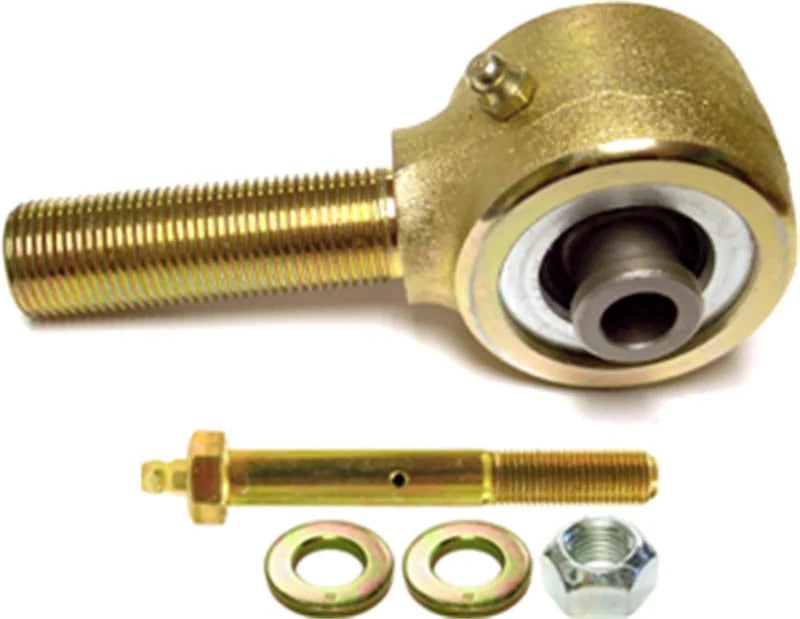

RockJocks forged Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 3/4 in.-16 right hand threads on the shank, and a 2 in. mounting width ball with a .4375 in. thru bolt hole. Finished in gold zinc plating. This unit also includes a 7/16 in. greasable bolt for external greasing of the joint.
