RockJock Johnny Joint Rod End 2 1/2-inch Forged 2.375-inch x .718-inch Ball 1 1/4in-12 RH Thread Shank

Name: RockJock Johnny Joint Rod End 2 1/2-inch Forged 2.375-inch x .718-inch Ball 1 1/4in-12 RH Thread Shank
Brand: RockJock
SKU: ROKCE-9114-27
Price: 66.99 USD
Availability: InStock

Brand: RockJock

SKU: CE-9114-27

availability: Special Order: Contact us to check stock and shipping lead times! Use LIVE HELP or call (724) 479-5480

$66.99 USD

Quantity

Subtotal: $66.99 USD

Quantity must be 1 or more

Description

Description

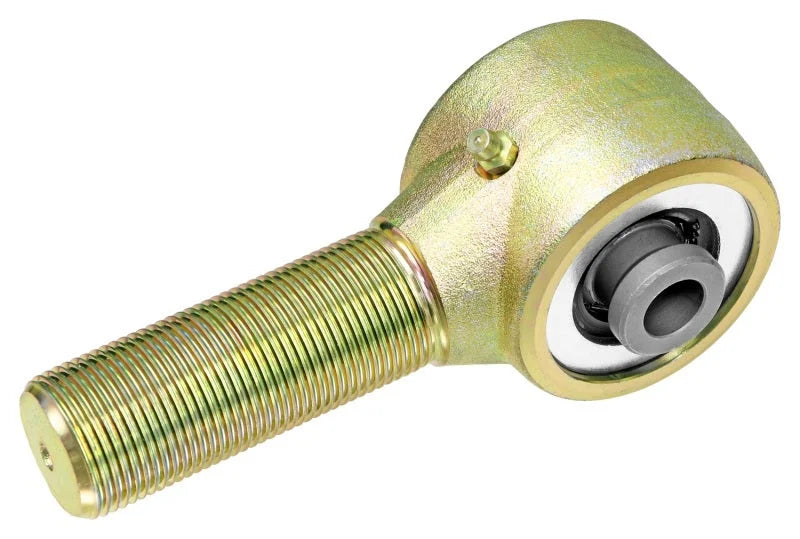

RockJocks forged Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 1/2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 1 1/4 in.-12 right hand threads on the shank, and a 2.375 in. mounting width ball with a .718 in. thru bolt hole. Finished in gold zinc plating.
