RockJock Johnny Joint Rod End 2 1/2in Narrow Forged 1in-14 LH Threads 2.625in x .640in Ball

Name: RockJock Johnny Joint Rod End 2 1/2in Narrow Forged 1in-14 LH Threads 2.625in x .640in Ball
Brand: RockJock
SKU: ROKRJ-331300-101
Price: 66.99 USD
Availability: InStock

Brand: RockJock

SKU: RJ-331300-101

availability: In stock

$66.99 USD

Quantity

Subtotal: $66.99 USD

Quantity must be 1 or more

Description

Description

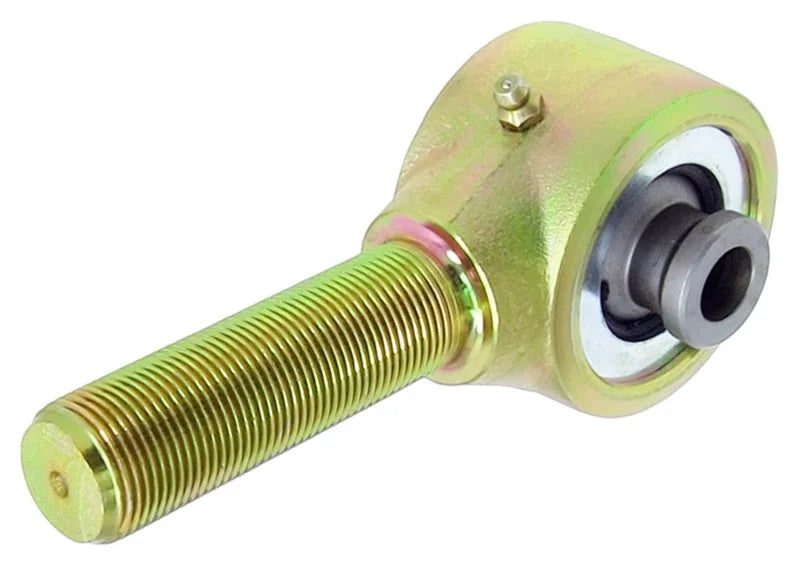

RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer up to 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint features a narrow 2 1/2 in. diameter joint body, fitted with a zerk fitting for greasing, 2.3 in. of 1 in.-14 left hand threads on the shank, and a 2.625 in. mounting width ball with a .640 thru bolt hole. Finished in gold zinc plating.
