RockJock Johnny Joint Rod End 3in Narrow Forged 1 1/2in-12 LH Threads 3.250in x 3/4in Ball RJ-365500-101

Name: RockJock Johnny Joint Rod End 3in Narrow Forged 1 1/2in-12 LH Threads 3.250in x 3/4in Ball RJ-365500-101
Brand: RockJock
SKU: ROKRJ-365500-101
Price: 127.99 USD
Availability: InStock

Brand: RockJock

SKU: RJ-365500-101

availability: Special Order: Contact us to check stock and shipping lead times! Use LIVE HELP or call (724) 479-5480

$127.99 USD

Quantity

Subtotal: $127.99 USD

Quantity must be 1 or more

Description

Description

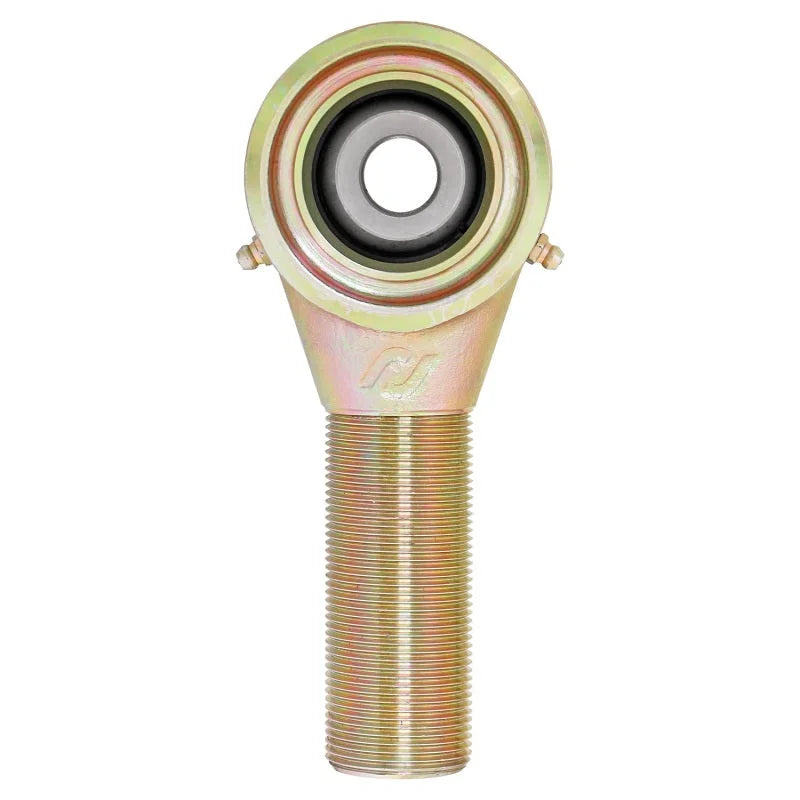

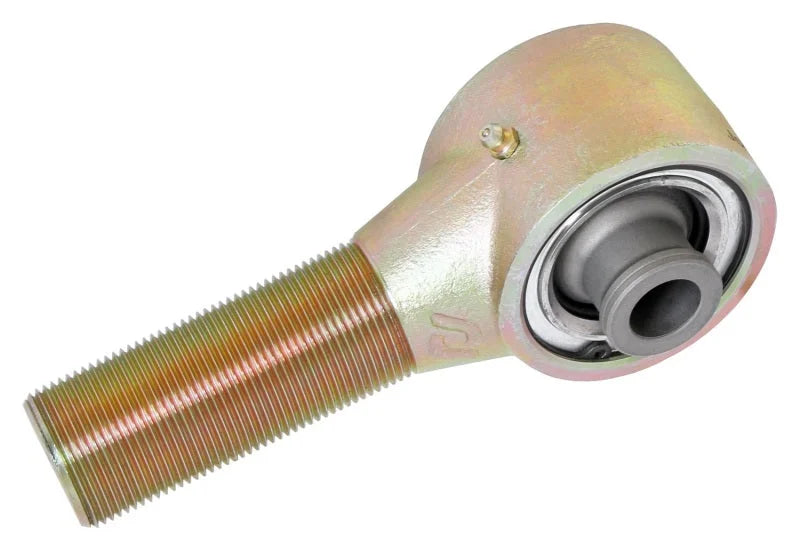

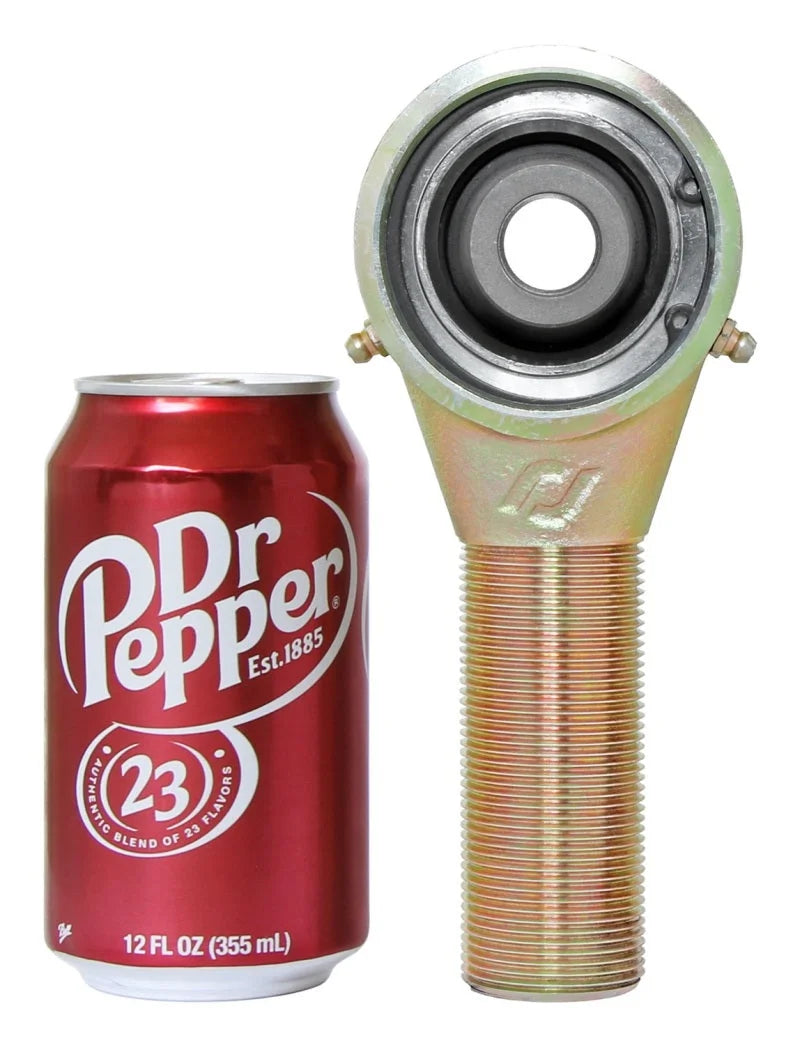

RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer up to 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint features a narrow 3 in. diameter joint body, fitted with a zerk fitting for greasing, 3.67 in. of 1 1/2 in.-12 left hand threads on the shank, and a 3.250 in. mounting width ball with a .750 thru bolt hole. Finished in gold zinc plating.
