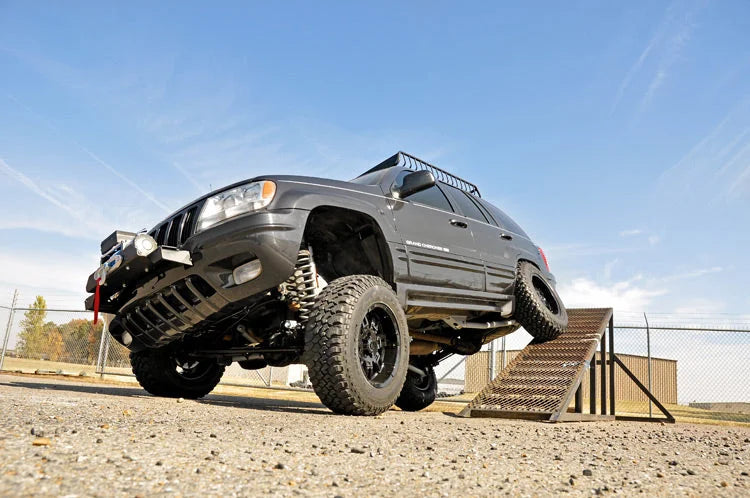

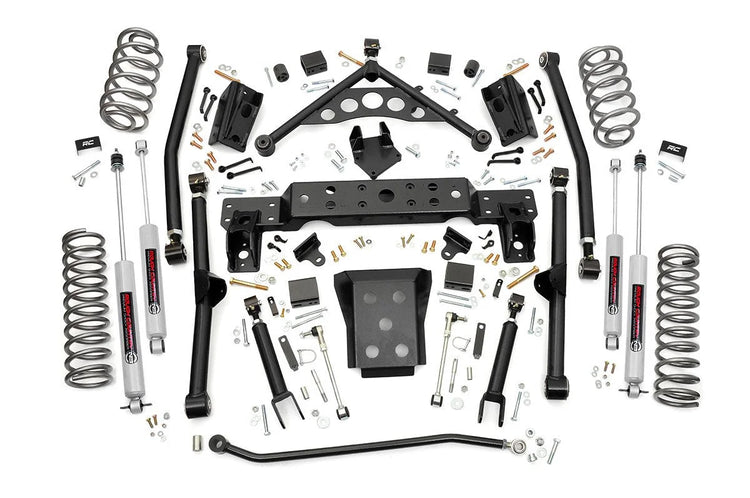

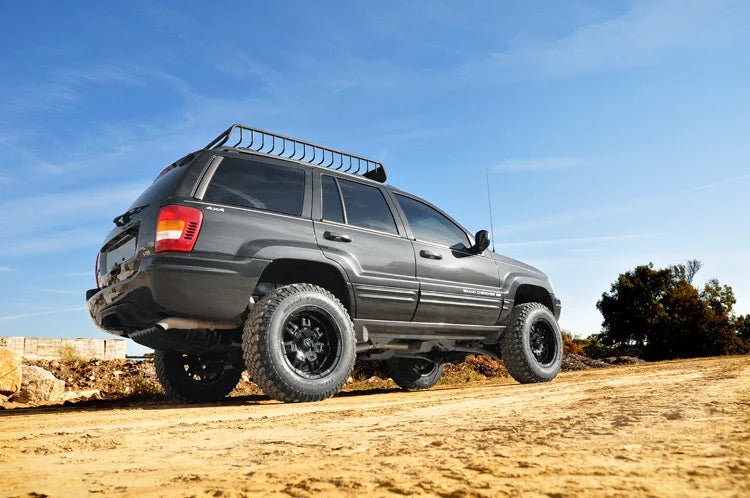

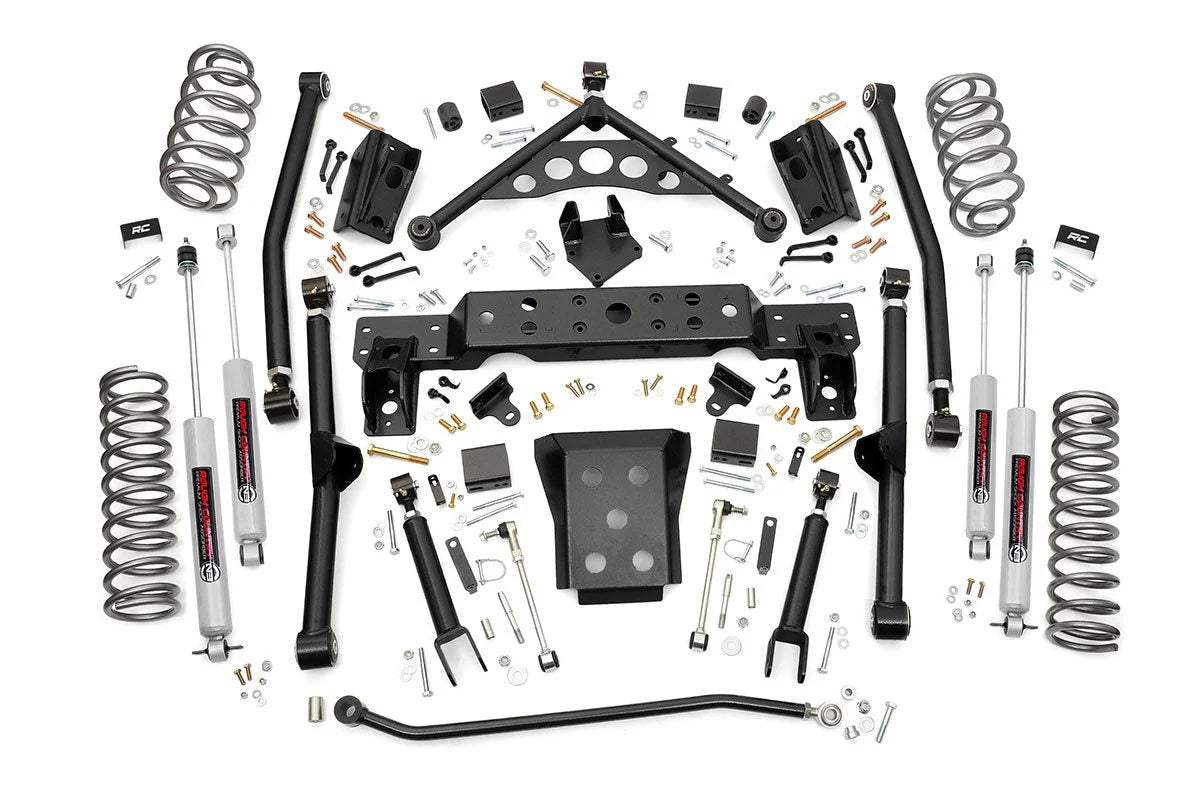

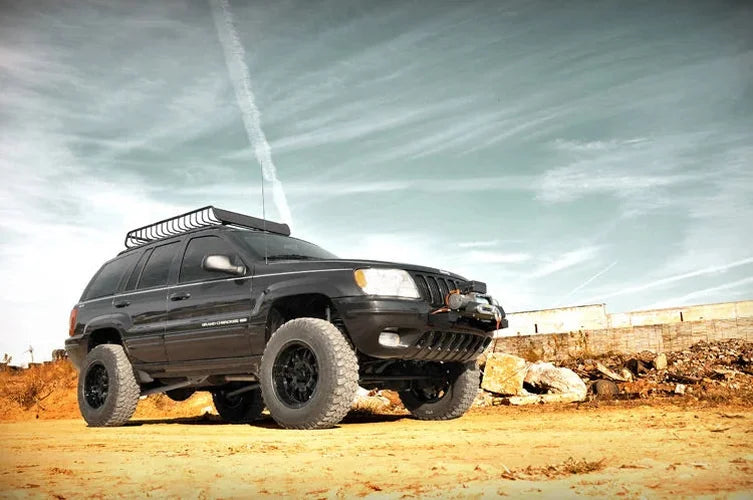

The long awaited WJ 4-inch Longarm Kit is a comprehensive package including everything needed for a great suspension lift while maintaining the vehicle's crucial center of gravity. Upgrade your WJ and gain aggressive looks, extreme flex, and enough ride height to run up to 31-inch tires. The kit includes adjustable high-clearance X-Flex upper and lower control arms with durable rubber bushings, featuringX-Flex joints. The kit also includes front and rear coil springs, a front adjustable track bar with drop bracket, 1/4-inch thick steel crossmember, skid plate and sway bar disconnects. Outfitted with Rough Country's N3 shocks, this Longarm Lift Kit is a total solution comprised of top-notch components designed for the avid off-roader who wants the most out of their WJ.\\This top of the line kit focuses on improving off-road handling and articulation while preventing binding and rear steer. This lift kit features high-clearance components with a front 4-link and rear y-link control arm design. This promotes extreme flex while keeping pinion angles optimized. Utilizing adjustable components, this kit can also accommodate future modifications.
Specifications:
| link |
https://www.roughcountry.com/product/jeep-suspension-lift-kit-908-20 |
| video |
https://youtu.be/d6kxoSExvhU |
| features |
Aggressive appearance\
Increased ground clearance\
HD 0.25" thick crossmember\
Lower control arms feature high clearance design\
Extreme travel long arms keep optimum alignment and give optimum articulation.\
X-Flex control arm features:\
\
durable OEM style rubber bushings.\
Flex joints feature a massive 2.5" diameter body and 1.25" thread.\
Fully greasable.\
Upper joints pivot up to 20 degrees.\
Lower joints pivot up to 35 degrees.\
|
| notes |
Does NOT fit V8 models. Does NOT fit models with Quadra-Trac I, Quadra-Trac II, or Quadra-Drive. Does NOT fit models equipped with a rzeppa joint front driveshaft. Models equipped with a CV style front driveshaft may result in driveshaft vibration. If this occurs, replacing the driveshaft, axle yoke and / or transfer case yoke will need to be performed to rid the vehicle of driveline vibration. |
| install_time |
8-9 hours |
| front_components |
Lifted coil springs\ |
| rear_components |
Lifted coil springs\ |
| instructions |
https://s3.amazonaws.com/roughcountry/install/921908200.pdf |
| fitment |
1999-2003:4WD:Jeep:Grand Cherokee |
| tire_info |
265/75R16:Factory 16:5x5.0:-:-;265/70R17:Factory 17:5x5.0:-:-;265/65R18:Factory 18:5x5.0:-:-;31x10.50R16:16x8:5x5.0:+30:-;265/70R17:17x9:5x5.0:-12:-;265/65R17:17x9:5x5.0:-12:-;265/65R18:18x9:5x5.0:-12:-;32x11.50R20:20x9:5x5.0:-12:Trimming Required;265/55R20:20x9:5x5.0:-12:-;245/60R20:20x9:5x5.0:-12:-;245/55R20:20x9:5x5.0:-12:- |
| discount |
30.0 |
| multiple_box |
Y |
| shipping_group |
Ground Only |
| coo |
USA |
| utv_product |
N |
| added_date |
2013-04-04 |
This Part Fits:
| Year |
Make |
Model |
Submodel |
Notes |
| 2004 |
Jeep |
Grand Cherokee |
Laredo |
|
| 2004 |
Jeep |
Grand Cherokee |
Limited |
|
| 2004 |
Jeep |
Grand Cherokee |
Special Edition |
|
| 1999 |
Jeep |
Grand Cherokee |
Laredo |
|
| 2000 |
Jeep |
Grand Cherokee |
Laredo |
|
| 2001 |
Jeep |
Grand Cherokee |
Laredo |
|
| 2002 |
Jeep |
Grand Cherokee |
Laredo |
|
| 2003 |
Jeep |
Grand Cherokee |
Laredo |
|
