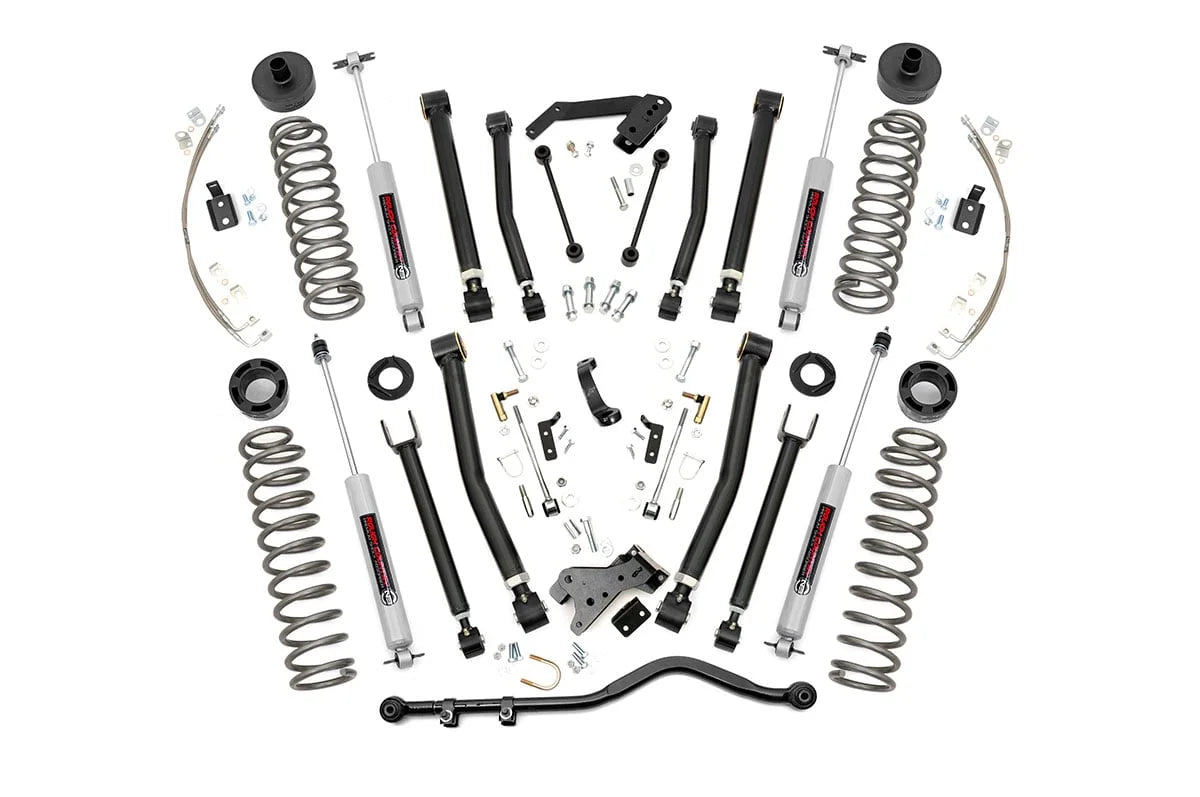

Total Transformation for Your Jeep: Elevate your ride with Rough Country's 6in X-Series Suspension Lift - a complete kit designed to deliver aggressive style and unbeatable off-road performance.Precision Suspension Tuning: This all-inclusive kit features front and rear upper and lower adjustable control arms with a high-clearance design, allowing you to dial in the perfect ride height and suspension setup. Lifted coil springs paired with coil correction plates optimize spring angles for superior vibration dampening on any terrain.Unmatched Strength and Adjustability: For the toughest trails, the forged solid steel adjustable track bar provides exceptional durability and axle centering. Weighing 16 pounds, this heavy-duty component installs easily and adjusts on-vehicle for precise alignment.Premium Shock Performance: The kit includes Rough Country's N3 Series shocks with 10-stage variable valving and high-pressure nitrogen charge, offering a smooth ride on highways and outstanding control off-road. Built to last with an 18mm spring-loaded piston rod and fast-cooling 54mm shock body, these shocks deliver up to 36kN tensile strength and come finished with natural rubber bushings and a striking metallic silver coating.
Specifications:
| link |
https://www.roughcountry.com/product/jeep-suspension-lift-kit-684x |
| video |
https://youtu.be/iT6sUbLs3Ug |
| features |
Easy Bolt-On Installation: Designed for a quick, no-drill, no-cut setup that gets you on the road or trail faster.\
Increased Ground Clearance: Elevate your vehicleΓÇÖs stance to conquer rough terrain and obstacles with confidence.\
Front-to-Rear Leveling: Precisely levels the front suspension to match the rear, delivering a balanced, aggressive look and improved handling.\

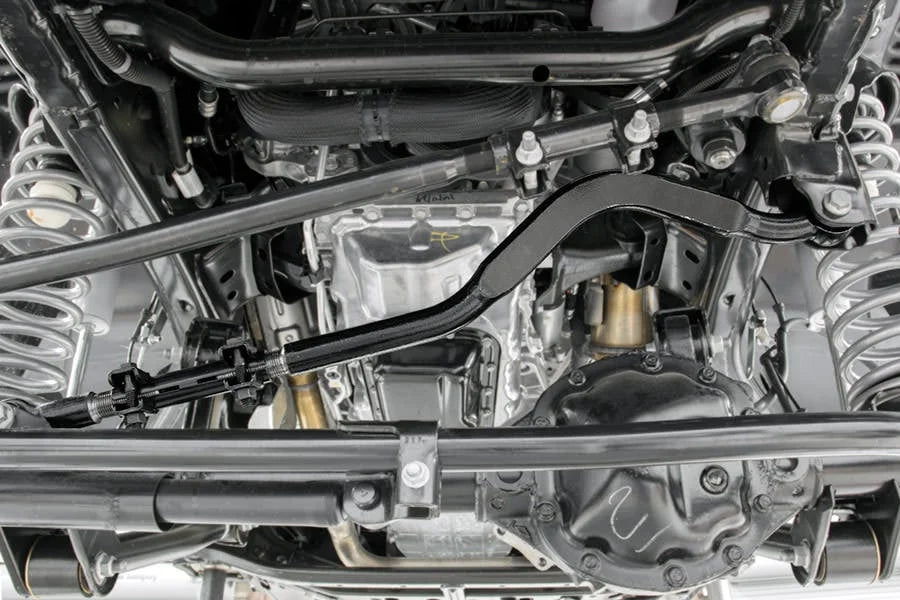

Forged Solid Steel Front Adjustable Track Bar: Engineered for unmatched strength and durability to keep your axle perfectly centered on every ride.\
Coil Correction Plates: Correct rear coil spring angles by 10 degrees, optimizing spring performance and enhancing ride quality.\
N3 Series Shock Absorbers Included: High-performance shocks that provide superior damping for smoother, more controlled off-road and on-road driving.\
X-Flex Control Arms: Built for extreme articulation with OEM-style rubber bushings, fully rebuildable flex joints, a rugged 2.5" diameter body, 1.25" heavy-duty threads, and a greasable design to maximize durability and flex. |
| notes |
Does NOT fit 4-door models. 2012-2018 models require exhaust modifications to clear the front driveshaft - SKU: 1030. Due to insufficient length it is REQUIRED to replace the factory driveshafts. |
| install_time |
6-8 hours |
| front_components |
Lifted Coil Springs\ |
| rear_components |
Lifted Coil Springs\ |
| instructions |
https://s3.amazonaws.com/roughcountry/install/921684X00.pdf |
| fitment |
2007-2017:4WD:Jeep:Wrangler |
| tire_info |
37x12.50R17:17x9:5x5.0:-12:-;37x12.50R18:18x9:5x5.0:-12:-;37x12.50R20:20x9:5x5.0:-12:-;37x12.50R20:20x10:5x5.0:-25:-;37x12.50R20:20x10:5x5.0:-19:Minor Trimming;37x12.50R20:20x10:5x5.0:-18:Minor Trimming;37x12.50R22:22x10:5x5.0:-19:Minor Trimming;37x12.50R22:22x10:5x5.0:-18:Minor Trimming |
| discount |
30.0 |
| multiple_box |
Y |
| shipping_group |
Ground Only |
| coo |
USA |
| utv_product |
N |
| added_date |
2013-04-03 |
This Part Fits:
| Year |
Make |
Model |
Submodel |
Notes |
| 2007 |
Jeep |
Wrangler |
Rubicon |
|
| 2008 |
Jeep |
Wrangler |
Rubicon |
|
| 2009 |
Jeep |
Wrangler |
Rubicon |
|
| 2010 |
Jeep |
Wrangler |
Rubicon |
|
| 2011 |
Jeep |
Wrangler |
Rubicon |
|
| 2012 |
Jeep |
Wrangler |
Rubicon |
|
| 2013 |
Jeep |
Wrangler |
Rubicon |
|
| 2014 |
Jeep |
Wrangler |
Rubicon |
|
| 2015 |
Jeep |
Wrangler |
Rubicon |
|
| 2016 |
Jeep |
Wrangler |
Rubicon |
|
| 2017 |
Jeep |
Wrangler |
Rubicon |
|
| 2007 |
Jeep |
Wrangler |
Sahara |
|
| 2008 |
Jeep |
Wrangler |
Sahara |
|
| 2009 |
Jeep |
Wrangler |
Sahara |
|
| 2010 |
Jeep |
Wrangler |
Sahara |
|
| 2011 |
Jeep |
Wrangler |
Sahara |
|
| 2012 |
Jeep |
Wrangler |
Sahara |
|
| 2013 |
Jeep |
Wrangler |
Sahara |
|
| 2014 |
Jeep |
Wrangler |
Sahara |
|
| 2015 |
Jeep |
Wrangler |
Sahara |
|
| 2016 |
Jeep |
Wrangler |
Sahara |
|
| 2017 |
Jeep |
Wrangler |
Sahara |
|
| 2010 |
Jeep |
Wrangler |
Sport |
|
| 2011 |
Jeep |
Wrangler |
Sport |
|
| 2012 |
Jeep |
Wrangler |
Sport |
|
| 2013 |
Jeep |
Wrangler |
Sport |
|
| 2014 |
Jeep |
Wrangler |
Sport |
|
| 2015 |
Jeep |
Wrangler |
Sport |
|
| 2016 |
Jeep |
Wrangler |
Sport |
|
| 2017 |
Jeep |
Wrangler |
Sport |
|
| 2016 |
Jeep |
Wrangler |
75th Anniversary |
|
| 2016 |
Jeep |
Wrangler |
Sport S |
|
| 2011 |
Jeep |
Wrangler |
70th Anniversary |
|
| 2007 |
Jeep |
Wrangler |
X |
|
| 2008 |
Jeep |
Wrangler |
X |
|
| 2009 |
Jeep |
Wrangler |
X |
|
| 2010 |
Jeep |
Wrangler |
X |
|
