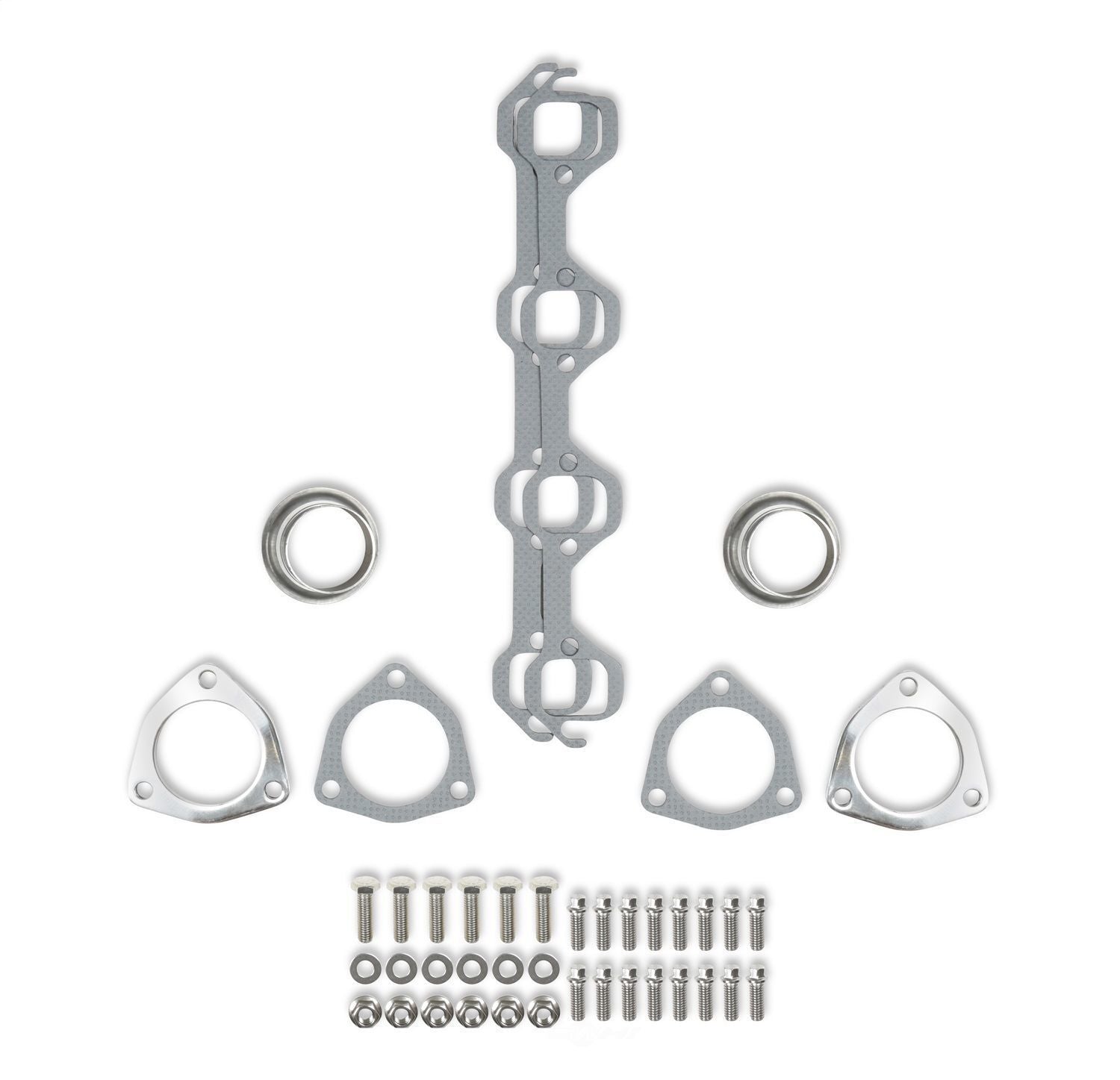

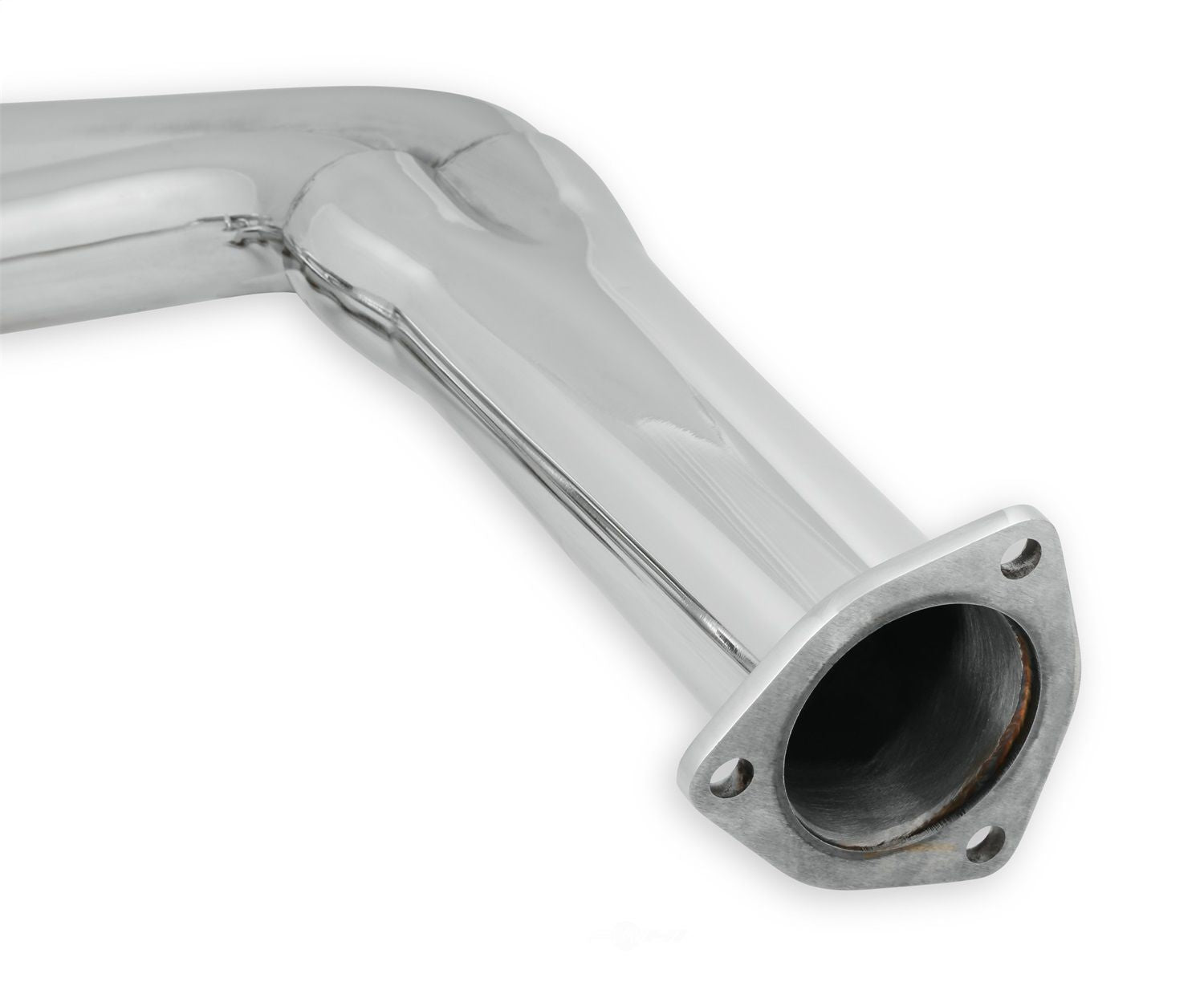

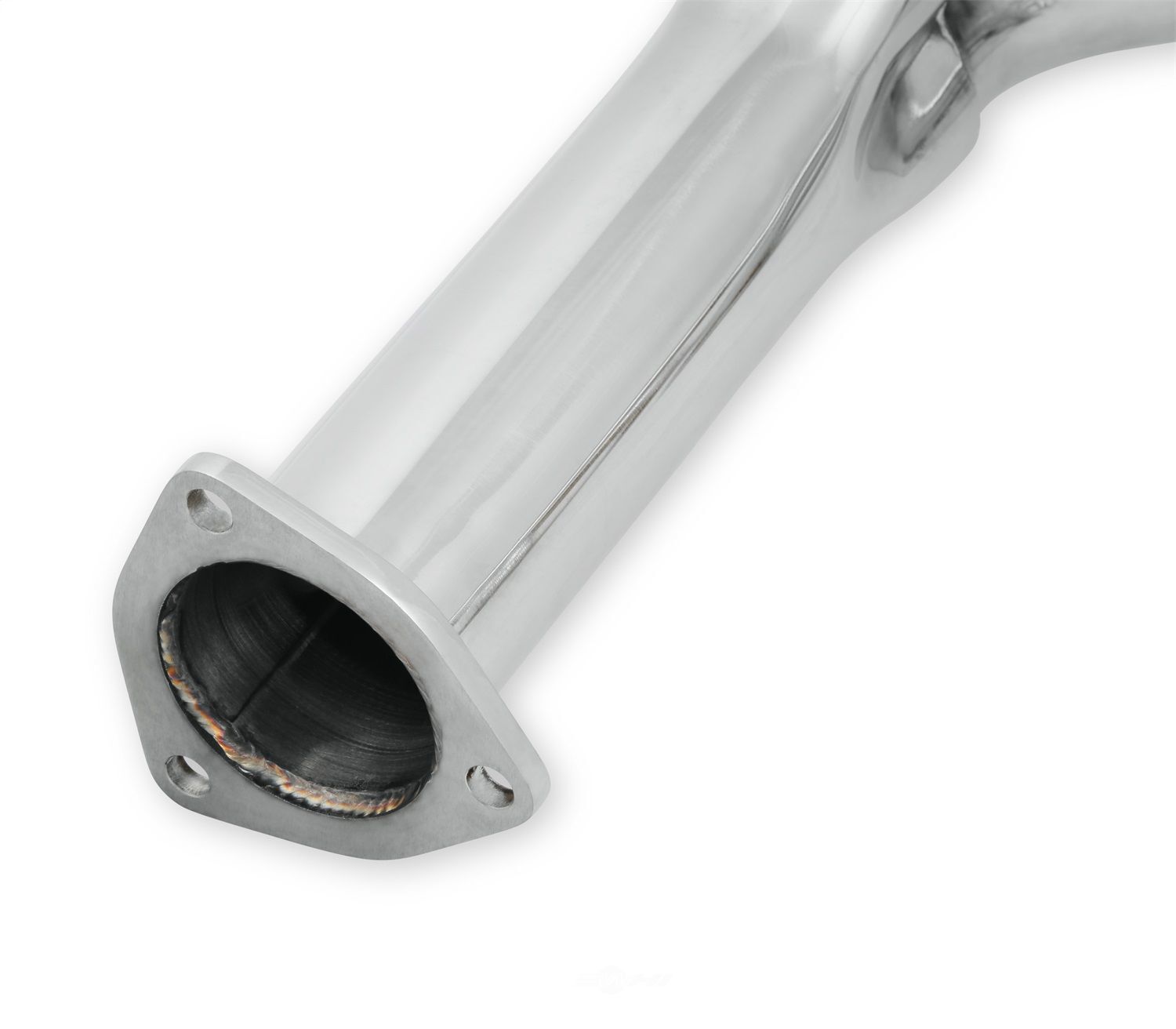

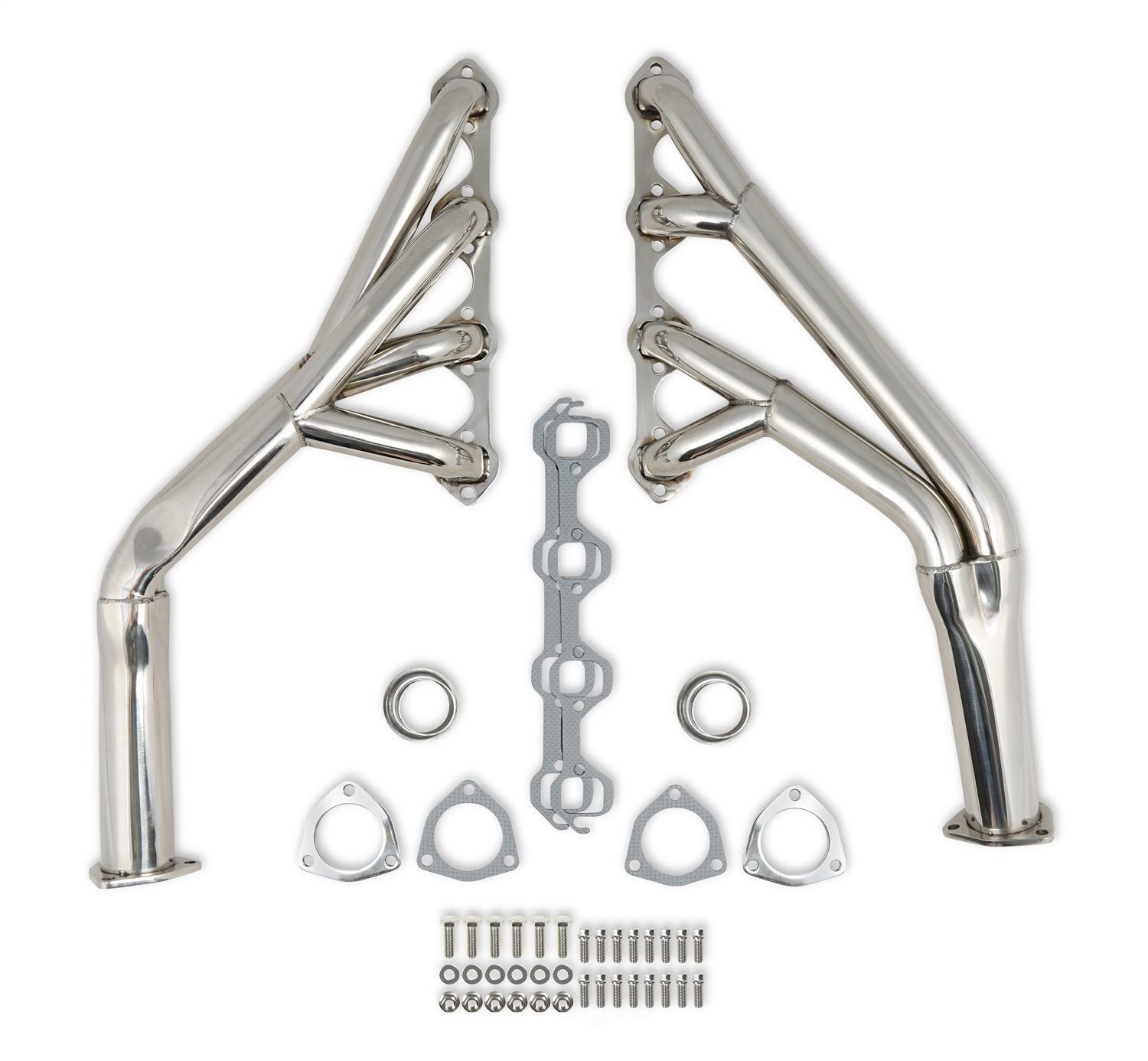

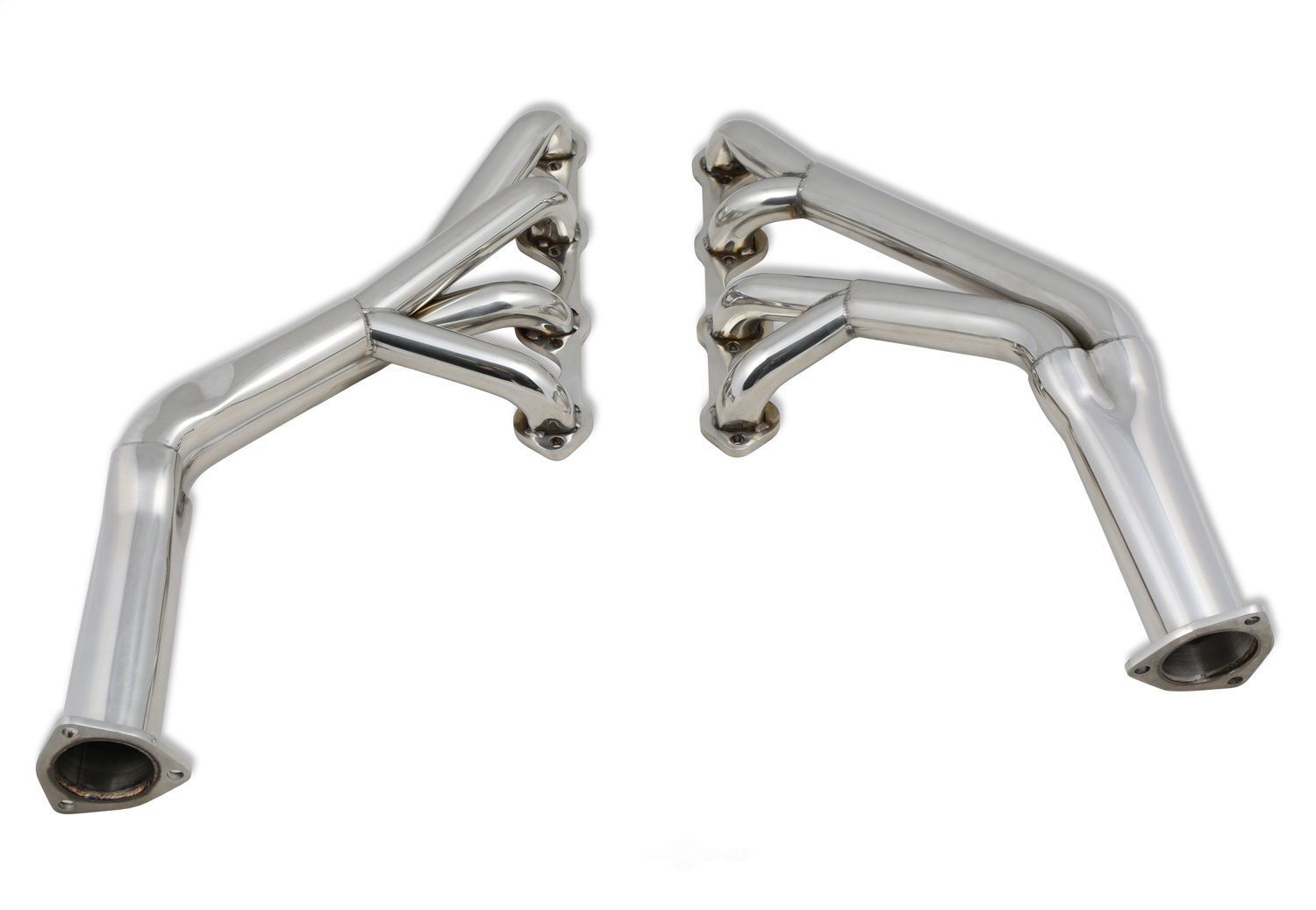

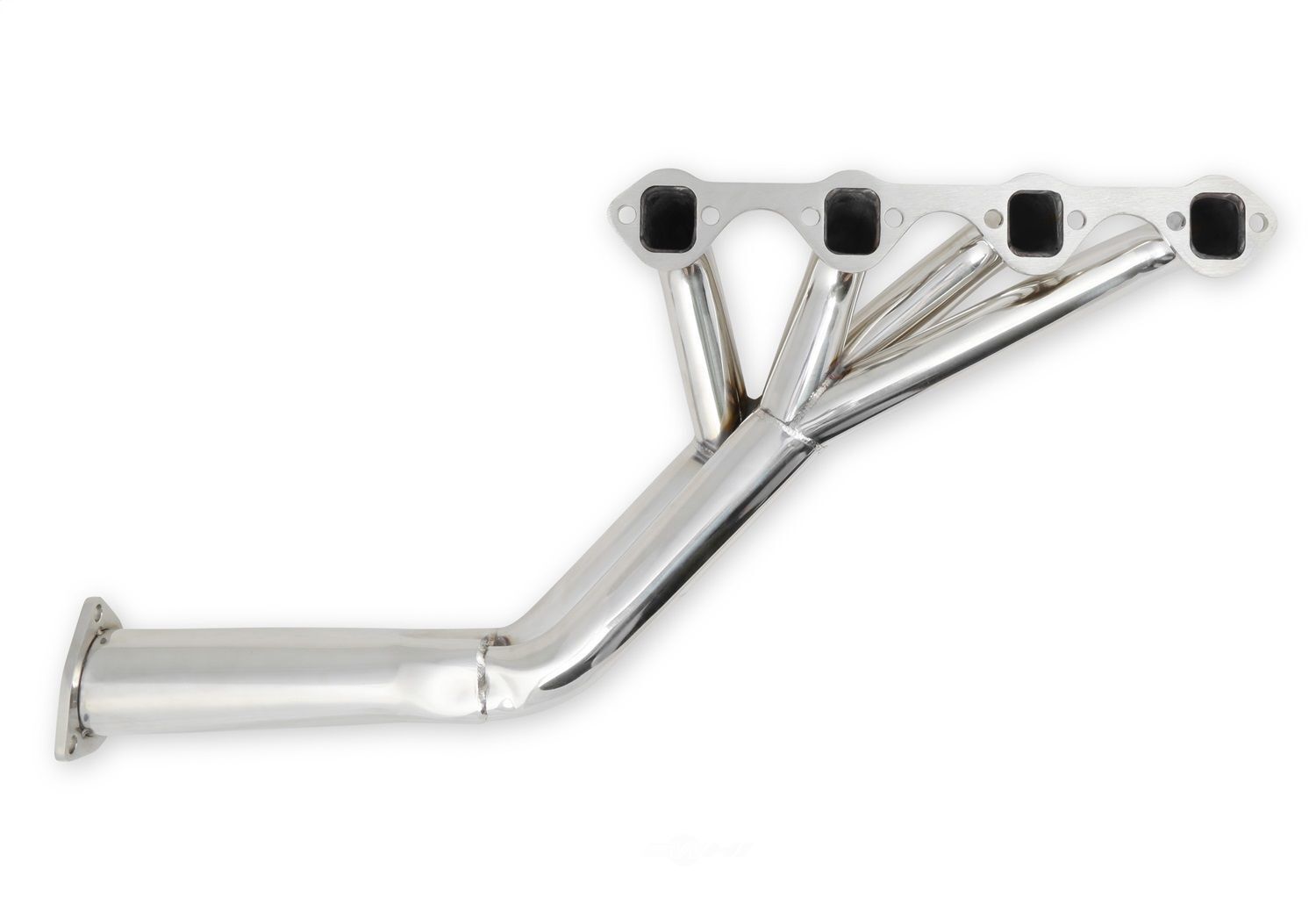

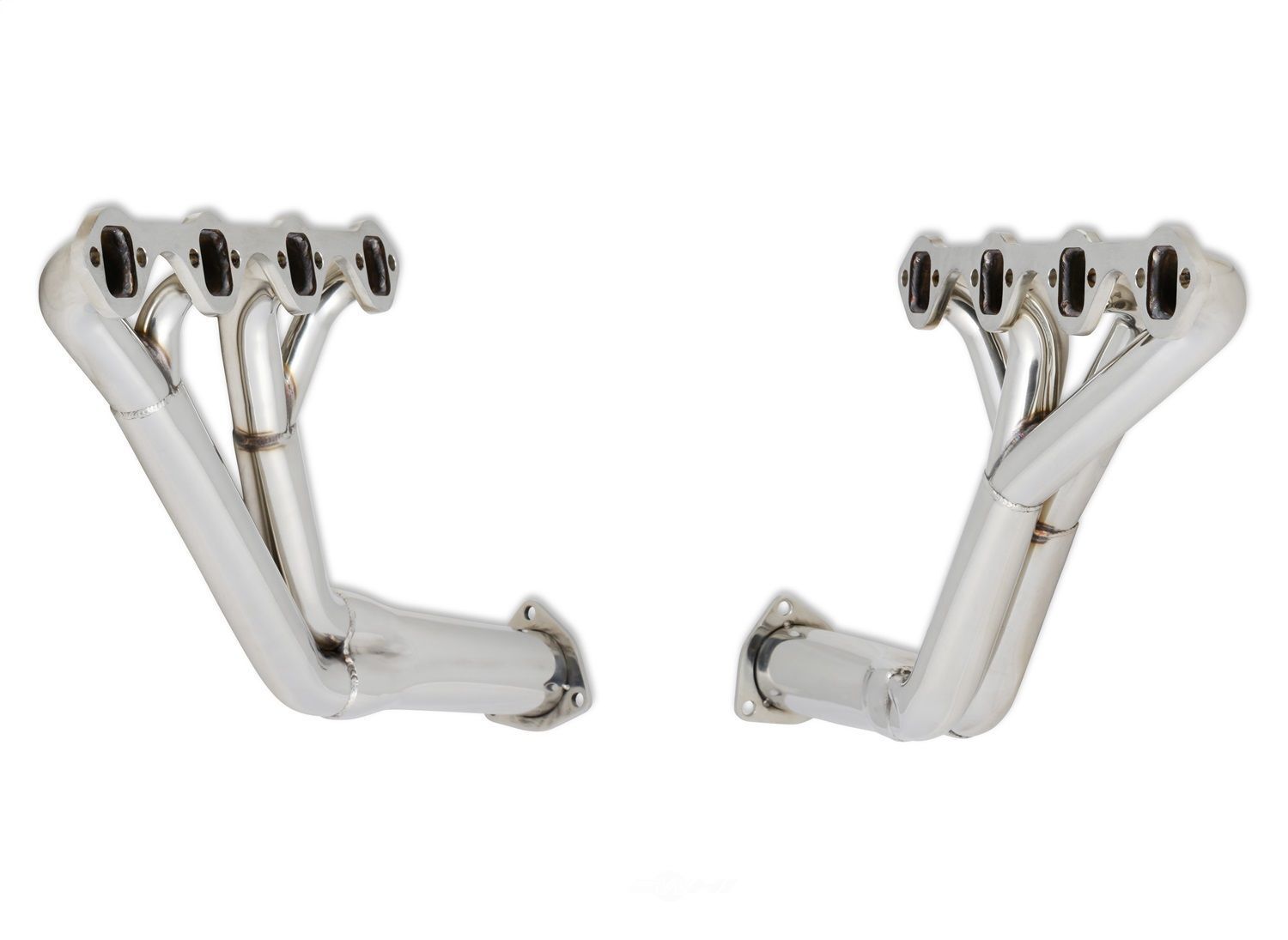

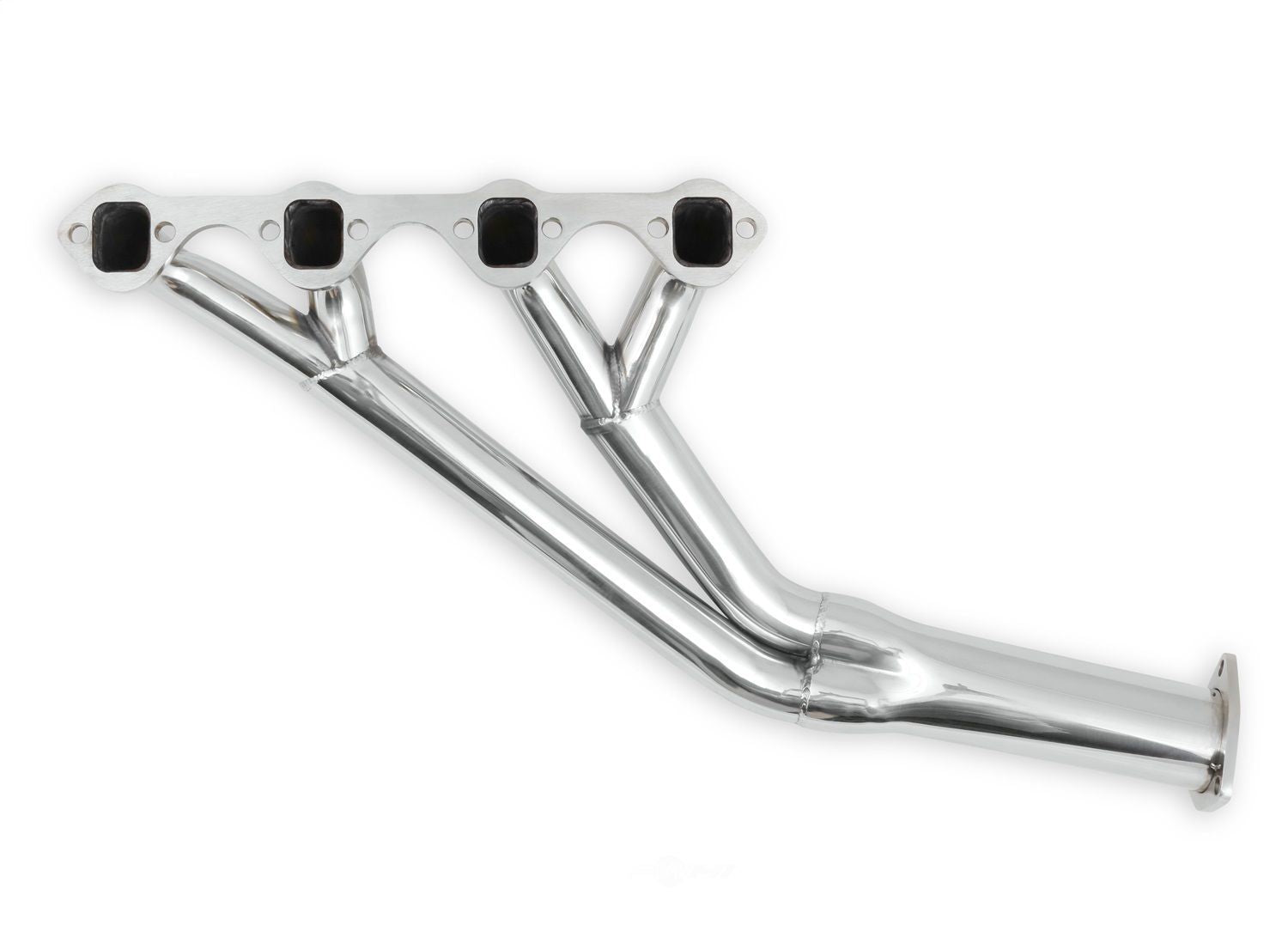

304 stainless steel, 16-gauge tubes are CNC mandrel bent, then carefully welded on our precision engineered welding jig for a perfect fit. These fit both automatic and manual transmissions with the more common 157 Tooth small bell housing, along with extra clearance for starter, mounting flange bolts can easily be accessed and they clear shock towers. Provides full articulation of steering assembly without interference. Power steering cars require drop down bracket. Cars with the larger Bellhousing for 164 Tooth Flywheel will need to dimple header and possibly remove a minimal amount of material from the bellhousing for proper clearance. Shortened collector tubes improve floor pan clearance. All Headers include extra thick, precision ground 5/16" inch flanges to prevent warping., metal composite flange gaskets, 1 1/2" inch primary tubes, 1 3/4" inch secondary tubes and 2 1/2" to 2" inch collector/reducers. Gaskets and all necessary mounting hardware are included.
Specifications:
| Automotive Item Grade |
High Performance Part |
| Bolt size |
3/8-16 x 3/4 |
| Bolts Included |
Yes |
| Brand |
Scott Drake |
| Catalytic Converter Included |
No |
| Category |
Exhaust |
| Collector Diameter |
2.50 inch |
| Collector Port Diameter |
2 1/2 |
| Cross Over Pipe Included |
No |
| Emission Code |
3 |
| Engine |
Ford Small Block |
| Engine Mounts Included |
No |
| 200 |
Polished |
| Flange Thickness |
5/16" |
| Flange Type |
3-Bolt |
| 353 |
Yes |
| Header Finish |
Polished |
| Header Style |
Tri-Y |
| 10 |
Stainless Steel |
| 30 |
Yes |
| Pipe Shape |
Y Pipe |
| Primary Tube Diameter |
1 3/4 |
| Product Type |
Exhaust Header |
| Quantity |
2 |
| Reducer Included |
Yes |
| Reducer Outlet Diameter |
2 |
| Transmission Mounts Included |
No |
| Tuned |
No |
| Warning |
California Proposition 65 |
| Automotive Item Grade |
High Performance Part |
| Bolt size |
3/8-16 x 3/4 |
| Bolts Included |
Yes |
| Brand |
Scott Drake |
| Catalytic Converter Included |
No |
| Category |
Exhaust |
| Collector Diameter |
2.50 inch |
| Collector Port Diameter |
2 1/2 |
| Cross Over Pipe Included |
No |
| Emission Code |
3 |
| Engine |
Ford Small Block |
| Engine Mounts Included |
No |
| 200 |
Polished |
| Flange Thickness |
5/16" |
| Flange Type |
3-Bolt |
| 353 |
Yes |
| Header Finish |
Polished |
| Header Style |
Tri-Y |
| 10 |
Stainless Steel |
| 30 |
Yes |
| Pipe Shape |
Y Pipe |
| Primary Tube Diameter |
1 3/4 |
| Product Type |
Exhaust Header |
| Quantity |
2 |
| Reducer Included |
Yes |
| Reducer Outlet Diameter |
2 |
| Transmission Mounts Included |
No |
| Tuned |
No |
| Warning |
California Proposition 65 |
| Description_INV |
64-8 SB S/S TRI-Y HEADERS |
| Description_DES |
Scott Drake Tri-Y Headers, 304 Stainless Steel |
| Description_EXT |
1964-1968 Ford Mustang.Tri-Y Headers, 304 Stainless Steel Small Block |
| Description_MKT |
304 stainless steel, 16-gauge tubes are CNC mandrel bent, then carefully welded on our precision engineered welding jig for a perfect fit. These fit both automatic and manual transmissions with the more common 157 Tooth small bell housing, along with extra clearance for starter, mounting flange bolts can easily be accessed and they clear shock towers. Provides full articulation of steering assembly without interference. Power steering cars require drop down bracket. Cars with the larger Bellhousing for 164 Tooth Flywheel will need to dimple header and possibly remove a minimal amount of material from the bellhousing for proper clearance. Shortened collector tubes improve floor pan clearance. All Headers include extra thick, precision ground 5/16" inch flanges to prevent warping., metal composite flange gaskets, 1 1/2" inch primary tubes, 1 3/4" inch secondary tubes and 2 1/2" to 2" inch collector/reducers. Gaskets and all necessary mounting hardware are included. |
| Description_FAB |
Mandrel-bent tubing |
| Description_FAB |
All mounting hardware included |
| Description_FAB |
304 stainless steel |
| Description_INV |
64-8 SB S/S TRI-Y HEADERS |
| Description_DES |
Scott Drake Tri-Y Headers, 304 Stainless Steel |
| Description_EXT |
1964-1968 Ford Mustang.Tri-Y Headers, 304 Stainless Steel Small Block |
| Description_MKT |
304 stainless steel, 16-gauge tubes are CNC mandrel bent, then carefully welded on our precision engineered welding jig for a perfect fit. These fit both automatic and manual transmissions with the more common 157 Tooth small bell housing, along with extra clearance for starter, mounting flange bolts can easily be accessed and they clear shock towers. Provides full articulation of steering assembly without interference. Power steering cars require drop down bracket. Cars with the larger Bellhousing for 164 Tooth Flywheel will need to dimple header and possibly remove a minimal amount of material from the bellhousing for proper clearance. Shortened collector tubes improve floor pan clearance. All Headers include extra thick, precision ground 5/16" inch flanges to prevent warping., metal composite flange gaskets, 1 1/2" inch primary tubes, 1 3/4" inch secondary tubes and 2 1/2" to 2" inch collector/reducers. Gaskets and all necessary mounting hardware are included. |
| Description_FAB |
Mandrel-bent tubing |
| Description_FAB |
All mounting hardware included |
| Description_FAB |
304 stainless steel |
This Part Fits:
| Year |
Make |
Model |
Submodel |
Notes |
| 1964 |
Ford |
Mustang |
Base |
|
| 1965 |
Ford |
Mustang |
Base |
|
| 1966 |
Ford |
Mustang |
Base |
|
| 1967 |
Ford |
Mustang |
Base |
|
| 1968 |
Ford |
Mustang |
Base |
|
| 1968 |
Ford |
Mustang |
Base |
|
| 1965 |
Ford |
Mustang |
Shelby GT-350 |
|
| 1966 |
Ford |
Mustang |
Shelby GT-350 |
|
| 1967 |
Ford |
Mustang |
Shelby GT-350 |
|
| 1968 |
Ford |
Mustang |
Shelby GT-350 |
|
| 1966 |
Ford |
Mustang |
Shelby GT-350H |
|
