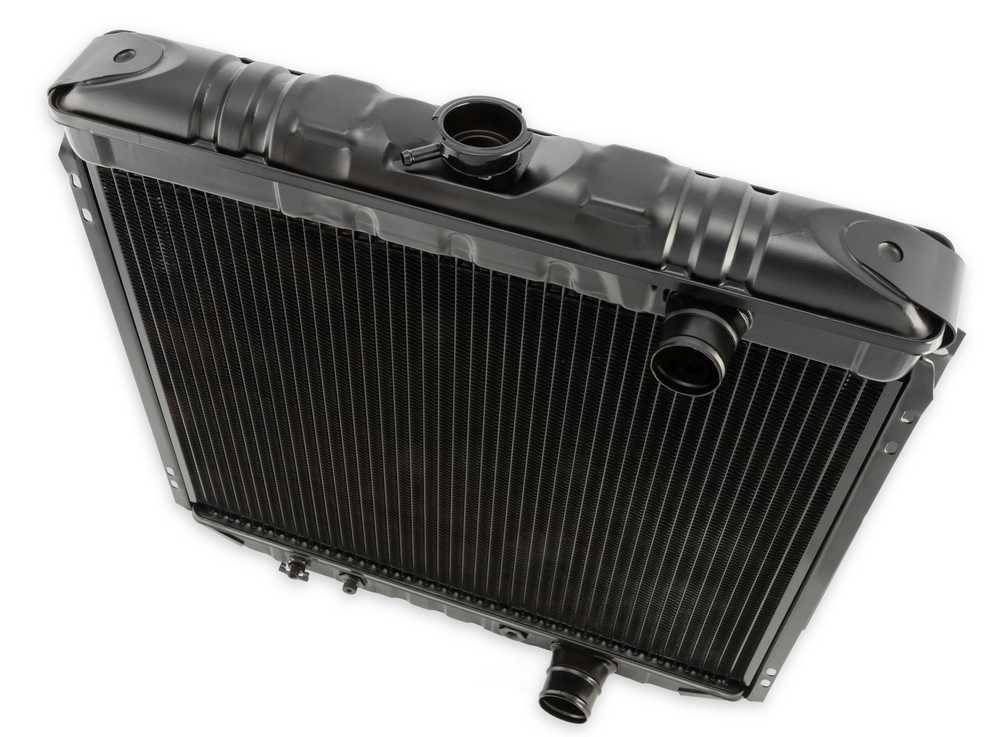

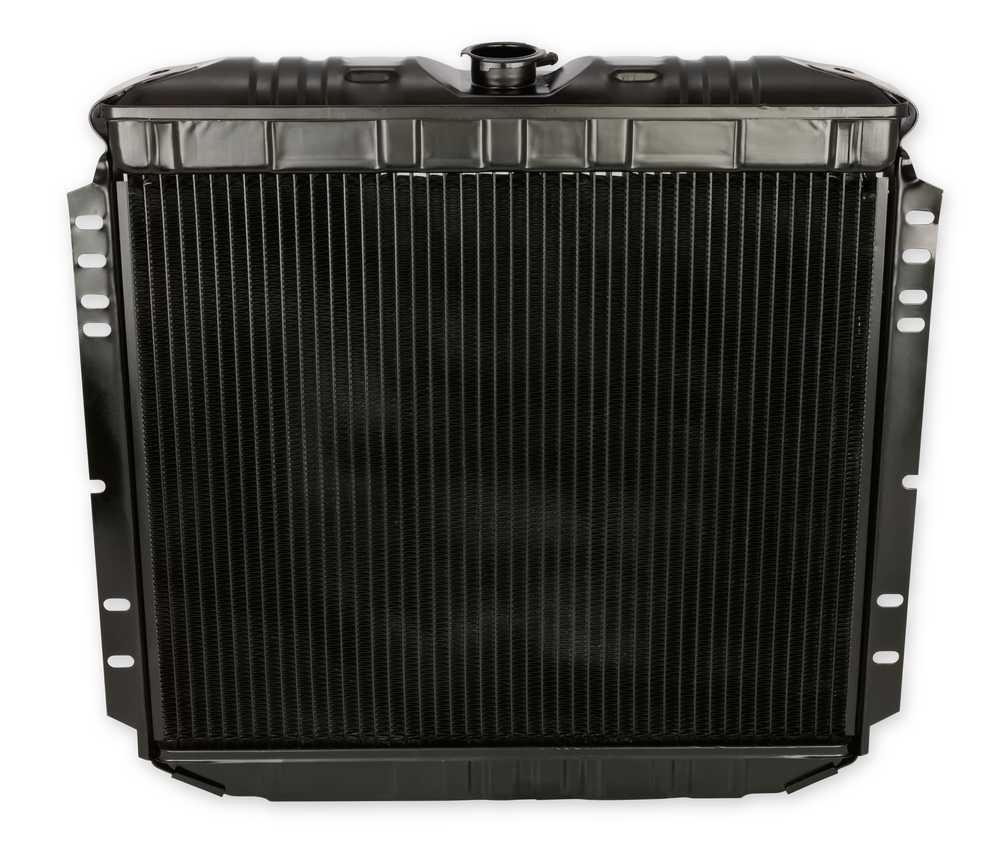

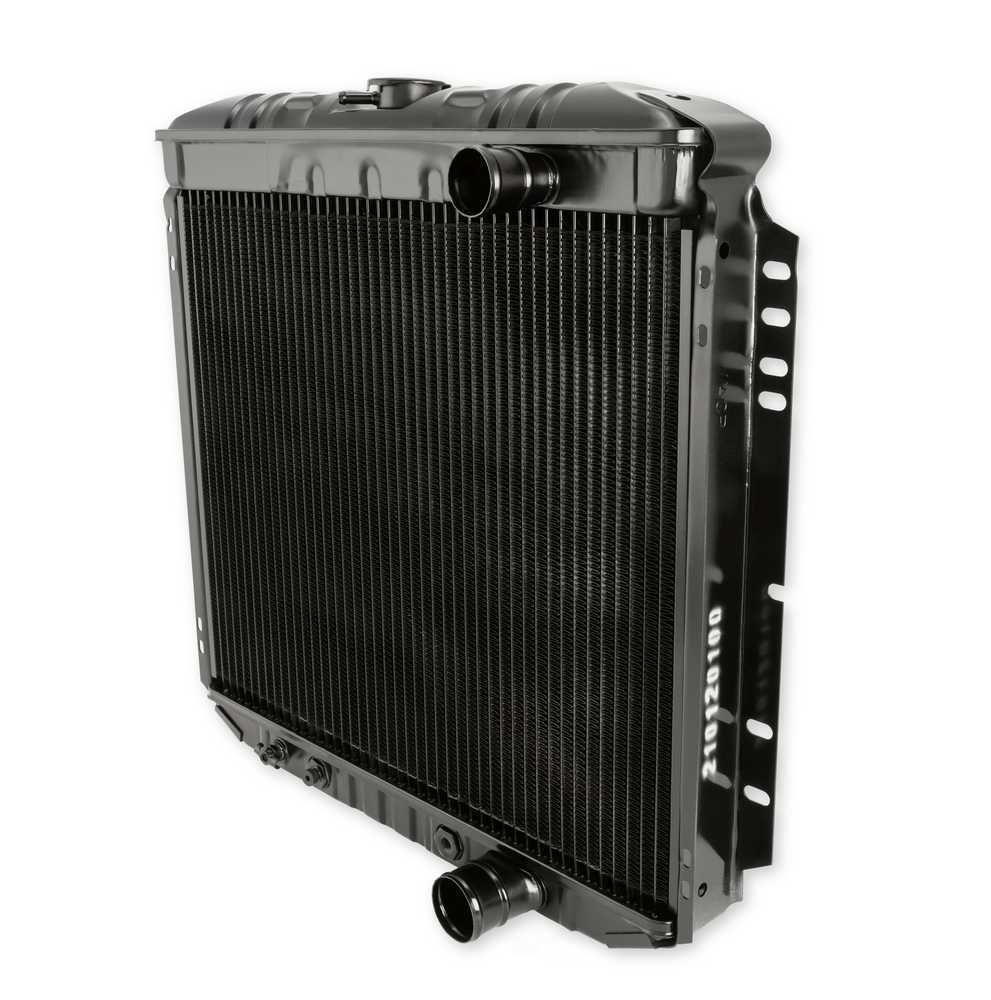

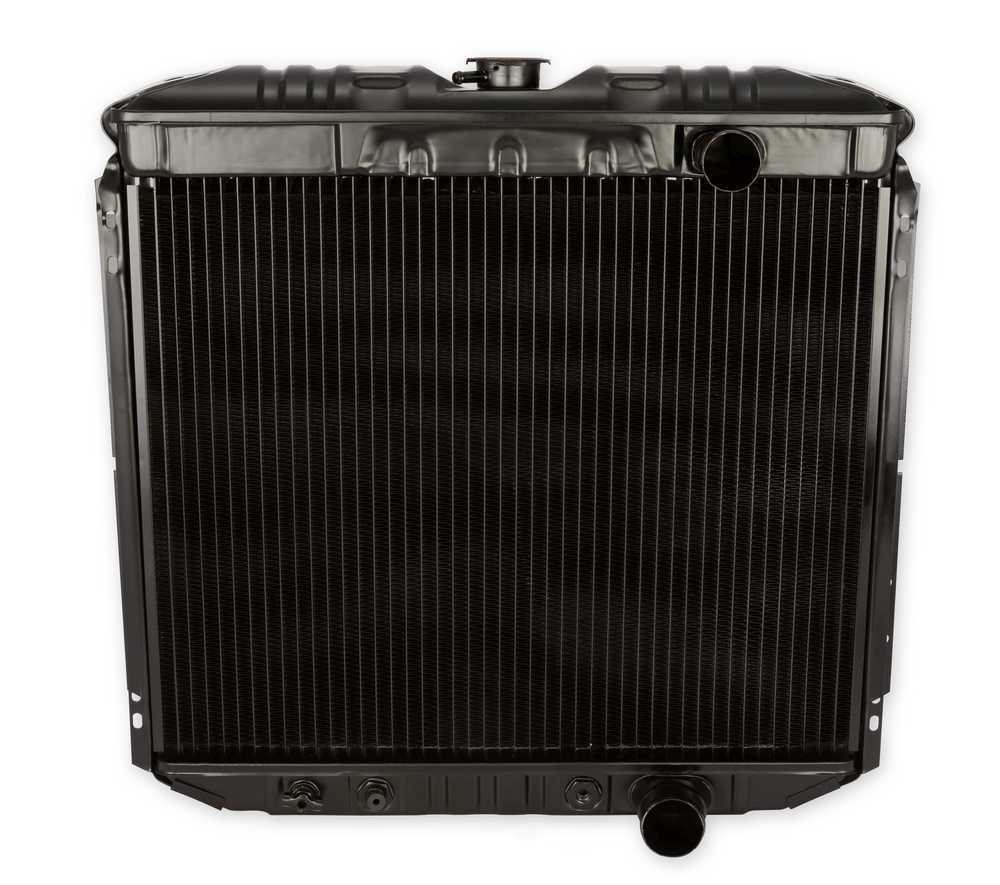

Copper/brass construction of this downflow radiator has 3 rows of 1/2" tubing is designed for maximum cooling. The larger tubing increases coolant flow while designed to prevent plugging of coolant passages. A painted black finish provides an attractive finish under the hood and the integrated transmission cooler aids in extending transmission life. Lower mounting insulators sold separately.
Specifications:
| Brand |
Scott Drake |
| Category |
Belts and Cooling |
| Color |
Black |
| Core Dimension |
16 3/8 x 20 1/4 |
| Core Height |
16 1/2 |
| 5061 |
3 |
| Core Thickness |
2 1/2 |
| Core Width |
20 |
| 7448 |
Down Flow |
| Emission Code |
6 |
| Fan Included |
No |
| Finish |
Painted |
| Hose Location Inlet |
Passenger |
| Hose Location Outlet |
Passenger |
| Inlet Diameter |
1 1/2 |
| Inlet Location |
Passenger |
| Material |
Copper |
| Meets or Exceeds Original Equipment Manufacture Specifications |
Yes |
| 30 |
No |
| 90 |
Flanged |
| Outlet Diameter |
1-3/4 in. |
| Outlet Location |
Passenger |
| Outlet Size |
1-3/4 in. |
| Overall Height |
21 3/8 |
| Overall Thickness |
3 |
| Overall Width |
20 1/2 |
| part type |
Radiator |
| Product Type |
Radiator |
| 3683 |
No |
| Sub Category |
Radiators, Coolers and Related Components |
| Transcooler Provision |
Yes |
| 315 |
Yes |
| Tube Quantity |
44 |
| Tubing Spacing |
11/32 |
| Warning |
California Proposition 65 |
| Brand |
Scott Drake |
| Category |
Belts and Cooling |
| Color |
Black |
| Core Dimension |
16 3/8 x 20 1/4 |
| Core Height |
16 1/2 |
| 5061 |
3 |
| Core Thickness |
2 1/2 |
| Core Width |
20 |
| 7448 |
Down Flow |
| Emission Code |
6 |
| Fan Included |
No |
| Finish |
Painted |
| Hose Location Inlet |
Passenger |
| Hose Location Outlet |
Passenger |
| Inlet Diameter |
1 1/2 |
| Inlet Location |
Passenger |
| Material |
Copper |
| Meets or Exceeds Original Equipment Manufacture Specifications |
Yes |
| 30 |
No |
| 90 |
Flanged |
| Outlet Diameter |
1-3/4 in. |
| Outlet Location |
Passenger |
| Outlet Size |
1-3/4 in. |
| Overall Height |
21 3/8 |
| Overall Thickness |
3 |
| Overall Width |
20 1/2 |
| part type |
Radiator |
| Product Type |
Radiator |
| 3683 |
No |
| Sub Category |
Radiators, Coolers and Related Components |
| Transcooler Provision |
Yes |
| 315 |
Yes |
| Tube Quantity |
44 |
| Tubing Spacing |
11/32 |
| Warning |
California Proposition 65 |
| Description_INV |
67-9 SB 3ROW HI-FLO RAD W/O AC |
| Description_DES |
Scott Drake 3 Row Hi-Flow Radiator |
| Description_EXT |
1967-1969 Ford Mustang Small Block, automatic transmission without Air Conditioning 3 Row Hi-Flow Radiator |
| Description_MKT |
Copper/brass construction of this downflow radiator has 3 rows of 1/2" tubing is designed for maximum cooling. The larger tubing increases coolant flow while designed to prevent plugging of coolant passages. A painted black finish provides an attractive finish under the hood and the integrated transmission cooler aids in extending transmission life. Lower mounting insulators sold separately. |
| Description_FAB |
Copper brass construction |
| Description_FAB |
1/2" tubing diameter provides increased coolant flow |
| Description_FAB |
Automatic transmission cooler included |
| Description_FAB |
Attractive black painted finish |
| Description_INV |
67-9 SB 3ROW HI-FLO RAD W/O AC |
| Description_DES |
Scott Drake 3 Row Hi-Flow Radiator |
| Description_EXT |
1967-1969 Ford Mustang Small Block, automatic transmission without Air Conditioning 3 Row Hi-Flow Radiator |
| Description_MKT |
Copper/brass construction of this downflow radiator has 3 rows of 1/2" tubing is designed for maximum cooling. The larger tubing increases coolant flow while designed to prevent plugging of coolant passages. A painted black finish provides an attractive finish under the hood and the integrated transmission cooler aids in extending transmission life. Lower mounting insulators sold separately. |
| Description_FAB |
Copper brass construction |
| Description_FAB |
1/2" tubing diameter provides increased coolant flow |
| Description_FAB |
Automatic transmission cooler included |
| Description_FAB |
Attractive black painted finish |
This Part Fits:
| Year |
Make |
Model |
Submodel |
Notes |
| 1967 |
Ford |
Mustang |
Base |
|
| 1967 |
Ford |
Mustang |
Base |
|
| 1968 |
Ford |
Mustang |
Base |
|
| 1968 |
Ford |
Mustang |
Base |
|
| 1968 |
Ford |
Mustang |
Base |
|
| 1968 |
Ford |
Mustang |
Base |
|
| 1969 |
Ford |
Mustang |
Base |
|
| 1969 |
Ford |
Mustang |
Base |
|
| 1969 |
Ford |
Mustang |
Boss 302 |
|
| 1967 |
Ford |
Mustang |
Shelby GT-350 |
|
| 1968 |
Ford |
Mustang |
Shelby GT-350 |
|
| 1969 |
Ford |
Mustang |
Shelby GT-350 |
|
| 1967 |
Ford |
Mustang |
Shelby GT-500 |
|
