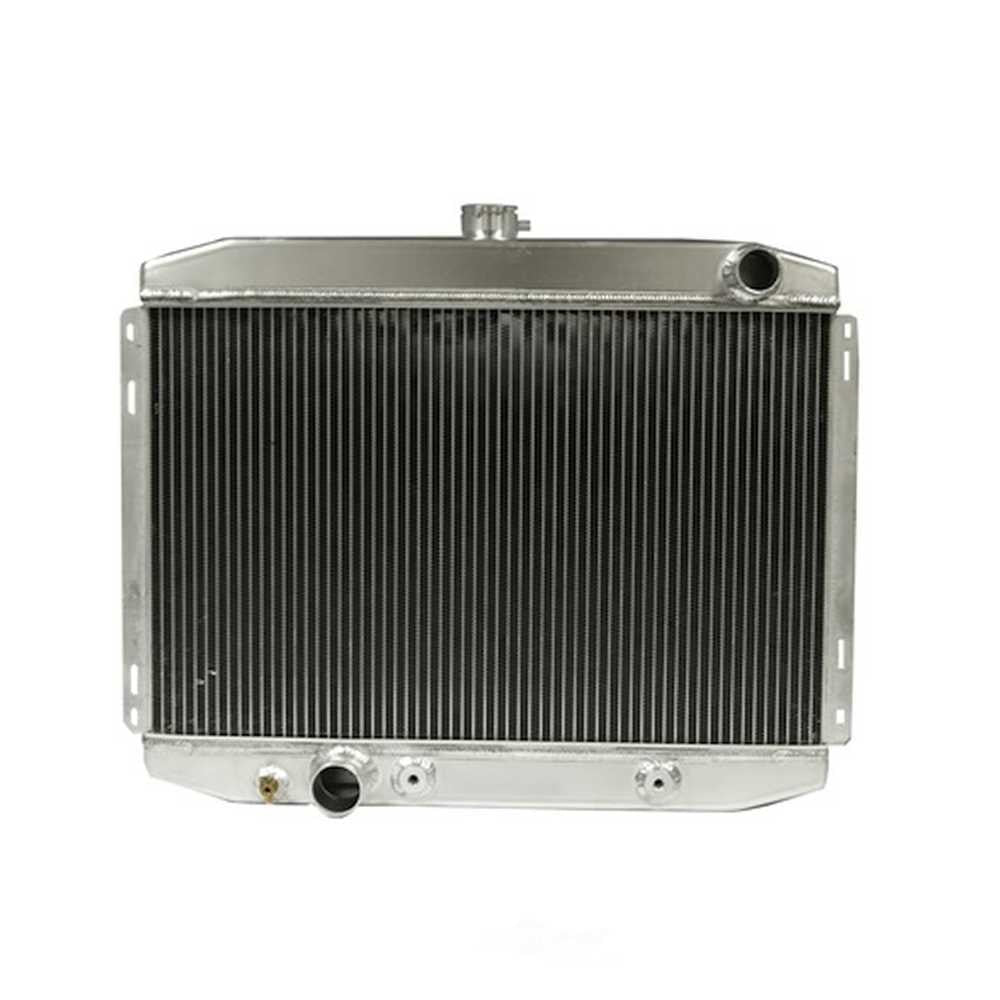

New by Scott Drake, our High-Performance Aluminum Radiator for 1967-70 Big Block FE 390-428 Mustangs that will provide improved performance from its extra large 2 rows of 1" tubes that equal 4 row efficiency but with 5-7 lbs less weight. This radiator offers substantial savings over traditional copper/brass 4 row radiators. An automatic transmission cooler is built into this high efficiency radiator. Also fits 1967-69 Mustangs with late-model 302 engines. For a hassle-free installation please use Scott Drake's Radiator Insulators and Mount Brackets specifically designed for this Aluminum Radiator. Note: On 1967 Mustangs you are required to drill an additional hole to mount lower brackets. Not compatible with a factory fan shroud.
Specifications:
| Brand |
Scott Drake |
| Category |
Belts and Cooling |
| Core Dimension |
18-3/8" x 27-1/2" |
| Core Height |
16 |
| 5061 |
2 |
| Core Thickness |
2 5/8 |
| Core Width |
23 1/2 |
| 7448 |
Down Flow |
| Emission Code |
6 |
| Fan Included |
No |
| Finish |
Bare |
| Hose Location Inlet |
Passenger |
| Hose Location Outlet |
Driver |
| Inlet Diameter |
1 1/2 |
| Inlet Location |
Passenger |
| Material |
Aluminum |
| 90 |
Saddle |
| Outlet Diameter |
1-3/4 in. |
| Outlet Location |
Driver |
| Outlet Size |
1-3/4 in. |
| Overall Height |
21 1/2 |
| Overall Thickness |
3 |
| Overall Width |
24 |
| part type |
Radiator |
| Product Type |
Radiator |
| 3683 |
No |
| Row Quantity |
2 |
| ROWS |
2 |
| Sub Category |
Radiators, Coolers and Related Components |
| Transcooler Provision |
Yes |
| 315 |
Yes |
| Tube Quantity |
58 |
| Tubing Spacing |
5/8 |
| Warning |
California Proposition 65 |
| Brand |
Scott Drake |
| Category |
Belts and Cooling |
| Core Dimension |
18-3/8" x 27-1/2" |
| Core Height |
16 |
| 5061 |
2 |
| Core Thickness |
2 5/8 |
| Core Width |
23 1/2 |
| 7448 |
Down Flow |
| Emission Code |
6 |
| Fan Included |
No |
| Finish |
Bare |
| Hose Location Inlet |
Passenger |
| Hose Location Outlet |
Driver |
| Inlet Diameter |
1 1/2 |
| Inlet Location |
Passenger |
| Material |
Aluminum |
| 90 |
Saddle |
| Outlet Diameter |
1-3/4 in. |
| Outlet Location |
Driver |
| Outlet Size |
1-3/4 in. |
| Overall Height |
21 1/2 |
| Overall Thickness |
3 |
| Overall Width |
24 |
| part type |
Radiator |
| Product Type |
Radiator |
| 3683 |
No |
| Row Quantity |
2 |
| ROWS |
2 |
| Sub Category |
Radiators, Coolers and Related Components |
| Transcooler Provision |
Yes |
| 315 |
Yes |
| Tube Quantity |
58 |
| Tubing Spacing |
5/8 |
| Warning |
California Proposition 65 |
| Description_INV |
68-70 BB 2 ROW HI-PO ALUM RAD |
| Description_DES |
Scott Drake High Perf. Aluminum Radiator with Trans Cooler -Big Block FE Motors |
| Description_EXT |
1967-1970 Ford Mustang High Perf. Aluminum Radiator with Transmission Cooler - Big Block FE Motors |
| Description_MKT |
New by Scott Drake, our High-Performance Aluminum Radiator for 1967-70 Big Block FE 390-428 Mustangs that will provide improved performance from its extra large 2 rows of 1" tubes that equal 4 row efficiency but with 5-7 lbs less weight. This radiator offers substantial savings over traditional copper/brass 4 row radiators. An automatic transmission cooler is built into this high efficiency radiator. Also fits 1967-69 Mustangs with late-model 302 engines. For a hassle-free installation please use Scott Drake's Radiator Insulators and Mount Brackets specifically designed for this Aluminum Radiator. Note: On 1967 Mustangs you are required to drill an additional hole to mount lower brackets. Not compatible with a factory fan shroud. |
| Description_FAB |
Extra large 2 rows of 1" tubes that equal 4 row efficiency |
| Description_FAB |
5-7 lbs. light than a traditional copper/brass radiator |
| Description_FAB |
Integrated automatic transmission cooler |
| Description_INV |
68-70 BB 2 ROW HI-PO ALUM RAD |
| Description_DES |
Scott Drake High Perf. Aluminum Radiator with Trans Cooler -Big Block FE Motors |
| Description_EXT |
1967-1970 Ford Mustang High Perf. Aluminum Radiator with Transmission Cooler - Big Block FE Motors |
| Description_MKT |
New by Scott Drake, our High-Performance Aluminum Radiator for 1967-70 Big Block FE 390-428 Mustangs that will provide improved performance from its extra large 2 rows of 1" tubes that equal 4 row efficiency but with 5-7 lbs less weight. This radiator offers substantial savings over traditional copper/brass 4 row radiators. An automatic transmission cooler is built into this high efficiency radiator. Also fits 1967-69 Mustangs with late-model 302 engines. For a hassle-free installation please use Scott Drake's Radiator Insulators and Mount Brackets specifically designed for this Aluminum Radiator. Note: On 1967 Mustangs you are required to drill an additional hole to mount lower brackets. Not compatible with a factory fan shroud. |
| Description_FAB |
Extra large 2 rows of 1" tubes that equal 4 row efficiency |
| Description_FAB |
5-7 lbs. light than a traditional copper/brass radiator |
| Description_FAB |
Integrated automatic transmission cooler |
This Part Fits:
| Year |
Make |
Model |
Submodel |
Notes |
| 1968 |
Ford |
Mustang |
Base |
|
| 1968 |
Ford |
Mustang |
Base |
|
| 1969 |
Ford |
Mustang |
Base |
|
| 1969 |
Ford |
Mustang |
Base |
|
| 1970 |
Ford |
Mustang |
Base |
|
| 1970 |
Ford |
Mustang |
Grande |
|
| 1970 |
Ford |
Mustang |
Mach 1 |
|
| 1968 |
Ford |
Mustang |
Shelby GT-500 |
|
| 1969 |
Ford |
Mustang |
Shelby GT-500 |
|
| 1970 |
Ford |
Mustang |
Shelby GT-500 |
|
| 1968 |
Ford |
Mustang |
Shelby GT-500KR |
|
