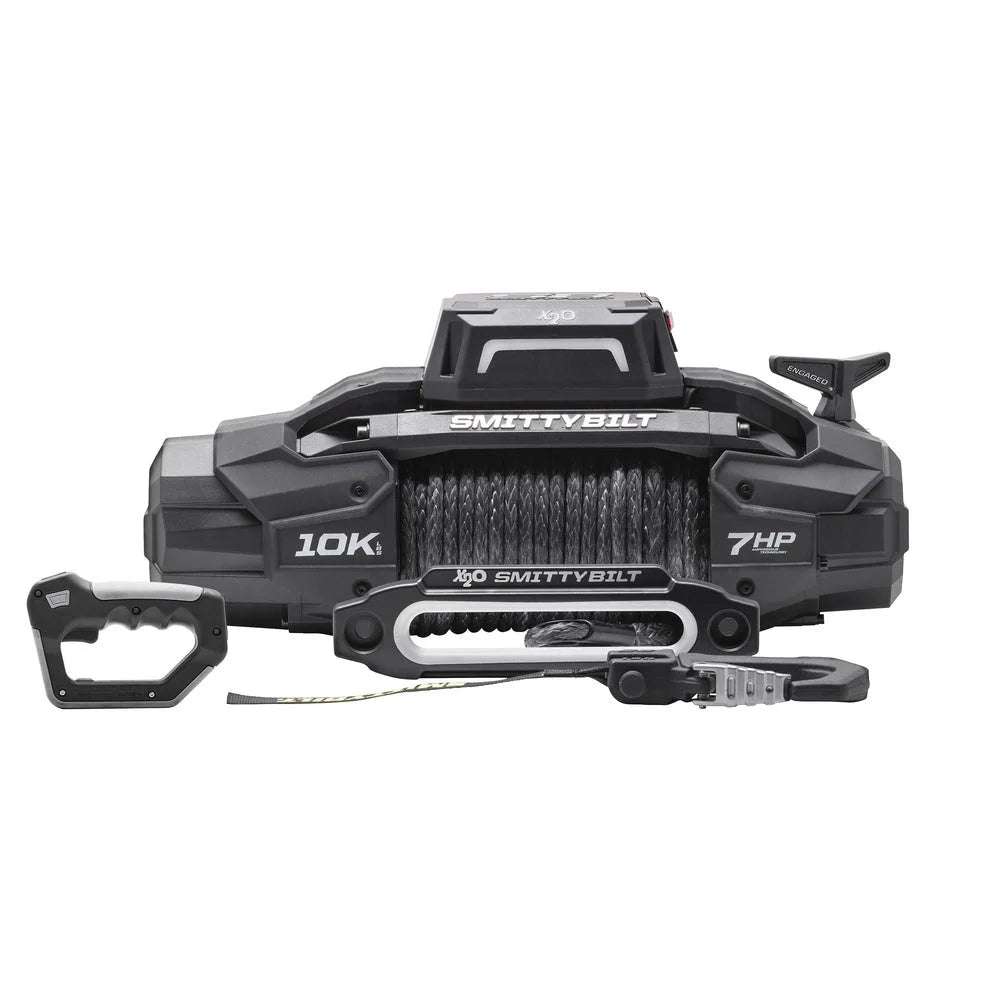

The Smittybilt X20 Gen3 winches are engineered for peak performance and reliable operation, with key enhancements throughout. Powered by a sealed, series-wound 7HP motor and new forged gears, the X20 offers robust durability. Its waterproof 500 AMP control box provides versatile mounting options, while the updated wireless controller with USB connectivity allows both wired and wireless operation. With optimized gear ratios and fast line speeds, the X20 is equipped with a synthetic winch rope to deliver maximum strength and performance.
Specifications:
| Breaking Strength |
10000 |
| California Proposition 65 |
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product. |
| Color |
Black |
| Height |
12 |
| 14 |
24 |
| Material |
Steel |
| Prop65 Chem1 |
Di(2-ethylhexyl)phthalate (DEHP) |
| Weight |
71 |
| Whats Included |
Winch, Wiring, and Installation Hardware |
| Width |
12 |
| Description_INV |
X2O GEN3 10K Winch with Synthetic Rope |
| Description_EXT |
X2O GEN3 10K Winch with Synthetic Rope |
| Description_MKT |
The Smittybilt X20 Gen3 winches are engineered for peak performance and reliable operation, with key enhancements throughout. Powered by a sealed, series-wound 7HP motor and new forged gears, the X20 offers robust durability. Its waterproof 500 AMP control box provides versatile mounting options, while the updated wireless controller with USB connectivity allows both wired and wireless operation. With optimized gear ratios and fast line speeds, the X20 is equipped with a synthetic winch rope to deliver maximum strength and performance. |
| Description_FAB |
7HP series wound motor |
| Description_FAB |
Overall Dimensions: (L x W x H) 22.3" x 5.4" x 9.4" |
| Description_FAB |
3/8" x 98.5' synthetic rope |
| Description_FAB |
3-stage planetary gearbox |
| Description_FAB |
Mounting Bolt Pattern: 10.0" x 4.50" |
| Description_FAB |
Automatic load-holding brake - out-of-drum |
| Description_FAB |
Integrated Wireless Remote |
| Description_FAB |
Wireless remote with 10' charging/wired cord |
| Description_FAB |
Sliding ring gear clutch |
| Description_FAB |
5-Year Electrical / Limited Lifetime Mechanical Warranty |
| Description_FAB |
Recommended Battery: 650CCA Minimum for Winching |
| Description_FAB |
5' battery power cables |
| Description_DEF |
Winch |
