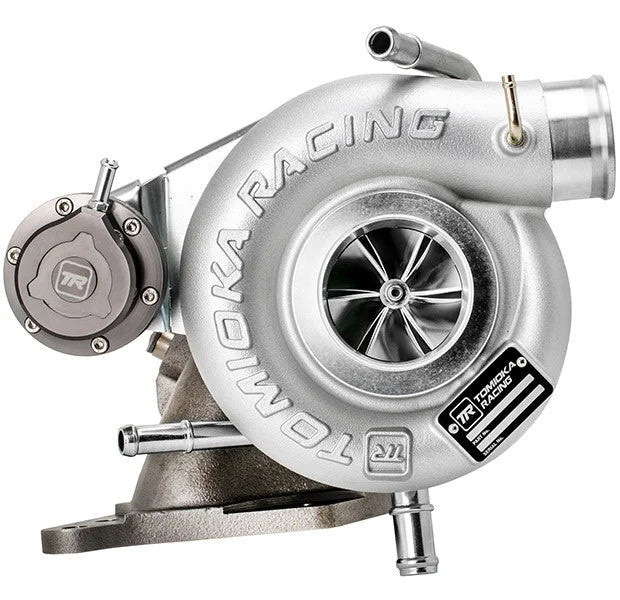

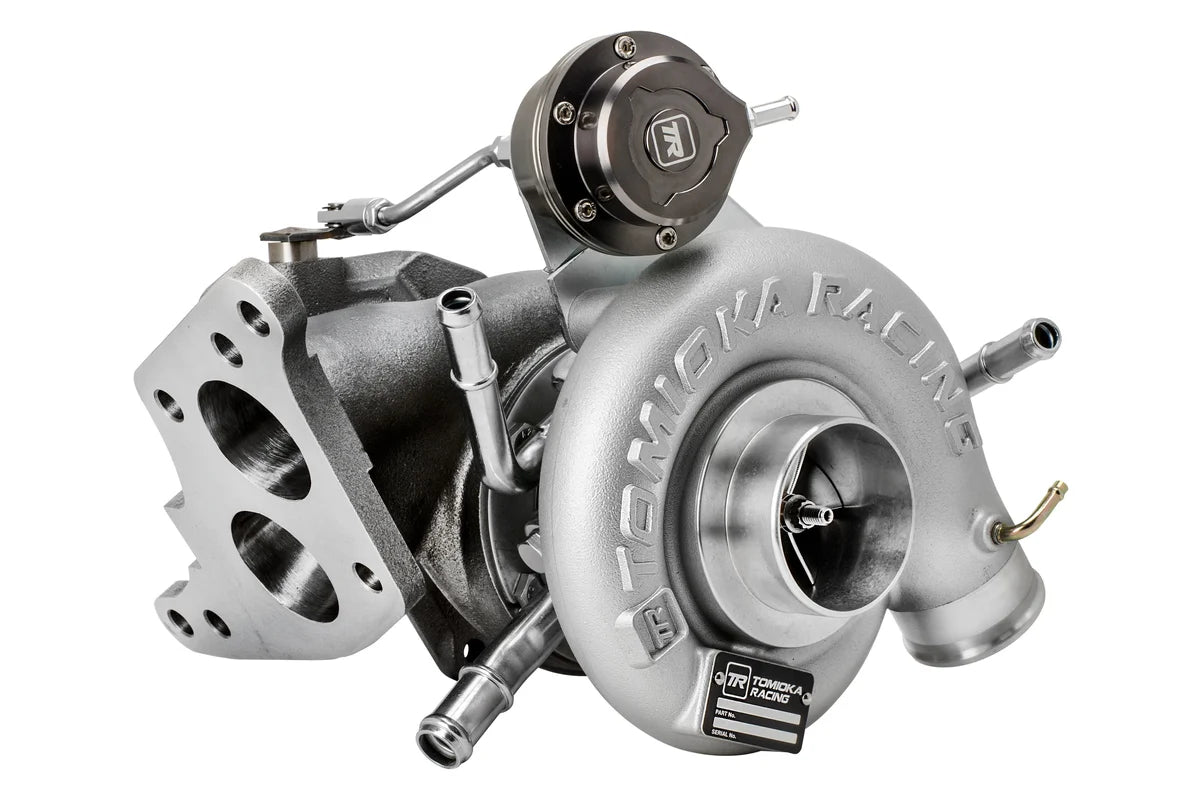

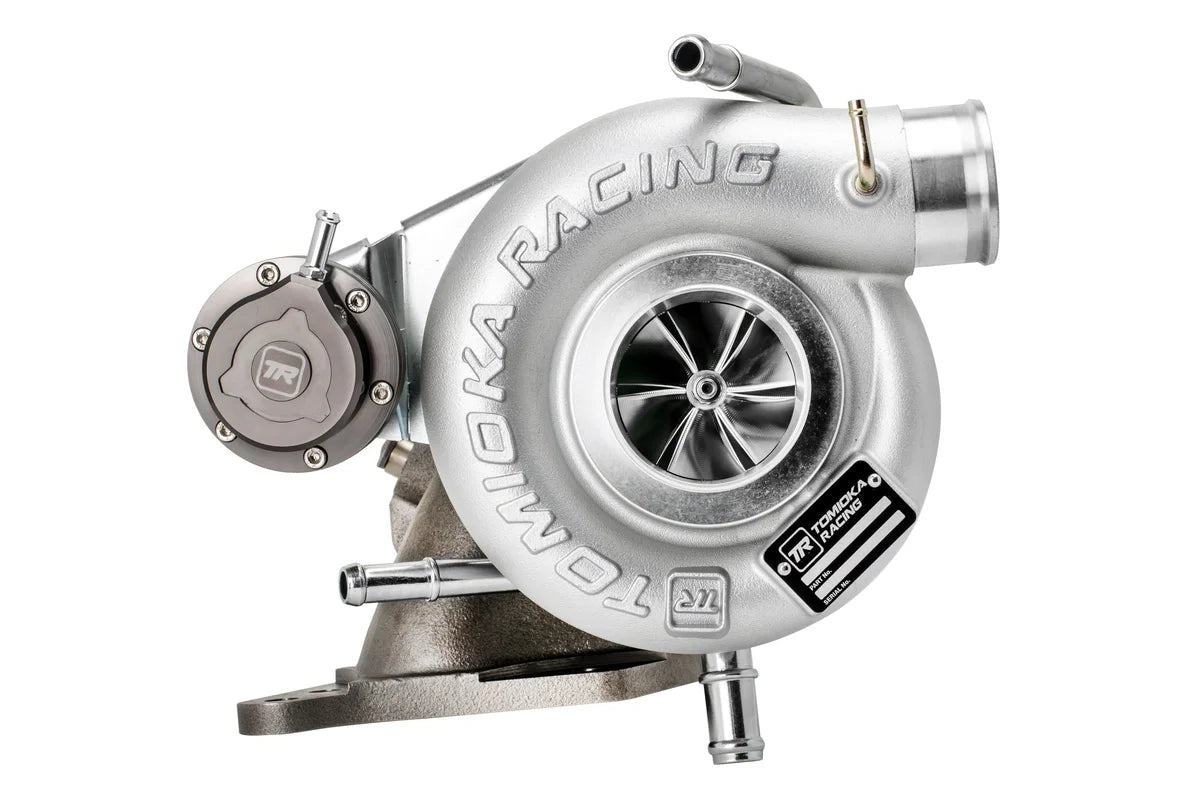

Introducing the twin scroll GTX2971 for Subaru 02-07 WRX and 04-18 STi! Just like the GTX2971R,this twin scroll edition features a ball-bearing cartridge, billet compressor wheel , and 10cm2 housing. Thanks to the billet compressor wheel the overall weight of the wheel is lighter than competing turbochargers and allows for maximum airflow throughout the unit with the help of point milling on each blade. A unique wheel and blade design, featuring a 20% larger wheel with 17% longer blades than the factory turbocharger. In addition, the GTX2971 features a port and polished exhaust housing to minimize exhaust flow turbulence. All hardware is included with purchase.
This is the ultimate replacement for Twinscroll VF36 VF37 and VF38
TR has partnered with Motul USA to offer a free 2L can of 300V 5W30 or 5W40 with any purchase of TR turbos! Choose your oil of choice in the options and we will include it in your order!
Do you need more Motul 300v? Add some more HERE!
NOTE: This turbocharger requires the usage of twin scroll headers and downpipe.
|
Bearing Type:
|
Ball-Bearing
|
|
Flange Type:
|
Standard Subaru 5-Bolts
|
|
| Compressor Wheel: |
In: 54 mm |
| Ex: 72 mm |
|
Turbine Wheel:
|
In: 60 mm |
| Ex: 57 mm |
|
Turbine Housing:
|
10cm2
|
|
Actuator:
|
1.1 bar / 16 psi
|
|
Horsepower:
|
550 HP
|
| Feature |
TR-TS1047 Twin Scroll GTX2971 |
TR-TS1027 Tomioka Racing TD06-20G Billet |
| Compatibility |
2002-2007 WRX, 2004-2018 STi |
2002-2007 WRX, 2004-2020 STI |
| Bearing Type |
Ball-Bearing |
Journal |
| Compressor Wheel Material |
Billet |
Billet |
| Compressor Wheel Size (mm) |
In: 54, Ex: 72 |
In: 52, Ex: 68 |
| Turbine Wheel Size (mm) |
In: 60, Ex: 57 |
In: 61, Ex: 54 |
| Turbine Housing Size |
10cm2 |
8cm2 |
| Weight of Compressor Wheel |
Lighter than competing turbos |
10% improvement over standard wheel |
| Wheel and Blade Design |
20% larger wheel, 17% longer blades |
Not specified |
| Exhaust Housing |
Port and polished to minimize turbulence |
Not specified |
| Maximum Horsepower Support |
550 HP |
530 HP |
| Spool Characteristics |
Twin-scroll design for optimal spooling |
Fast spool, ideal for maintaining high HP |
| Installation |
Requires twin-scroll headers and downpipe |
100% bolt-on |
Applications:
2002 - 2007 Subaru WRX
2004 - 2018 Subaru STi
Kit Contents:
Turbocharger
Gaskets
Hardware Kit
Actuator
Oil Pipe
Water Pipe
Motul 300V 2L
