Rally Race Proven Pacific Forest Rally
Proven in Rally Racing: Tomioka Racing Turbochargers have demonstrated their exceptional performance in the challenging terrain and high-intensity competitions of rally racing.
Pacific Forest Rally Success: Our turbochargers have earned their reputation by excelling at the Pacific Forest Rally, a renowned event in the world of motorsports.

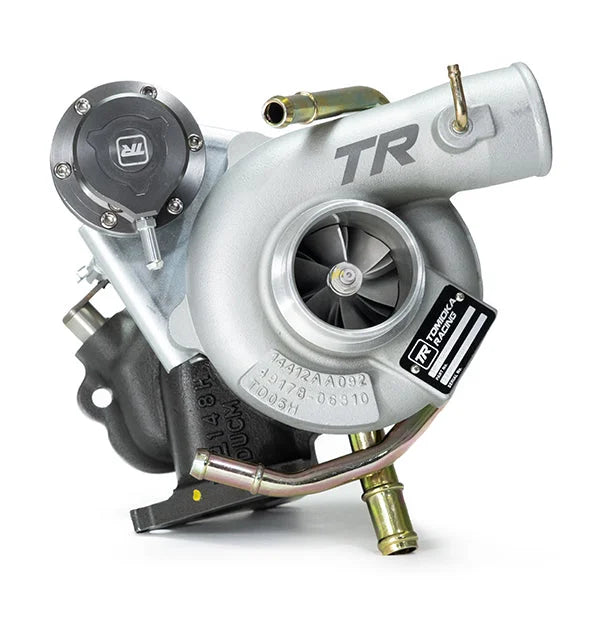

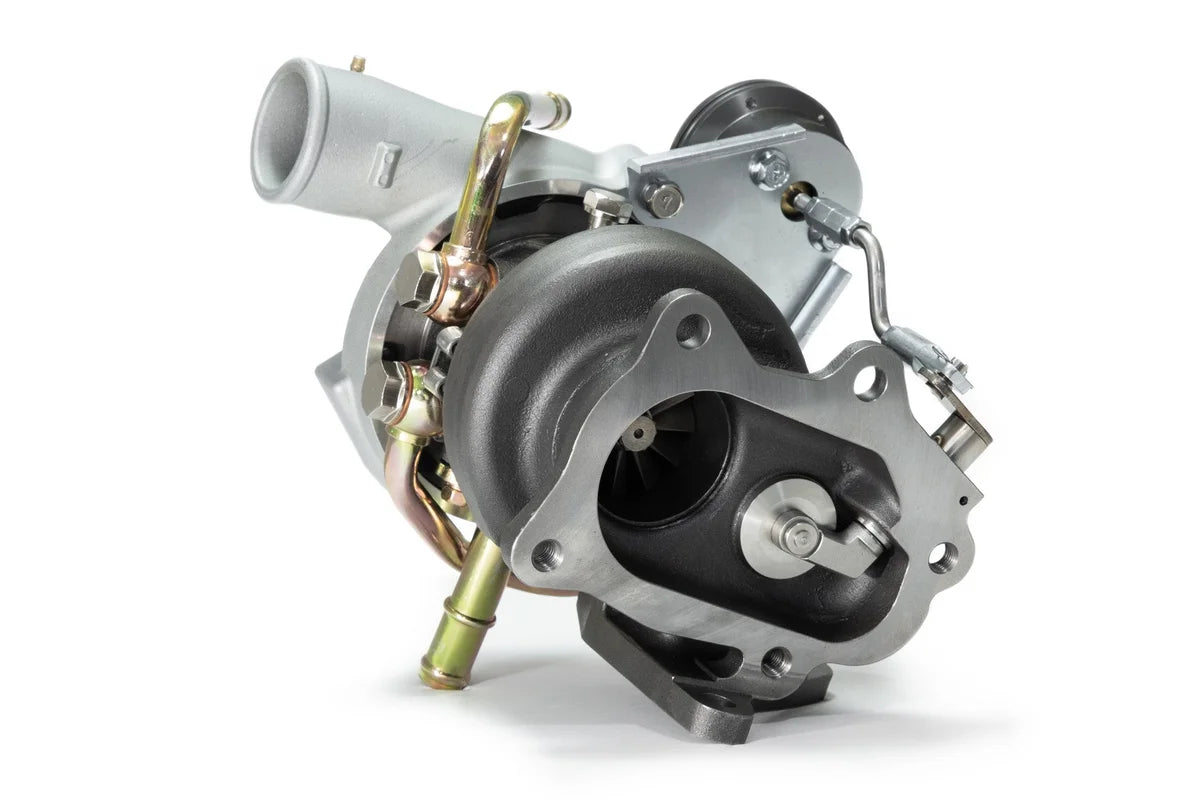

TR TD05-16G Turbo is the one of the best all-around turbo upgrade for your street car. The turbo characteristic is very similar to factory VF39 Turbo but with an increased spool rate and capacity to handle 330 HP. This makes the TD05-16G a great addition to your engine if you are planning to keep your car daily driver friendly. The turbo comes with all fitting and gaskets, ready to bolt on out of the box.
TR has partnered with Motul USA to offer a free 2L can of 300V 5W30 or 5W40 with any purchase of TR turbos! Choose your oil of choice in the options and we will include it in your order!
Do you need more Motul 300v? Add some more HERE!
Turbo Characteristics
| Bearing Type: |
Journal |
| Flange Type: |
Standard Subaru 5-Bolts |
| Compressor Wheel |
In: |
48.30 mm |
| Ex: |
68 mm |
|
Turbine Wheel
|
In: |
56 mm |
| Ex: |
49.2 mm |
| Actuator: |
1.1 Bar / 16 psi |
| Turbine Housing: |
7 cm2 |
| Max. Power: |
400 HP |
Applications:
- 2002-2007 Subaru WRX
- 2004-2020 Subaru STI

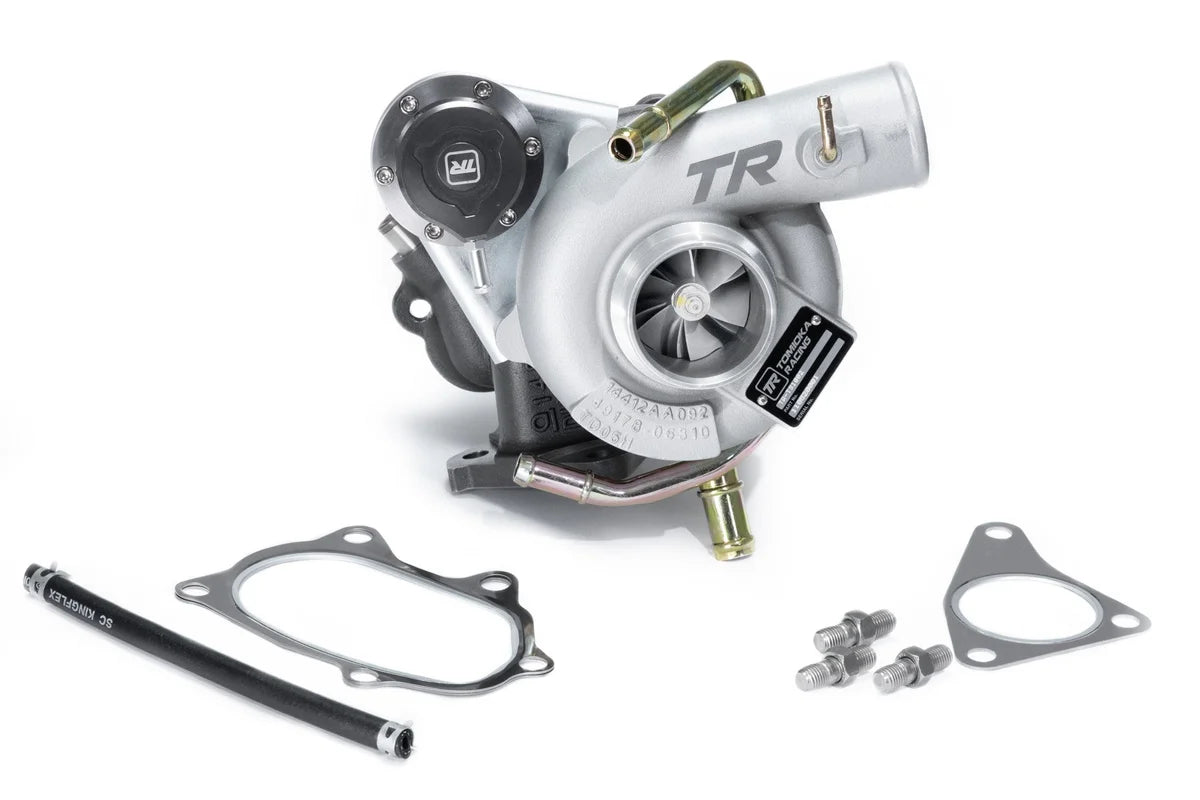

Contents of Kit:
- Turbocharger
- Actuator
- Oil pipe
- Water pipe
- Gaskets
- Hardware Kits
- Motul 300V 2L
