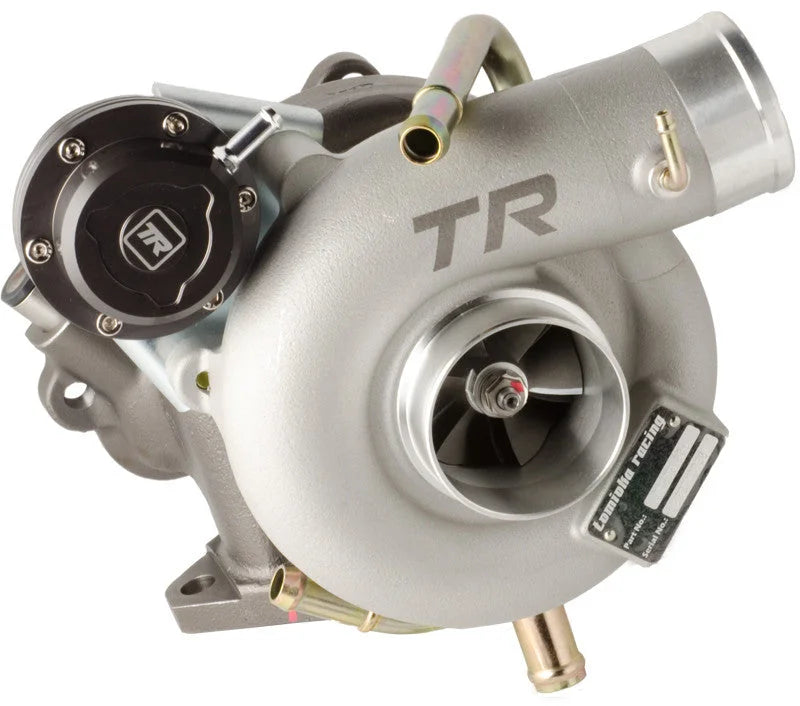

TR TD05-18G Bolt On Turbo Stock Replacement for Subaru WRX 2002-2007 and STI 2002-2010 w/ Billet Actuator - Main Product View

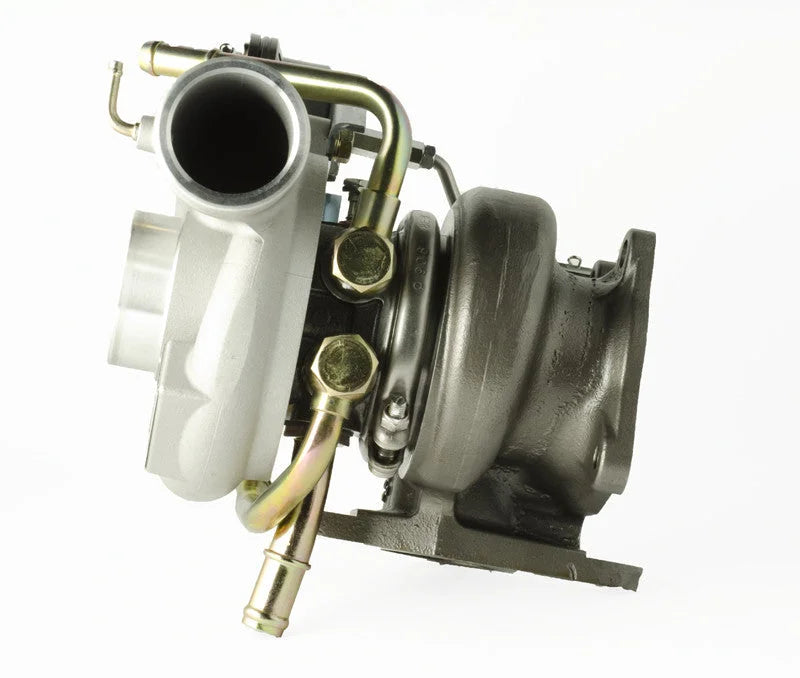

TR TD05-18G Bolt On Turbo Stock Replacement for Subaru WRX 2002-2007 and STI 2002-2010 w/ Billet Actuator - Side View

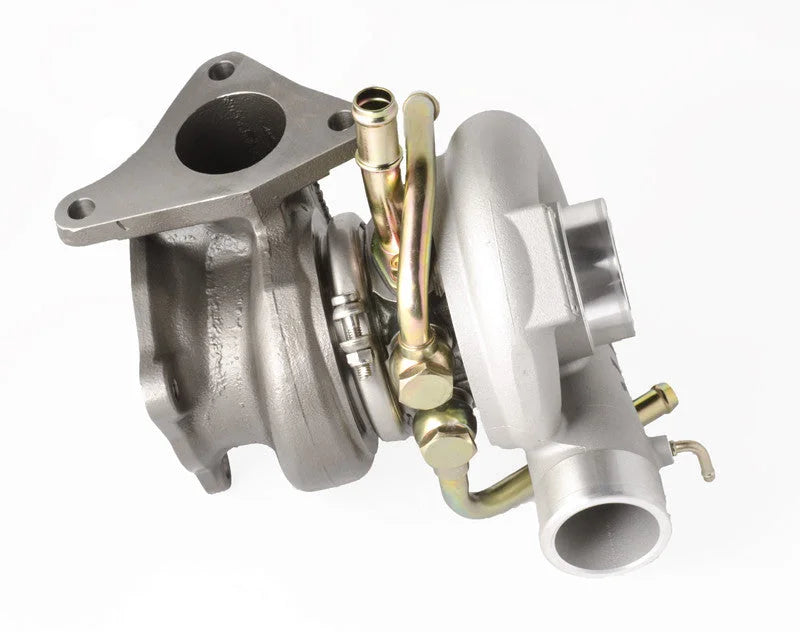

TR TD05-18G Bolt On Turbo Stock Replacement for Subaru WRX 2002-2007 and STI 2002-2010 w/ Billet Actuator - Back View

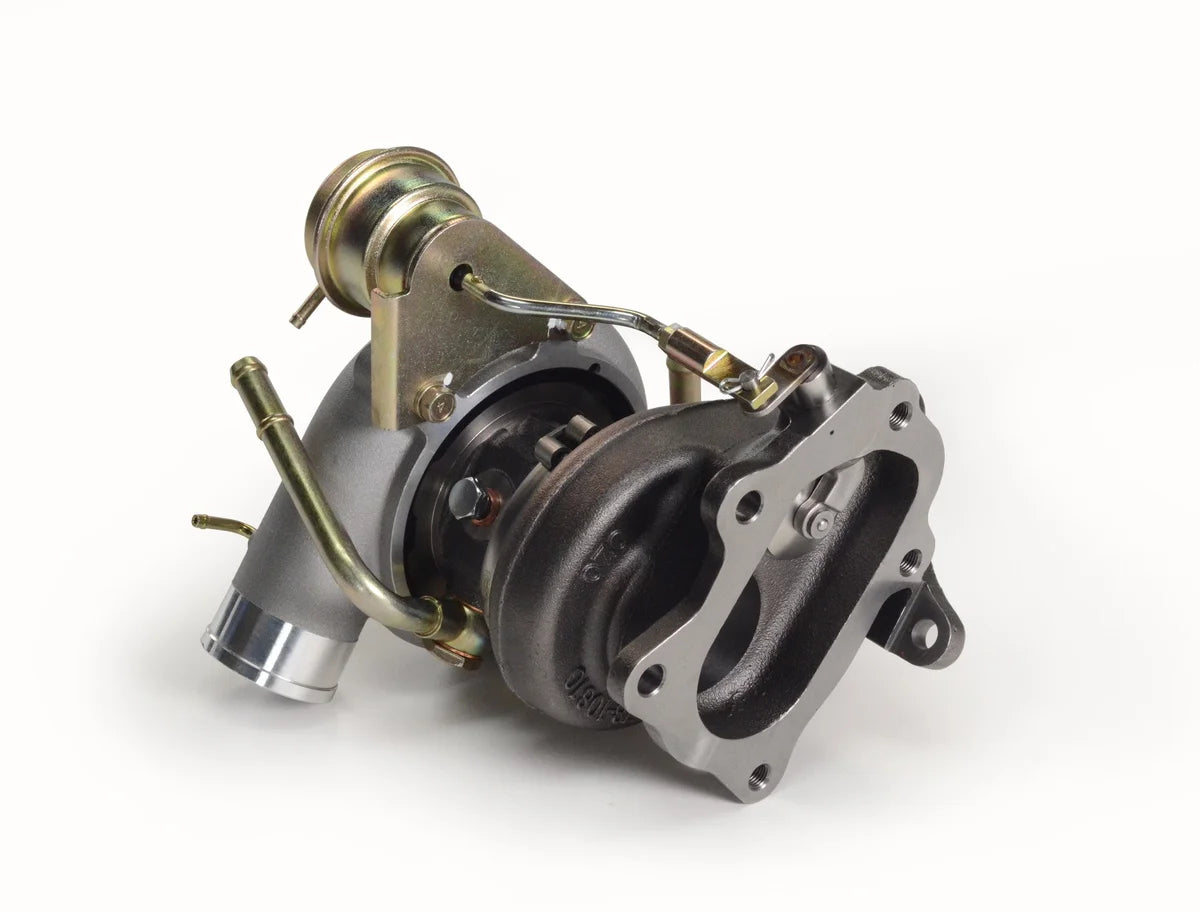

TR TD05-18G Bolt On Turbo Stock Replacement for Subaru WRX 2002-2007 and STI 2002-2010 w/ Billet Actuator - Installation View

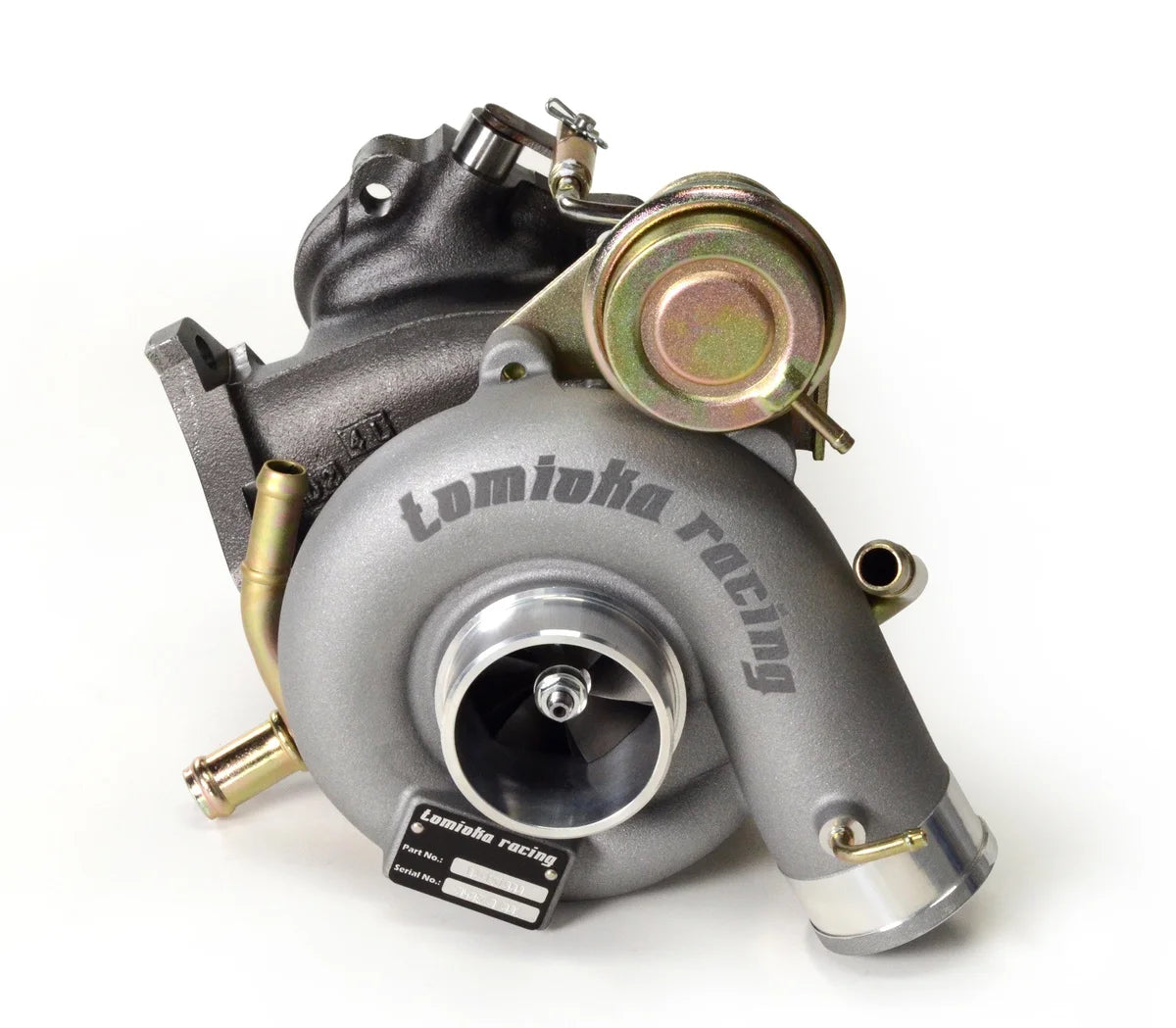

TR TD05-18G Bolt On Turbo Stock Replacement for Subaru WRX 2002-2007 and STI 2002-2010 w/ Billet Actuator - Additional View 5

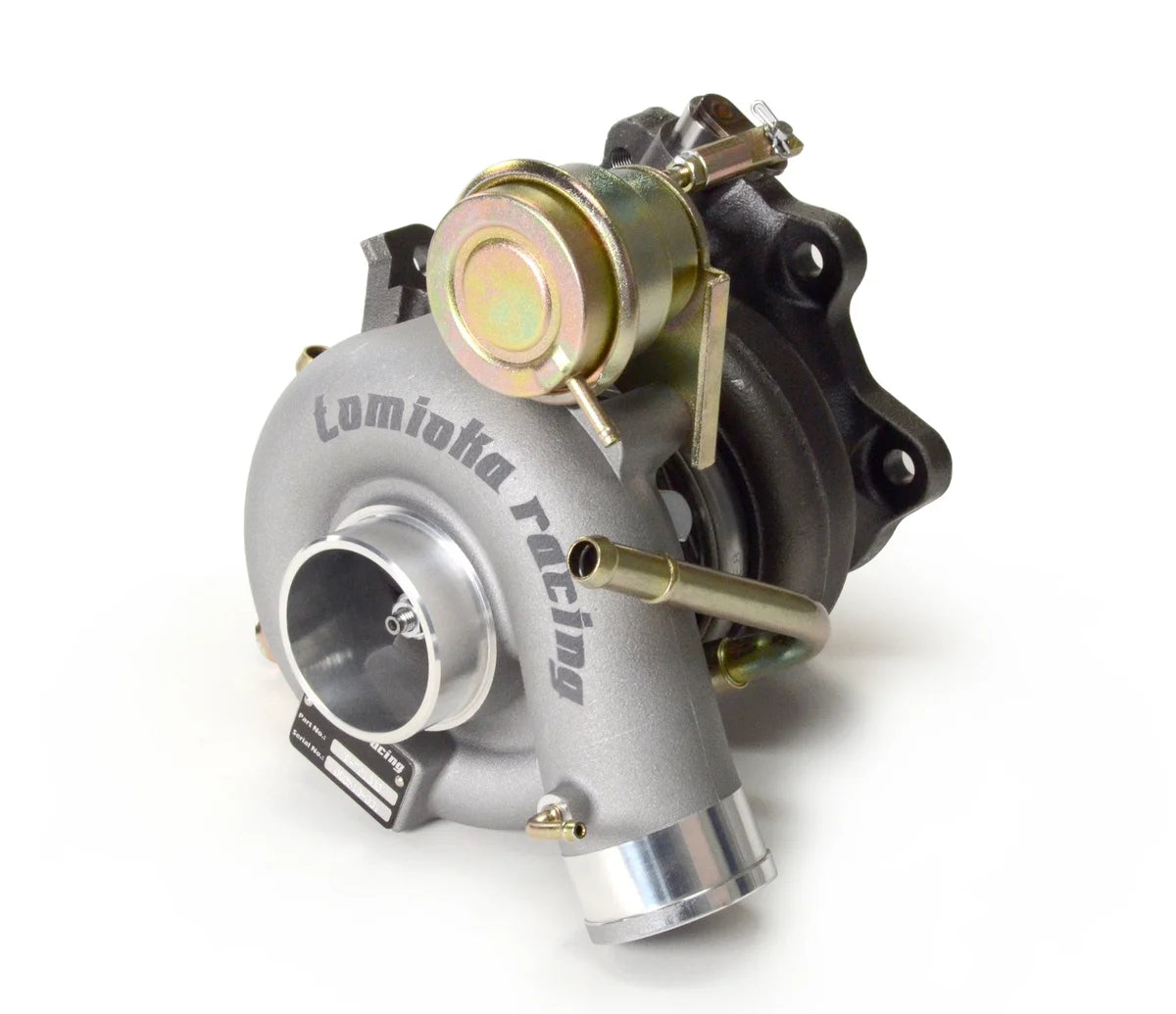

TR TD05-18G Bolt On Turbo Stock Replacement for Subaru WRX 2002-2007 and STI 2002-2010 w/ Billet Actuator - Additional View 6
TR TD05-18G Bolt On Turbo Stock Replacement for Subaru WRX 2002-2007 and STI 2002-2010 w/ Billet Actuator - Additional View 7
Click to zoom in
Load image into Gallery viewer, TR TD05-18G Bolt On Turbo Stock Replacement for Subaru WRX 2002-2007 and STI 2002-2010 w/ Billet Actuator - Main Product View
Load image into Gallery viewer, TR TD05-18G Bolt On Turbo Stock Replacement for Subaru WRX 2002-2007 and STI 2002-2010 w/ Billet Actuator - Side View
Load image into Gallery viewer, TR TD05-18G Bolt On Turbo Stock Replacement for Subaru WRX 2002-2007 and STI 2002-2010 w/ Billet Actuator - Back View
Load image into Gallery viewer, TR TD05-18G Bolt On Turbo Stock Replacement for Subaru WRX 2002-2007 and STI 2002-2010 w/ Billet Actuator - Installation View
Load image into Gallery viewer, TR TD05-18G Bolt On Turbo Stock Replacement for Subaru WRX 2002-2007 and STI 2002-2010 w/ Billet Actuator - Additional View 5
Load image into Gallery viewer, TR TD05-18G Bolt On Turbo Stock Replacement for Subaru WRX 2002-2007 and STI 2002-2010 w/ Billet Actuator - Additional View 6
Load image into Gallery viewer, TR TD05-18G Bolt On Turbo Stock Replacement for Subaru WRX 2002-2007 and STI 2002-2010 w/ Billet Actuator - Additional View 7

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Technical Support

    We help with any installation questions

  • Wordwide Delivery

    Fast shipping times from USA warehouses

Tomioka Racing (TR) TD05-18G Bolt On Turbo Stock Replacement w/ Billet Actuator fits 2002-2010 Subaru STI / 2002-2007 Subaru WRX

Tomioka Racing (TR)
TR-TS1000
In stock
$1,095.00 USD
$1,095.00 USD
Tomioka Racing (TR) TD05-18G Bolt On Turbo Stock Replacement w/ Billet Actuator fits 2002-2010 Subaru STI / 2002-2007 Subaru WRX
Description

The TR TD05-18G Turbo is the one of the best turbo upgrade for your street car. The turbo characteristics are very similar to factory VF42 turbo but with an increased spool rate and capacity to handle power upwards of 350WHP so it makes a great addition to your engine if you are planning to keep your car daily driver friendly. The turbo comes with all fitting and gaskets, ready to bolt on out of the box.

Do you need more Motul 300v? Add some more HERE!



Turbo Characteristics

Bearing Type: Journal
Flange Type: Standard Subaru 5-Bolts
Compressor Wheel In: 50.3 mm
Ex: 68 mm

Turbine Wheel

 In: 56 mm
Ex: 49.2 mm
Actuator: 1.1 Bar / 16 psi
Turbine Housing: 7 cm2
Max. Power: 400 HP

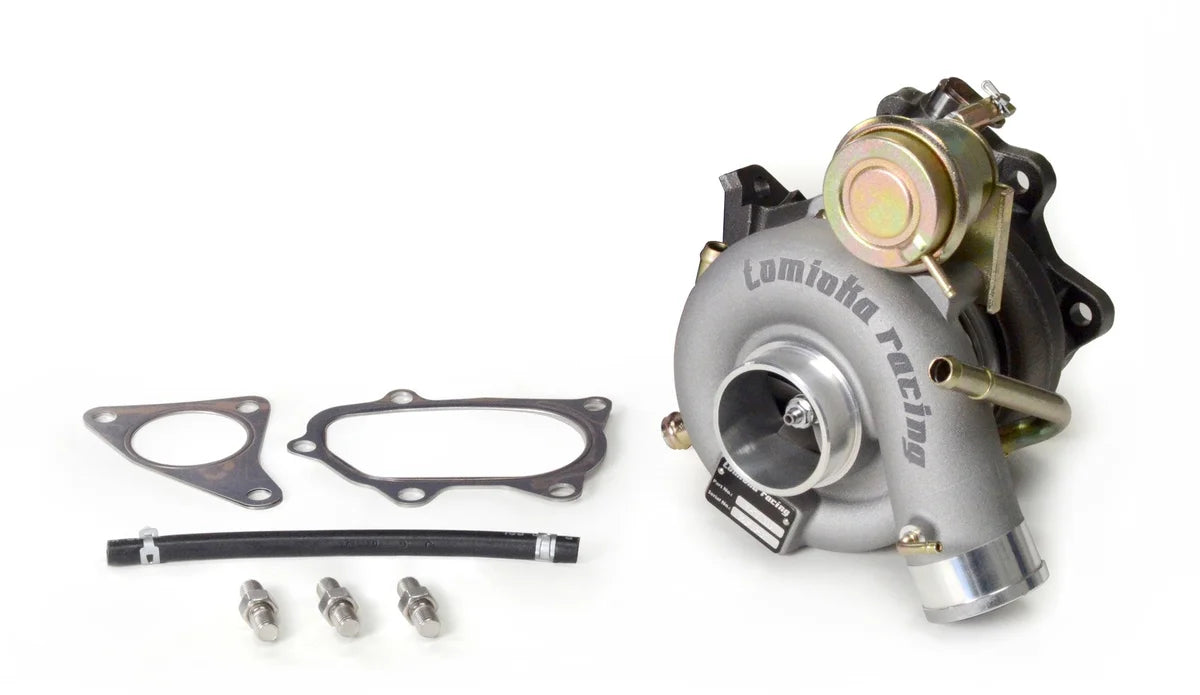

Kit Contents

  • Turbocharger
  • Actuator
  • Oil Pipe
  • Water Pipe
  • Gaskets
  • Hardware kits
  • Motul 300V 2L
