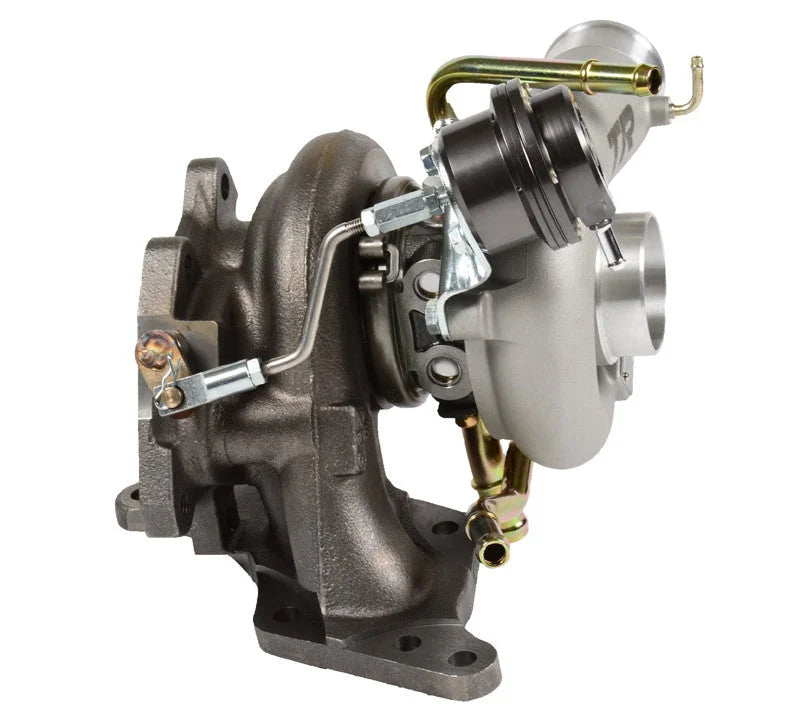

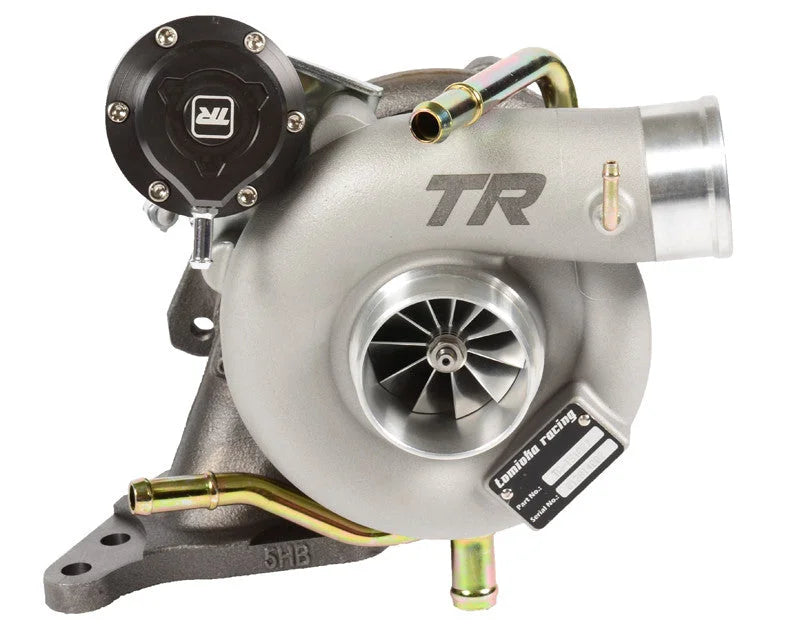

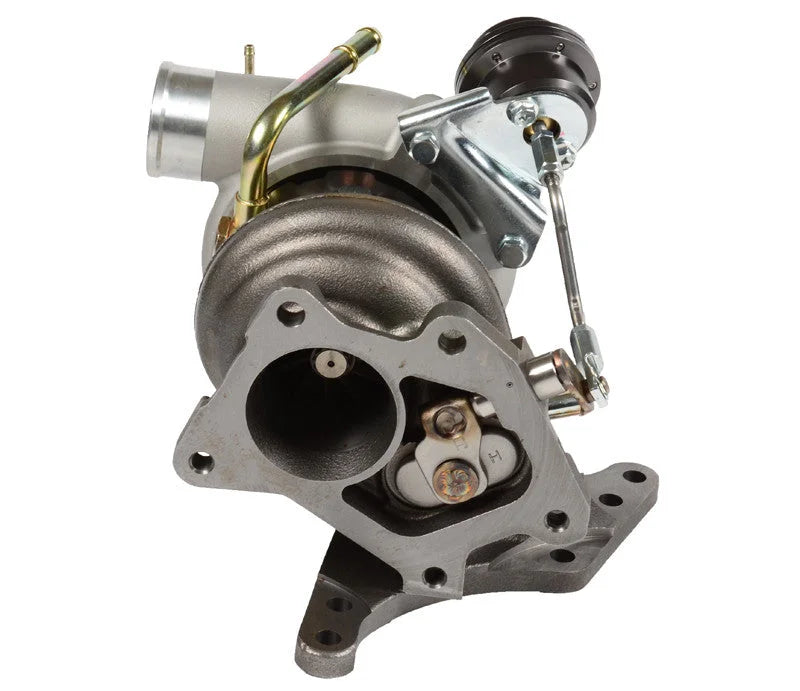

Tomioka Racing TD06-20G Twin Scroll Turbo now comes in Billet compressor wheel! The billet material improves air flow and performance by at least 10% over standard wheel. This turbo is ideal if you’re looking to put down the highest amount of horsepower without having to convert to a rotated mount set up and maintaining fast spool. This turbo is 100% bolt-on* and will support 550HP. Perfect for track and street applications!
TR has partnered with Motul USA to offer a free 2L can of 300V 5W30 or 5W40 with any purchase of TR turbos! Choose your oil of choice in the options and we will include it in your order!
Do you need more Motul 300v? Add some more HERE!
Turbo Characteristics
| Model |
TD06-20G |
| Part Number |
TR-TS1027 |
| Bearing |
Journal |
| Flange |
STD Subaru 5 Bolt |
| Actuator |
1.1 BAR / 16 PSI |
| Compressor Wheel |
In: |
52 mm |
| Ex: |
68 mm |
|
Turbine Wheel
|
In: |
61 mm |
| Ex: |
54 mm |
| Maximum Power |
530 HP |
| Turbine Housing |
8 cm2 |
| Air Flow Rate |
640 cfm |
| Feature |
TR-TS1047 Twin Scroll GTX2971 |
TR-TS1027 Tomioka Racing TD06-20G Billet |
| Compatibility |
2002-2007 WRX, 2004-2018 STi |
2002-2007 WRX, 2004-2020 STI |
| Bearing Type |
Ball-Bearing |
Journal |
| Compressor Wheel Material |
Billet |
Billet |
| Compressor Wheel Size (mm) |
In: 54, Ex: 72 |
In: 52, Ex: 68 |
| Turbine Wheel Size (mm) |
In: 60, Ex: 57 |
In: 61, Ex: 54 |
| Turbine Housing Size |
10cm2 |
8cm2 |
| Weight of Compressor Wheel |
Lighter than competing turbos |
10% improvement over standard wheel |
| Wheel and Blade Design |
20% larger wheel, 17% longer blades |
Not specified |
| Exhaust Housing |
Port and polished to minimize turbulence |
Not specified |
| Maximum Horsepower Support |
550 HP |
530 HP |
| Spool Characteristics |
Twin-scroll design for optimal spooling |
Fast spool, ideal for maintaining high HP |
| Installation |
Requires twin-scroll headers and downpipe |
100% bolt-on |
Applications:
- 2002-2007 WRX
- 2004-2020 STI

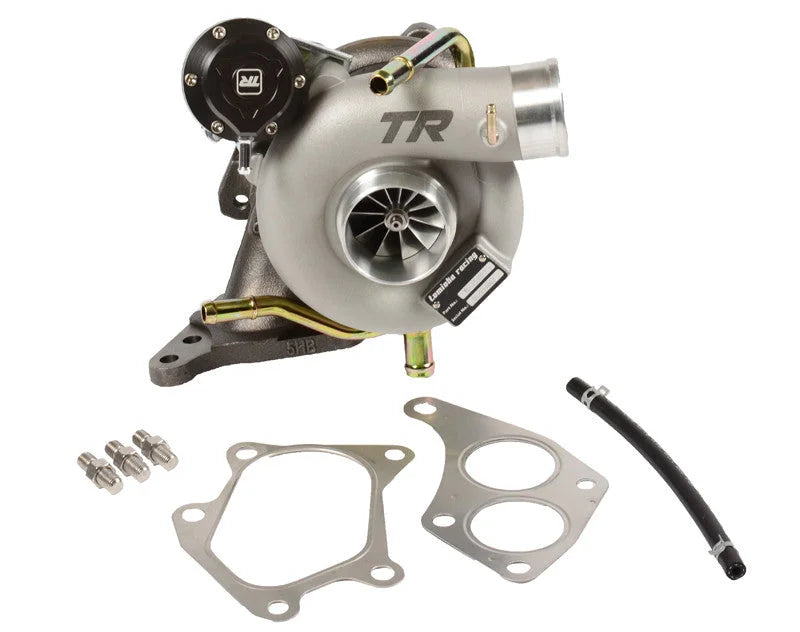

Kit Contents:
-
Turbocharger
-
Actuator
-
Oil & Water Pipe
-
Gaskets & Hardware Kits
- Motul 300V 2L
