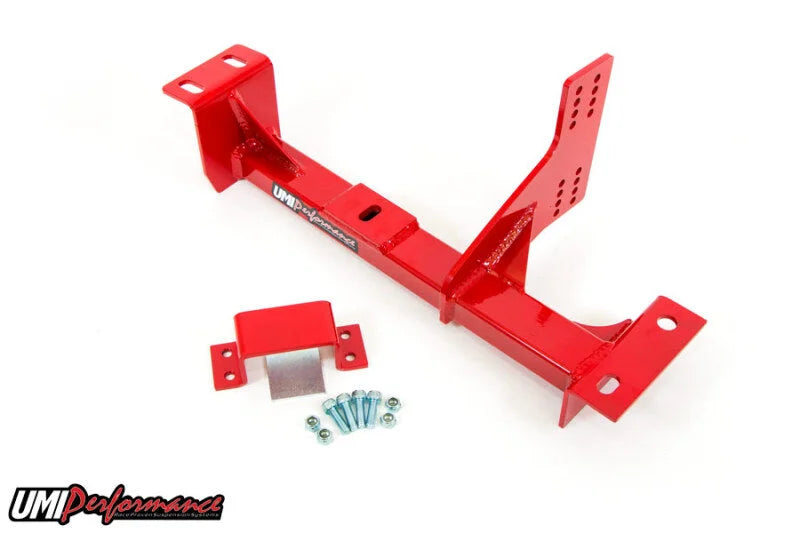

UMI Performance 98-02 GM F-Body Automatic / Torque Arm Relocation Kit - Main Product View

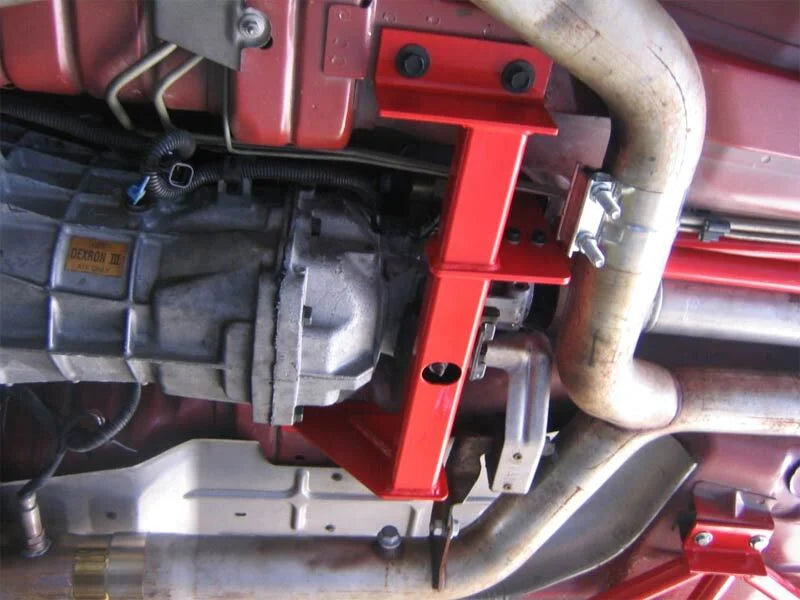

UMI Performance 98-02 GM F-Body Automatic / Torque Arm Relocation Kit - Side View

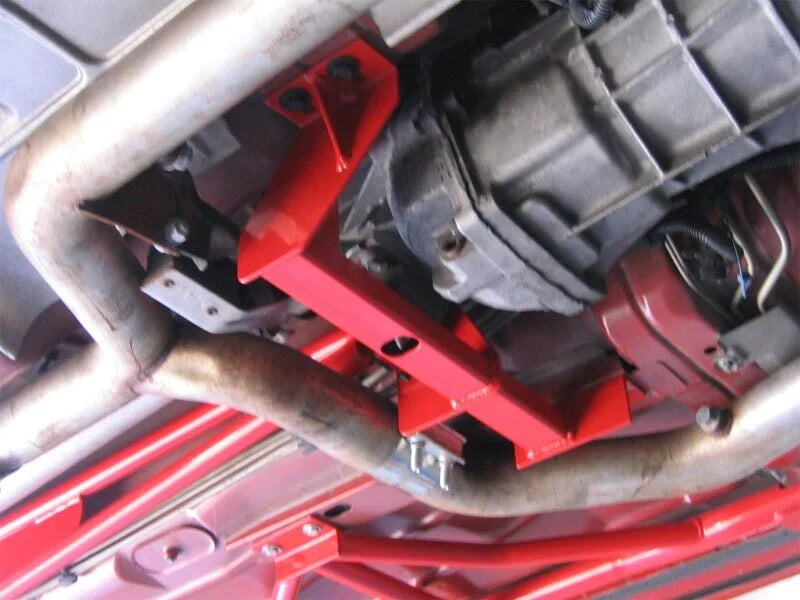

UMI Performance 98-02 GM F-Body Automatic / Torque Arm Relocation Kit - Back View

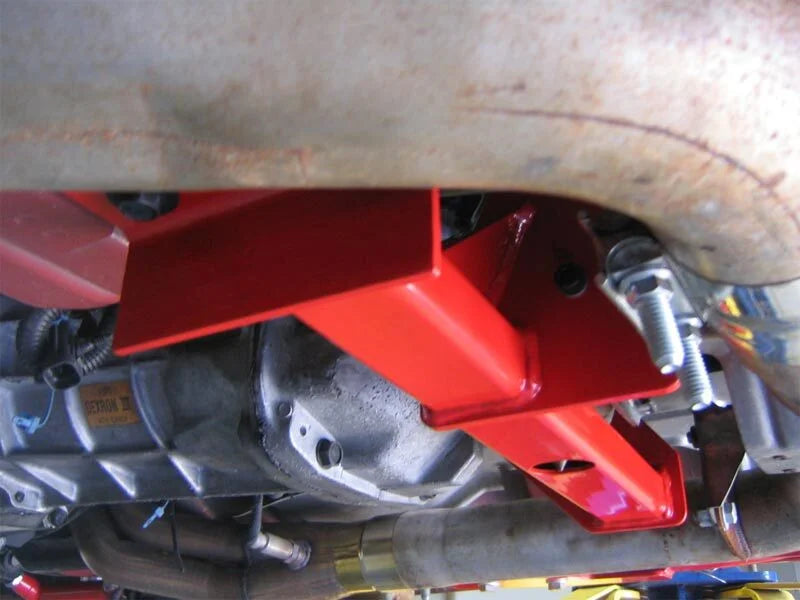

UMI Performance 98-02 GM F-Body Automatic / Torque Arm Relocation Kit - Installation View

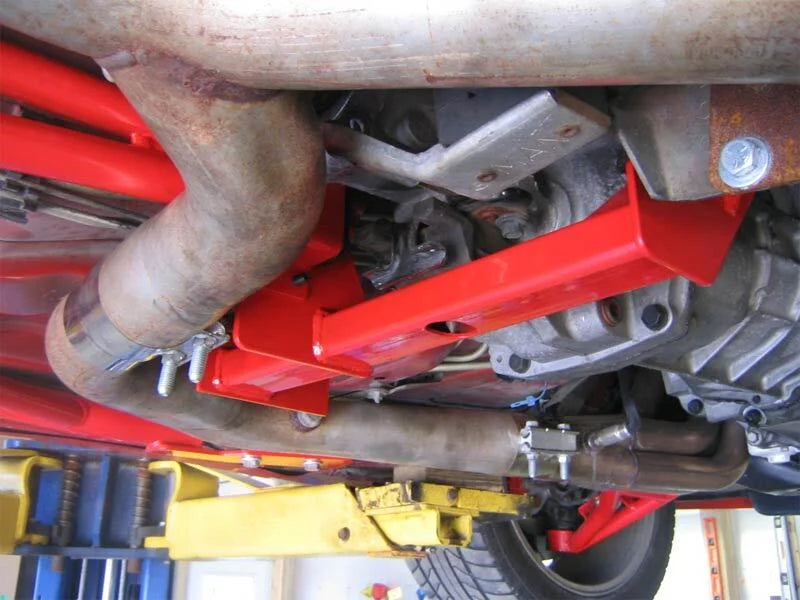

UMI Performance 98-02 GM F-Body Automatic / Torque Arm Relocation Kit - Additional View 5
Click to zoom in
Load image into Gallery viewer, UMI Performance 98-02 GM F-Body Automatic / Torque Arm Relocation Kit - Main Product View
Load image into Gallery viewer, UMI Performance 98-02 GM F-Body Automatic / Torque Arm Relocation Kit - Side View
Load image into Gallery viewer, UMI Performance 98-02 GM F-Body Automatic / Torque Arm Relocation Kit - Back View
Load image into Gallery viewer, UMI Performance 98-02 GM F-Body Automatic / Torque Arm Relocation Kit - Installation View
Load image into Gallery viewer, UMI Performance 98-02 GM F-Body Automatic / Torque Arm Relocation Kit - Additional View 5

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Technical Support

    We help with any installation questions

  • Wordwide Delivery

    Fast shipping times from USA warehouses

UMI Performance 2208-R Torque Arm Relocation Kit fits 1998-2002 Chevrolet Camaro / 1998-2002 Chevrolet Camaro Z28 / 1998-2002 Pontiac Firebird / 1998-2002 Pontiac Firebird Automatic

UMI Performance
2208-R
Special Order: Contact us to check stock and shipping lead times! Use LIVE HELP or call (724) 479-5480
$269.99 USD
$269.99 USD
UMI Performance 2208-R Torque Arm Relocation Kit fits 1998-2002 Chevrolet Camaro / 1998-2002 Chevrolet Camaro Z28 / 1998-2002 Pontiac Firebird / 1998-2002 Pontiac Firebird Automatic
Description
The torque arm relocation kit from UMI Performance is designed to remove the front mounting point of the torque arm off the transmission and protect the tail shaft from damage. General Motors tail shaft mounted design works great for a stock driven vehicle however it is not designed to take abuse and hard launches. This set-up replaces your transmission cross member with a new stronger set-up with a built in torque arm mount. Each relocation kit is designed to fit a specific transmission and will work with virtually any stock style aftermarket torque arm as well as the factory torque arm. This unit is built using rectangular mild steel tubing, 0.188” mild steel mounting plates and includes all appropriate hardware needed for the installation. The torque arm mount is machined from 0.250” thick mild steel and features a new clam shell for appropriately attaching the torque arm to the new cross member. Please use the FAQ’s below for additional information. Q: What does this kit do? A: Our transmission cross member is supplied with a built in torque arm mount removing the torque arm from the transmission tail shaft and protecting it from failure. Q: Does this new relocation kit reduce ground clearance? A: No, our cross member is designed to tuck tight against the vehicle chassis and will not effect vehicle ground clearance. Q: Which brand torque arms will this work with? A: This set-up will work with virtually any torque arm on the market as long as it bolts into the stock location. It will also work excellent with the stock torque arm. Q: Does this add additional weight to my vehicle? A: No, this cross member in most cases will save weight over the stock unit while being structurally stronger.

This Part Fits:

Year Make Model Submodel
1998-2002 Chevrolet Camaro Base
1998-2002 Chevrolet Camaro Z28
1998-2002 Chevrolet Camaro Z28 SS
1998-2002 Pontiac Firebird Base
1998-2002 Pontiac Firebird Formula
1998-2002 Pontiac Firebird Trans Am
