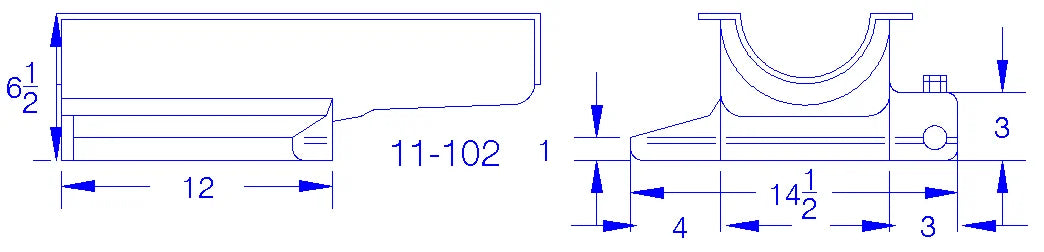

This Competition wet sump is for '80-'85 Small Block Chevys with right side dipstick. It is designed for applications where the engine is set extra low in the chassis. Fits front steer chassis with both aftermarket and Camaro front ends. The pan has a 6-1/2" deep, 15" wide, 12" long sump, and a 7 quart system capacity. Requires one of our pickups.
Specifications:
| Baffled |
Yes |
| Gasket or Seal Included |
No |
| Stoke |
3.75 inches |
| Recommended Accessory 6 |
88-100 - SBC Pre '85 Oil Pan Gasket |
| Recommended Accessory 5 |
20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting |
| Recommended Accessory 4 |
20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting |
| Recommended Accessory 3 |
20-032 - Pickup for Small Block Standard Volume Pumps M155 w/ 3/4" Tube |
| Recommended Accessory 2 |
20-031 - Pickup for Small Block High Volume Pumps M55HV |
| Recommended Accessory 1 |
20-030 - Pickup for Small Block Standard Volume Pumps M55 & M55A |
| Pickup Included |
No |
| Material |
16 Gauge Steel |
| Kicked Out |
Yes |
| Hardware Included |
Yes |
| Finish |
Silver Plating |
| Capacity |
7 Quart System Capacity |
| Feature 7 |
Magnetic Drain Plug |
| Feature 6 |
1/2 NPT Temp Sensor Bung |
| Feature 5 |
Provision for Canton Pan Mounted Dipstick |
| Feature 4 |
Reduces Crank Windage And Saves Horsepower |
| Feature 3 |
Removable Screen Windage Tray and Built in Crank Scraper |
| Feature 2 |
Bolt On Slosh Baffle For Oil Control |
| Feature 1 |
Baffled with 6 Trap Doors/3 Directional Runners |
| Engine |
For S.B. Chevy 1980-85 Blocks with right side dipstick |
| Drain Plug Included |
Yes |
| Dipstick Port |
Yes |
| Crank Scraper Included |
Yes |
| Windage Tray Included |
Yes |
| 17 |
Silver |
| 9003 |
1/2-20 |
| 1947 |
Yes |
| Description_ABR |
- |
| Description_SHO |
SB Chevy Oil Pan |
| Description_INV |
SBC SHALLOW 12? LONG SUMP CT PAN RH DIP |
| Description_ASC |
N/A |
| Description_ASC |
N/A |
| Description_KEY |
Canton, Canton Racing, Products |
| Description_LAB |
Canton Racing Products |
| Description_DES |
Canton 11-102M Oil Pan Small Block Chevy Shallow Circle Track 12" Long Sump |
| Description_SHP |
N/A |
| Description_ASM |
- |
| Description_EXT |
Canton 11-102M Oil Pan Small Block Chevy Shallow Circle Track 12" Long Sump |
| Description_MKT |
This Competition wet sump is for '80-'85 Small Block Chevys with right side dipstick. It is designed for applications where the engine is set extra low in the chassis. Fits front steer chassis with both aftermarket and Camaro front ends. The pan has a 6-1/2" deep, 15" wide, 12" long sump, and a 7 quart system capacity. Requires one of our pickups. |
| Description_FAB |
7 qt System Capacity |
| Description_FAB |
3.75" Stroke Clearance |
| Description_FAB |
Six Trap Door Baffles & Three Runners |
| Description_FAB |
Crank Scraper |
| Description_FAB |
Built in Windage Tray |
| Description_FAB |
Bolt in Slosh Baffle |
| Description_FAB |
1/2" NPT Temperature Bung |
| Description_FAB |
Provison for our Pan Mounted Dipstick |
| Description_FAB |
Magnetic Drain Plug |
| Description_TRA |
- |
| Description_CAP |
- |
| Description_DEF |
Engine Oil Pan |
