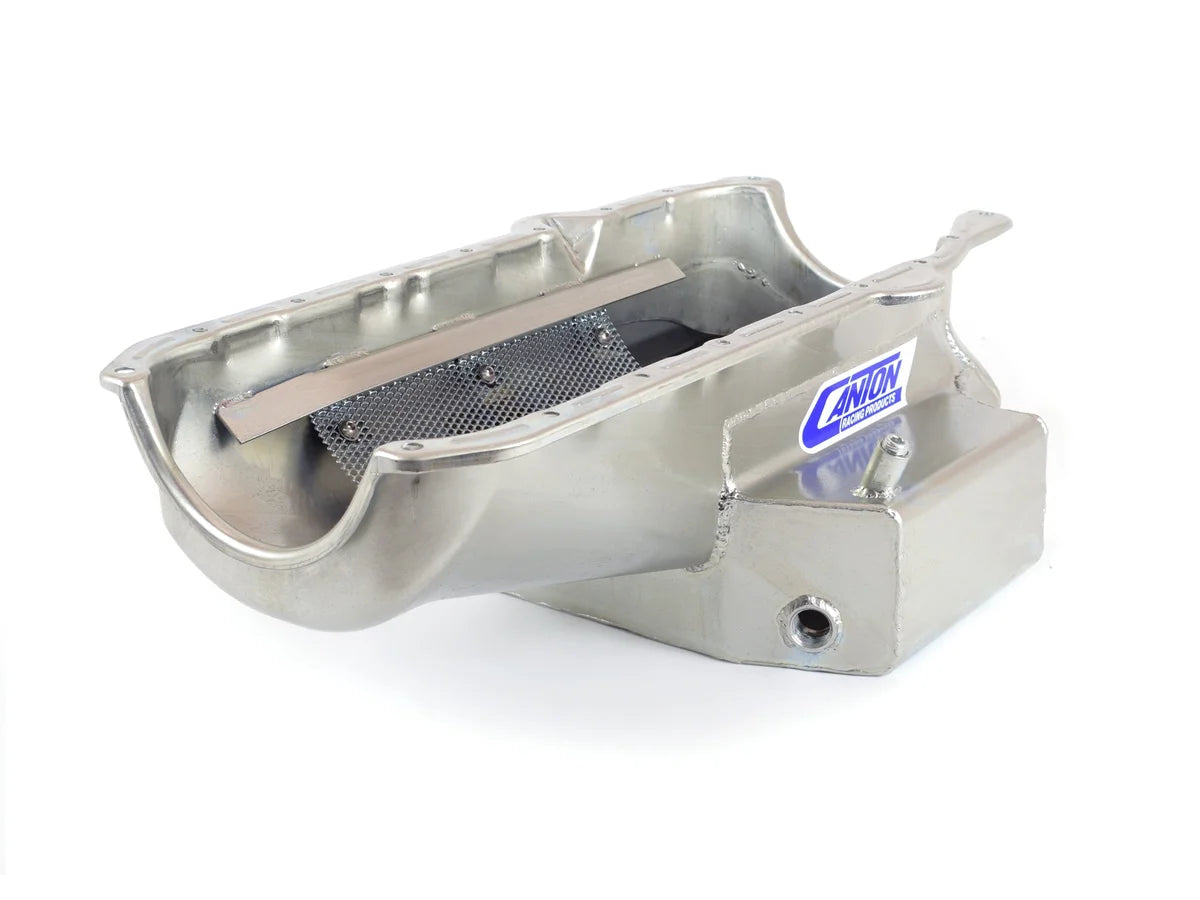

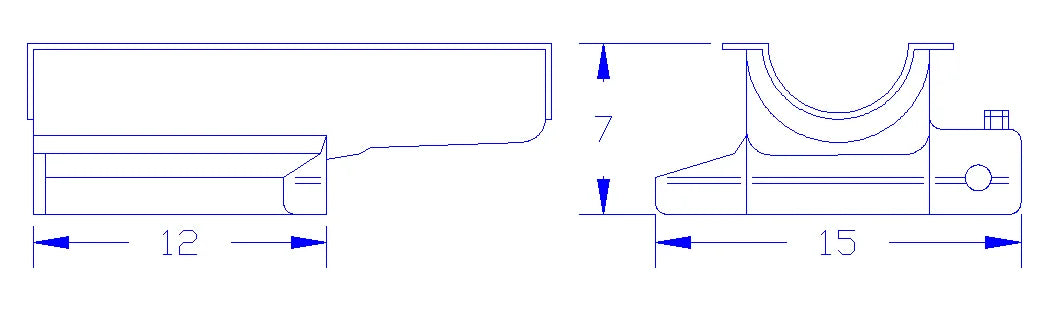

This Competition wet sump is for '86 and newer Small Block Chevys with one piece seals. Fits front steer chassis with both aftermarket and Camaro front ends, others when the engine is moved. It has a 7" deep, 15" wide, 12" long sump, and an 8 quart system capacity. Will work with all starter and flywheel combinations. Requires one of our pickups.
Specifications:
| Baffled |
Yes |
| Kicked Out |
Yes |
| Stoke |
3.75 inches |
| Recommended Accessory 9 |
20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting |
| Recommended Accessory 8 |
20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting |
| Recommended Accessory 7 |
20-100 - Pickup for Big Block 5 bolt pumps M77 & M77HV |
| Recommended Accessory 6 |
20-071 - Flange Mount Pickup for M10552 & M10555 Pump |
| Recommended Accessory 5 |
20-077 - Press In Pickup for M10552 & M10555 Pump |
| Recommended Accessory 4 |
20-072 - Pickup for Small block High Volume M155HV Pump w/ 3/4" Tube |
| Recommended Accessory 3 |
20-070 - Pickup for Small Block High Volume Pumps M55HV |
| Recommended Accessory 2 |
20-042 - Pickup for Small Block Standard Volume Pumps M155 w/ 3/4" Tube |
| Recommended Accessory 1 |
20-040 - Pickup for Small Block Standard Volume Pumps M55 & M55A |
| Pickup Included |
No |
| Material |
16 Gauge Steel |
| Hardware Included |
No |
| Capacity |
8 Quart System Capacity |
| Gasket or Seal Included |
No |
| Finish |
Silver Plating |
| Feature 7 |
Magnetic Drain Plug |
| Feature 6 |
1/2 NPT Temp Sensor Bung |
| Feature 5 |
Provision for Canton Pan Mounted Dipstick |
| Feature 4 |
Reduces Crank Windage And Saves Horsepower |
| Feature 3 |
Removable Screen Windage Tray and Built in Crank Scraper |
| Feature 2 |
Bolt On Slosh Baffle For Oil Control |
| Feature 1 |
Baffled with 6 Trap Doors/3 Directional Runners |
| Engine |
For S.B. Chevy 1986 and newer blocks with one piece seal |
| Drain Plug Included |
Yes |
| Dipstick Port |
Yes |
| Crank Scraper Included |
Yes |
| Windage Tray Included |
Yes |
| Description_ABR |
- |
| Description_SHO |
SB Chevy Oil Pan |
| Description_INV |
SBC 12? LONG SUMP CT PAN 1 PIECE SEAL |
| Description_ASC |
N/A |
| Description_KEY |
Canton, Canton Racing, Products |
| Description_LAB |
Canton Racing Products |
| Description_DES |
Canton 11-120T Oil Pan Small Block Chevy 12 Inch CT Long Sump 7" Deep |
| Description_SHP |
N/A |
| Description_ASM |
- |
| Description_EXT |
Canton 11-120T Oil Pan Small Block Chevy 12 Inch CT Long Sump 7" Deep |
| Description_MKT |
This Competition wet sump is for '86 and newer Small Block Chevys with one piece seals. Fits front steer chassis with both aftermarket and Camaro front ends, others when the engine is moved. It has a 7" deep, 15" wide, 12" long sump, and an 8 quart system capacity. Will work with all starter and flywheel combinations. Requires one of our pickups. |
| Description_FAB |
8 qt System Capacity |
| Description_FAB |
3.75" Stroke Clearance |
| Description_FAB |
Six Trap Door Baffles & Three Runners |
| Description_FAB |
Crank Scraper |
| Description_FAB |
Bolt in Slosh Baffle |
| Description_FAB |
Built in Windage Tray |
| Description_FAB |
1/2” NPT Temperature Bung |
| Description_FAB |
Provison for our Pan Mounted Dipstick |
| Description_FAB |
Magnetic Drain Plug |
| Description_TRA |
- |
| Description_CAP |
- |
| Description_DEF |
Engine Oil Pan |
