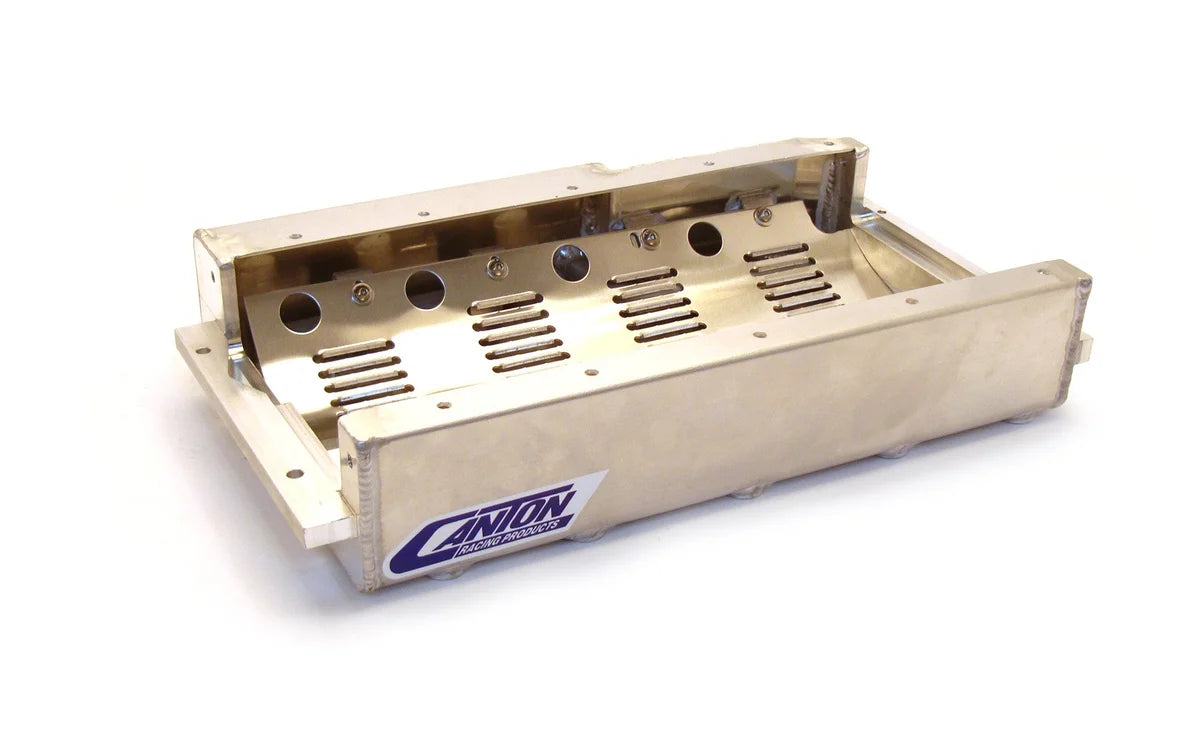

Canton Canton 12-280A Oil Pan Dart LS Next Dry Sump Aluminum 12-280A - Main Product View

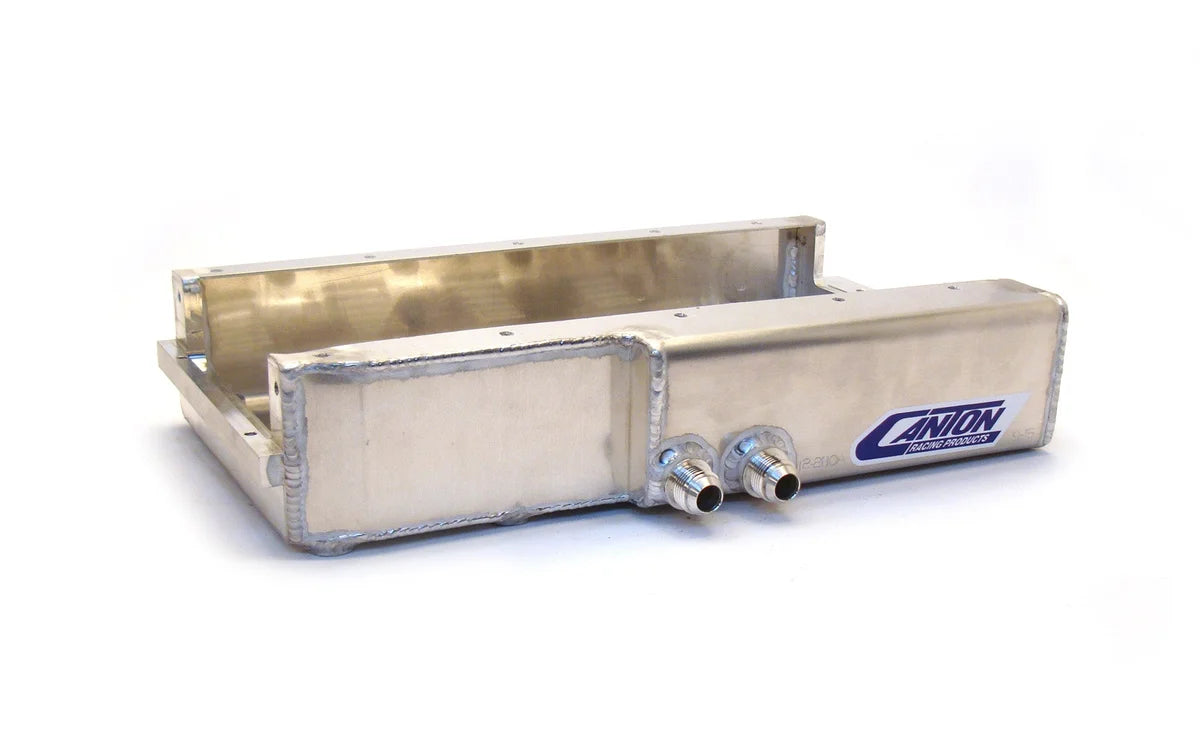

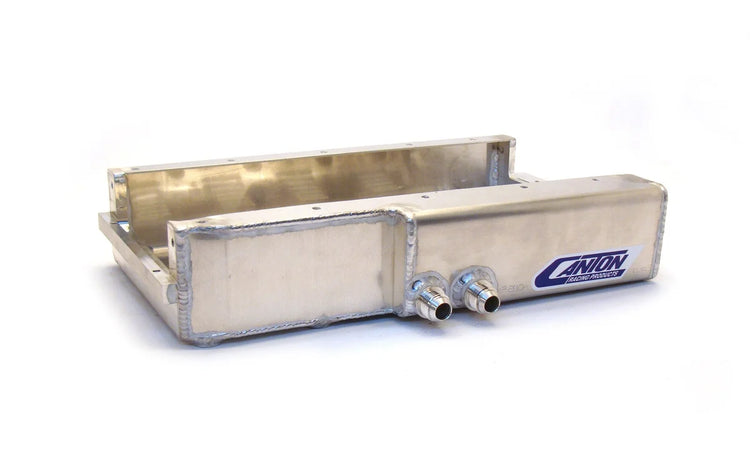

Canton Canton 12-280A Oil Pan Dart LS Next Dry Sump Aluminum 12-280A - Side View

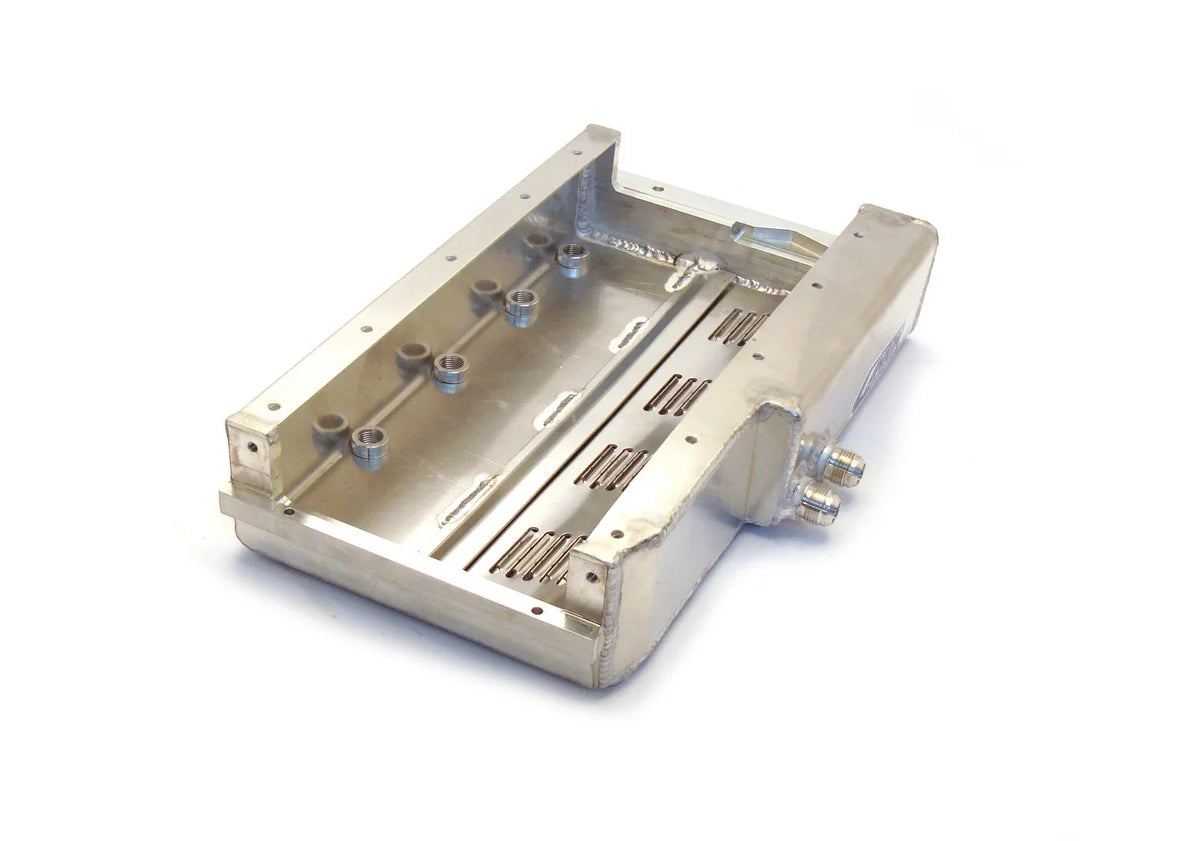

Canton Canton 12-280A Oil Pan Dart LS Next Dry Sump Aluminum 12-280A - Back View
Canton Canton 12-280A Oil Pan Dart LS Next Dry Sump Aluminum 12-280A - Installation View

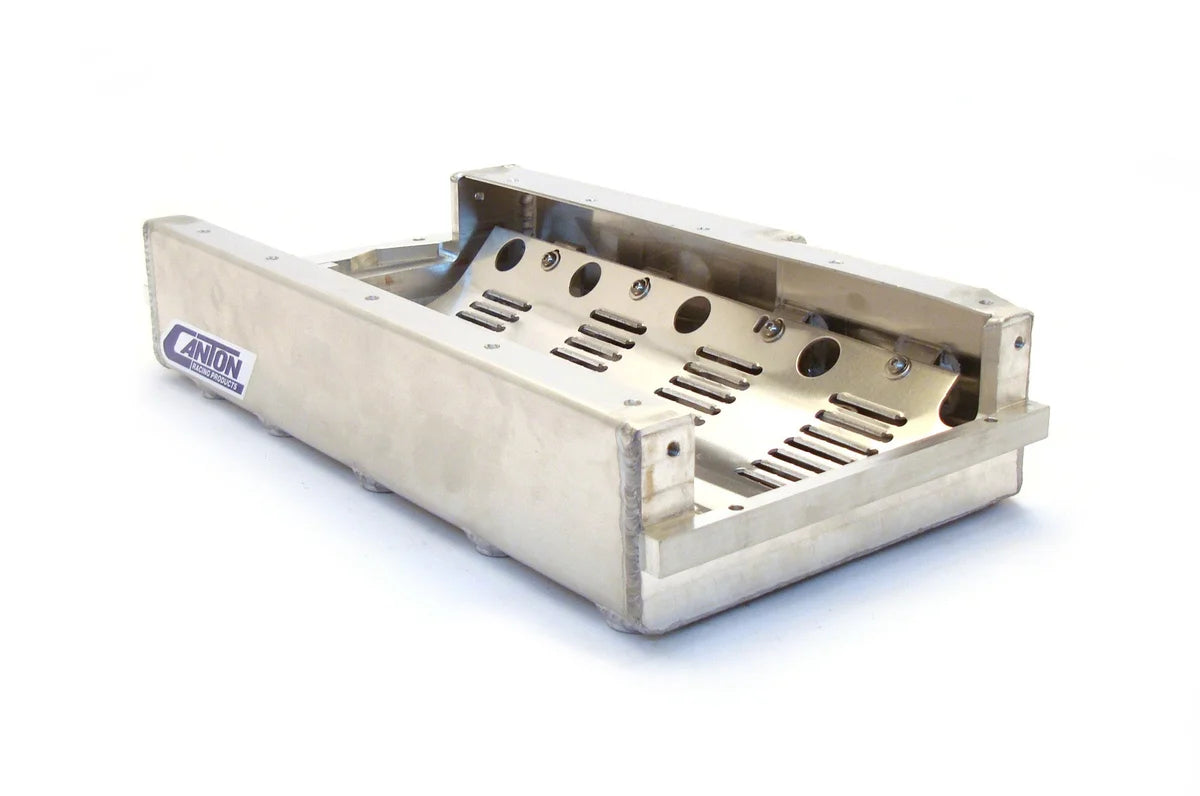

Canton Canton 12-280A Oil Pan Dart LS Next Dry Sump Aluminum 12-280A - Additional View 5
Click to zoom in
Load image into Gallery viewer, Canton Canton 12-280A Oil Pan Dart LS Next Dry Sump Aluminum 12-280A - Main Product View
Load image into Gallery viewer, Canton Canton 12-280A Oil Pan Dart LS Next Dry Sump Aluminum 12-280A - Side View
Load image into Gallery viewer, Canton Canton 12-280A Oil Pan Dart LS Next Dry Sump Aluminum 12-280A - Back View
Load image into Gallery viewer, Canton Canton 12-280A Oil Pan Dart LS Next Dry Sump Aluminum 12-280A - Installation View
Load image into Gallery viewer, Canton Canton 12-280A Oil Pan Dart LS Next Dry Sump Aluminum 12-280A - Additional View 5

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Technical Support

    We help with any installation questions

  • Wordwide Delivery

    Fast shipping times from USA warehouses

Canton Oil Pan Dry Sump Aluminum 12-280A fits Dart LS Next

Canton
12-280A
Out of stock
$1,461.60 USD $1,339.99 USD
Canton Oil Pan Dry Sump Aluminum 12-280A fits Dart LS Next
Description
Our LS NEXT dry sump oil pan is designed to take the changes that Dart has made to the LS block and maximize their effectiveness. Our billet end caps offer a precise fit to the unique pan rail of the Dart LS NEXT block. Our Pro-style oil recovery pouch is designed to maximize the horsepower that Dart freed up in the bottom end.


Specifications:

Baffled No
Material .100 Aluminum
Recommended Accessory 9 23-120 - 10qt Sprint Style Dry Sump Tank w/ Right Side Fittings
Recommended Accessory 8 23-110L - 10qt Universal Dry Sump Tank w/ Left Side Fittings
Recommended Accessory 7 22-750 - -12 AN Screen Pump Protector
Recommended Accessory 6 22-660 - In-Line Screen Protector -12 AN Fittings
Recommended Accessory 5 22-650 - In-Line Screen Protector -10 AN Fittings
Recommended Accessory 4 22-640 - In-Line Screen Protector -8 AN Fittings
Recommended Accessory 3 22-620 - Billet Aluminum remote spin-on filter mount 13/16"-16 Thread
Recommended Accessory 2 22-305 - Dart LS Next Oil Pan Stud Kit
Recommended Accessory 1 21-870 - LS Flywheel Cover for T56 Bellhousing
Pickup Included No
Kicked Out No
Crank Scraper Included No
Hardware Included No
Gasket or Seal Included No
Finish Raw Aluminum
Feature 5 Magnetic Drain Plug
Feature 4 Built in Louvered Windage Tray
Feature 3 (2) -12 AN Pickups on the right side of the pan
Feature 2 Machined Billet Front & Rear Seals
Feature 1 Pro-Style Recovery Pouch
Engine Dart LS Next
Drain Plug Included Yes
Windage Tray Included Yes
Description_ABR -
Description_SHO Dart LS Next Oil Pan
Description_INV LS NEXT DRY SUMP ALUM OIL PAN
Description_ASC N/A
Description_KEY Canton, Canton Racing, Products
Description_LAB Canton Racing Products
Description_DES Canton 12-280A Oil Pan Dart LS Next Dry Sump Aluminum
Description_SHP N/A
Description_ASM -
Description_EXT Canton 12-280A Oil Pan Dart LS Next Dry Sump Aluminum
Description_MKT Our LS NEXT dry sump oil pan is designed to take the changes that Dart has made to the LS block and maximize their effectiveness. Our billet end caps offer a precise fit to the unique pan rail of the Dart LS NEXT block. Our Pro-style oil recovery pouch is designed to maximize the horsepower that Dart freed up in the bottom end.
Description_FAB Pro Style Oil Recovery Pouch
Description_FAB Machined Billet Front & Rear Seals
Description_FAB Built in louvered Windage Tray
Description_FAB Magnetic Drain Plug
Description_FAB Two -12AN pickups on passenger side
Description_TRA -
Description_CAP -
Description_DEF Engine Oil Pan
