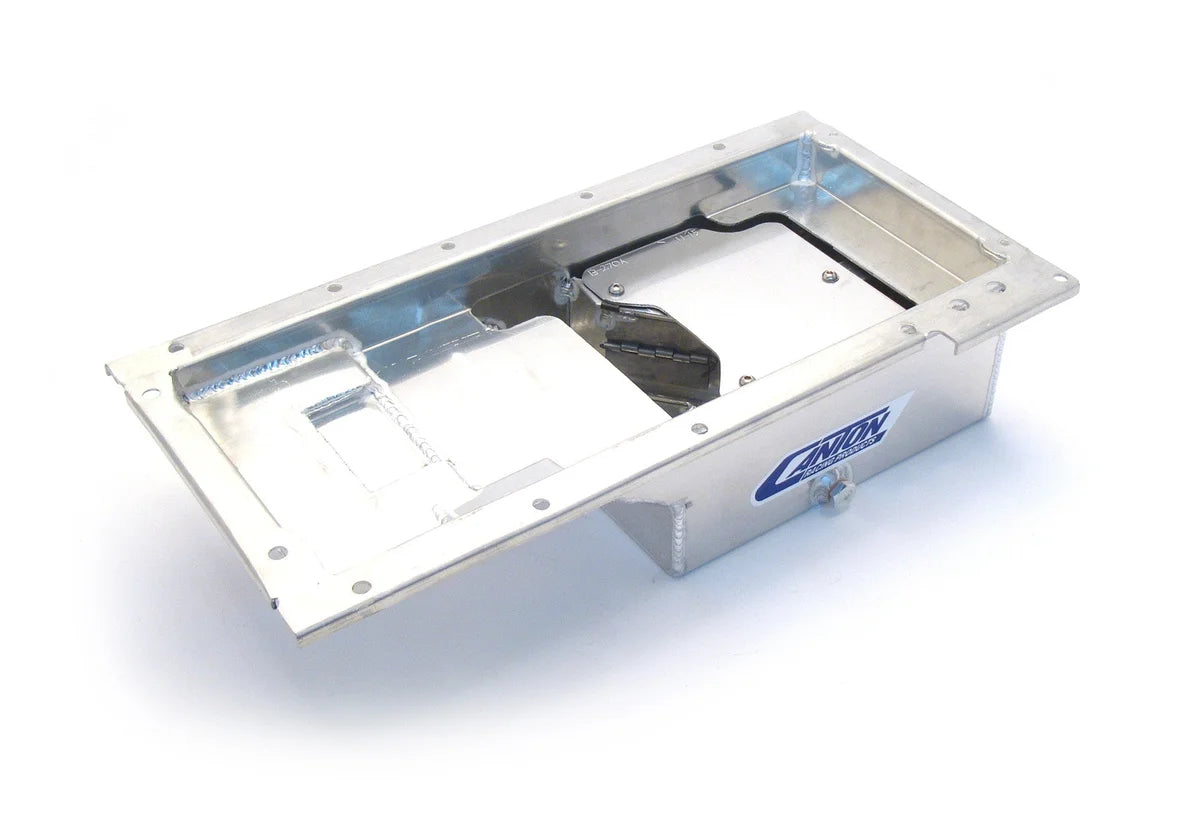

Canton Canton 13-270A Oil Pan For GM LS1 LS6 5 1/4 Inch Deep Alum F-Body Race Baffled 13-270A - Main Product View

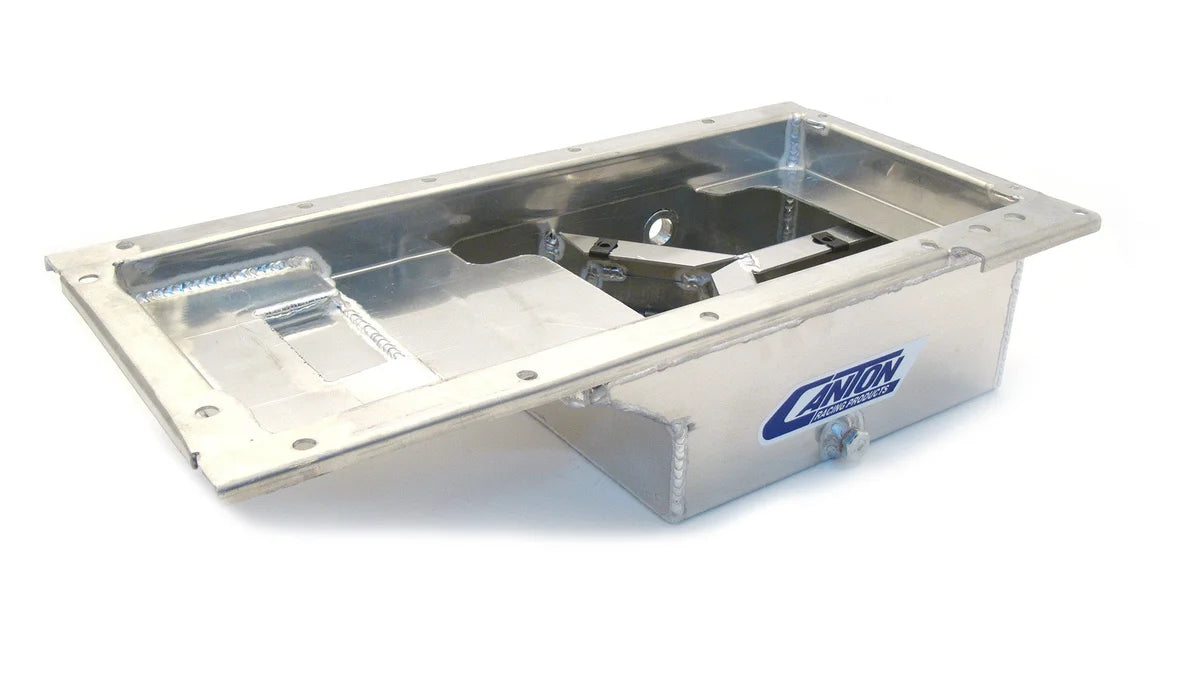

Canton Canton 13-270A Oil Pan For GM LS1 LS6 5 1/4 Inch Deep Alum F-Body Race Baffled 13-270A - Side View

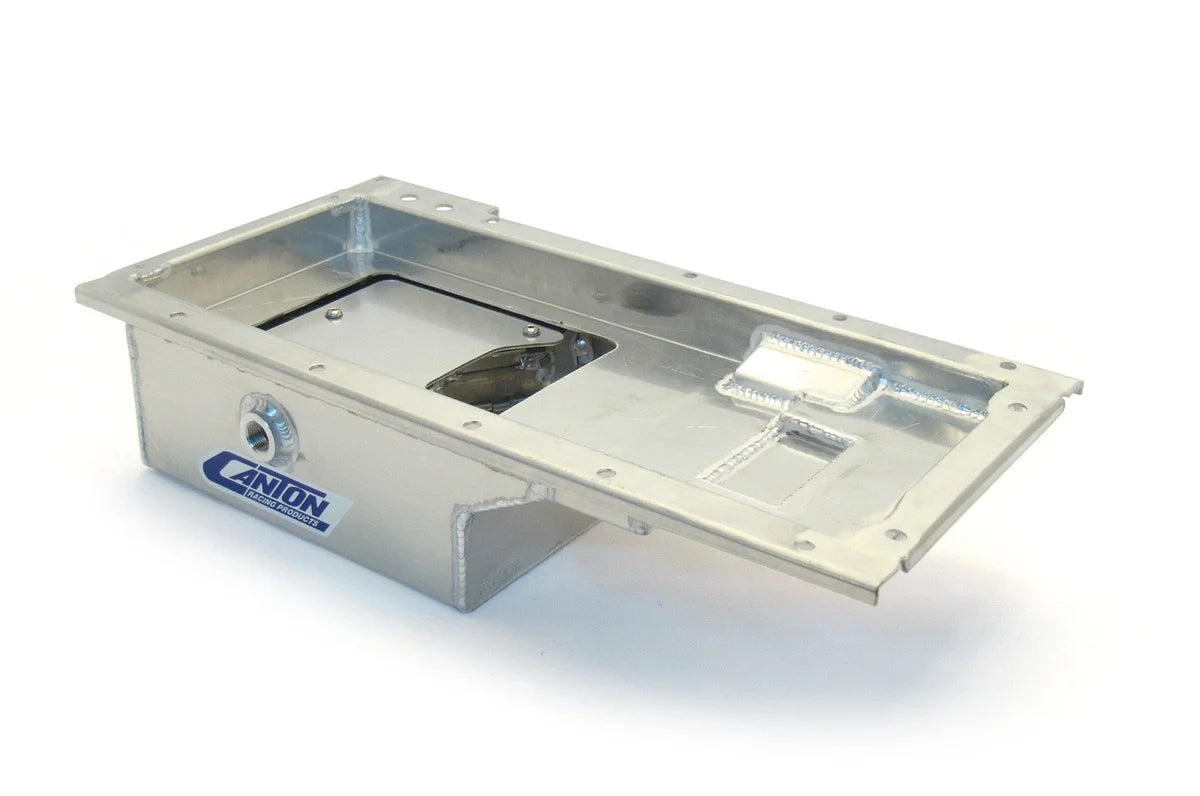

Canton Canton 13-270A Oil Pan For GM LS1 LS6 5 1/4 Inch Deep Alum F-Body Race Baffled 13-270A - Back View
Canton Canton 13-270A Oil Pan For GM LS1 LS6 5 1/4 Inch Deep Alum F-Body Race Baffled 13-270A - Installation View
Canton Canton 13-270A Oil Pan For GM LS1 LS6 5 1/4 Inch Deep Alum F-Body Race Baffled 13-270A - Additional View 5
Click to zoom in
Load image into Gallery viewer, Canton Canton 13-270A Oil Pan For GM LS1 LS6 5 1/4 Inch Deep Alum F-Body Race Baffled 13-270A - Main Product View
Load image into Gallery viewer, Canton Canton 13-270A Oil Pan For GM LS1 LS6 5 1/4 Inch Deep Alum F-Body Race Baffled 13-270A - Side View
Load image into Gallery viewer, Canton Canton 13-270A Oil Pan For GM LS1 LS6 5 1/4 Inch Deep Alum F-Body Race Baffled 13-270A - Back View
Load image into Gallery viewer, Canton Canton 13-270A Oil Pan For GM LS1 LS6 5 1/4 Inch Deep Alum F-Body Race Baffled 13-270A - Installation View
Load image into Gallery viewer, Canton Canton 13-270A Oil Pan For GM LS1 LS6 5 1/4 Inch Deep Alum F-Body Race Baffled 13-270A - Additional View 5

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Technical Support

    We help with any installation questions

  • Wordwide Delivery

    Fast shipping times from USA warehouses

Canton Oil Pan 5 1/4 Inch Deep Alum Race Baffled 13-270A fits GM LS1 LS6 F-Body

Canton
13-270A
Out of stock
$874.80 USD $802.99 USD
Canton Oil Pan 5 1/4 Inch Deep Alum Race Baffled 13-270A fits GM LS1 LS6 F-Body
Description

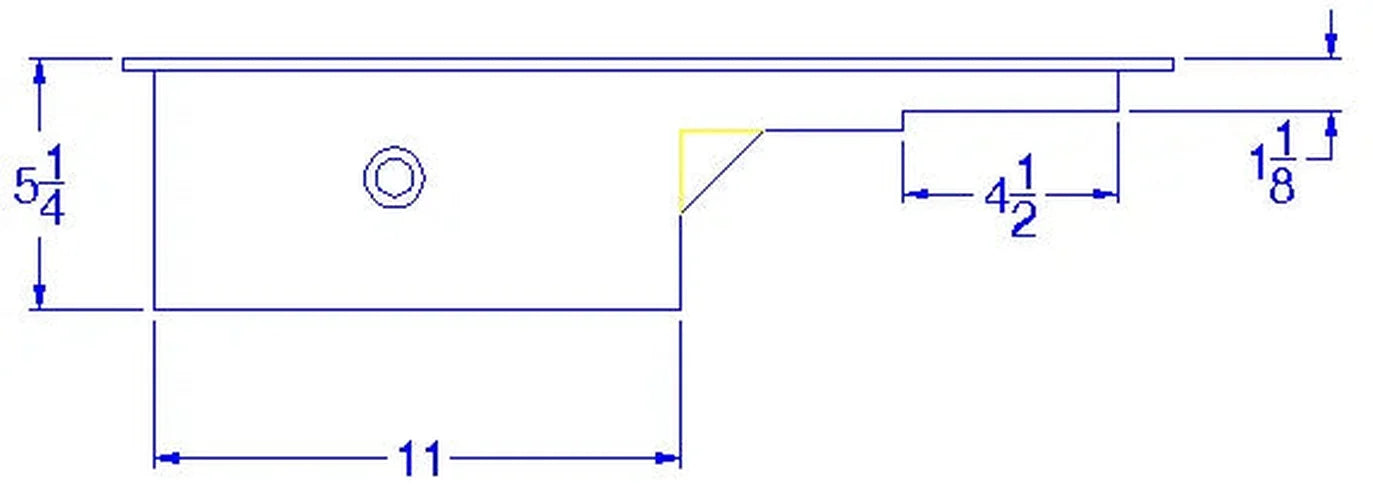

This aluminum drag race oil pan for LS1/LS6 aluminum blocks in ?98+ F-body chassis. It has 5-1/4" deep by 11" long by 8-1/2" wide sump and a 6-1/2 qt. system capacity. It features fully fabricated aluminum construction, which is significantly lighter.


Specifications:

Baffled Yes
Hardware Included No
Stoke 3.62 inches
Recommended Accessory 7 22-405 - 20mm Plug(needed if Not using low oil sender
Recommended Accessory 6 22-620 - Billet Aluminum Spin-on Filter Adapter
Recommended Accessory 5 22-631 - LS1 Pan Mounted Spin-on Filter Mount
Recommended Accessory 4 22-632 - LS1 90 Degree Remote Filter Adapter
Recommended Accessory 3 22-630 - LS1 Remote Filter Adapter
Recommended Accessory 2 22-302 - GM LS Oil Pan Stud Kit
Recommended Accessory 1 21-870 - LS flywheel cover
Pickup Included No
Material .100 Thick Aluminum
Kicked Out Yes
Gasket or Seal Included No
Capacity 6 Quart System Capacity
Finish Raw Aluminum
Feature 7 To Use With Canton Filter Adapter or Filter Mount
Feature 6 To Use With Canton #22-405 20mm Plug If Not Using Oil Sender Port
Feature 5 Can Be Used With OEM Windage Tray #12558253
Feature 4 Magnetic Drain Plug
Feature 3 20mm Fitting for GM Low Oil Warning Sender
Feature 2 Bolt On Windage / Anti-Slosh Baffle For Oil Control
Feature 1 Double Trap Door Baffle For Oil Control
Engine For GM LS Blocks
Drain Plug Included Yes
Dipstick Port No
Crank Scraper Included No
Windage Tray Included No
Description_ABR -
Description_SHO LS1 Chevy Oil Pan
Description_INV GM LS1 5 1/4? DEEP ALUM -BODY RACE PAN
Description_ASC N/A
Description_KEY Canton, Canton Racing, Products
Description_LAB Canton Racing Products
Description_DES Canton 13-270A Oil Pan For GM LS1 LS6 5 1/4 Inch Deep Alum F-Body Race Baffled
Description_SHP N/A
Description_ASM -
Description_EXT Canton 13-270A Oil Pan For GM LS1 LS6 5 1/4 Inch Deep Alum F-Body Race Baffled
Description_MKT This aluminum drag race oil pan for LS1/LS6 aluminum blocks in ?98+ F-body chassis. It has 5-1/4" deep by 11" long by 8-1/2" wide sump and a 6-1/2 qt. system capacity. It features fully fabricated aluminum construction, which is significantly lighter.
Description_FAB 6.5 qt System Capacity
Description_FAB Drag Race Trap Door Baffle Assembly
Description_FAB Removable Windage Anti-Slosh Baffle
Description_FAB Provision for 20mm oil temperature sensor
Description_FAB Magnetic Drain Plug
Description_TRA -
Description_CAP -
Description_DEF Engine Oil Pan
