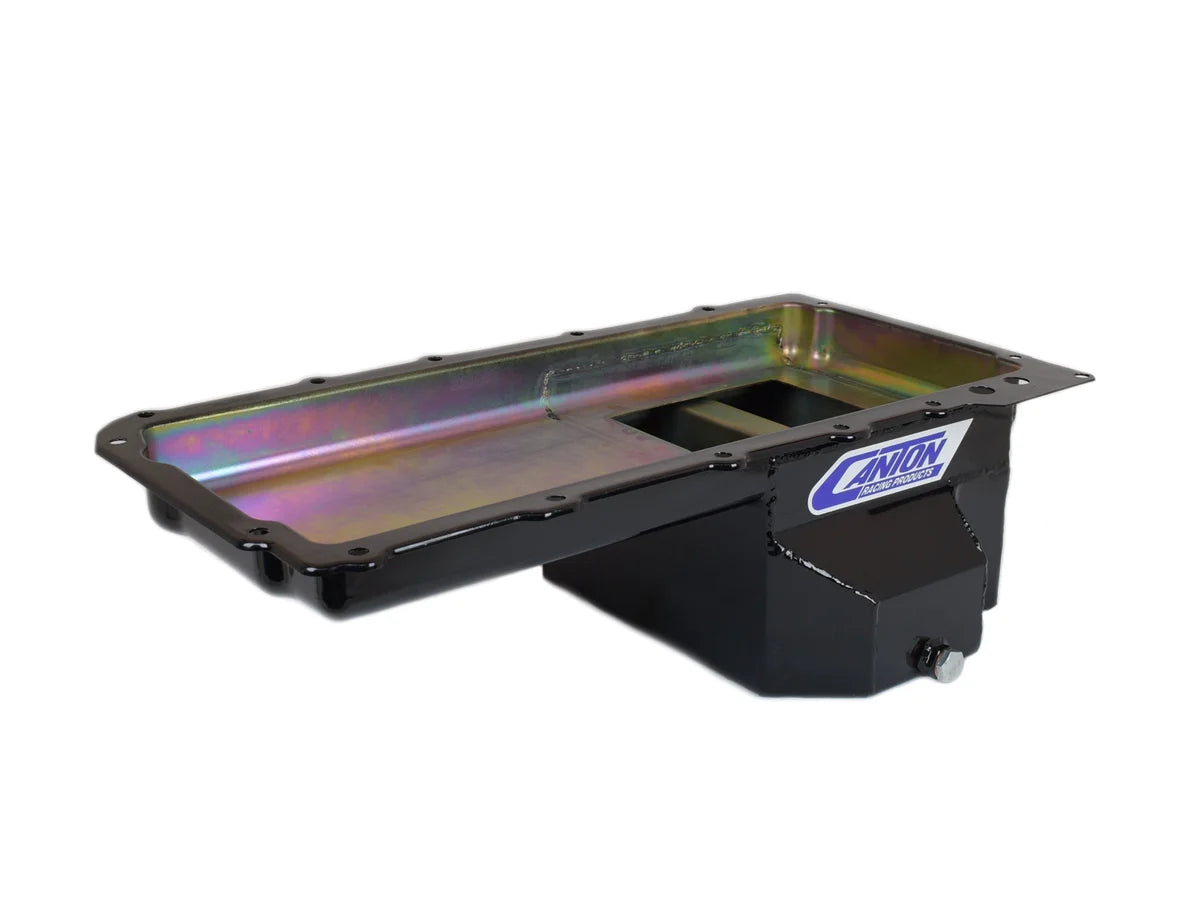

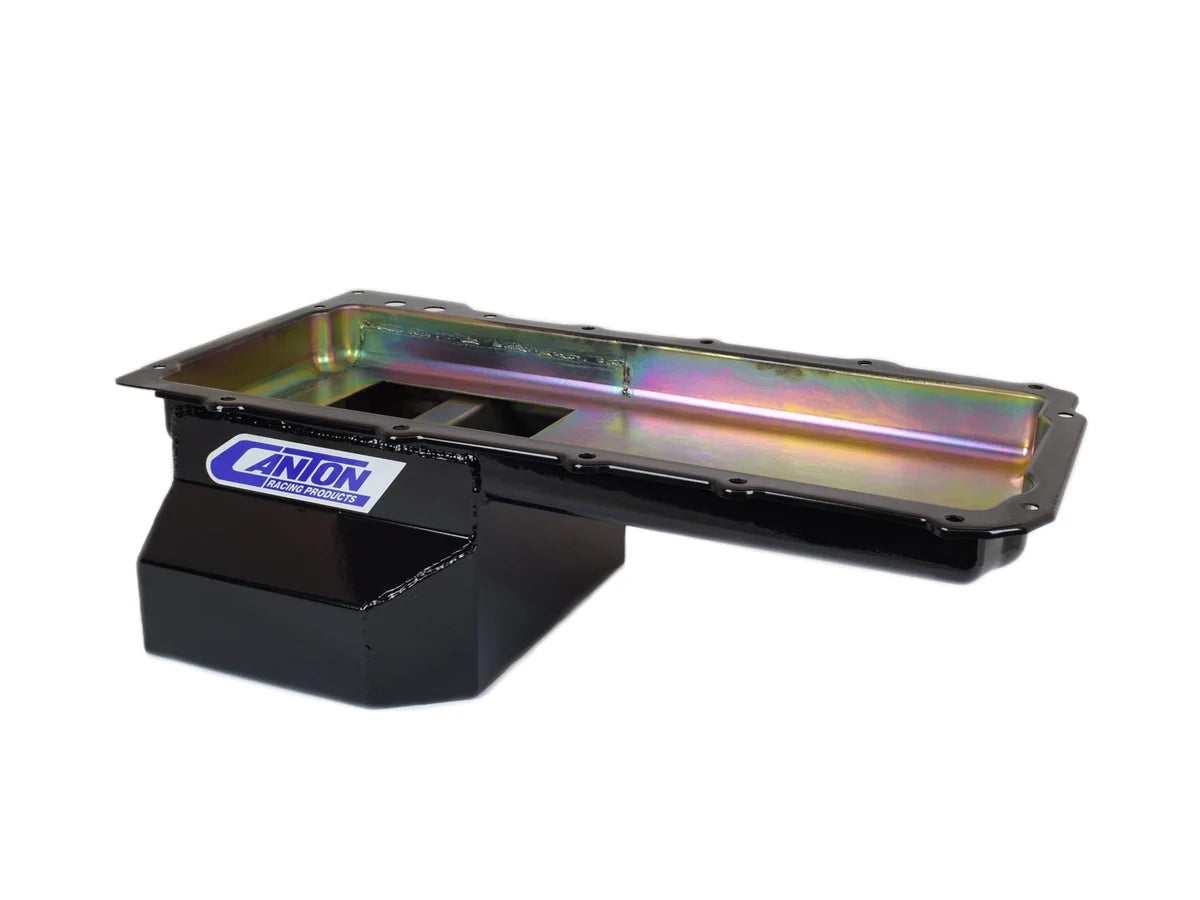

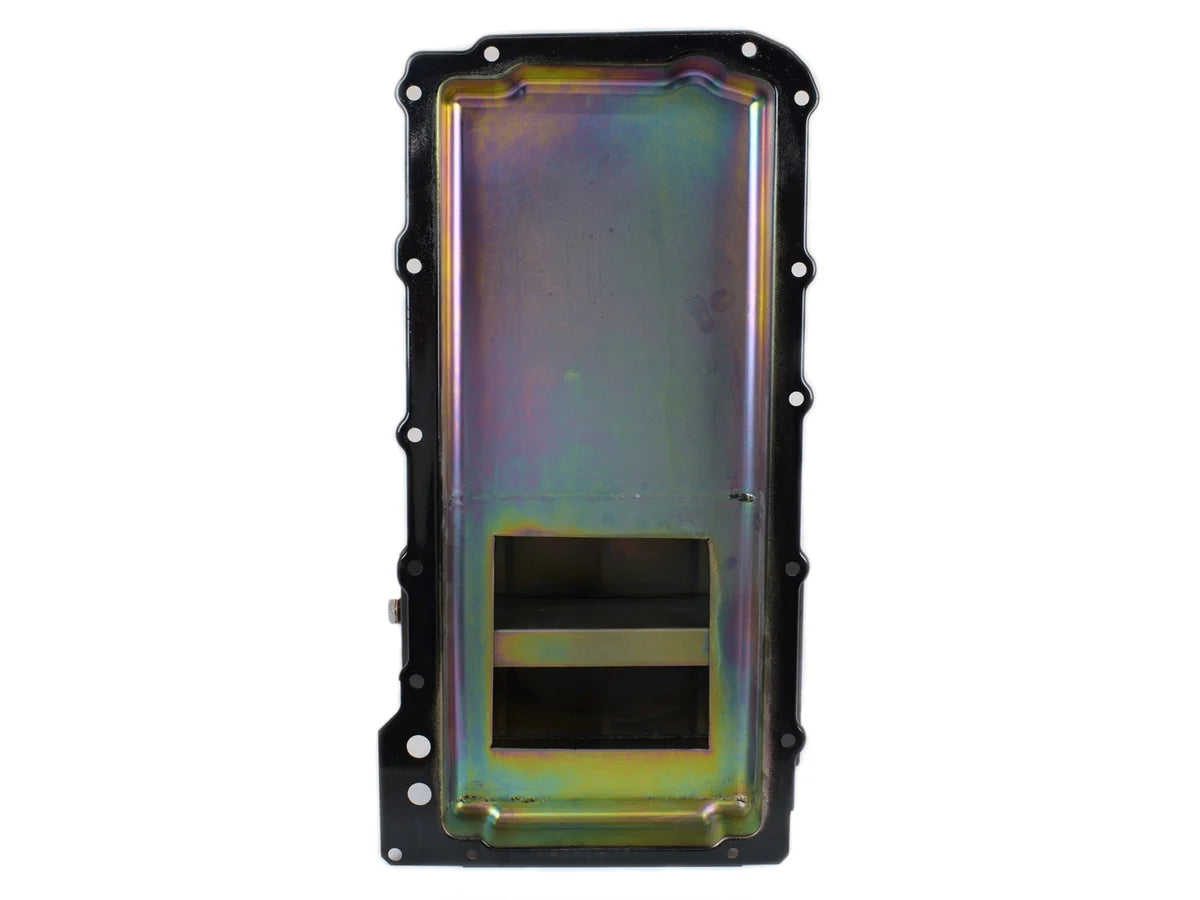

This black powder coat steel drag race oil pan is designed for installing LS1/LS6 blocks into earlier chassis. Fits A, F, Y, & 1970?s X body cars. It has 6-1/2" deep, 9" long, 11-3/4" wide sump, for a 6-1/2 qt. capacity. Works with OEM GM#12558253 windage tray. This pan Requires our LS1 remote filter adapter or filter mount and our 13-275 pickup. Different sump configurations available as special order.
Specifications:
| Baffled |
No |
| Kicked Out |
Yes |
| Stoke |
4.125 inches |
| Recommended Accessory 7 |
22-620 - Billet Aluminum Spin-on Filter Adapter |
| Recommended Accessory 6 |
22-631 - LS1 Pan Mounted Spin-on Filter Mount |
| Recommended Accessory 5 |
22-632 - LS1 90 Degree Remote Filter Adapter |
| Recommended Accessory 4 |
22-630 - LS1 Remote Filter Adapter |
| Recommended Accessory 3 |
22-302 - GM LS Oil Pan Stud Kit |
| Recommended Accessory 2 |
21-870 - LS flywheel cover |
| Recommended Accessory 1 |
13-275 - Pickup for 13-274 LS Oil Pan |
| Pickup Included |
No |
| Material |
16 Gauge Steel |
| Hardware Included |
No |
| Capacity |
6.5 Quart System Capacity |
| Gasket or Seal Included |
No |
| Finish |
Black Powder coat |
| Feature 5 |
Black Powder coat |
| Feature 4 |
To Use With Canton Filter Adapter or Filter Mount |
| Feature 3 |
Can Be Used With OEM Windage Tray #12558253 |
| Feature 2 |
Magnetic Drain Plug |
| Feature 1 |
Trap Door Baffle For Oil Control |
| Engine |
For GM LS Blocks |
| Drain Plug Included |
Yes |
| Dipstick Port |
No |
| Crank Scraper Included |
No |
| Windage Tray Included |
No |
| Description_ABR |
- |
| Description_SHO |
LS1 Chevy Oil Pan |
| Description_INV |
GM LS1 5 1/2" DEEP A, F, X, & Y BAF BLK |
| Description_ASC |
N/A |
| Description_KEY |
Canton, Canton Racing, Products |
| Description_LAB |
Canton Racing Products |
| Description_DES |
Canton 13-274BLK Oil Pan LS1 LS6 Engine Swap Drag Race Pan Steel |
| Description_SHP |
N/A |
| Description_ASM |
- |
| Description_EXT |
Canton 13-274BLK Oil Pan LS1 LS6 Engine Swap Drag Race Pan Steel |
| Description_MKT |
This black powder coat steel drag race oil pan is designed for installing LS1/LS6 blocks into earlier chassis. Fits A, F, Y, & 1970?s X body cars. It has 6-1/2" deep, 9" long, 11-3/4" wide sump, for a 6-1/2 qt. capacity. Works with OEM GM#12558253 windage tray. This pan Requires our LS1 remote filter adapter or filter mount and our 13-275 pickup. Different sump configurations available as special order. |
| Description_FAB |
6.5 qt System Capacity |
| Description_FAB |
Clears 4.125" Stroke |
| Description_FAB |
Drag Race Trap Door Baffle System |
| Description_FAB |
Works with OEM GM# 12558253 windage tray |
| Description_FAB |
Black Powder Coat |
| Description_TRA |
- |
| Description_CAP |
- |
| Description_DEF |
Engine Oil Pan |
