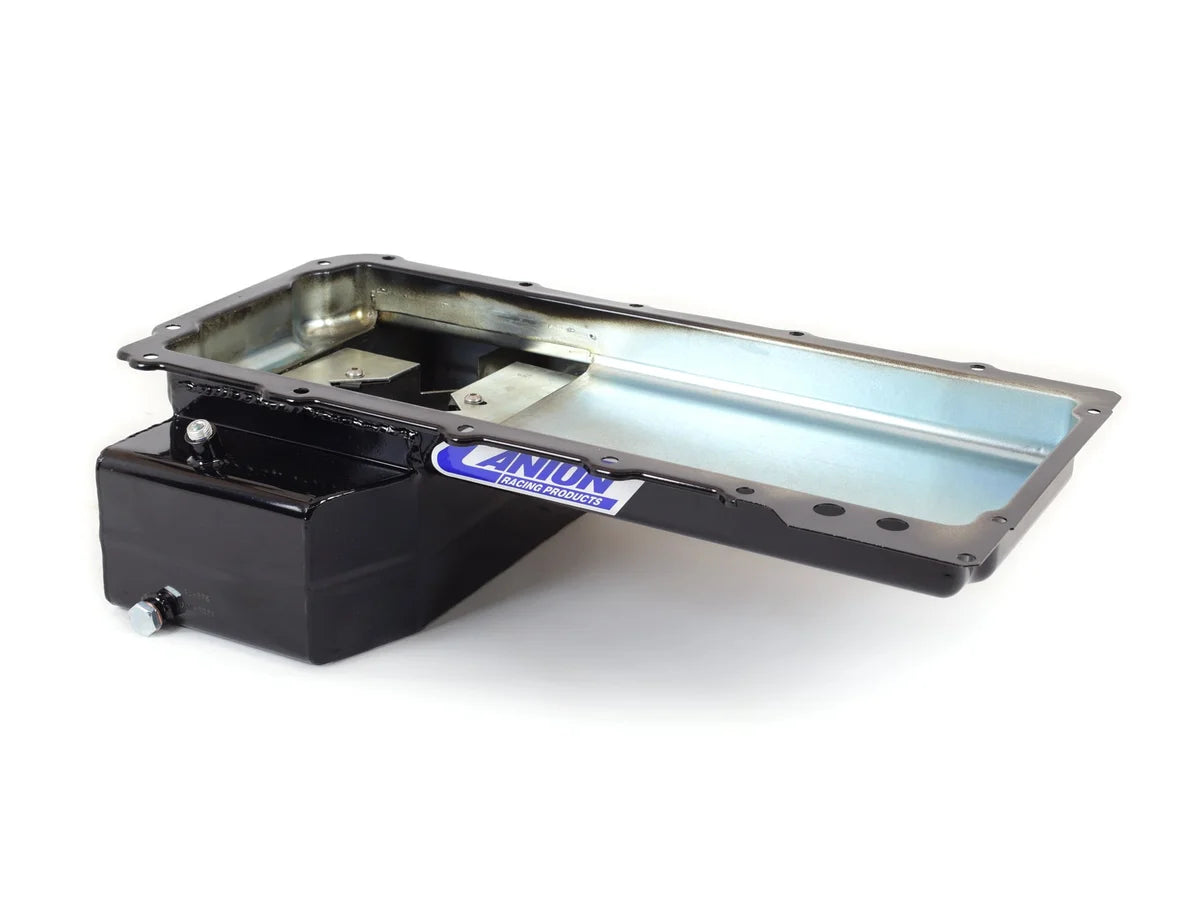

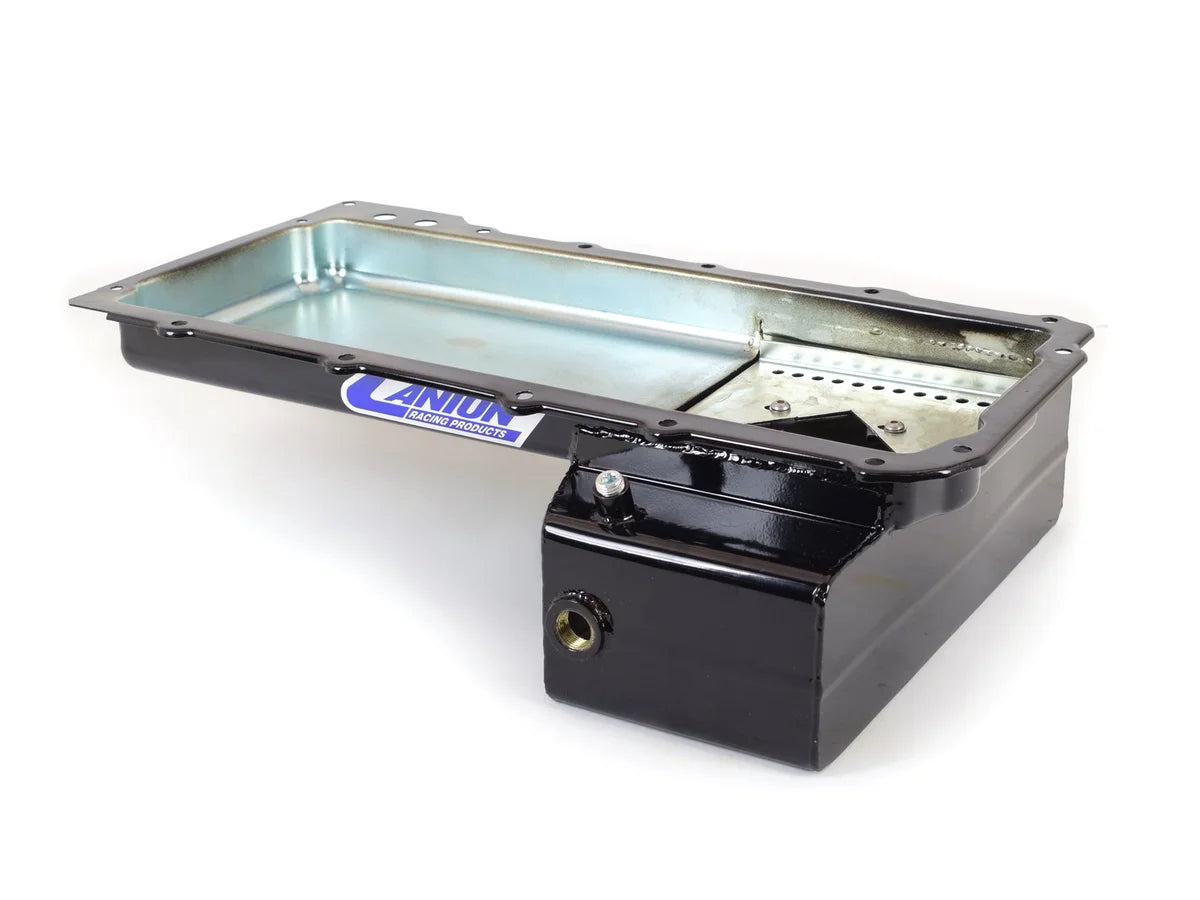

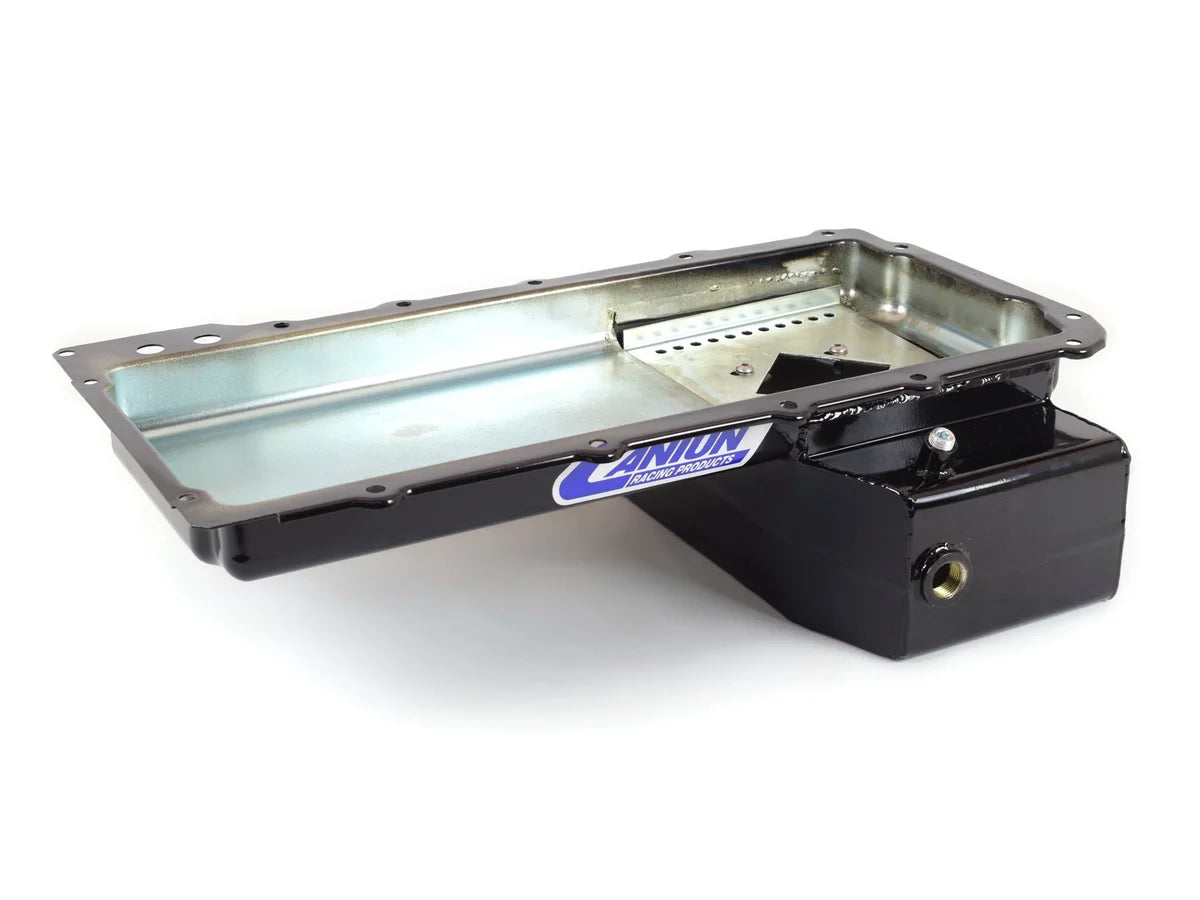

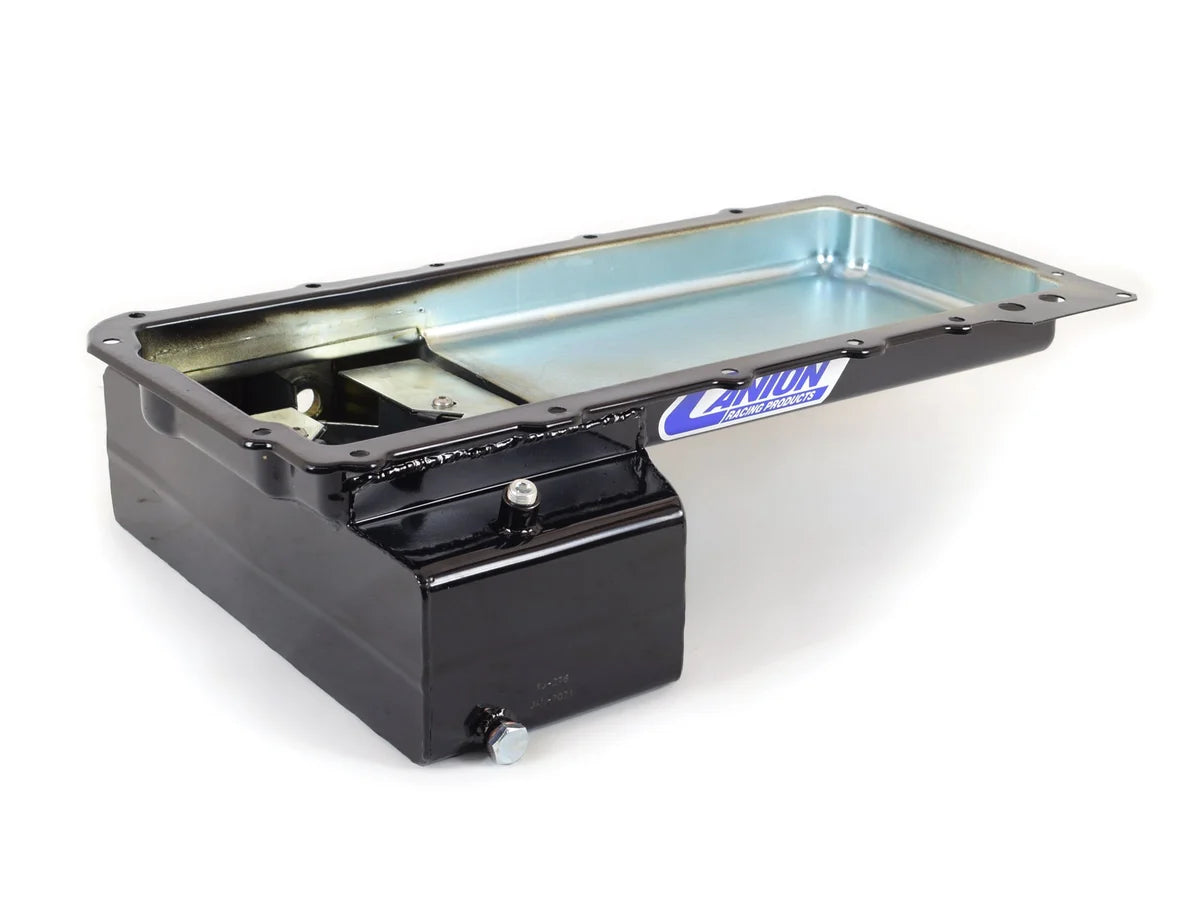

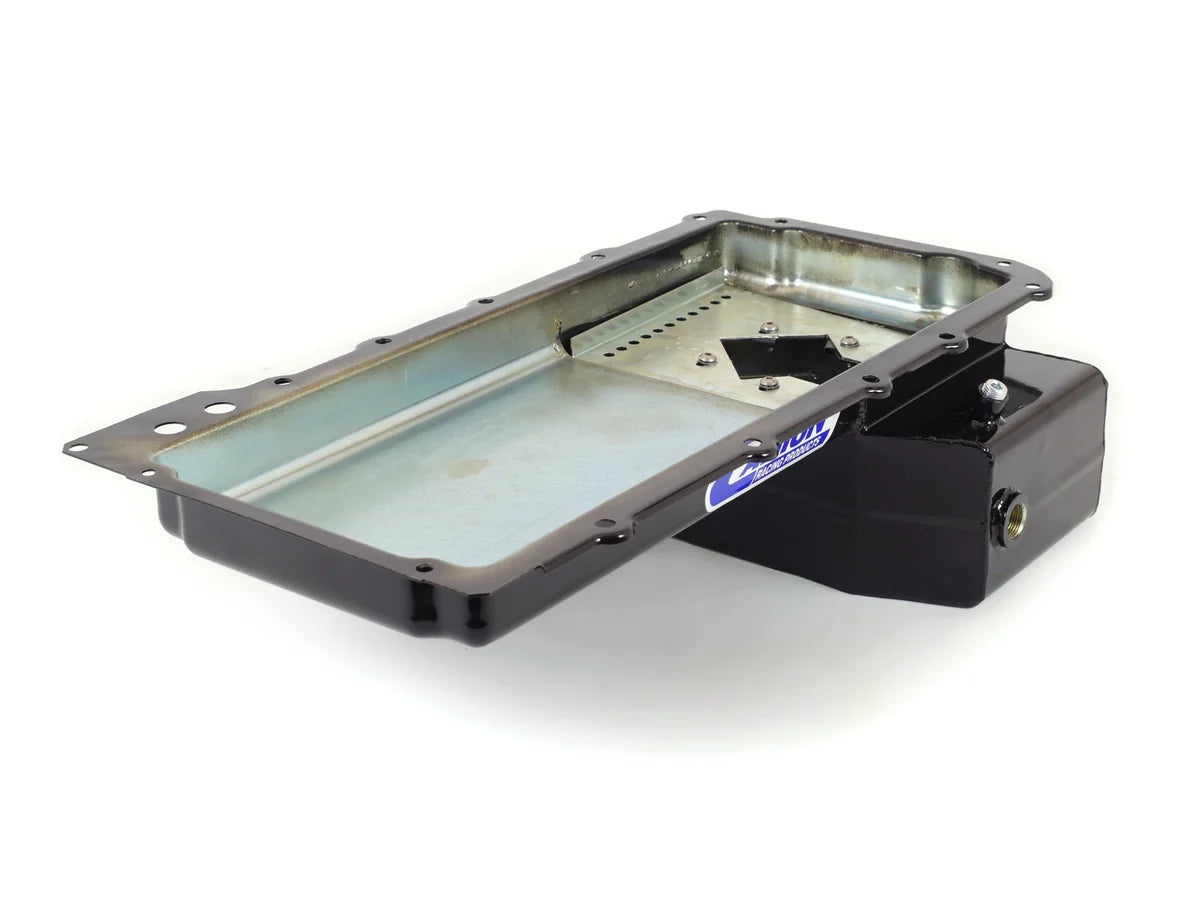

Canton?s new 15-276 black powdercoated front sump road race/drift car oil pan is designed for GM LS1/LS6 powered cars that require a shallow front sump oil pan. This pan is designed to use the GM pickup part number #12572654 from the 04-06 GTO. It?s diamond shaped baffle with 4 trap doors and removable windage/anti-slosh baffle provide the best oil control under demanding street and track conditions. With provisions for a pan mounted dipstick and 20 mm oil temperature sensor along with a 6.5 quart system oil capacity.
Specifications:
| Baffled |
Yes |
| Material |
16 Gauge Steel |
| Recommended Accessory 9 |
20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting |
| Recommended Accessory 8 |
20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting |
| Recommended Accessory 7 |
22-405 - 20mm Plug(needed if Not using low oil sender |
| Recommended Accessory 6 |
22-620 - Billet Aluminum Spin-on Filter Adapter |
| Recommended Accessory 5 |
22-631 - LS1 Pan Mounted Spin-on Filter Mount |
| Recommended Accessory 4 |
22-632 - LS1 90 Degree Remote Filter Adapter |
| Recommended Accessory 3 |
22-630 - LS1 Remote Filter Adapter |
| Recommended Accessory 2 |
22-302 - GM LS Oil Pan Stud Kit |
| Recommended Accessory 11 |
20-902P - Front Sump LS Louvered Windage Tray |
| Recommended Accessory 10 |
20-902 - Front Sump LS Screen Windage Tray |
| Recommended Accessory 1 |
21-870 - LS flywheel cover |
| Pickup Included |
No |
| Kicked Out |
Yes |
| Capacity |
6.5 Quart System Capacity |
| Hardware Included |
No |
| Gasket or Seal Included |
No |
| Finish |
Black Powdercoat |
| Feature 5 |
20mm Fitting for GM Low Oil Warning Sender |
| Feature 4 |
Provision for Pan Mounted Dipstick |
| Feature 3 |
Works with OEM Rear Sump Windage Tray GM Part # 12558253 |
| Feature 2 |
Bolt in Slosh Baffle |
| Feature 1 |
Trap Door Baffle for Oil Control |
| Engine |
For GM LS Blocks |
| Drain Plug Included |
Yes |
| Dipstick Port |
Yes |
| Crank Scraper Included |
No |
| Windage Tray Included |
No |
| Description_ABR |
- |
| Description_SHO |
LS1 Chevy Oil Pan |
| Description_INV |

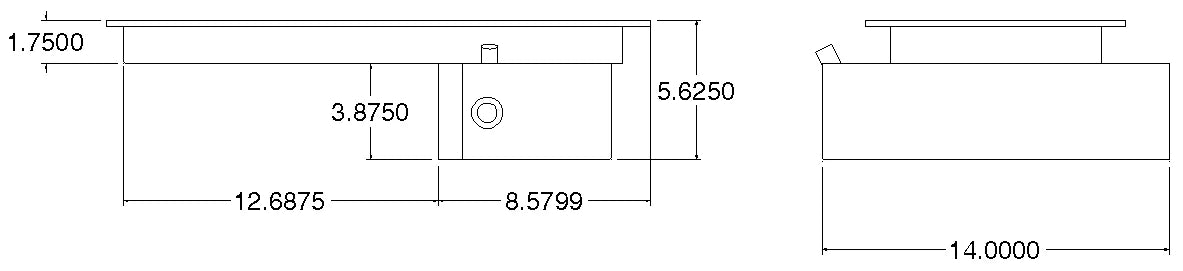

GM LS1/LS6 5-5/8" DEEP RR / DRIFT PAN |
| Description_ASC |
N/A |
| Description_KEY |
Canton, Canton Racing, Products |
| Description_LAB |
Canton Racing Products |
| Description_DES |
Canton 15-276BLK Oil Pan GM LS1 LS6 5-5/8" Deep Front Sump Road Race and Drift |
| Description_SHP |
N/A |
| Description_ASM |
- |
| Description_EXT |
Canton 15-276BLK Oil Pan GM LS1 LS6 5-5/8" Deep Front Sump Road Race and Drift |
| Description_MKT |
Canton?s new 15-276 black powdercoated front sump road race/drift car oil pan is designed for GM LS1/LS6 powered cars that require a shallow front sump oil pan. This pan is designed to use the GM pickup part number #12572654 from the 04-06 GTO. It?s diamond shaped baffle with 4 trap doors and removable windage/anti-slosh baffle provide the best oil control under demanding street and track conditions. With provisions for a pan mounted dipstick and 20 mm oil temperature sensor along with a 6.5 quart system oil capacity. |
| Description_FAB |
6.5 qt System Capacity |
| Description_FAB |
4.25" Stroke Clearance |
| Description_FAB |
Diamond Shape Trap Door Baffle |
| Description_FAB |
Bolt in Slosh Baffle |
| Description_FAB |
20 mm bung for low oil warning sensor (22-405 required if not used) |
| Description_FAB |
Provision for our 1/4 NPT pan mounted dipstick |
| Description_FAB |
Magnetic Drain Plug |
| Description_FAB |
Black Powder Coat |
| Description_TRA |
- |
| Description_CAP |
- |
| Description_DEF |
Engine Oil Pan |
