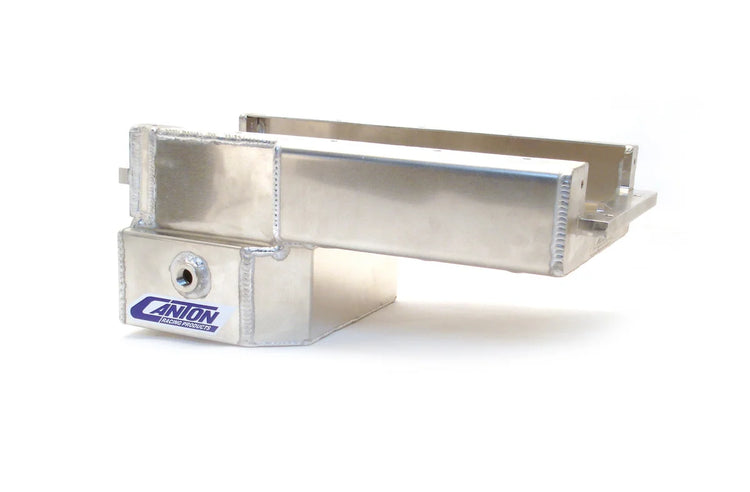

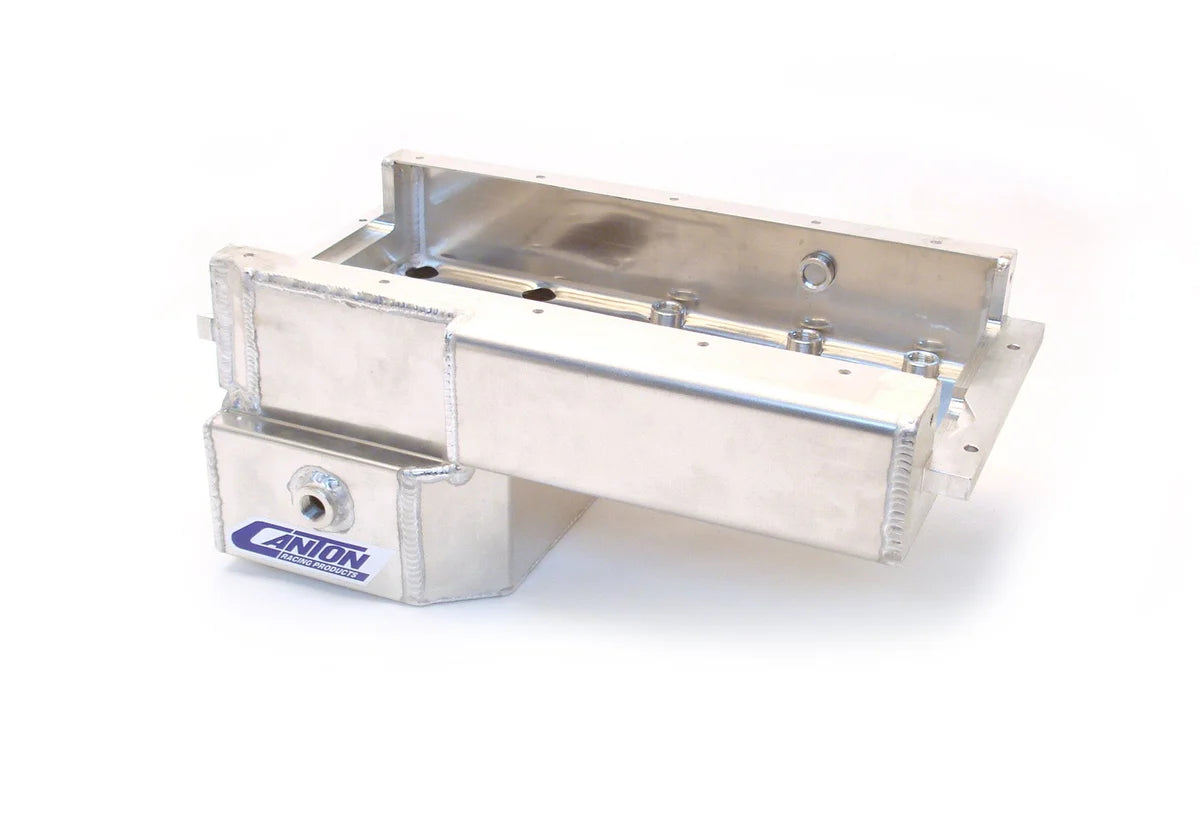

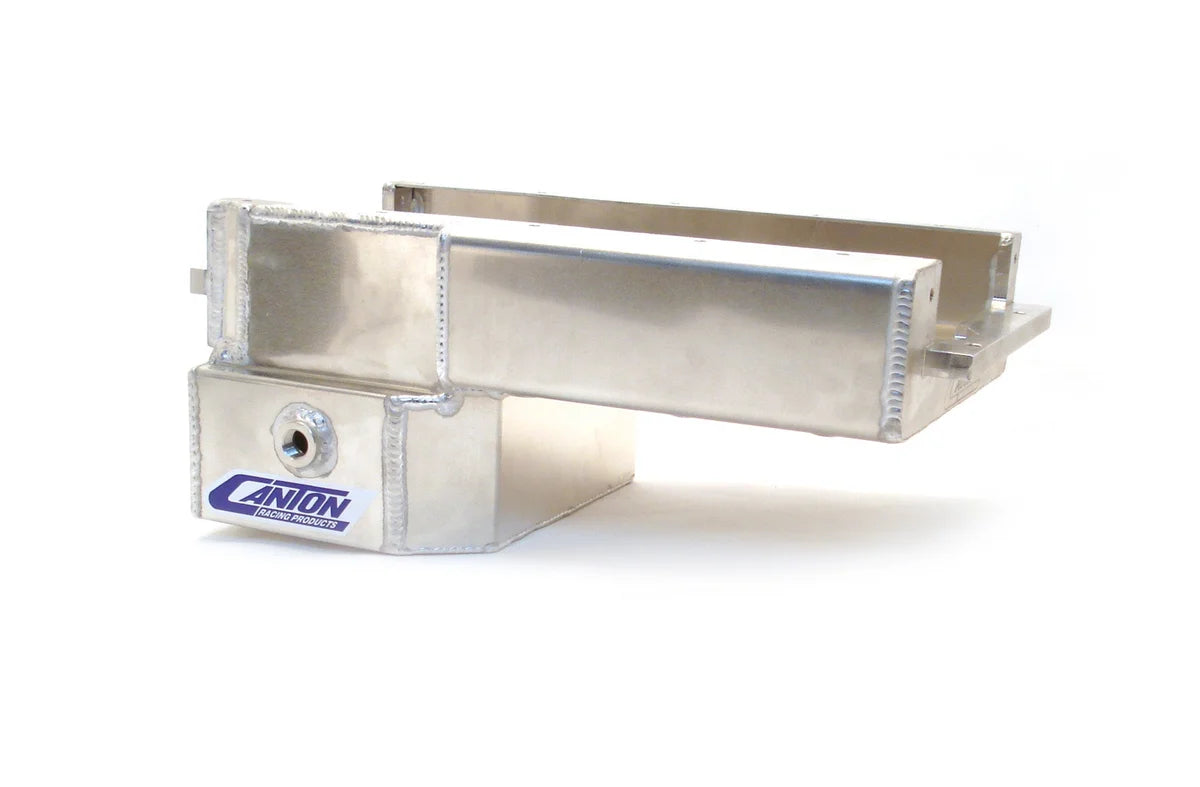

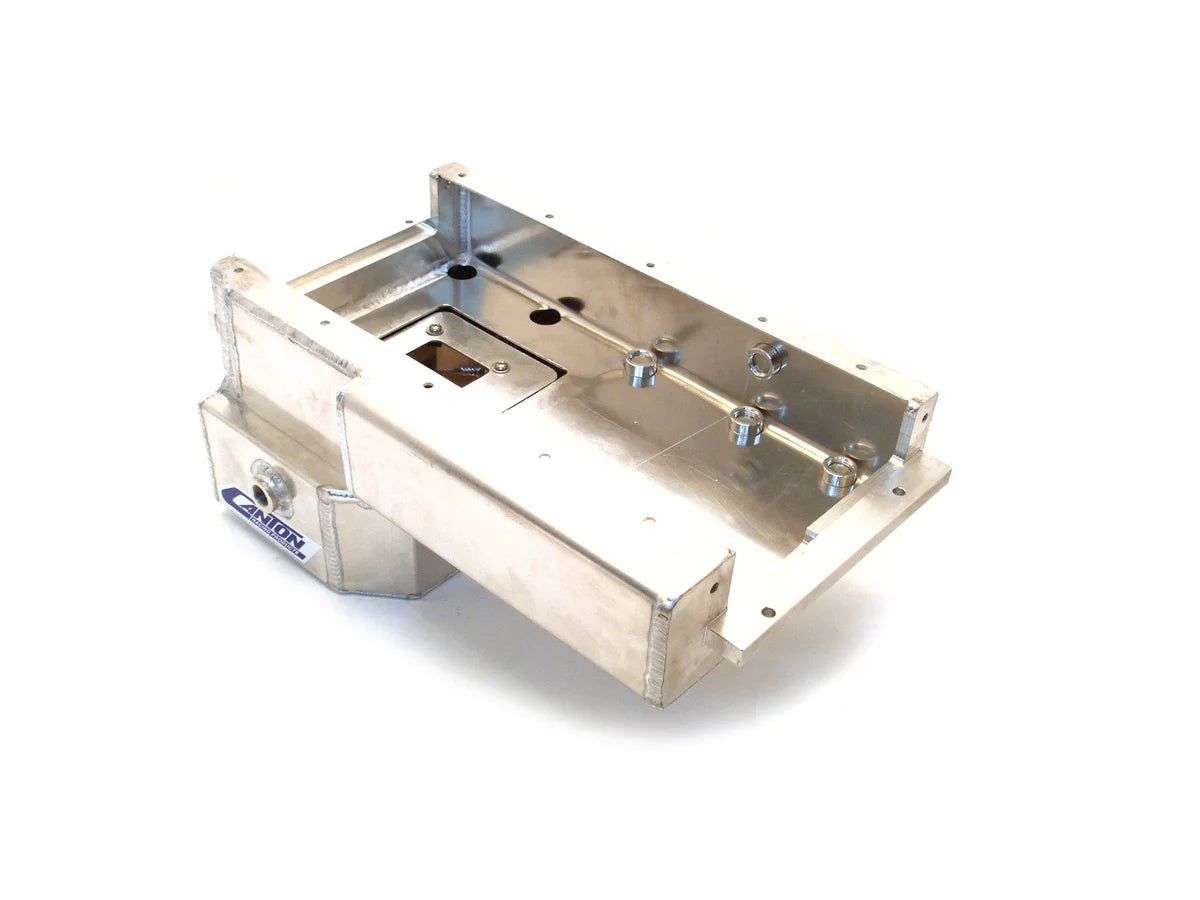

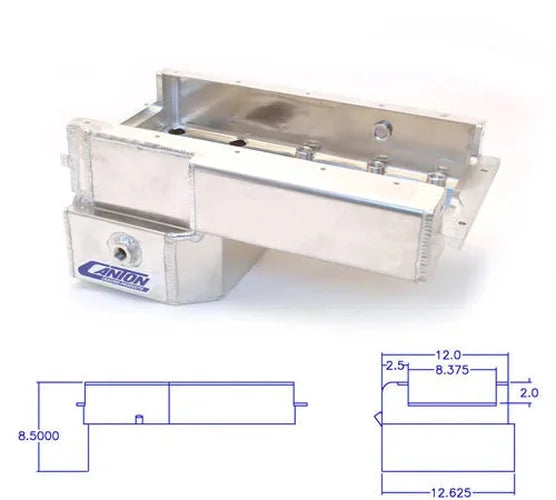

Our LS NEXT rear sump road race oil pan is designed to take the changes that Dart has made to the LS block and completely maximize their effectiveness. Our pan features billet end caps that offer a precise fit to the unique pan rail of the Dart LS NEXT block. Our Pro-style oil recovery pouch is designed to maximize the horsepower that Dart freed up in the bottom end. Our diamond shape trap door baffle along with our anti-slosh baffle allow for maximum oil control in high performance driving situations.
Specifications:
| Baffled |
Yes |
| Gasket or Seal Included |
No |
| Recommended Accessory 5 |
22-620 - Billet Aluminum remote spin-on filter mount 13/16"-16 Thread |
| Recommended Accessory 4 |
22-405 - Plug for 20mm bung if low oil warning sender is Not used |
| Recommended Accessory 3 |
22-304 - LS NEXT Oil Pan Stud Kit |
| Recommended Accessory 2 |
21-870 - LS Flywheel Cover for T56 Bellhousing |
| Recommended Accessory 1 |
15-285 - Dart LS NEXT rear sump pickup for 15-286A pan |
| Pickup Included |
No |
| Material |
.100 Aluminum |
| Kicked Out |
Yes |
| Hardware Included |
No |
| Finish |
Raw Aluminum |
| Capacity |
6.5 Quarts |
| Feature 6 |
Magnetic Drain Plug |
| Feature 5 |
Provision for Pan Mounted Dipstick |
| Feature 4 |
Removable Windage/Anti-Slosh Baffle |
| Feature 3 |
Diamond Shape Baffle Assembly |
| Feature 2 |
Machined Billet Front & Rear Seals |
| Feature 1 |
Pro-Style Recovery Pouch |
| Engine |
Dart LS Next |
| Drain Plug Included |
Yes |
| Dipstick Port |
No |
| Crank Scraper Included |
No |
| Windage Tray Included |
No |
| Description_ABR |
- |
| Description_SHO |
Dart LS Next Oil Pan |
| Description_INV |
LS NEXT R/S ALUM RR BAFFLED PAN |
| Description_ASC |
N/A |
| Description_KEY |
Canton, Canton Racing, Products |
| Description_LAB |
Canton Racing Products |
| Description_DES |
Canton 15-284A Oil Pan Dart LS Next Rear Sump Road Race Pan |
| Description_SHP |
N/A |
| Description_ASM |
- |
| Description_EXT |
Canton 15-284A Oil Pan Dart LS Next Rear Sump Road Race Pan |
| Description_MKT |
Our LS NEXT rear sump road race oil pan is designed to take the changes that Dart has made to the LS block and completely maximize their effectiveness. Our pan features billet end caps that offer a precise fit to the unique pan rail of the Dart LS NEXT block. Our Pro-style oil recovery pouch is designed to maximize the horsepower that Dart freed up in the bottom end. Our diamond shape trap door baffle along with our anti-slosh baffle allow for maximum oil control in high performance driving situations. |
| Description_FAB |
Designed to fit most rear sump applications |
| Description_FAB |
6.5 qt System Capacity |
| Description_FAB |
Pro Style Oil Recovery Pouch |
| Description_FAB |
Machined Billet Front & Rear Seals |
| Description_FAB |
Removable Windage Anti-Slosh Baffle |
| Description_FAB |
Diamond Shape Road Race Trap Door Baffle System |
| Description_FAB |
20mm Bung for Low Oil Warning Sensor |
| Description_FAB |
Magnetic Drain Plug |
| Description_FAB |
Provision for pan mounted dipstick |
| Description_TRA |
- |
| Description_CAP |
- |
| Description_DEF |
Engine Oil Pan |
