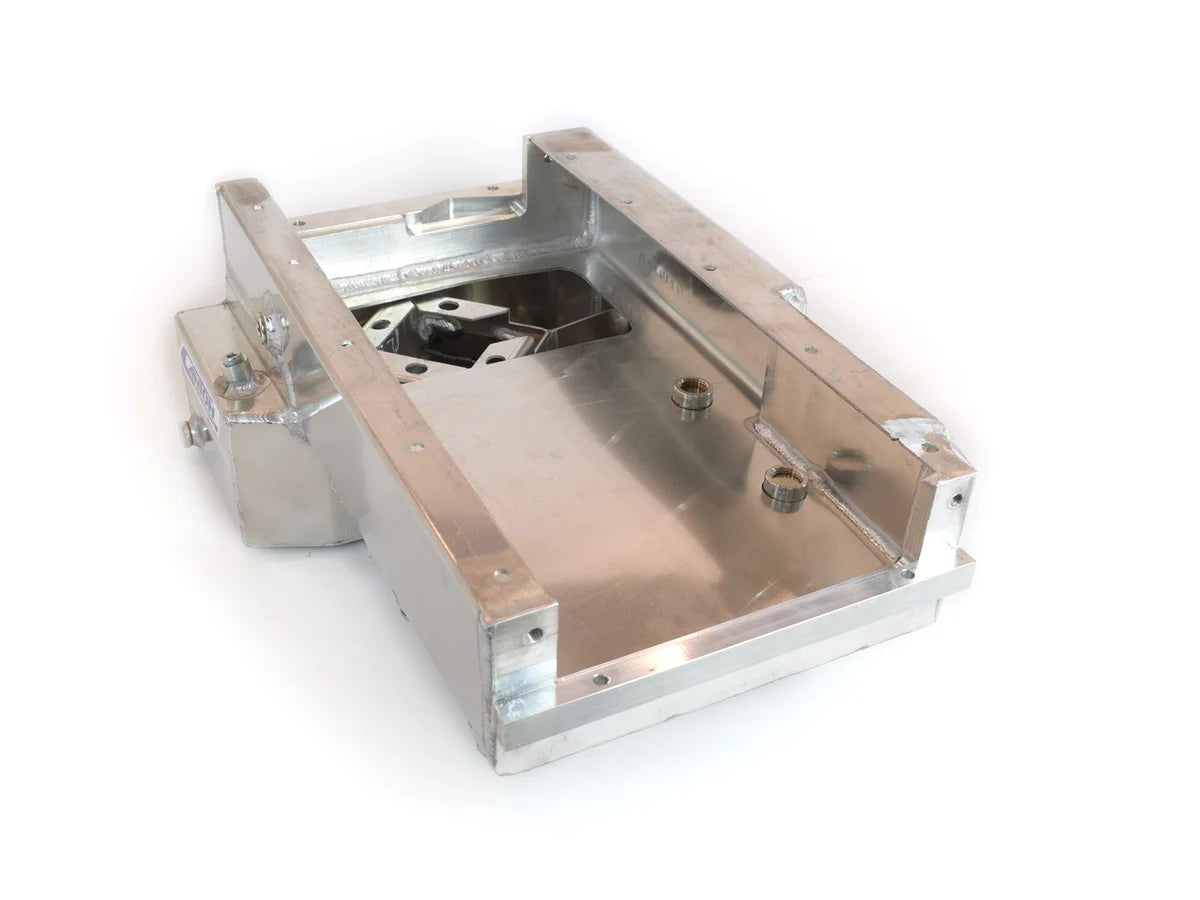

Canton Canton 15-286A Oil Pan Dart LS Next Front Sump Road Race Pan 15-286A - Main Product View

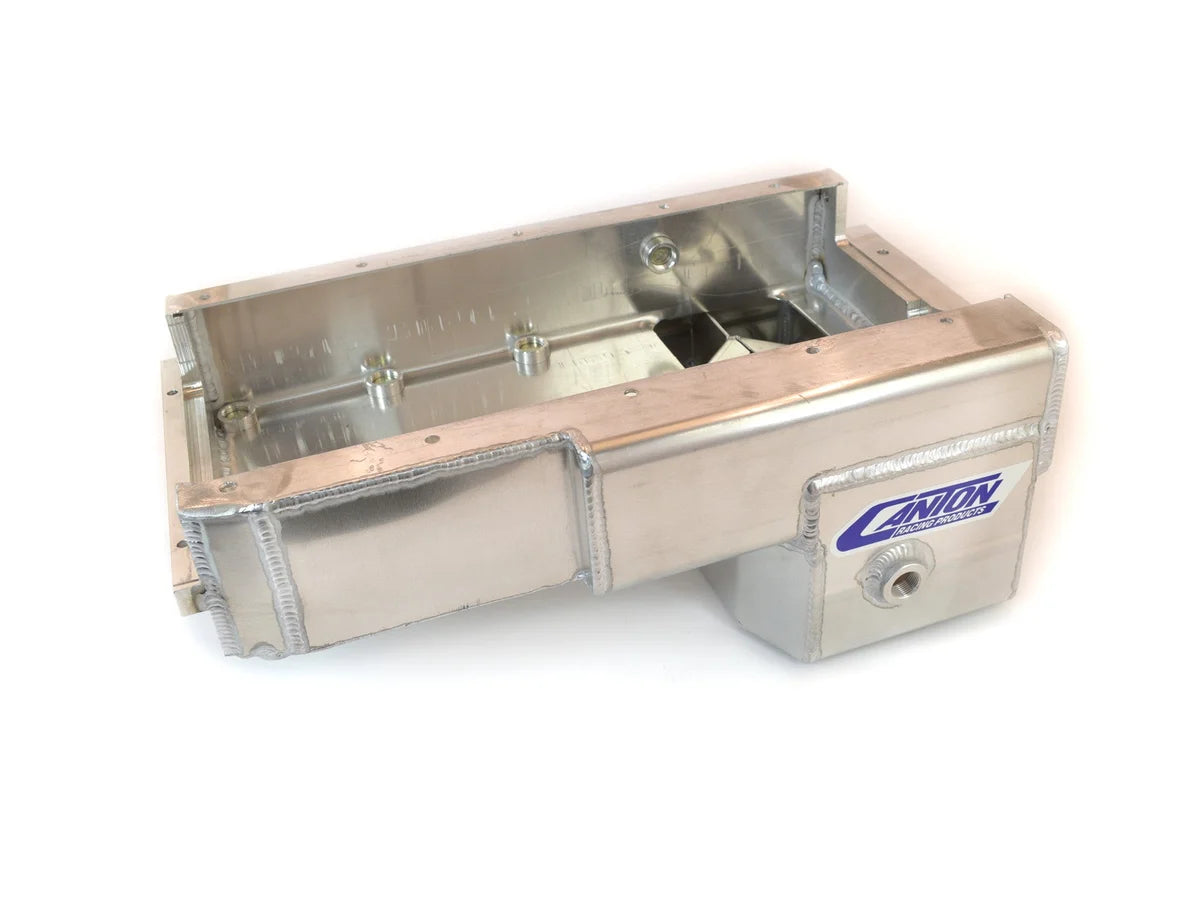

Canton Canton 15-286A Oil Pan Dart LS Next Front Sump Road Race Pan 15-286A - Side View

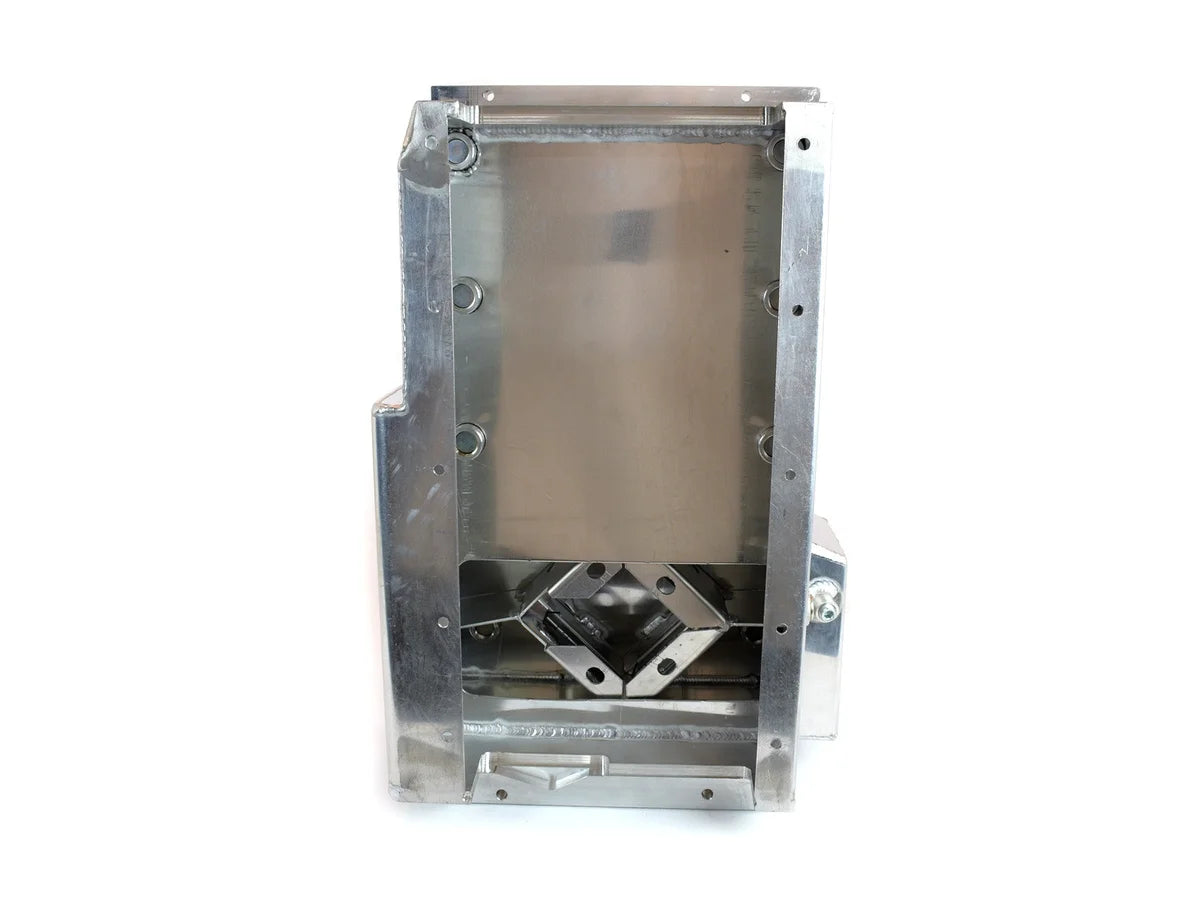

Canton Canton 15-286A Oil Pan Dart LS Next Front Sump Road Race Pan 15-286A - Back View

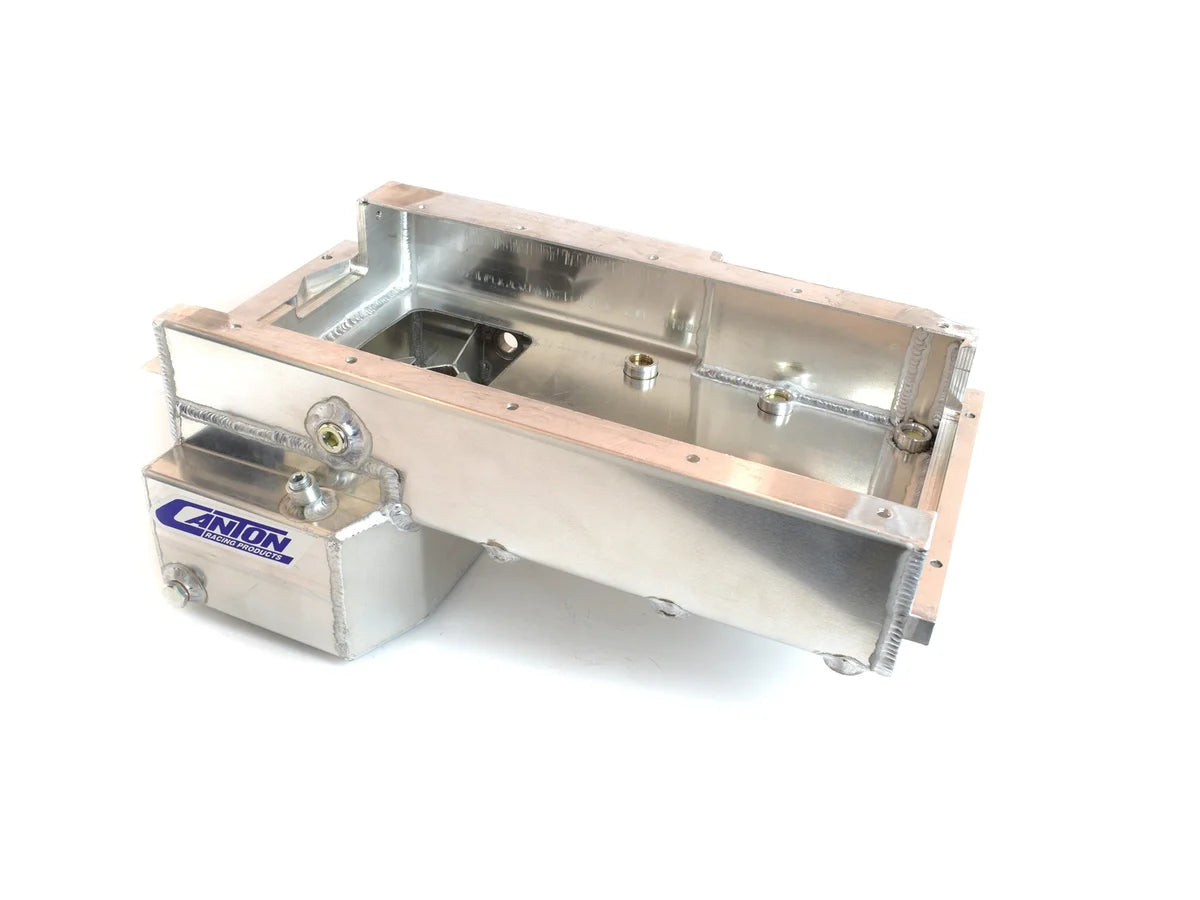

Canton Canton 15-286A Oil Pan Dart LS Next Front Sump Road Race Pan 15-286A - Installation View

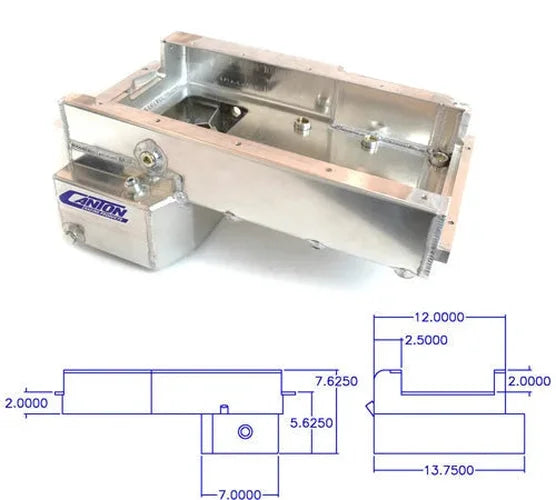

Canton Canton 15-286A Oil Pan Dart LS Next Front Sump Road Race Pan 15-286A - Additional View 5
Canton Canton 15-286A Oil Pan Dart LS Next Front Sump Road Race Pan 15-286A - Additional View 6
Click to zoom in
Load image into Gallery viewer, Canton Canton 15-286A Oil Pan Dart LS Next Front Sump Road Race Pan 15-286A - Main Product View
Load image into Gallery viewer, Canton Canton 15-286A Oil Pan Dart LS Next Front Sump Road Race Pan 15-286A - Side View
Load image into Gallery viewer, Canton Canton 15-286A Oil Pan Dart LS Next Front Sump Road Race Pan 15-286A - Back View
Load image into Gallery viewer, Canton Canton 15-286A Oil Pan Dart LS Next Front Sump Road Race Pan 15-286A - Installation View
Load image into Gallery viewer, Canton Canton 15-286A Oil Pan Dart LS Next Front Sump Road Race Pan 15-286A - Additional View 5
Load image into Gallery viewer, Canton Canton 15-286A Oil Pan Dart LS Next Front Sump Road Race Pan 15-286A - Additional View 6

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Technical Support

    We help with any installation questions

  • Wordwide Delivery

    Fast shipping times from USA warehouses

Canton 15-286A Oil Pan Front Sump Road Race Pan fits Dart LS Next

Canton
15-286A
Out of stock
$1,617.60 USD $1,483.99 USD
Canton 15-286A Oil Pan Front Sump Road Race Pan fits Dart LS Next
Description
Our LS NEXT front sump road race oil pan is designed to take the changes that Dart has made to the LS block and completely maximize their effectiveness. Our pan features billet end caps that offer a precise fit to the unique pan rail of the Dart LS NEXT block. Our Pro-style oil recovery pouch is designed to maximize the horsepower that Dart freed up in the bottom end. Our diamond shape trap door baffle along with our anti-slosh baffle allow for maximum oil control in high performance driving situations.


Specifications:

Baffled Yes
Finish Raw Aluminum
Recommended Accessory 5 22-620 - Billet Aluminum remote spin-on filter mount 13/16"-16 Thread
Recommended Accessory 4 22-405 - Plug for 20mm bung if low oil warning sender is Not used
Recommended Accessory 3 22-304 - LS NEXT Oil Pan Stud Kit
Recommended Accessory 2 21-870 - LS Flywheel Cover for T56 Bellhousing
Recommended Accessory 1 15-287 - Dart LS NEXT front sump pickup for 15-286A pan
Pickup Included No
Material .100 Aluminum
Kicked Out Yes
Hardware Included No
Gasket or Seal Included No
Feature 7 Magnetic Drain Plug
Capacity 6.5 Quarts
Feature 6 Provision for Pan Mounted Dipstick
Feature 5 Removable Windage/Anti-Slosh Baffle
Feature 4 Built in Louvered Windage Tray
Feature 3 Diamond Shape Baffle Assembly
Feature 2 Machined Billet Front & Rear Seals
Feature 1 Pro-Style Recovery Pouch
Engine Dart LS Next
Drain Plug Included Yes
Dipstick Port Yes
Crank Scraper Included No
Windage Tray Included No
Description_ABR -
Description_SHO Dart LS Next Oil Pan
Description_INV LS NEXT FT SUMP ALUM RR BAFFLED OIL PAN
Description_ASC N/A
Description_KEY Canton, Canton Racing, Products
Description_LAB Canton Racing Products
Description_DES Canton 15-286A Oil Pan Dart LS Next Front Sump Road Race Pan
Description_SHP N/A
Description_ASM -
Description_EXT Canton 15-286A Oil Pan Dart LS Next Front Sump Road Race Pan
Description_MKT Our LS NEXT front sump road race oil pan is designed to take the changes that Dart has made to the LS block and completely maximize their effectiveness. Our pan features billet end caps that offer a precise fit to the unique pan rail of the Dart LS NEXT block. Our Pro-style oil recovery pouch is designed to maximize the horsepower that Dart freed up in the bottom end. Our diamond shape trap door baffle along with our anti-slosh baffle allow for maximum oil control in high performance driving situations.
Description_FAB 6.5 qt System Capacity
Description_FAB Pro Style Oil Recovery Pouch
Description_FAB Machined Billet Front & Rear Seals
Description_FAB Removable Windage Slosh Baffle
Description_FAB Diamond Shape Road Race Trap Door Baffle System
Description_FAB Magnetic Drain Plug
Description_FAB Provision for pan mounted dipstick
Description_TRA -
Description_CAP -
Description_DEF Engine Oil Pan
