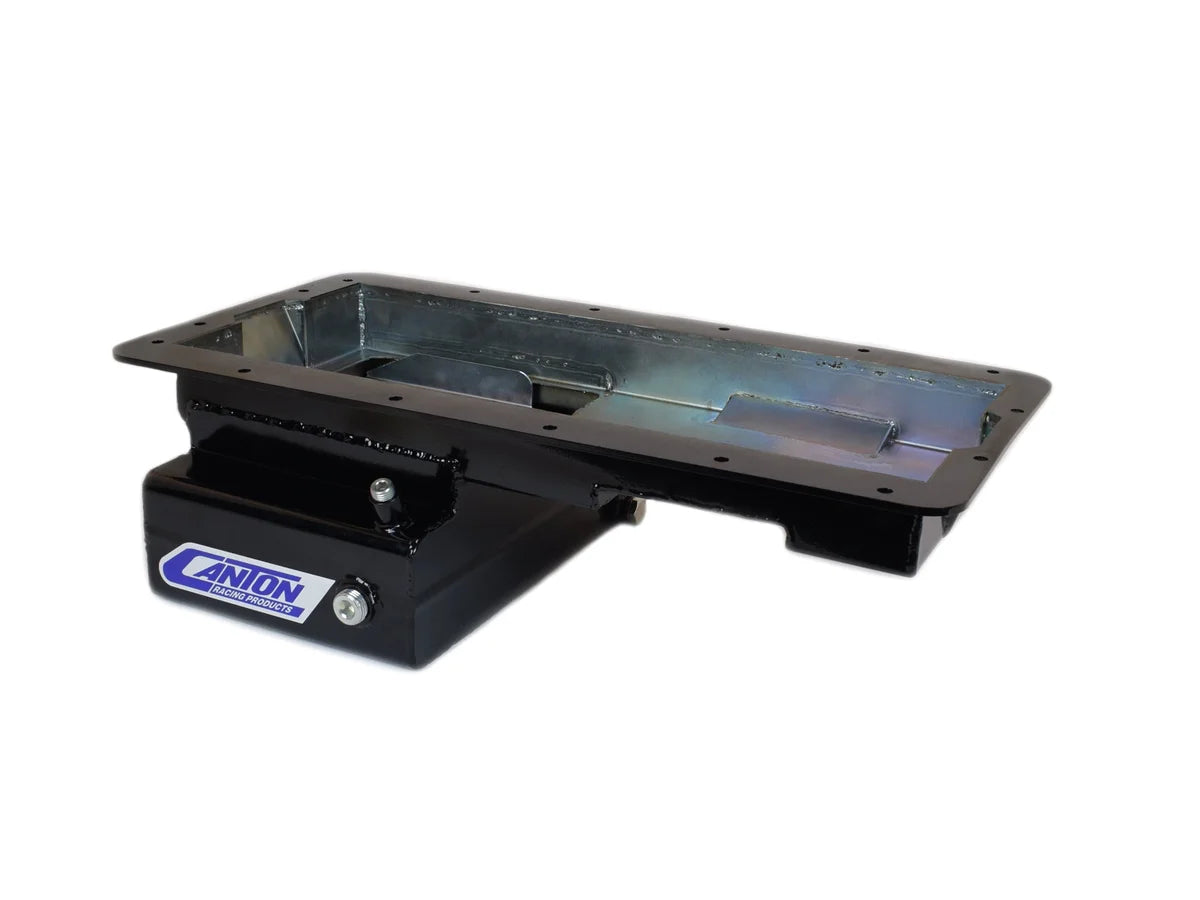

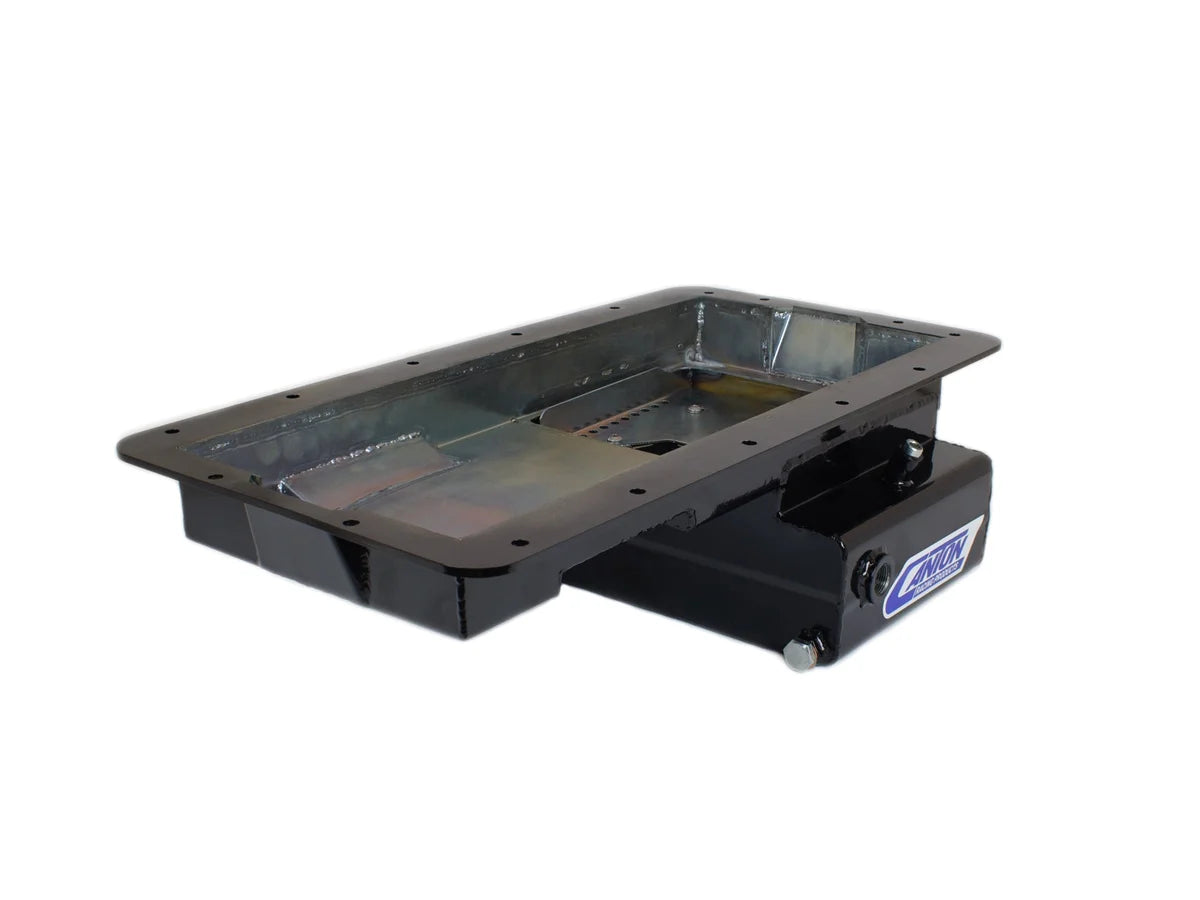

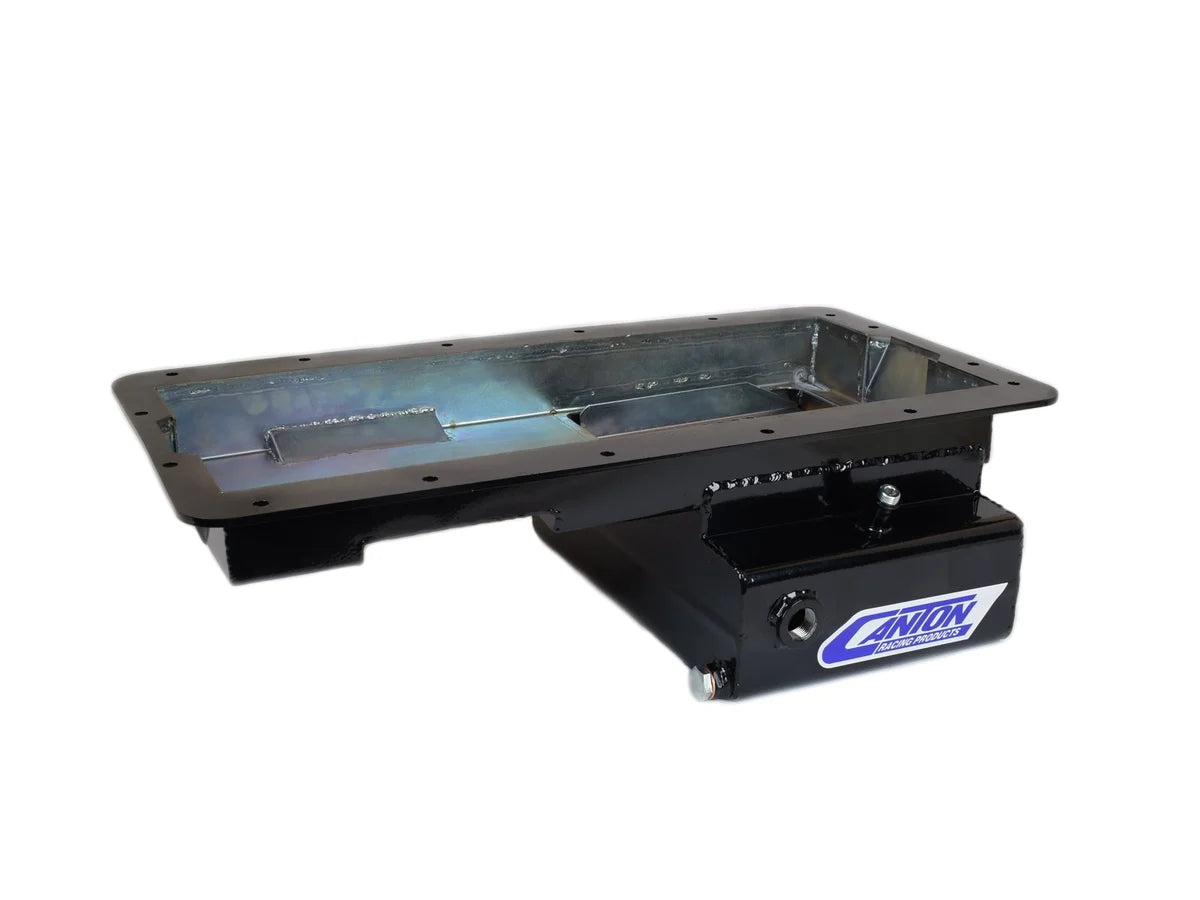

Cantons new black powder coat 15-738 Ford 5.0 Coyote oil pan is designed for early Ford chassis and others that required a front sump oil pan. The pan is designed with a ?t?sump for extra capacity and is used in road race applications where ground clearance is important .It features a diamond shaped road race baffle assembly with four trap doors and a removable Windage/anti-slosh baffle.
Specifications:
| Crank Scraper Included |
No |
| Gasket or Seal Included |
No |
| Baffled |
Yes |
| Windage Tray Included |
No |
| Recommended Accessory 3 |
20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T Fitting |
| Recommended Accessory 2 |
20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting |
| Recommended Accessory 1 |
15-739 - Pickup for 5.0 Coyote Front Sump Pan |
| Pickup Included |
No |
| Material |
16 Gauge Steel |
| Kicked Out |
Yes |
| Hardware Included |
No |
| Finish |
Black Powdercoat |
| Dipstick Port |
Yes |
| Feature 8 |
Black Powdercoat |
| Feature 7 |
Tig Welded |
| Feature 6 |
Made In USA |
| Feature 5 |
20mm Bung for low Oil Warning Sender |
| Feature 4 |
1/2" NPT Temperature Bung |
| Feature 3 |
Removable Windage/Anti-Slosh Baffle |
| Feature 2 |
Diamond Shape Road Race Baffle Assembly With Four Trap Doors |
| Feature 1 |
Designed for 5.0 Coyote Blocks |
| Drain Plug Included |
Yes |
| Capacity |
7 Quart System Capacity |
| Description_ABR |
- |
| Description_SHO |
Ford Coyote Oil Pan |
| Description_INV |
5.0 COYOTE RR FRONT SUMP BLK |
| Description_ASC |
N/A |
| Description_KEY |
Canton, Canton Racing, Products |
| Description_LAB |
Canton Racing Products |
| Description_DES |
Canton 15-738BLK Oil Pan For Ford 5.0 Coyote Road Race Front T Sump Pan |
| Description_SHP |
N/A |
| Description_ASM |
- |
| Description_EXT |
Canton 15-738BLK Oil Pan For Ford 5.0 Coyote Road Race Front T Sump Pan |
| Description_MKT |
Cantons new black powder coat 15-738 Ford 5.0 Coyote oil pan is designed for early Ford chassis and others that required a front sump oil pan. The pan is designed with a ?t?sump for extra capacity and is used in road race applications where ground clearance is important .It features a diamond shaped road race baffle assembly with four trap doors and a removable Windage/anti-slosh baffle. |
| Description_FAB |
Designed for 5.0 Coyote Blocks |
| Description_FAB |
Diamond Shape Road Race Baffle Assembly With Four Trap Doors |
| Description_FAB |
Removable Windage/Anti-Slosh Baffle |
| Description_FAB |
1/2" NPT Temperature Bung |
| Description_FAB |
20mm Bung for low Oil Warning Sender |
| Description_FAB |
Made In USA |
| Description_FAB |
Tig Welded |
| Description_TRA |
- |
| Description_CAP |
- |
| Description_DEF |
Engine Oil Pan |
