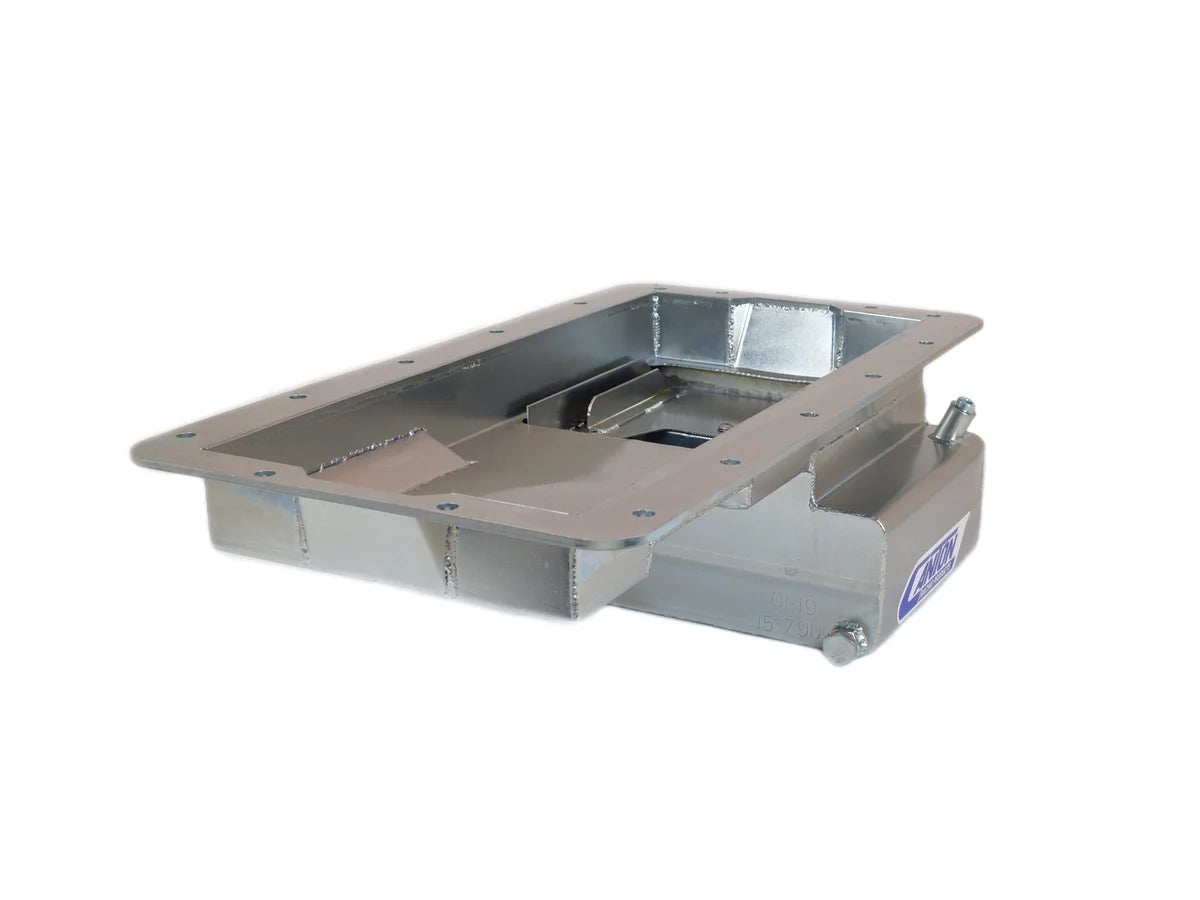

Canton Canton 15-790 Oil Pan For Ford 4.6L 5.4L Baffled Front Sump Pan For Engine Swap 15-790 - Main Product View

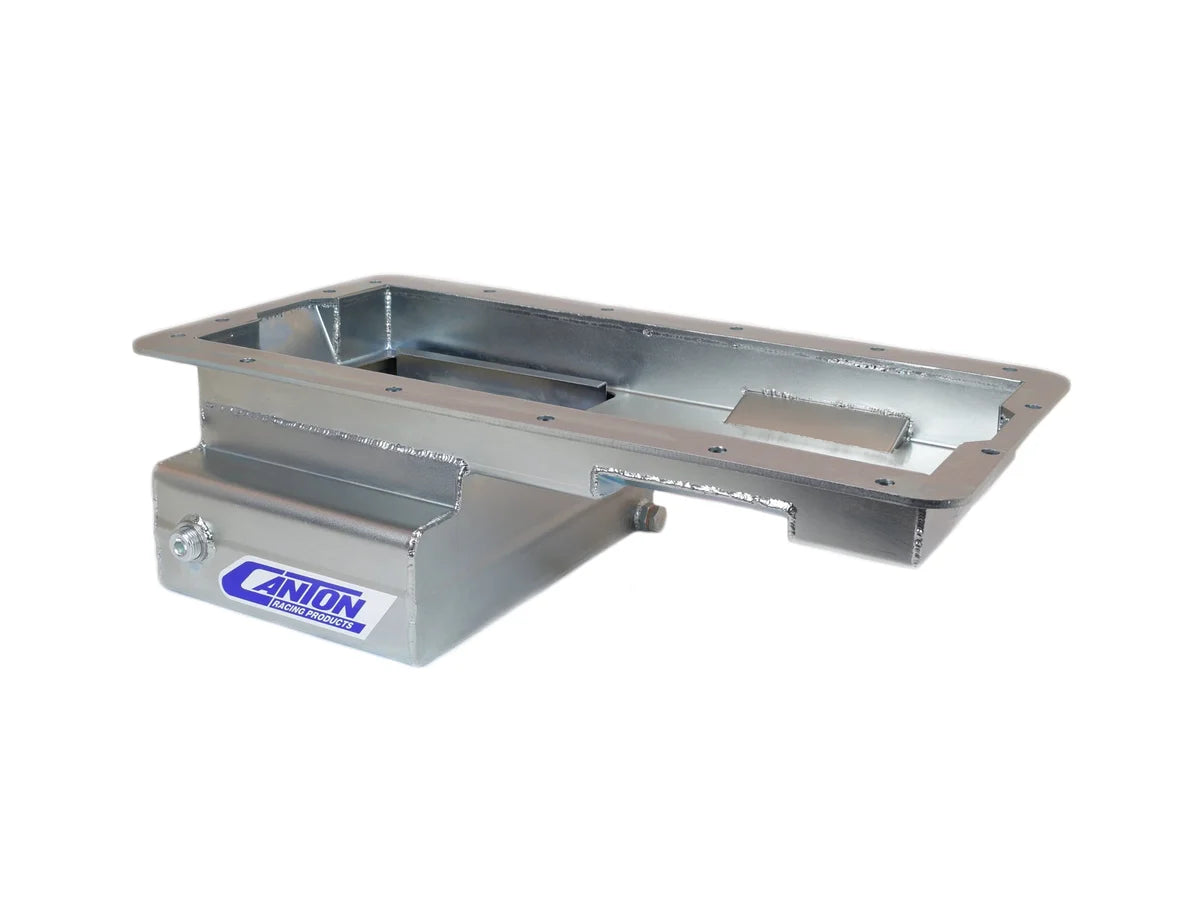

Canton Canton 15-790 Oil Pan For Ford 4.6L 5.4L Baffled Front Sump Pan For Engine Swap 15-790 - Side View

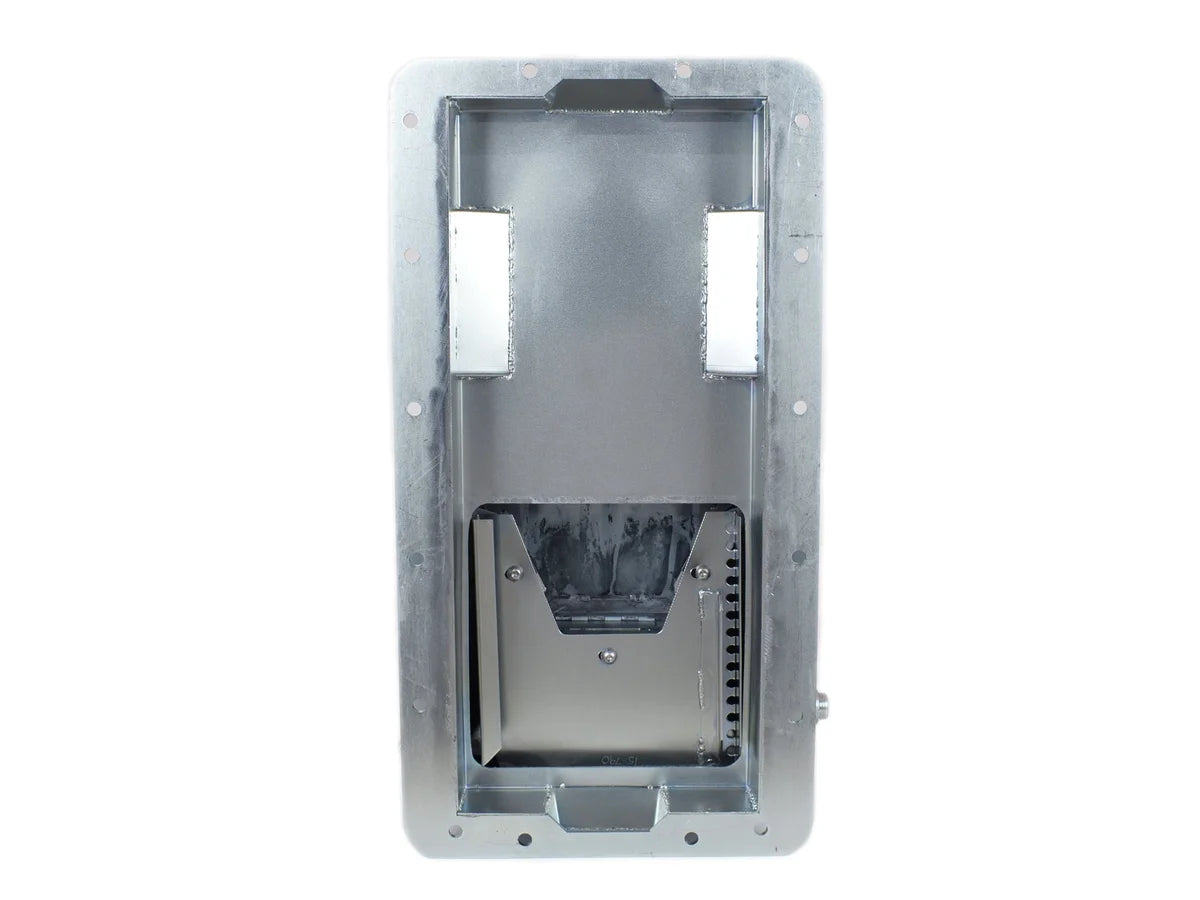

Canton Canton 15-790 Oil Pan For Ford 4.6L 5.4L Baffled Front Sump Pan For Engine Swap 15-790 - Back View

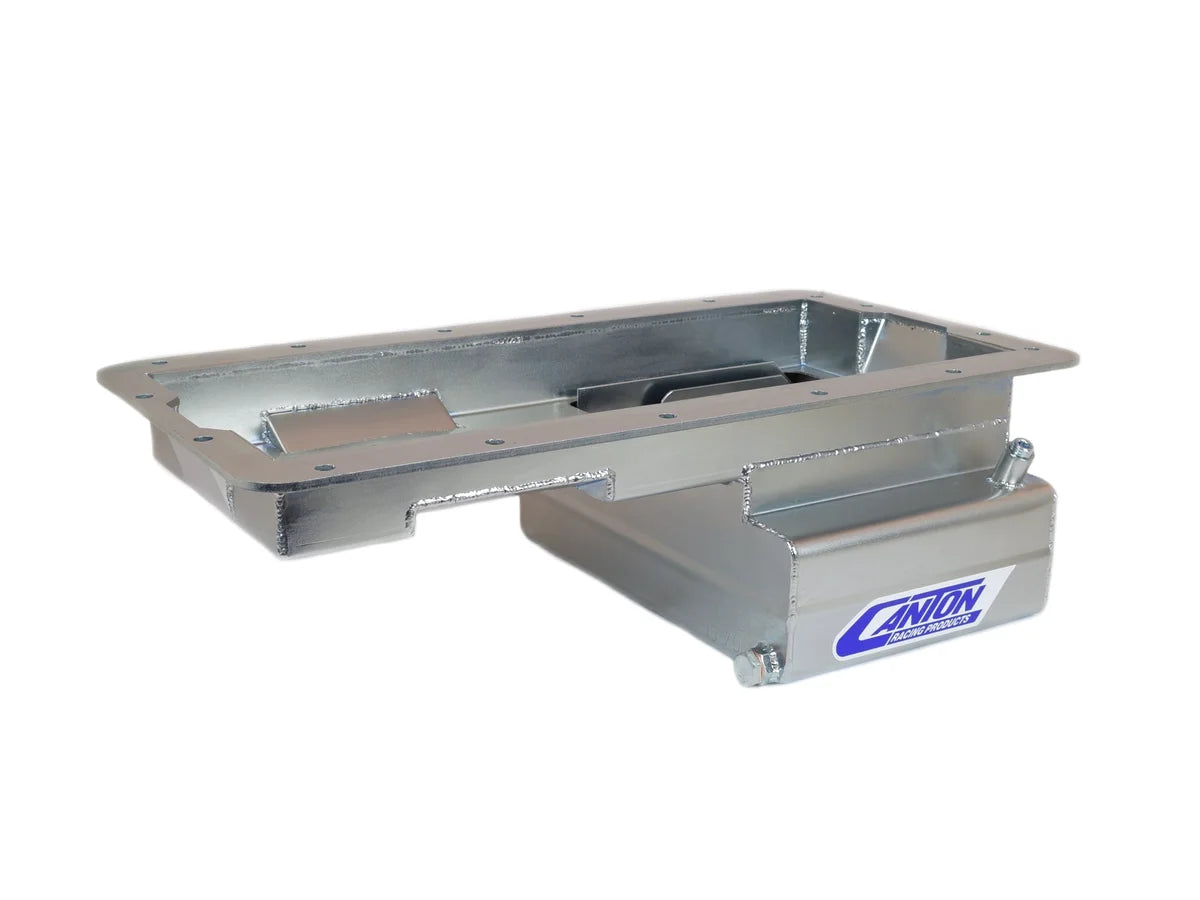

Canton Canton 15-790 Oil Pan For Ford 4.6L 5.4L Baffled Front Sump Pan For Engine Swap 15-790 - Installation View
Canton Canton 15-790 Oil Pan For Ford 4.6L 5.4L Baffled Front Sump Pan For Engine Swap 15-790 - Additional View 5
Click to zoom in
Load image into Gallery viewer, Canton Canton 15-790 Oil Pan For Ford 4.6L 5.4L Baffled Front Sump Pan For Engine Swap 15-790 - Main Product View
Load image into Gallery viewer, Canton Canton 15-790 Oil Pan For Ford 4.6L 5.4L Baffled Front Sump Pan For Engine Swap 15-790 - Side View
Load image into Gallery viewer, Canton Canton 15-790 Oil Pan For Ford 4.6L 5.4L Baffled Front Sump Pan For Engine Swap 15-790 - Back View
Load image into Gallery viewer, Canton Canton 15-790 Oil Pan For Ford 4.6L 5.4L Baffled Front Sump Pan For Engine Swap 15-790 - Installation View
Load image into Gallery viewer, Canton Canton 15-790 Oil Pan For Ford 4.6L 5.4L Baffled Front Sump Pan For Engine Swap 15-790 - Additional View 5

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Technical Support

    We help with any installation questions

  • Wordwide Delivery

    Fast shipping times from USA warehouses

Canton Oil Pan 15-790 Baffled Front Sump Pan Engine Swap fits Ford 4.6L 5.4L

Canton
15-790
Out of stock
$658.99 USD
Canton Oil Pan 15-790 Baffled Front Sump Pan Engine Swap fits Ford 4.6L 5.4L
Description
This front sump engine swap oil pan is designed to install 4.6/5.4L modular engines into early Ford chassis that require a front sump pan. It has a 6-1/4" deep, 12" wide, by 8" long sump with a 7 quart system capacity. This pan requires our 15-791 pickup for 4.6L and 5.4L 2V pumps or 15-793 pickup for 4.6L and 5.4L 4V pumps, 3V use O.E.M Pickup.


Specifications:

Baffled Yes
Hardware Included No
Sump Width 12 inches
Sump Depth 6.25 inches
Stoke 106MM
Recommended Accessory 4 88-780 ? Modular Ford 4.6L/5.4L One Piece Oil Pan Gasket
Recommended Accessory 3 20-939 - Ford 4.6L/5.4L Screen Windage Tray
Recommended Accessory 2 15-793 - Pickup for 4.6L/5.4L 4V Pumps
Recommended Accessory 1 15-791 - Pickup for 4.6L/5.4L 2V Pumps
Pickup Included No
Material 16 Gauge Steel
Kicked Out Yes
Gasket or Seal Included No
Capacity 7 Quart System Capacity
Finish Silver Plating
Feature 6 Magnetic Drain Plug
Feature 5 Provision For Our Pan Mounted Dipstick
Feature 4 1/2" NPT Temperature Bung
Feature 3 Removable Windage/Anti-Slosh Baffle
Feature 2 Road Race Baffle Assembly With Five Trap Doors
Feature 1 7 qt System Capacity
Drain Plug Included Yes
Dipstick Port Yes
Crank Scraper Included No
Windage Tray Included No
Description_ABR -
Description_SHO Ford 4.6 Oil Pan
Description_INV 4.6/5.4 FT SUMP ENGINE SWAP BAFFLED PAN
Description_ASC N/A
Description_KEY Canton, Canton Racing, Products
Description_LAB Canton Racing Products
Description_DES Canton 15-790 Oil Pan For Ford 4.6L 5.4L Baffled Front Sump Pan For Engine Swap
Description_SHP N/A
Description_ASM -
Description_EXT Canton 15-790 Oil Pan For Ford 4.6L 5.4L Baffled Front Sump Pan For Engine Swap
Description_MKT This front sump engine swap oil pan is designed to install 4.6/5.4L modular engines into early Ford chassis that require a front sump pan. It has a 6-1/4" deep, 12" wide, by 8" long sump with a 7 quart system capacity. This pan requires our 15-791 pickup for 4.6L and 5.4L 2V pumps or 15-793 pickup for 4.6L and 5.4L 4V pumps, 3V use O.E.M Pickup.
Description_FAB 7 qt System Capacity
Description_FAB Road Race Baffle Assembly With Five Trap Doors
Description_FAB Removable Windage/Anti-Slosh Baffle
Description_FAB 1/2" NPT Temperature Bung
Description_FAB Provision For Our Pan Mounted Dipstick
Description_FAB Magnetic Drain Plug
Description_TRA -
Description_CAP -
Description_DEF Engine Oil Pan
