Canton Canton 16-774 Oil Pan For Big Block Ford 460 Rear Sump 4X4 Truck Oil Pan 16-774
$514.80
$478.99

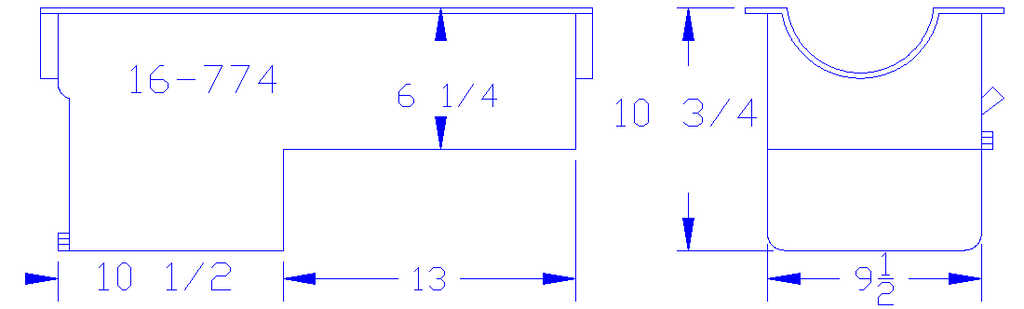

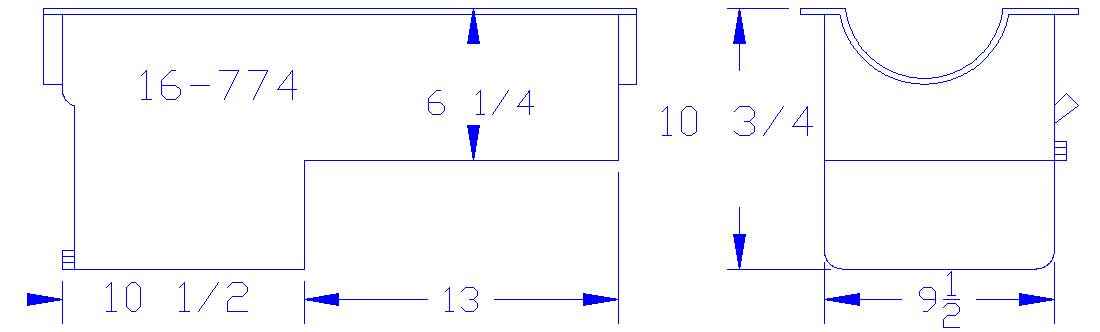

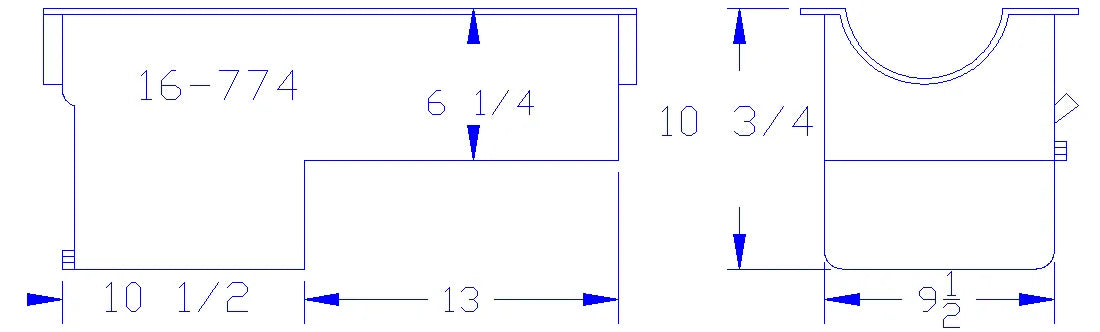

This rear sump truck pan is for all Ford 4WD trucks and vans with 429-460 blocks. It has 10-3/4" deep by 10-1/2" long sump with an 8 quart system capacity. Will not clear crossover exhaust. Designed for use with long tube headers. This pan requires our 16-775 pickup.
Specifications:
| Baffled | Yes |
| Hardware Included | No |
| Sump Depth | 10.75 inches |
| Stoke | 4.5 inches |
| Recommended Accessory 5 | 88-750 ? Big Block Ford 429-460 Four Piece Oil Pan Gasket |
| Recommended Accessory 4 | 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting |
| Recommended Accessory 3 | 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting |
| Recommended Accessory 2 | 20-956 - Main Cap Pickup Stud |
| Recommended Accessory 1 | 16-775 - Pickup with M-84D or M-84DHV Oil Pump |
| Pickup Included | No |
| Material | 14 Gauge Steel |
| Kicked Out | No |
| Gasket or Seal Included | No |
| Capacity | 8 Quart System Capacity |
| Finish | Black Gloss Powdercoat |
| Feature 7 | Tig Welded |
| Feature 6 | Made In USA |
| Feature 5 | 14 ga. Steel Sump Construction |
| Feature 4 | Provision for Pan Mounted Dipstick |
| Feature 3 | Slosh Baffle |
| Feature 2 | Trap Door Baffle |
| Feature 1 | Designed to be used in Ford 4WD trucks and vans |
| Drain Plug Included | Yes |
| Dipstick Port | Yes |
| Crank Scraper Included | Yes |
| Windage Tray Included | No |
| Description_ABR | - |
| Description_SHO | Rear Sump Oil Pan |
| Description_INV | BBF R/S TRUCK PAN |
| Description_ASC | N/A |
| Description_KEY | Canton, Canton Racing, Products |
| Description_LAB | Canton Racing Products |
| Description_DES | Canton 16-774 Oil Pan For Big Block Ford 460 Rear Sump 4X4 Truck Oil Pan |
| Description_SHP | N/A |
| Description_ASM | - |
| Description_EXT | Canton 16-774 Oil Pan For Big Block Ford 460 Rear Sump 4X4 Truck Oil Pan |
| Description_MKT | This rear sump truck pan is for all Ford 4WD trucks and vans with 429-460 blocks. It has 10-3/4" deep by 10-1/2" long sump with an 8 quart system capacity. Will not clear crossover exhaust. Designed for use with long tube headers. This pan requires our 16-775 pickup. |
| Description_FAB | Designed to be used in Ford 4WD trucks and vans |
| Description_FAB | Trap Door Baffle |
| Description_FAB | Slosh Baffle |
| Description_FAB | Provision for Pan Mounted Dipstick |
| Description_FAB | 14 ga. Steel Sump Construction |
| Description_FAB | Made In USA |
| Description_FAB | Tig Welded |
| Description_TRA | - |
| Description_CAP | - |
| Description_DEF | Engine Oil Pan |
