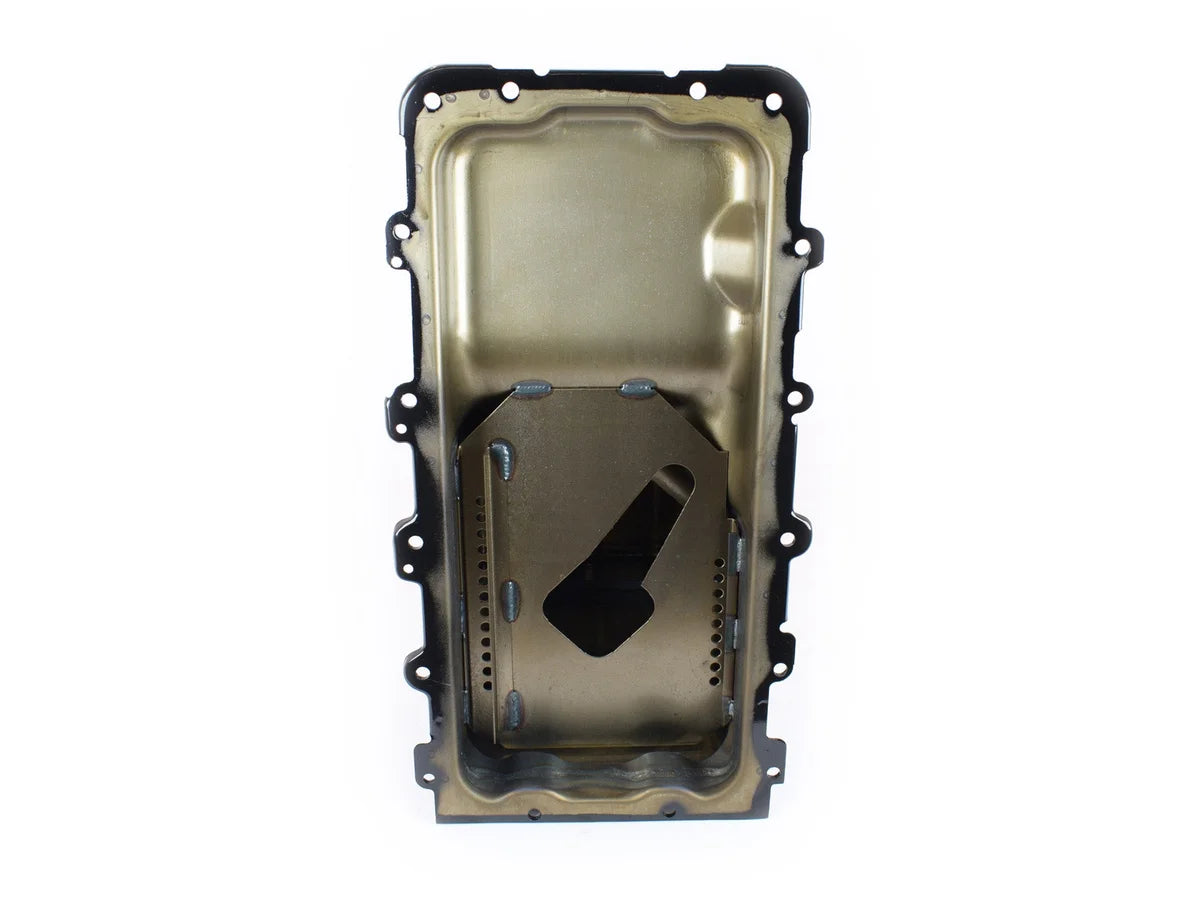

Canton Canton 16-780 Oil Pan 4.6L 5.4L Modular Ford Rear Sump Truck Oil Pan Black 16-780 - Main Product View

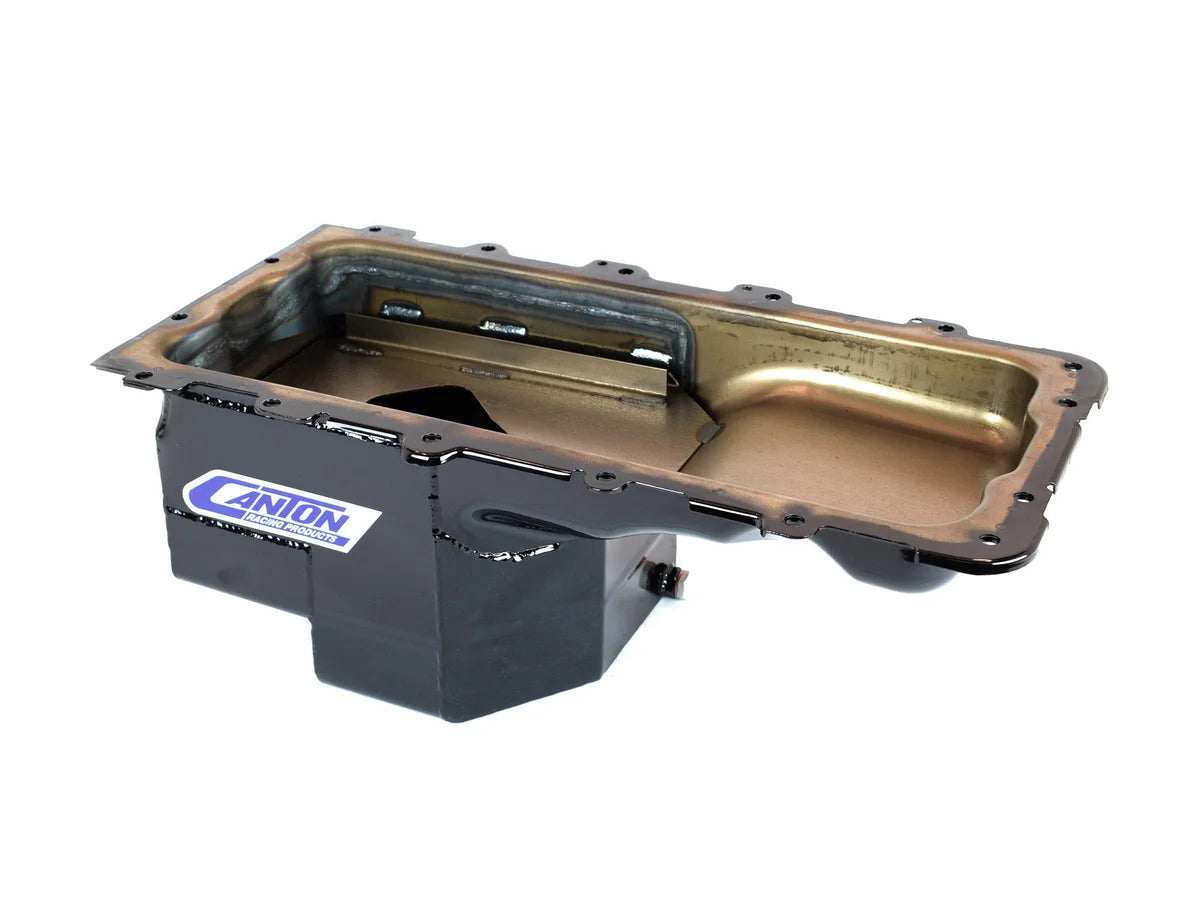

Canton Canton 16-780 Oil Pan 4.6L 5.4L Modular Ford Rear Sump Truck Oil Pan Black 16-780 - Side View

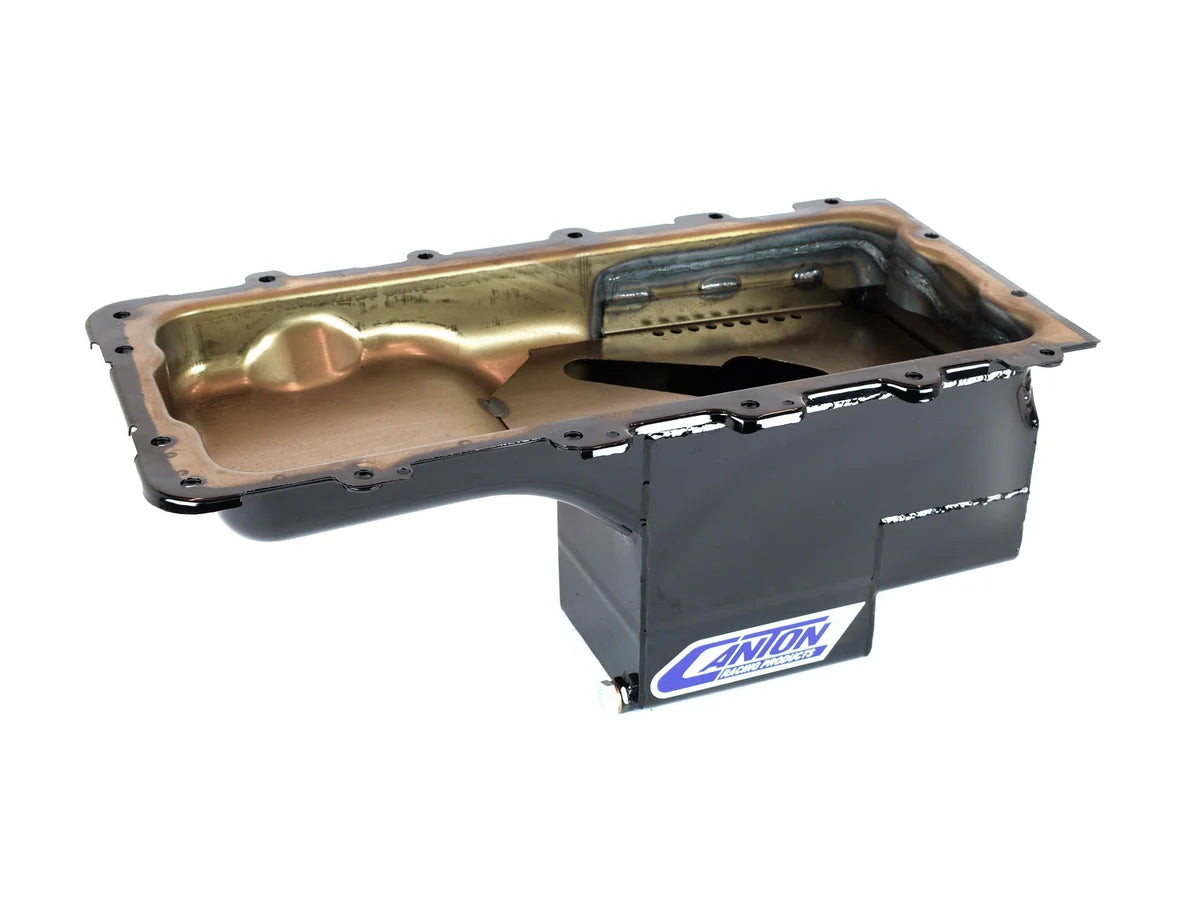

Canton Canton 16-780 Oil Pan 4.6L 5.4L Modular Ford Rear Sump Truck Oil Pan Black 16-780 - Installation View

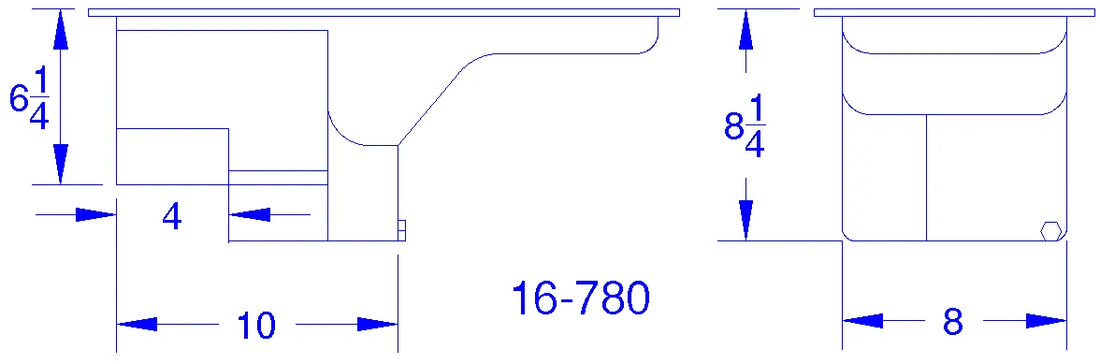

Canton Canton 16-780 Oil Pan 4.6L 5.4L Modular Ford Rear Sump Truck Oil Pan Black 16-780 - Additional View 5
Canton Canton 16-780 Oil Pan 4.6L 5.4L Modular Ford Rear Sump Truck Oil Pan Black 16-780 - Additional View 6
Click to zoom in
Load image into Gallery viewer, Canton Canton 16-780 Oil Pan 4.6L 5.4L Modular Ford Rear Sump Truck Oil Pan Black 16-780 - Main Product View
Load image into Gallery viewer, Canton Canton 16-780 Oil Pan 4.6L 5.4L Modular Ford Rear Sump Truck Oil Pan Black 16-780 - Side View
Load image into Gallery viewer, Canton Canton 16-780 Oil Pan 4.6L 5.4L Modular Ford Rear Sump Truck Oil Pan Black 16-780 - Installation View
Load image into Gallery viewer, Canton Canton 16-780 Oil Pan 4.6L 5.4L Modular Ford Rear Sump Truck Oil Pan Black 16-780 - Additional View 5
Load image into Gallery viewer, Canton Canton 16-780 Oil Pan 4.6L 5.4L Modular Ford Rear Sump Truck Oil Pan Black 16-780 - Additional View 6

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Technical Support

    We help with any installation questions

  • Wordwide Delivery

    Fast shipping times from USA warehouses

Canton 16-780 Oil Pan Rear Sump Oil Pan Black fits 1997 Ford F-150 BASE EXTENDED CAB Pickup 3-Door 4.6L 5.4L

⚠️ Please verify fitment before purchasing. Check the fitment chart below or use the Year/Make/Model tool to confirm this part fits your vehicle.

⚠️ Verify fitment before purchasing. Check the fitment chart below or click the 3 lines in the top left menu, select Home, then use the Year/Make/Model guide.

Canton
16-780
Out of stock
$561.99 USD
Canton 16-780 Oil Pan Rear Sump Oil Pan Black fits 1997 Ford F-150 BASE EXTENDED CAB Pickup 3-Door 4.6L 5.4L
Description

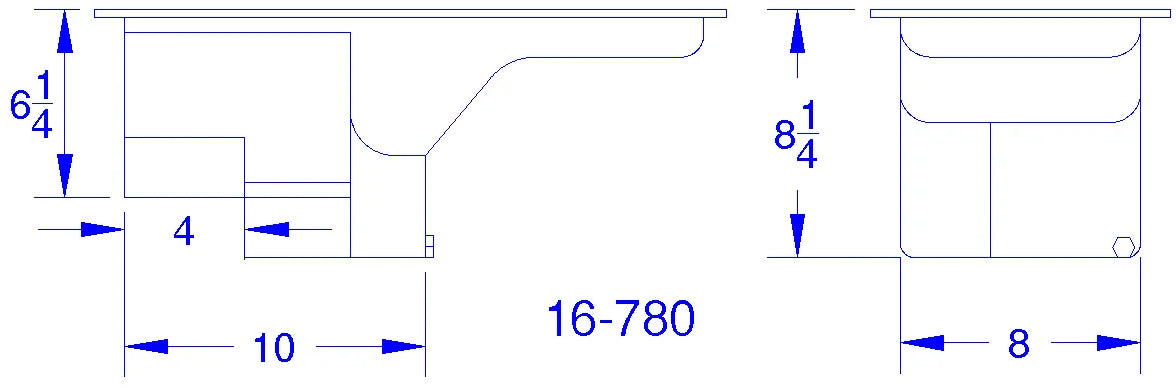

This Ford 4.6L/5.4L oil pan is 8-1/4" deep by 10" long by 8" wide rear sump. The oil pan holds 7 quarts for increased oil capacity and oil control. For use in Ford Two & Four wheel drive trucks. Designed for improved cross member clearance in 2WD trucks. This pan requires our 16-781 pickup made for 2V engines.


Specifications:

Baffled Yes
Kicked Out Yes
Sump Width 8 inches
Sump Depth 8.25 inches
Stoke 106MM
Recommended Accessory 3 88-780 ? Modular Ford 4.6L/5.4L One Piece Oil Pan Gasket
Recommended Accessory 2 20-939 - Ford 4.6L/5.4L Screen Windage Tray
Recommended Accessory 1 16-781 - Pickup Made for 2 Valve Engines
Pickup Included No
Material 14 Gauge Steel
Hardware Included No
Capacity 7 Quart System Capacity
Gasket or Seal Included No
Finish Black Gloss Powdercoat
Feature 3 Magnetic Drain Plug
Feature 2 Slosh Baffle
Feature 1 7 qt System Capacity
Drain Plug Included Yes
Dipstick Port No
Crank Scraper Included No
Windage Tray Included No
Description_ABR -
Description_SHO Rear Sump Oil Pan
Description_INV 4.6/5.4 TRUCK PAN
Description_ASC N/A
Description_KEY Canton, Canton Racing, Products
Description_LAB Canton Racing Products
Description_DES Canton 16-780 Oil Pan 4.6L 5.4L Modular Ford Rear Sump Truck Oil Pan Black
Description_SHP N/A
Description_ASM -
Description_EXT Canton 16-780 Oil Pan 4.6L 5.4L Modular Ford Rear Sump Truck Oil Pan Black
Description_MKT This Ford 4.6L/5.4L oil pan is 8-1/4" deep by 10" long by 8" wide rear sump. The oil pan holds 7 quarts for increased oil capacity and oil control. For use in Ford Two & Four wheel drive trucks. Designed for improved cross member clearance in 2WD trucks. This pan requires our 16-781 pickup made for 2V engines.
Description_FAB 7 qt System Capacity
Description_FAB Slosh Baffle
Description_FAB Magnetic Drain Plug
Description_TRA -
Description_CAP -
Description_DEF Engine Oil Pan

This Part Fits:

Year Make Model Submodel Engine
1997 Ford F-150 Base Extended Cab Pickup 3-Door 4.6L 281Cu. In. V8 GAS SOHC Naturally Aspirated
1997 Ford F-150 Base Extended Cab Pickup 3-Door 4.2L 256Cu. In. V6 GAS OHV Naturally Aspirated
1997 Ford F-150 Base Extended Cab Pickup 3-Door 5.4L 330Cu. In. V8 GAS SOHC Naturally Aspirated
1997 Ford F-150 Base Standard Cab Pickup 2-Door 4.2L 256Cu. In. V6 GAS OHV Naturally Aspirated
1997 Ford F-150 Base Standard Cab Pickup 2-Door 5.4L 330Cu. In. V8 GAS SOHC Naturally Aspirated
1997 Ford F-150 Base Standard Cab Pickup 2-Door 4.6L 281Cu. In. V8 GAS SOHC Naturally Aspirated
1997 Ford F-150 Lariat Extended Cab Pickup 3-Door 5.4L 330Cu. In. V8 GAS SOHC Naturally Aspirated
1997 Ford F-150 Lariat Extended Cab Pickup 3-Door 4.6L 281Cu. In. V8 GAS SOHC Naturally Aspirated
1997 Ford F-150 Lariat Standard Cab Pickup 2-Door 4.6L 281Cu. In. V8 GAS SOHC Naturally Aspirated
1997 Ford F-150 Lariat Standard Cab Pickup 2-Door 5.4L 330Cu. In. V8 GAS SOHC Naturally Aspirated
1997 Ford F-150 XL Extended Cab Pickup 3-Door 4.2L 256Cu. In. V6 GAS OHV Naturally Aspirated
1997 Ford F-150 XL Extended Cab Pickup 3-Door 4.6L 281Cu. In. V8 GAS SOHC Naturally Aspirated
1997 Ford F-150 XL Extended Cab Pickup 3-Door 5.4L 330Cu. In. V8 GAS SOHC Naturally Aspirated
1997 Ford F-150 XL Standard Cab Pickup 2-Door 4.2L 256Cu. In. V6 GAS OHV Naturally Aspirated
1997 Ford F-150 XL Standard Cab Pickup 2-Door 5.4L 330Cu. In. V8 GAS SOHC Naturally Aspirated
1997 Ford F-150 XL Standard Cab Pickup 2-Door 4.6L 281Cu. In. V8 GAS SOHC Naturally Aspirated
1997 Ford F-150 XL Standard Cab Pickup 2-Door 4.9L 4917CC 300Cu. In. l6 GAS OHV Naturally Aspirated
1997 Ford F-150 XLT Extended Cab Pickup 3-Door 4.2L 256Cu. In. V6 GAS OHV Naturally Aspirated
1997 Ford F-150 XLT Extended Cab Pickup 3-Door 4.6L 281Cu. In. V8 GAS SOHC Naturally Aspirated
1997 Ford F-150 XLT Extended Cab Pickup 3-Door 5.4L 330Cu. In. V8 GAS SOHC Naturally Aspirated
1997 Ford F-150 XLT Standard Cab Pickup 2-Door 4.2L 256Cu. In. V6 GAS OHV Naturally Aspirated
1997 Ford F-150 XLT Standard Cab Pickup 2-Door 4.6L 281Cu. In. V8 GAS SOHC Naturally Aspirated
1997 Ford F-150 XLT Standard Cab Pickup 2-Door 5.4L 330Cu. In. V8 GAS SOHC Naturally Aspirated
1997 Ford F-150 XLT Standard Cab Pickup 2-Door 4.9L 4917CC 300Cu. In. l6 GAS OHV Naturally Aspirated
