Holley EFI - Holley Black 351W Ford Hi-Ram EFI Manifold - 300-242BK

Name: Holley EFI - Holley Black 351W Ford Hi-Ram EFI Manifold - 300-242BK
Brand: Holley EFI
SKU: GVMR_300-242BK
Price: 1399.99 USD
Availability: InStock

Brand: Holley EFI

SKU: GVMR_300-242BK

availability: In stock

$1,574.95 USD $1,399.99 USD

Quantity

Subtotal: $1,399.99 USD

Quantity must be 1 or more

Description

Description

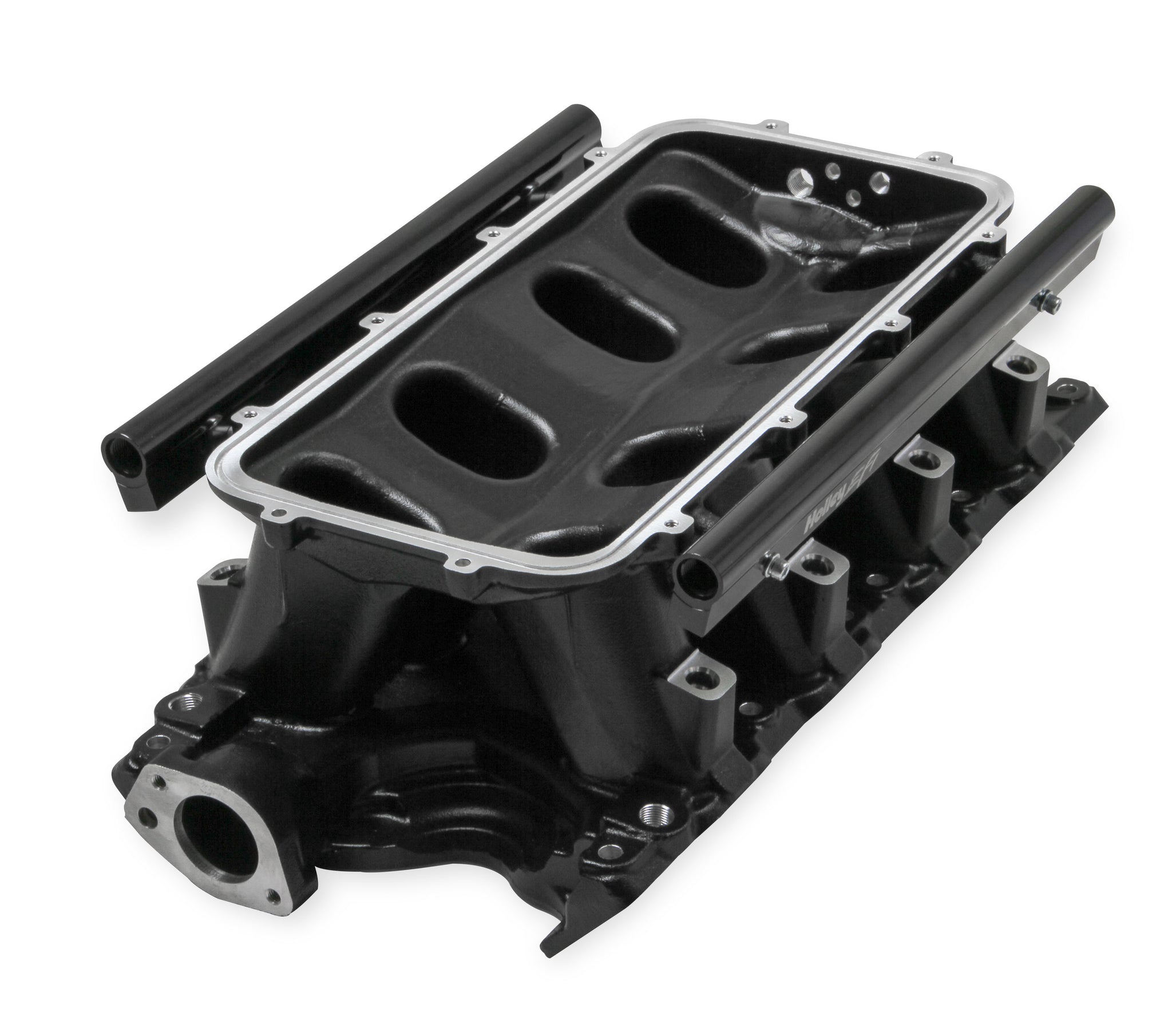

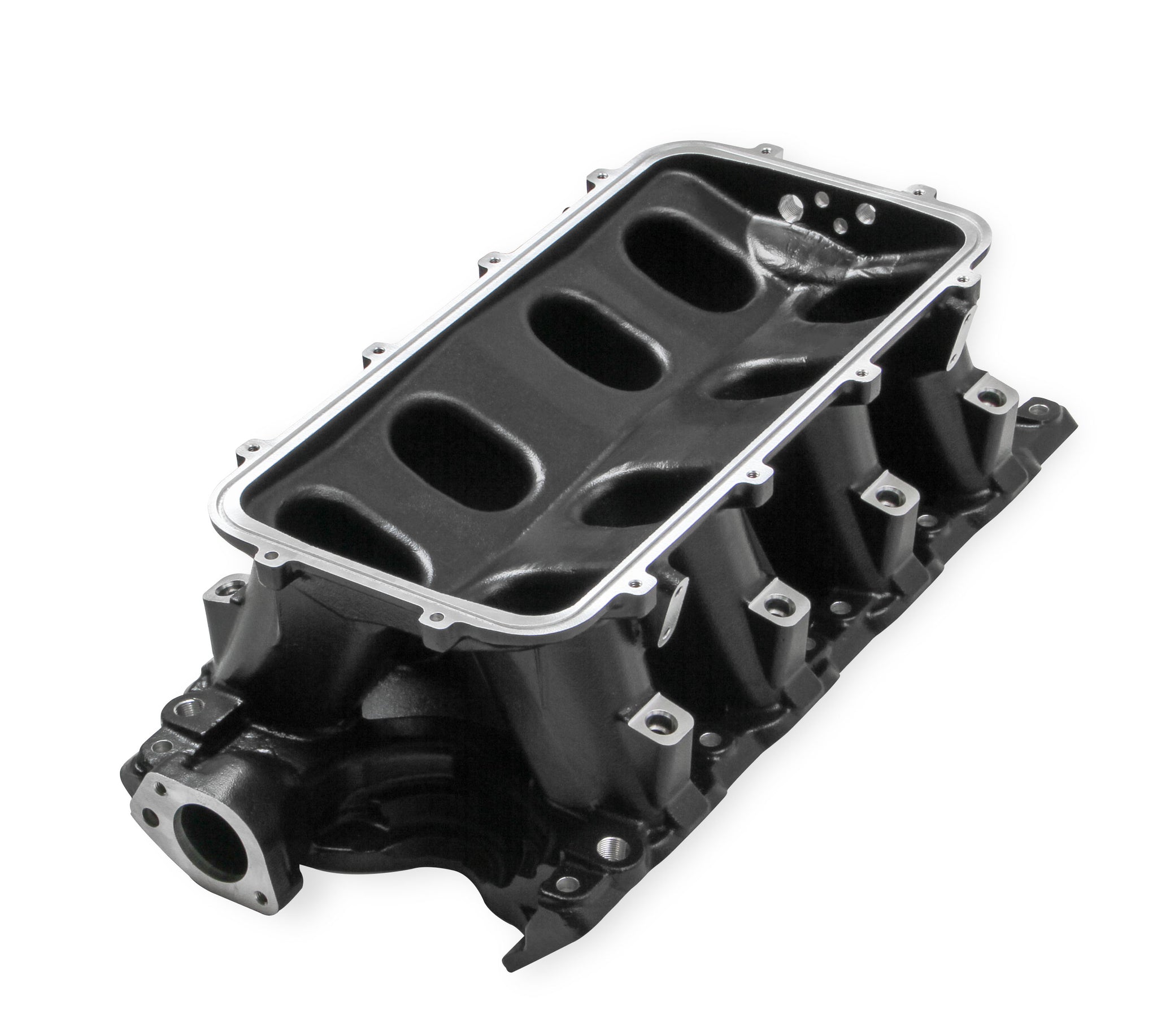

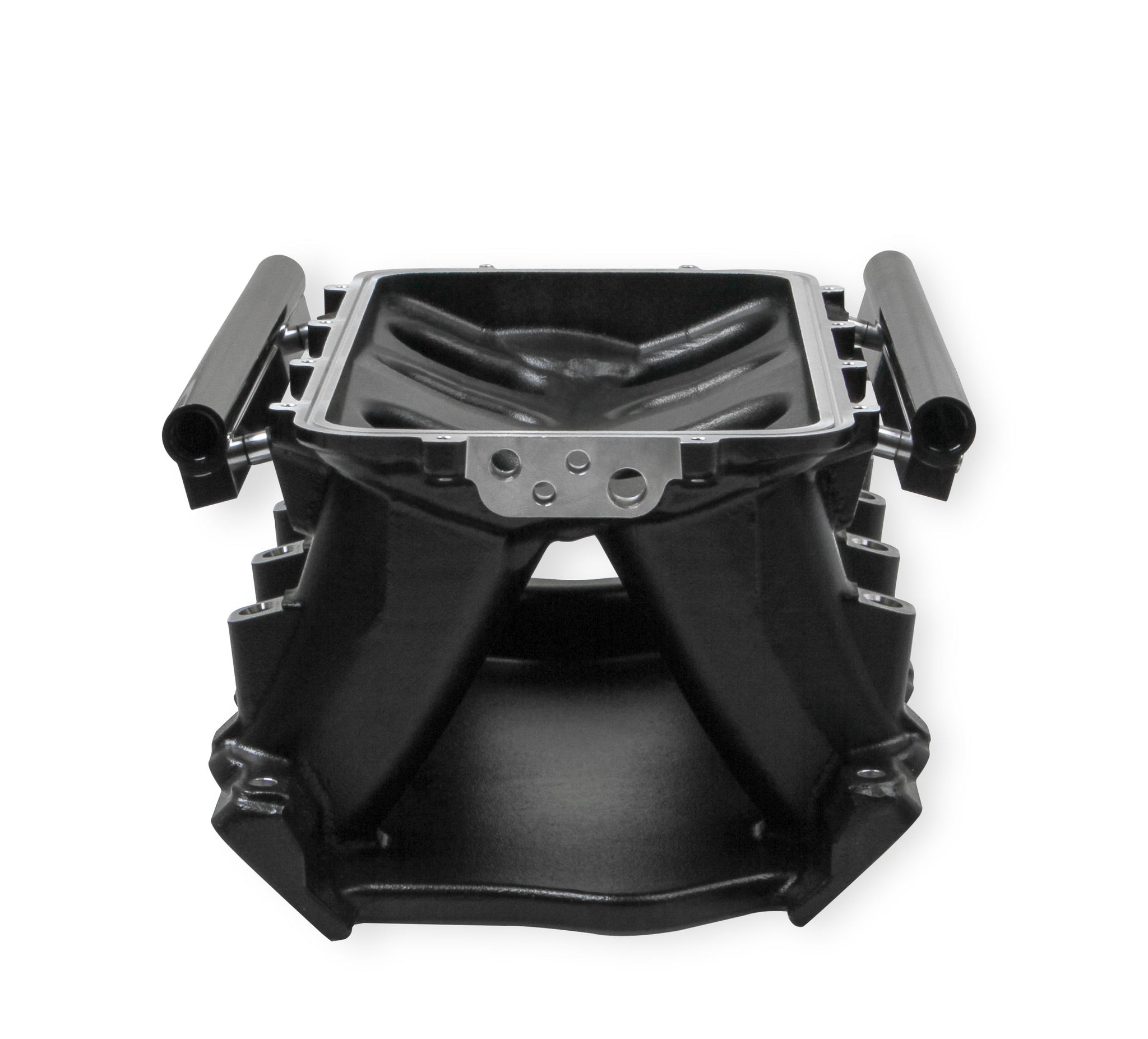

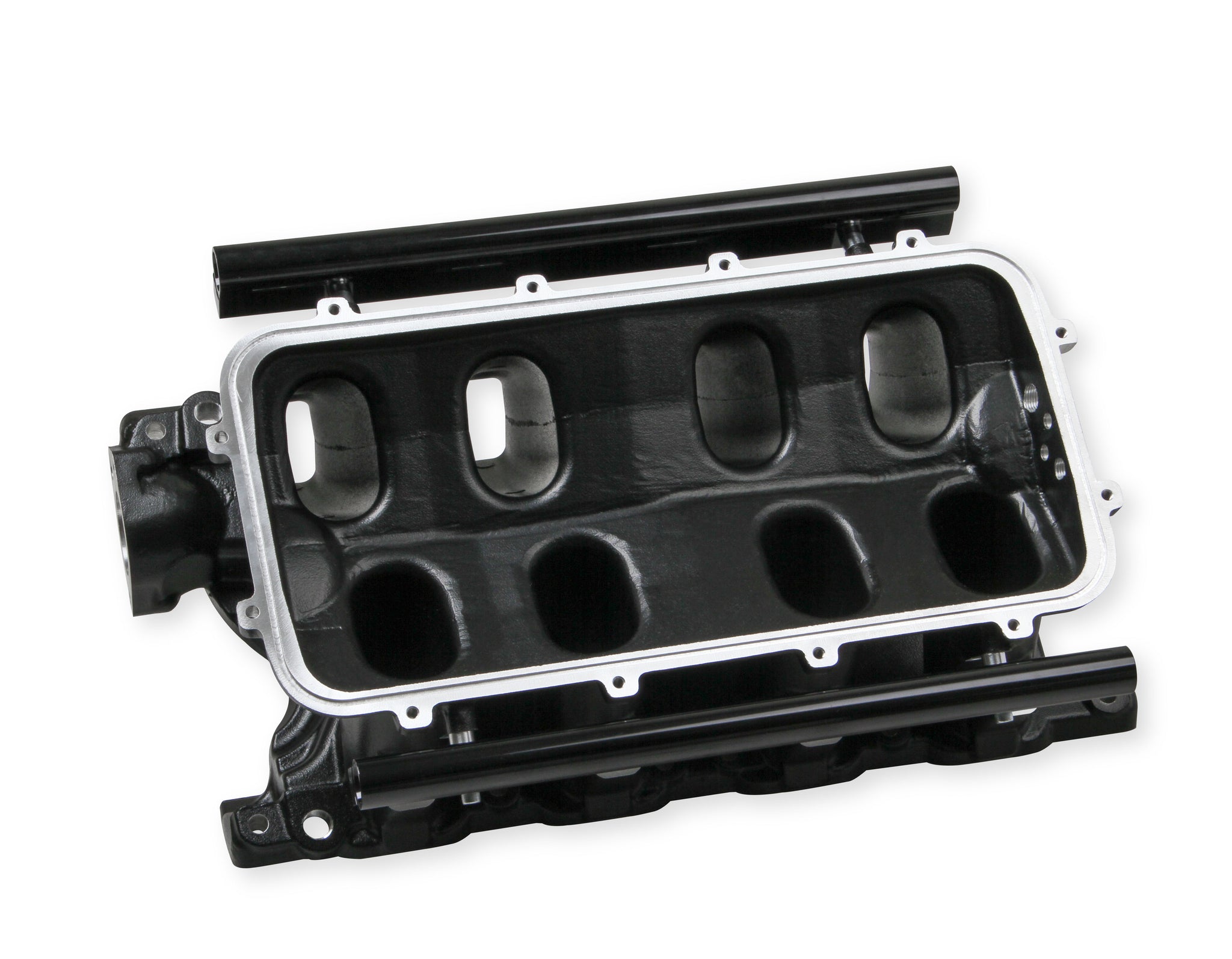

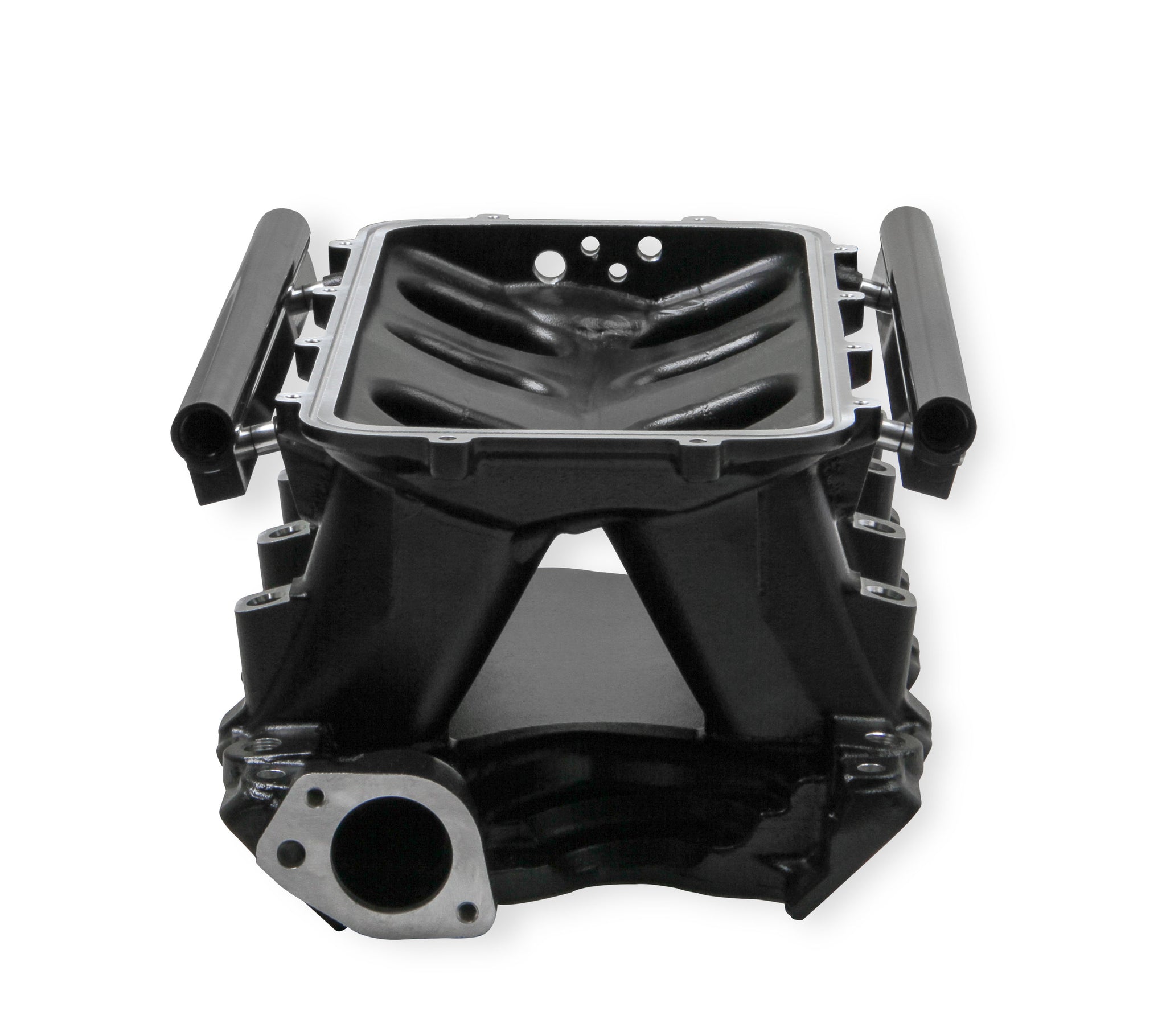

• Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations • Cast aluminum construction with black finish. The EFI Hi-Ram manifold line has a new addition for the 351W Ford application. This manifold comes with a 105MM LS throttle body flange top, a 105mm LS throttle body top is also available. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! Manifold is designed for a 9.5" deck height. Manifold Width is 11.32". • EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.

Specifications:

Basic Operating RPM Range	1500-7000
Brand	Holley EFI
Carburetor Flange	N/A
Carburetor Quantity	N/A
Carburetor Studs Included	N/A
Category	Engine
9063	No
17	Black
158	Cast
5337	Rectangle
6621	9.5
8095	No
Emission Code	4
Engine	Ford 351W
Flange Style	EFI
906	No
10644	Yes
Fuel System Type	EFI
353	Yes
3390	Performance
10651	No
Manifold Type	Hi-Ram
10	Aluminum
10648	No
part type	Engine Intake Manifold
Plenum Finish	Black

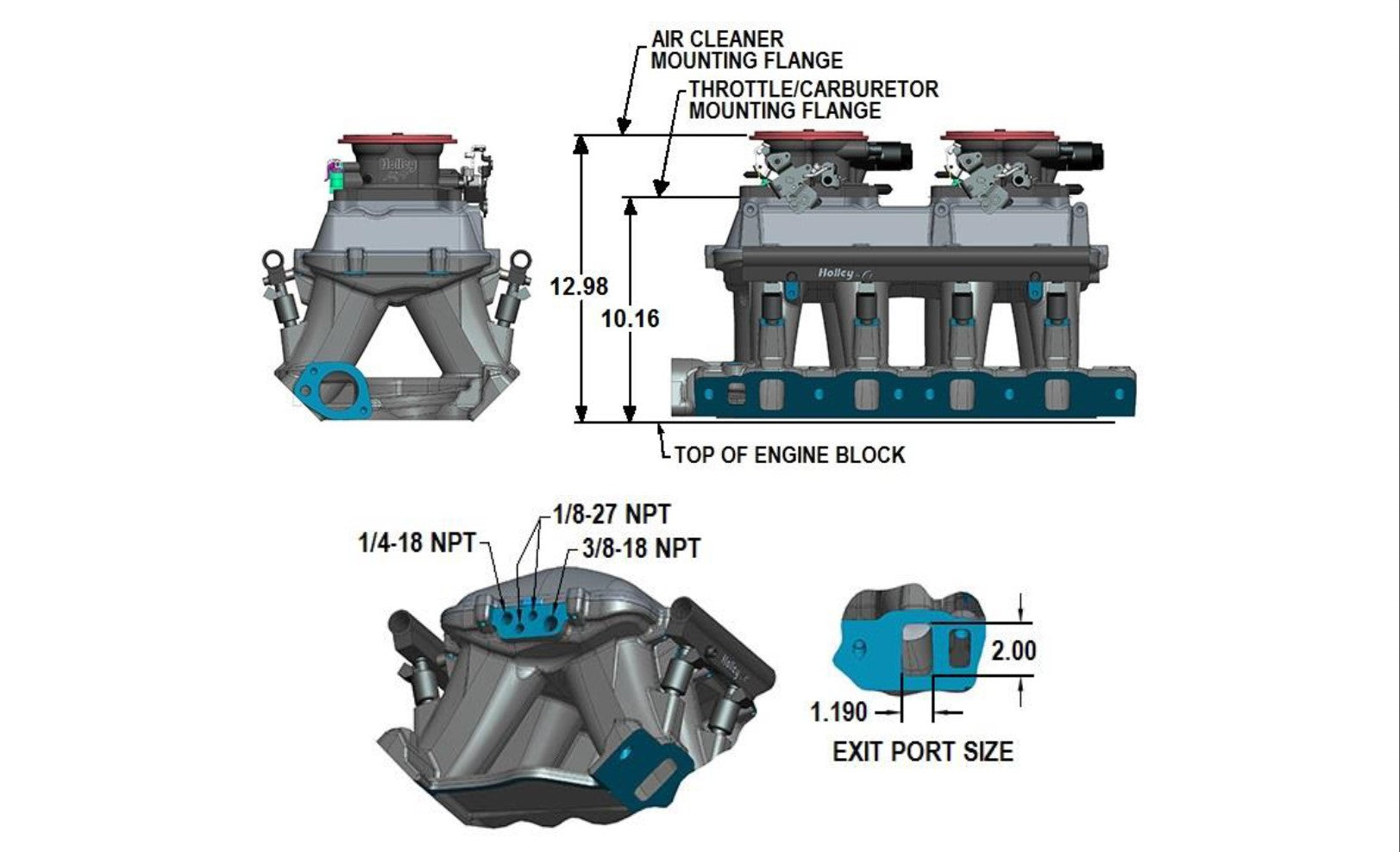

Port Size	2.00" x 1.190"
Product Type	Intake Manifold
10645	No
10649	Yes
6642	Single Plane
Sub Category	Cylinder Block Components
Throttle Body Bore Diameter	105 MM
Throttle Body Gasket Included	Yes
10626	No
Throttle Bore	105mm
Vacuum Ports	Yes
Warning	California Proposition 65
Warranty	Manufacturer's Limited 90 Day Warranty
Description_ABR	SNEFI EIM
Description_SHO	HOLLEY BLACK 351W
Description_INV	KIT FORD 351W HIRAM 105MM EFI BLACK

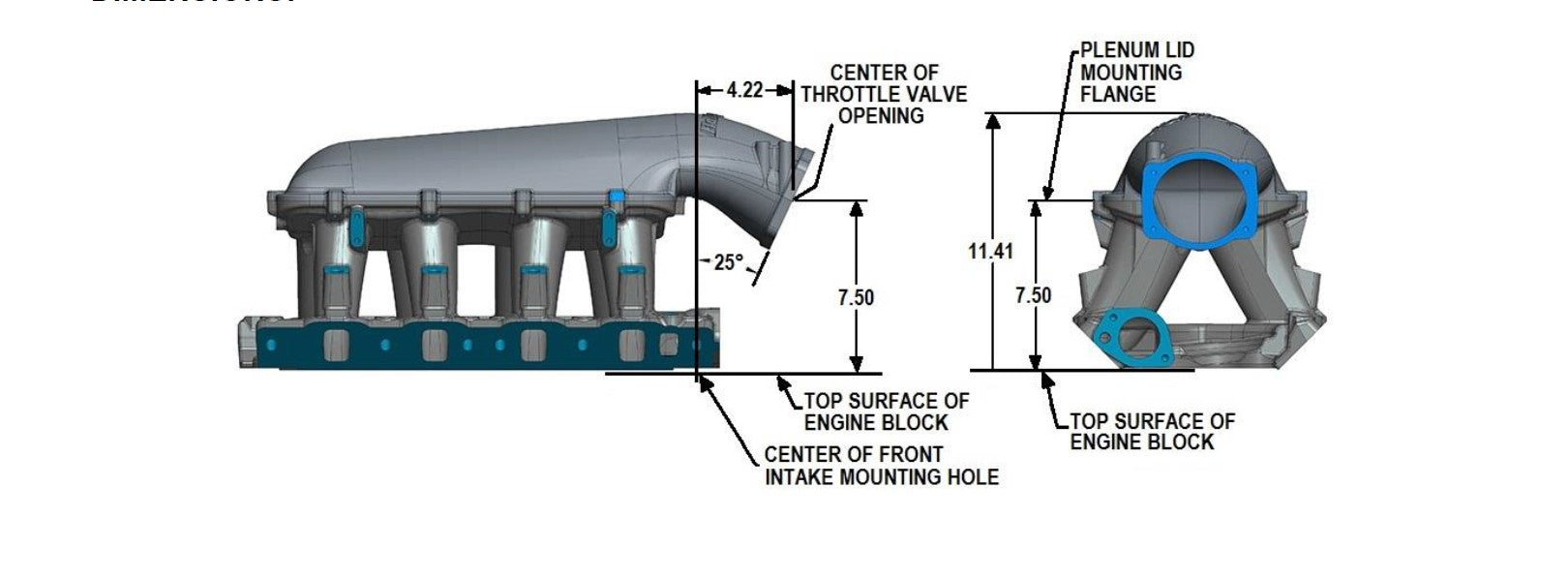

Description_ASC	*** This Holley Hi-Ram intake manifold series is designed for Ford 351W engines. This intake manifold is designed for use with aftermarket cylinder heads. OE cylinder heads can also be used, but some modifications may be required. The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions. Warning: Many Ford vehicle models were originally equipped with a heater core flow restrictor located at either the original heater hose fitting in the factory intake or inline in the inlet heater hose which protects the heater core from damage. If you are replacing the hoses between the engine and heater core or changing the factory fitting check to see if your application requires a flow restrictor. Failure to use the proper flow restrictor will likely result in a damaged or leaking heater core.
Description_DES	Holley Black 351W Ford Hi-Ram EFI Manifold

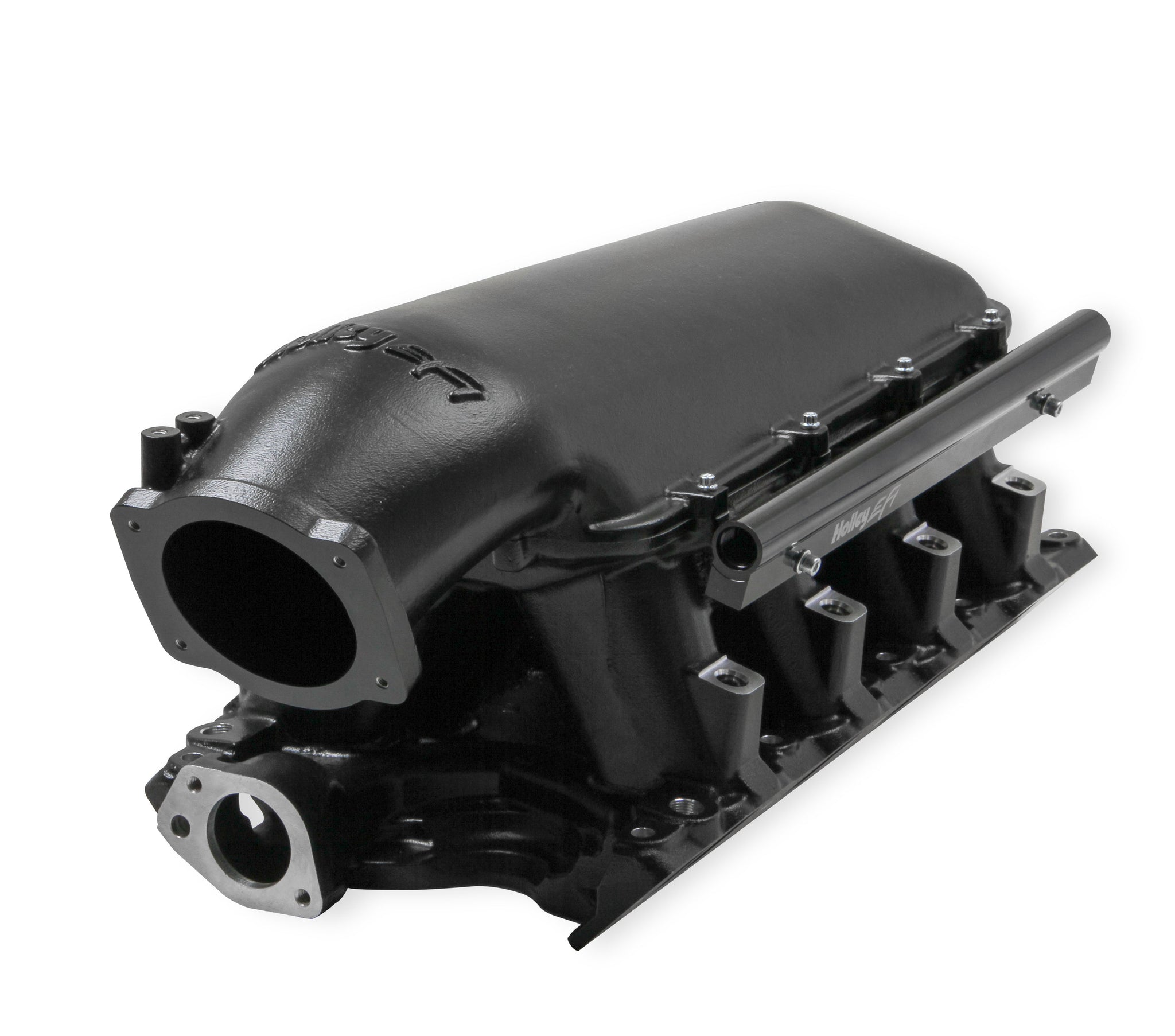

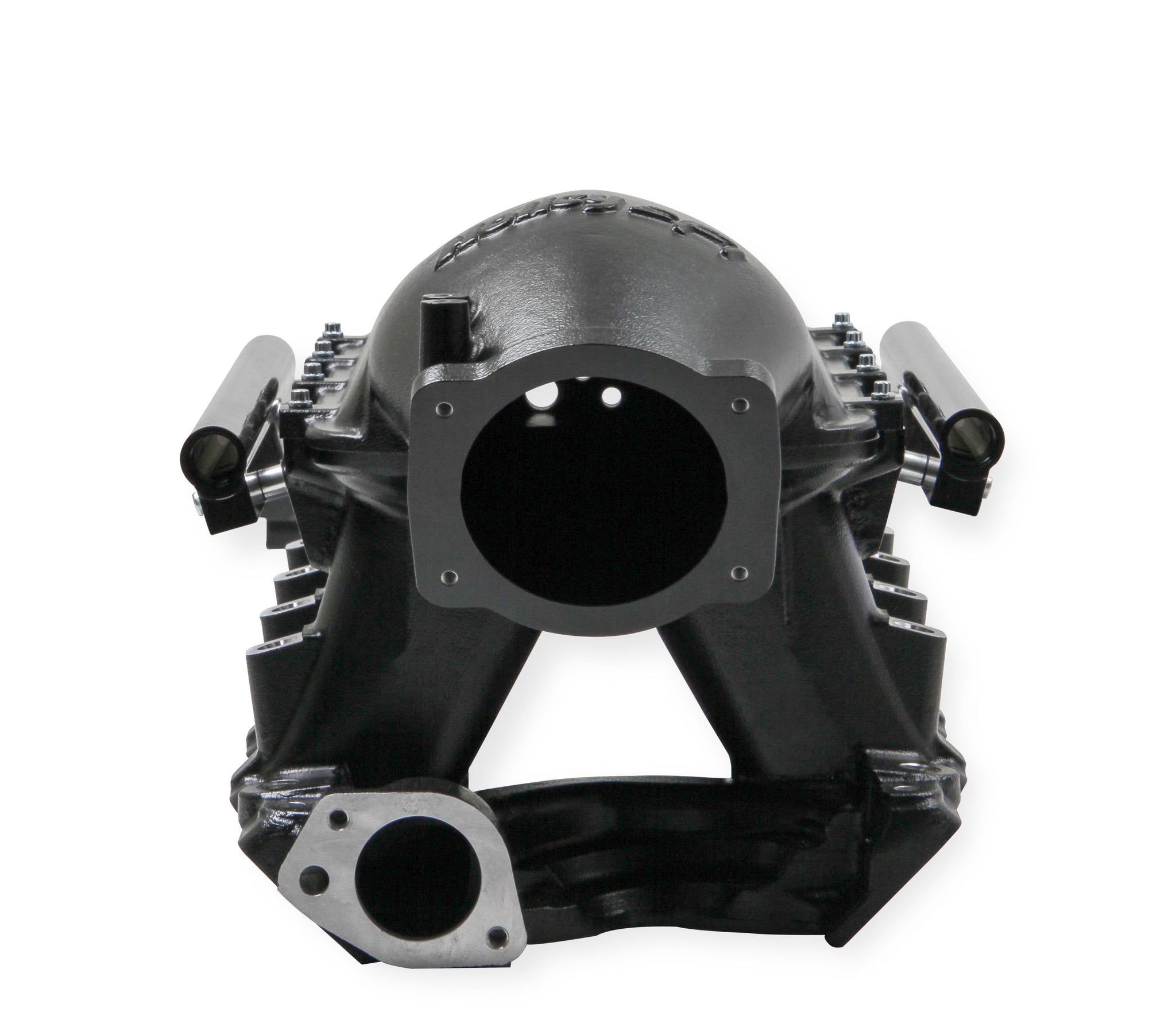

Description_EXT	Black Ford 351W (9.5" Deck) Ford Hi-Ram Intake Manifold with 105mm LS Throttle Body Flange Top.
Description_MKT	• Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations • Cast aluminum construction with black finish. The EFI Hi-Ram manifold line has a new addition for the 351W Ford application. This manifold comes with a 105MM LS throttle body flange top, a 105mm LS throttle body top is also available. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! Manifold is designed for a 9.5" deck height. Manifold Width is 11.32". • EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.

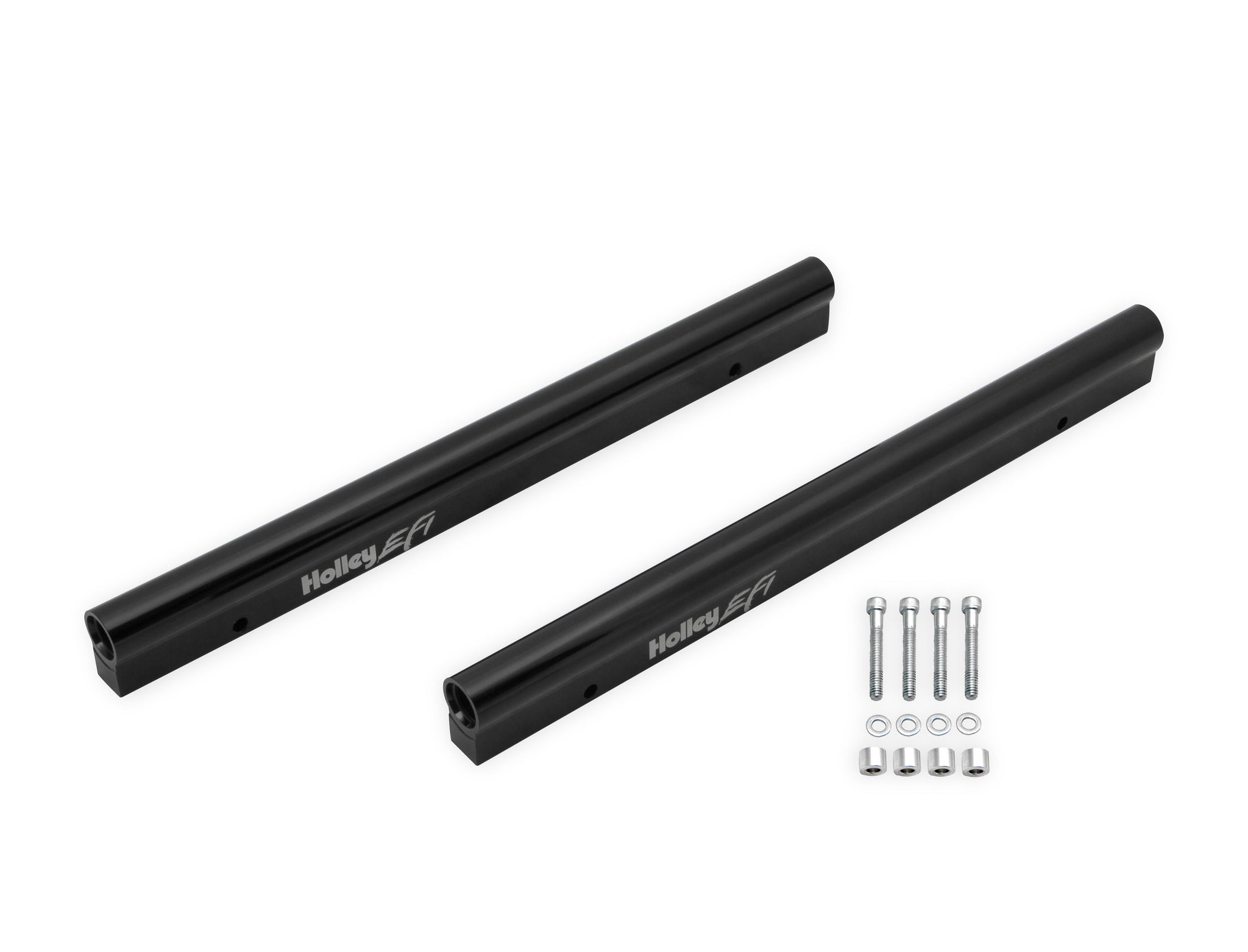

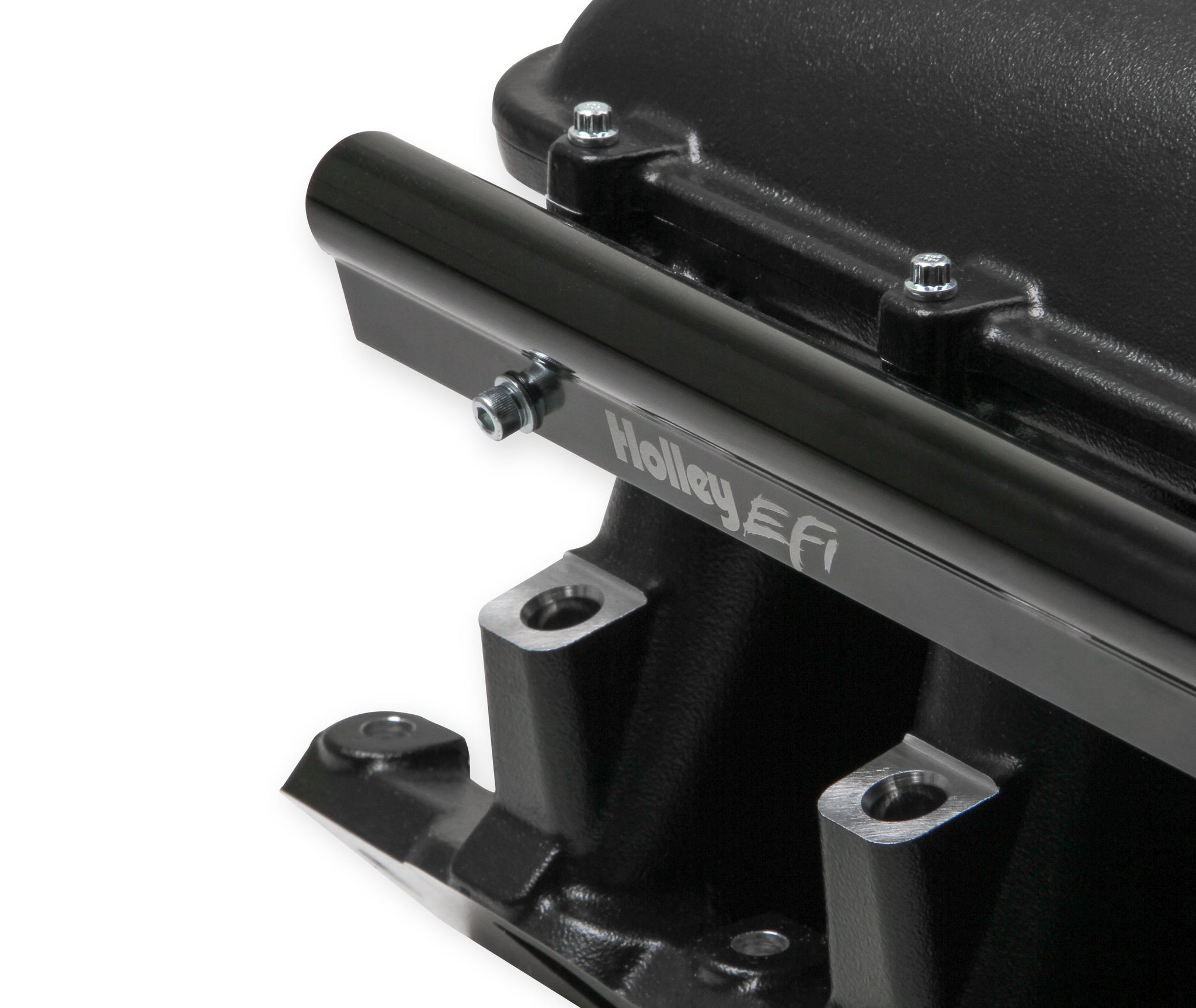

Description_FAB	EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. Manifold is designed for a 9.5" deck height. The 351W manifold is available to work with 105MM GM LS throttle bodies Black Finish Plenum Top Gasket Type – 3/32” Round O-ring Cord Requires the Use of Holley EFI Dual Sync Distributor - 565-111
